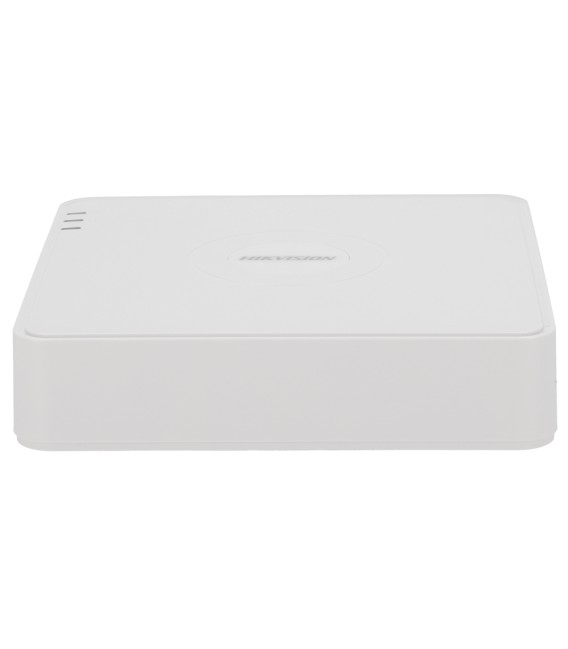

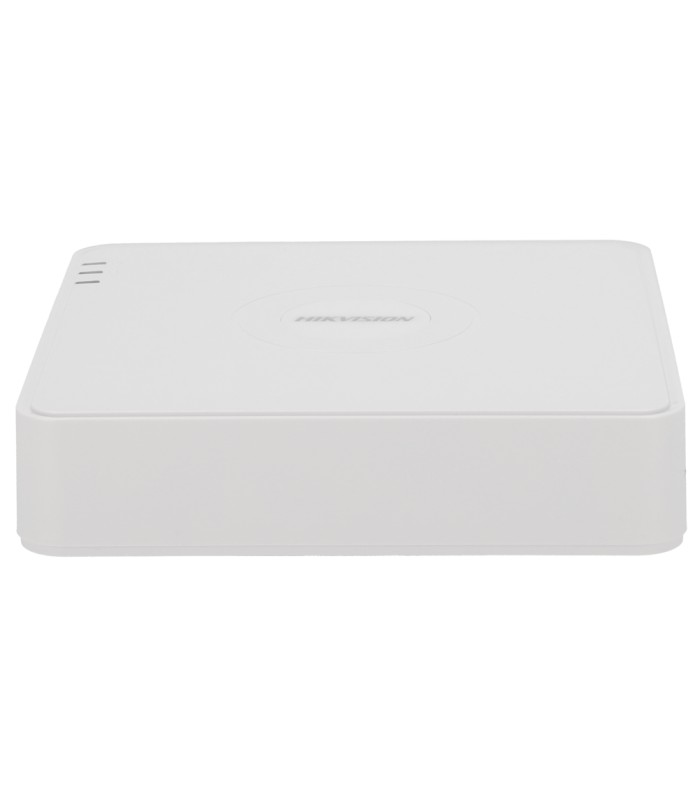

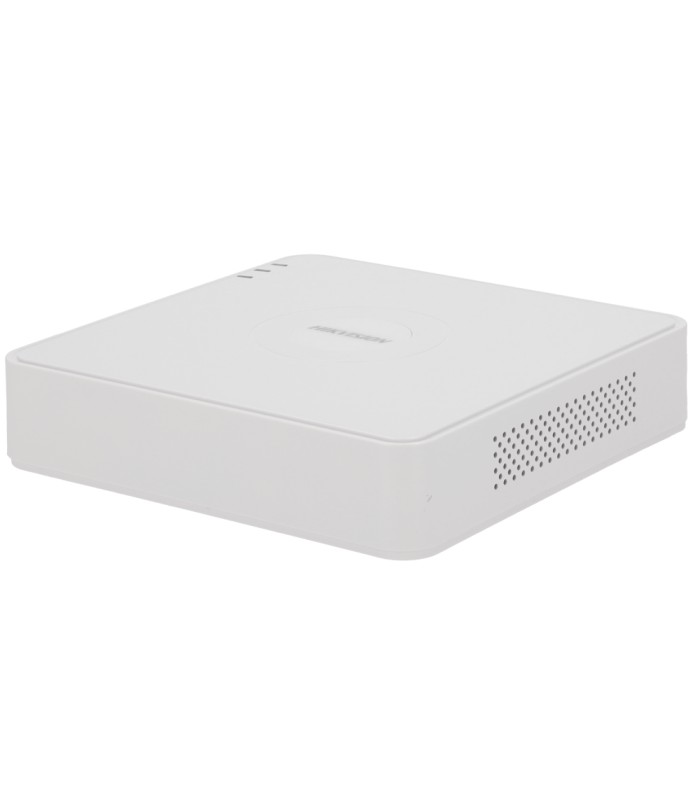

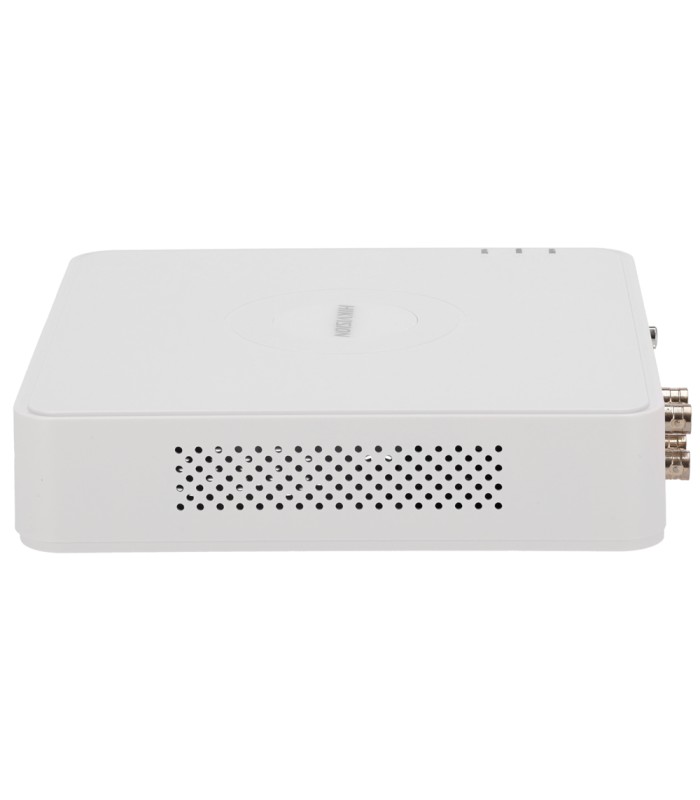

Hikvision DVR 5n1 Value DS-7108HGHI-M1(C)
Brand: HIKVISION VALUE
- Hikvision DVR 5-in-1 VALUE
- 8 CH HDTVI / HDCVI / AHD / CVBS
- Up to 10 IP channels
- Maximum input resolution 1080p Lite
- 2.0 motion detection on all channels
- Supports 1 hard drive up to 4 TB | Audio
Hikvision DVR 5n1 Value DS-7108HGHI-M1(C)
- Hikvision
- VALUE range
- DVR 5n1
- 8 CH video HDTVI/HDCVI/AHD/CVBS
- 2 CH IP (up to 10 CH IP in total by channel replacement analog)
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Maximum input resolution 1080p Lite
- Available bandwidth 72 Mbps
- Audio over coaxial
- Motion detection 2.0 on all analog channels
- Full HD HDMI output and VGA
- Audio input and output
- Space for 1 HDD
- Compact size
- White color
Technical specifications
| Brand | HIKVISION |
| Range | Value |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 2 CH additional IP: Up to 10 IP channels (5 MPx), replacing all BNC channels |
| Available bandwidth | 72 Mbps |

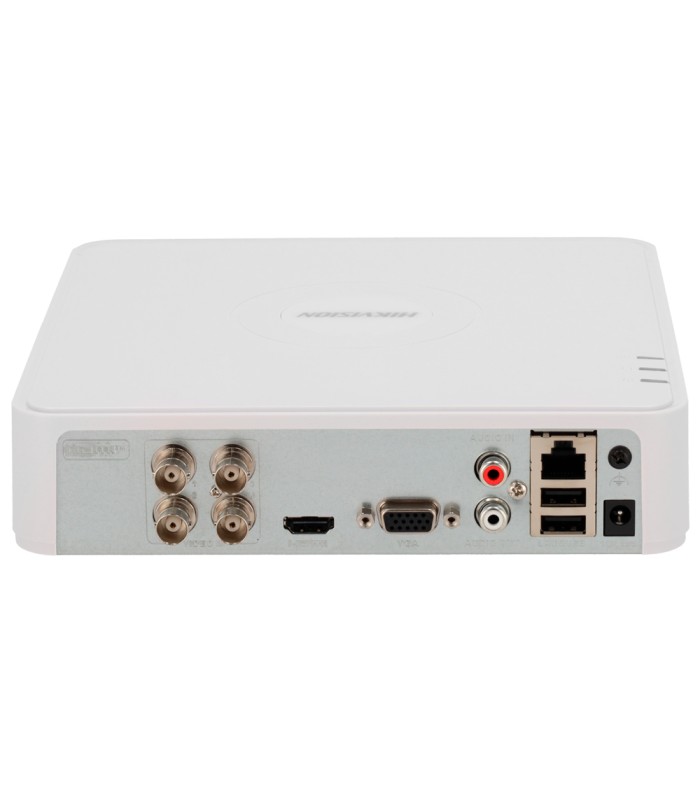

| Video outputs | 1 HDMI Full HD and 1 VGA, simultaneous; |
| Display resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio inputs | 1 RCA channel 8 audio channels per coaxial |
| Audio outputs | 1 Channel RCA |
| Two-way audio | Reusing the audio input |
| Audio Bit Rate | 64 Kbps |
| Audio compression | G.711u |
| Video compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording resolution | 1080p Lite/ 720p/ 720p Lite/ WD1/ 4CIF/ VGA/ CIF |
| Input resolution | HDTVI: 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | For 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (25fps (P), 30fps (N)) (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | CIF/QVGA (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps at 4 Mbps |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied to motion detection. Available on all analog channels. |
| Recording method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal storage | 1 SATA 3.5" HDD up to 4 TB (not included) |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Power | DC 12 V, 1.5 A, ≤ 17 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 45 (H) mm x 200 (W) mm x 200 (Fo) mm / ≤ 1 Kg (without HDD) |
| Color | White |
Contents
- Hikvision 5-in-1 recorder
- Mouse
- AC/DC 12 V adapter
- CD with manual and software
