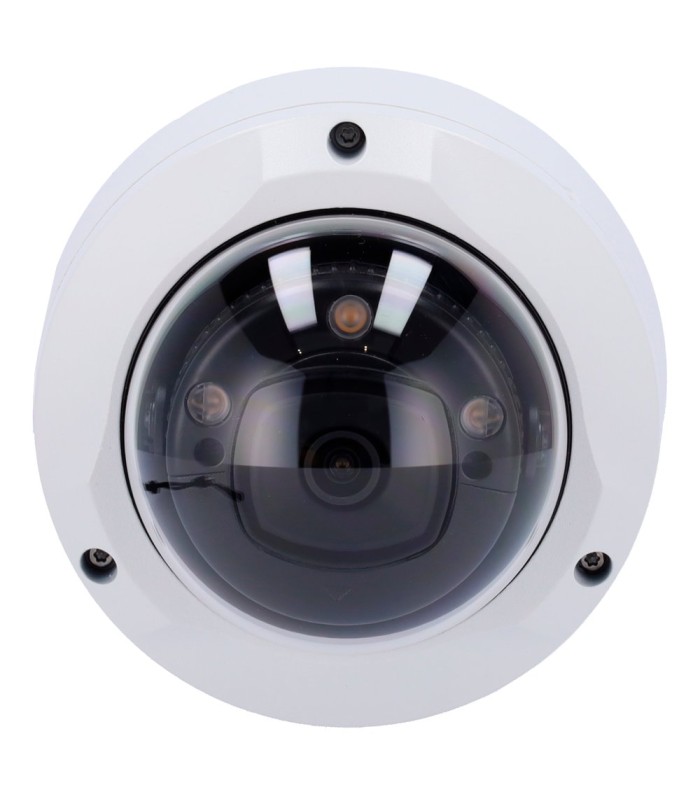

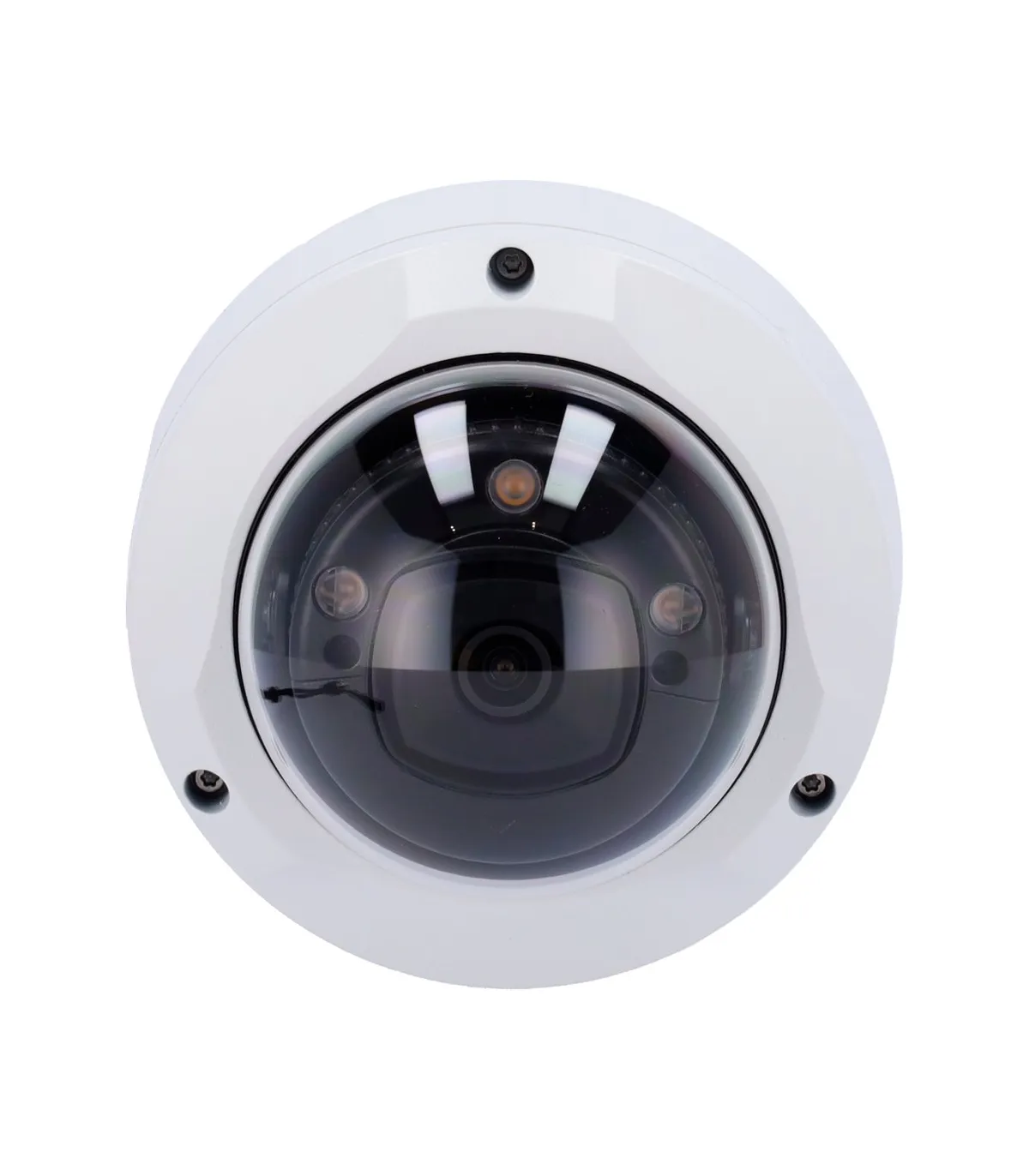

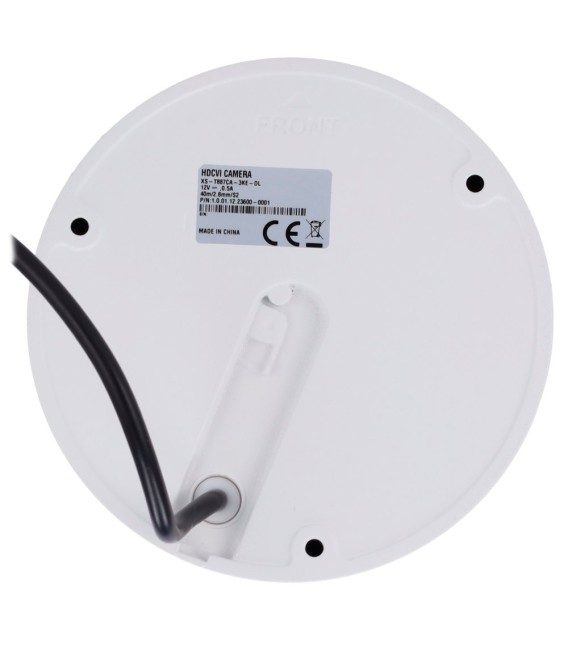

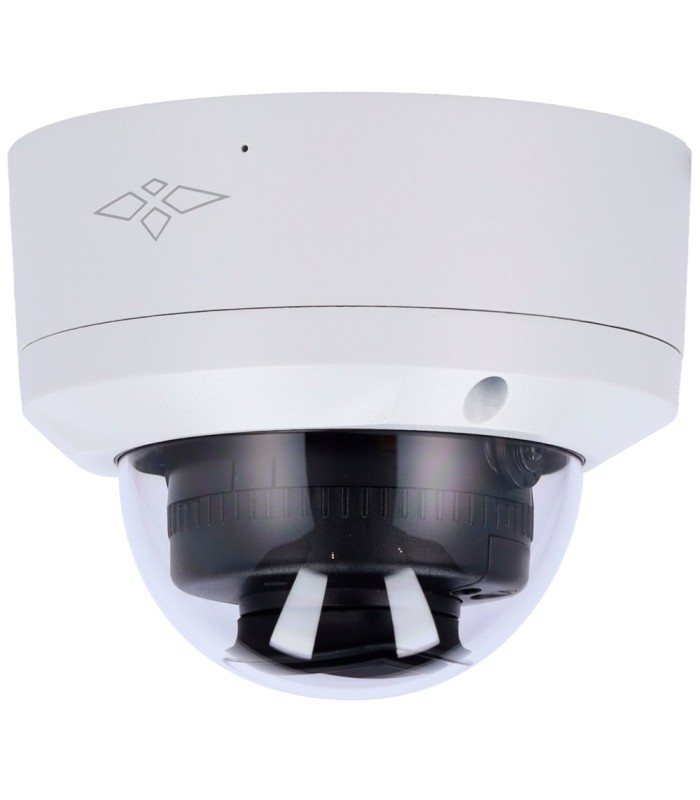

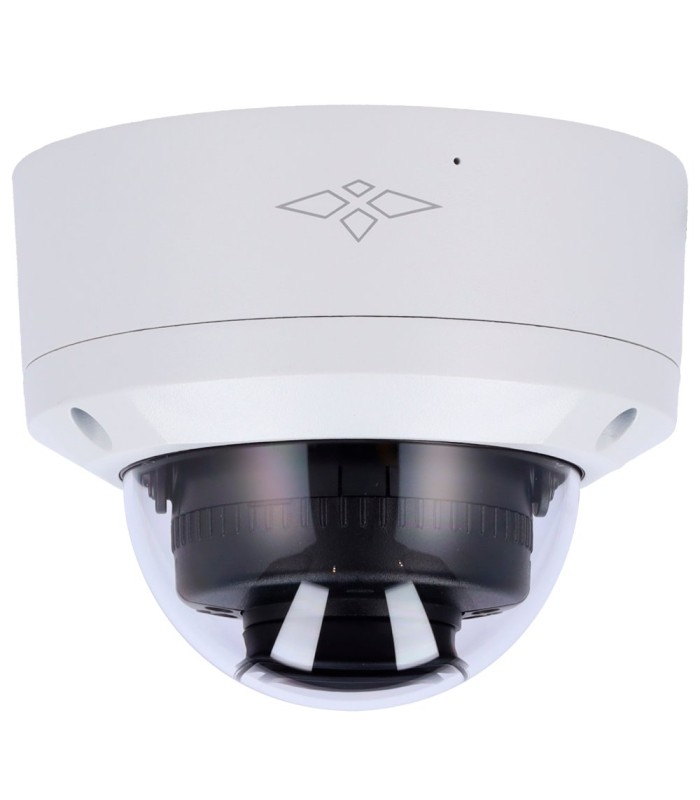

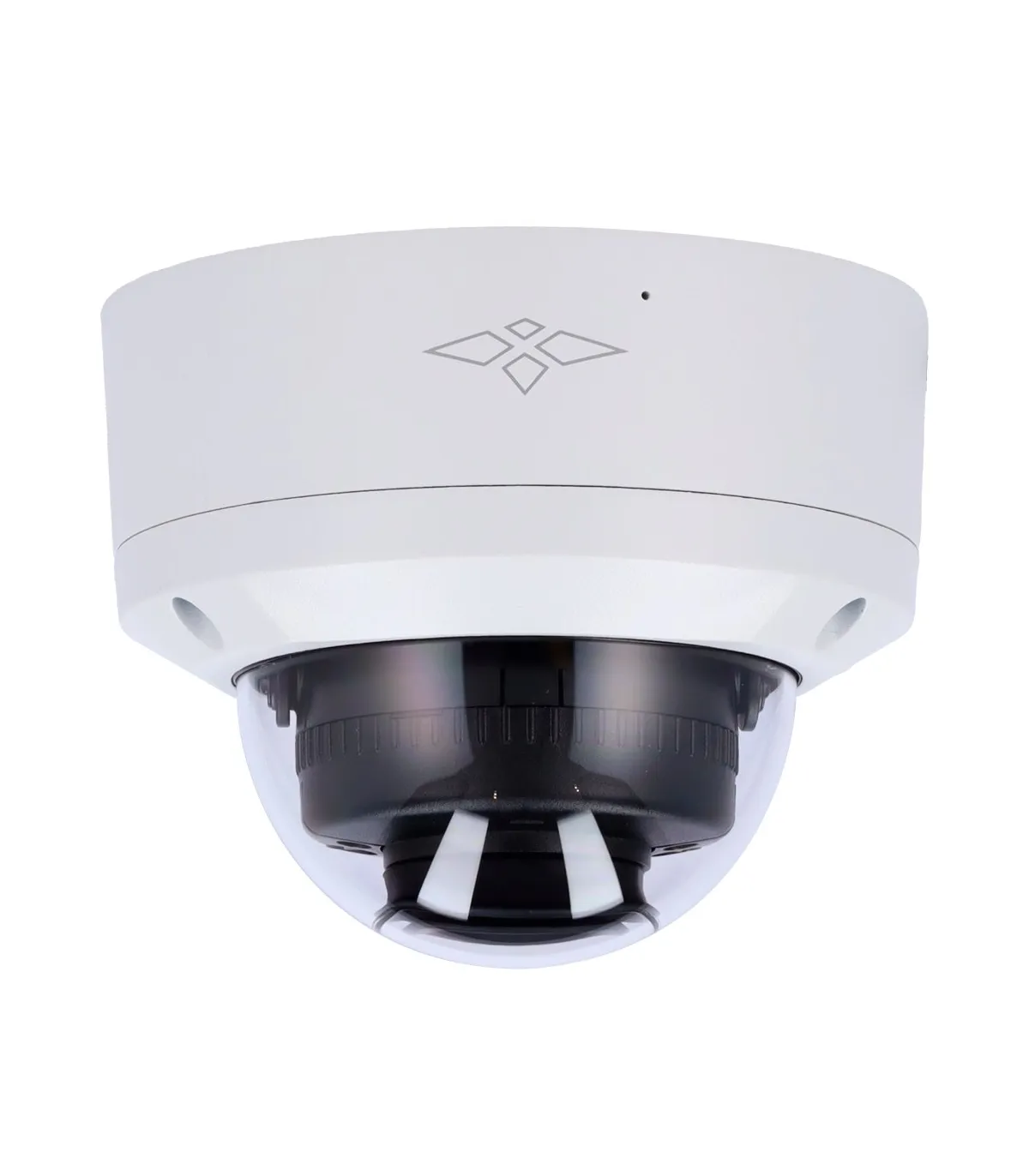

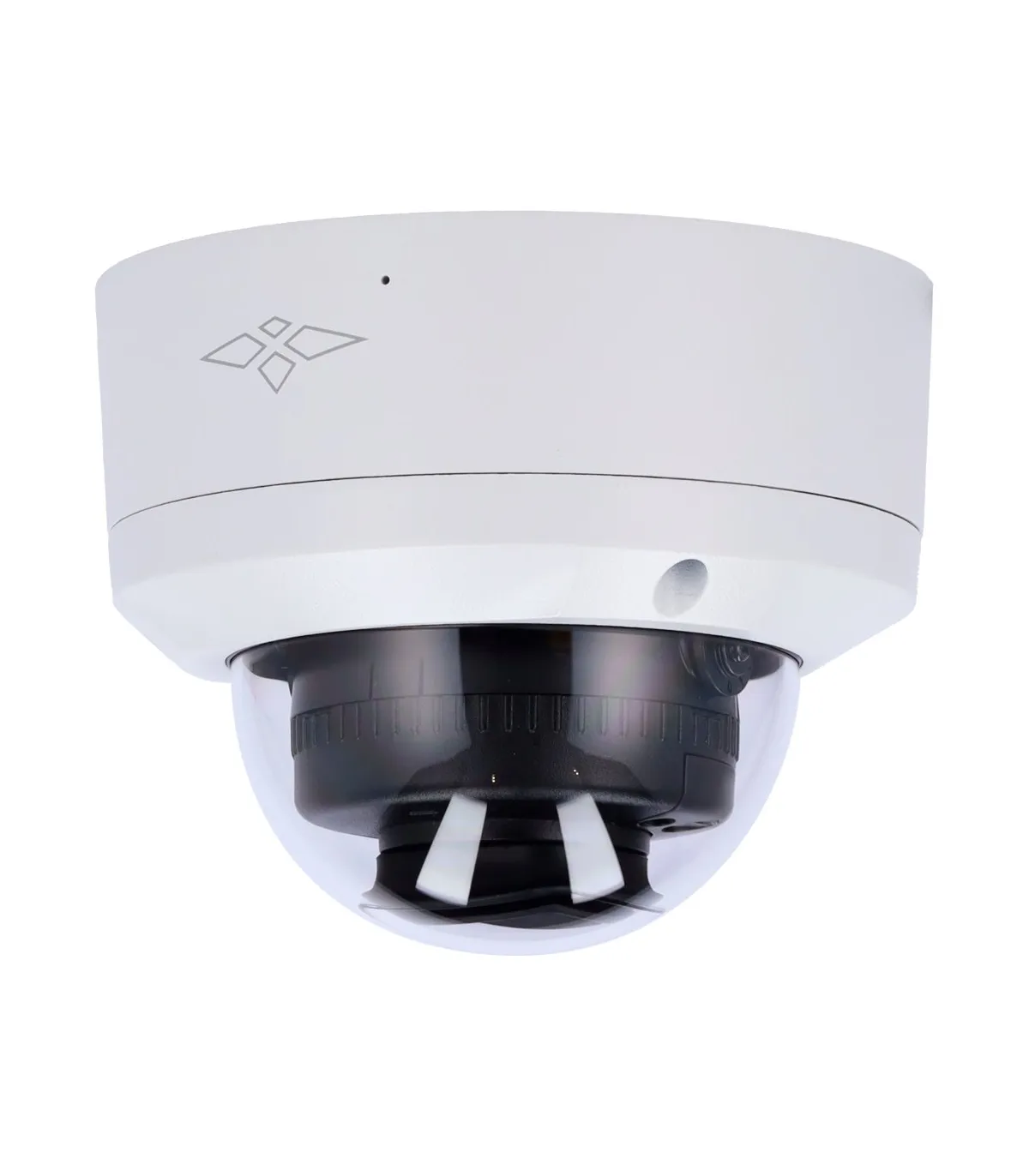

X-Security Dome Camera EASY range XS-T887CA-3KE-DL
Brand: X-SECURITY
- X-Security Dome Camera EASY range
- 4 in 1 output
- 5 MP resolution (2880x1620)
- 2.8 mm lens
- Dual Light with 40 m range | Built-in microphone
X-Security Dome Camera EASY Range XS-T887CA-3KE-DL
- X-Security
- HDTVI, HDCVI, AHD, and Analog Dome Camera
- EASY Range
- Progressive Scan CMOS Sensor
- 5 MP Resolution (2880x1620)
- 4 in 1 Output
- 2.8 mm Lens
- 0 Lux
- Dual Light: IR and White Light
- Dual Light Range 40 m
- IR CUT
- WDR (120 dB)
- 3D-DNR
- Integrated Microphone
- Audio via coaxial in HDCVI technology
- IP67 Waterproof
- IK10 Vandal-proof
- Surge Protection
Technical Specifications
| Brand | X-Security |
| Range | EASY |
| Image Sensor | 5 MPx Progressive CMOS |
| Maximum Resolution | 5 MP (2880x1620) |
| Resolution | CVI: 5MP (25~30 fps), 4MP (25~30 fps), 1080p (25~30 fps) TVI: 4MP (25~30 fps) AHD: 4MP (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 112º, V: 58º, D: 136º |
| DORI | 63.8 m (D), 25.5 m (O), 12.8 m (R), 6.4 m (I) |
| Lens Positioning | 3-axis |
| Minimum Illumination | 0.001 Lux @(F1.0, AGC ON) 0 lux with dual light |
| Supplementary Illumination | Dual Light (IR + White Light) range 40 m |
| Day/Night | Mechanical ICR Filter |
| Electronic Shutter | 1/3~1/100000 s |

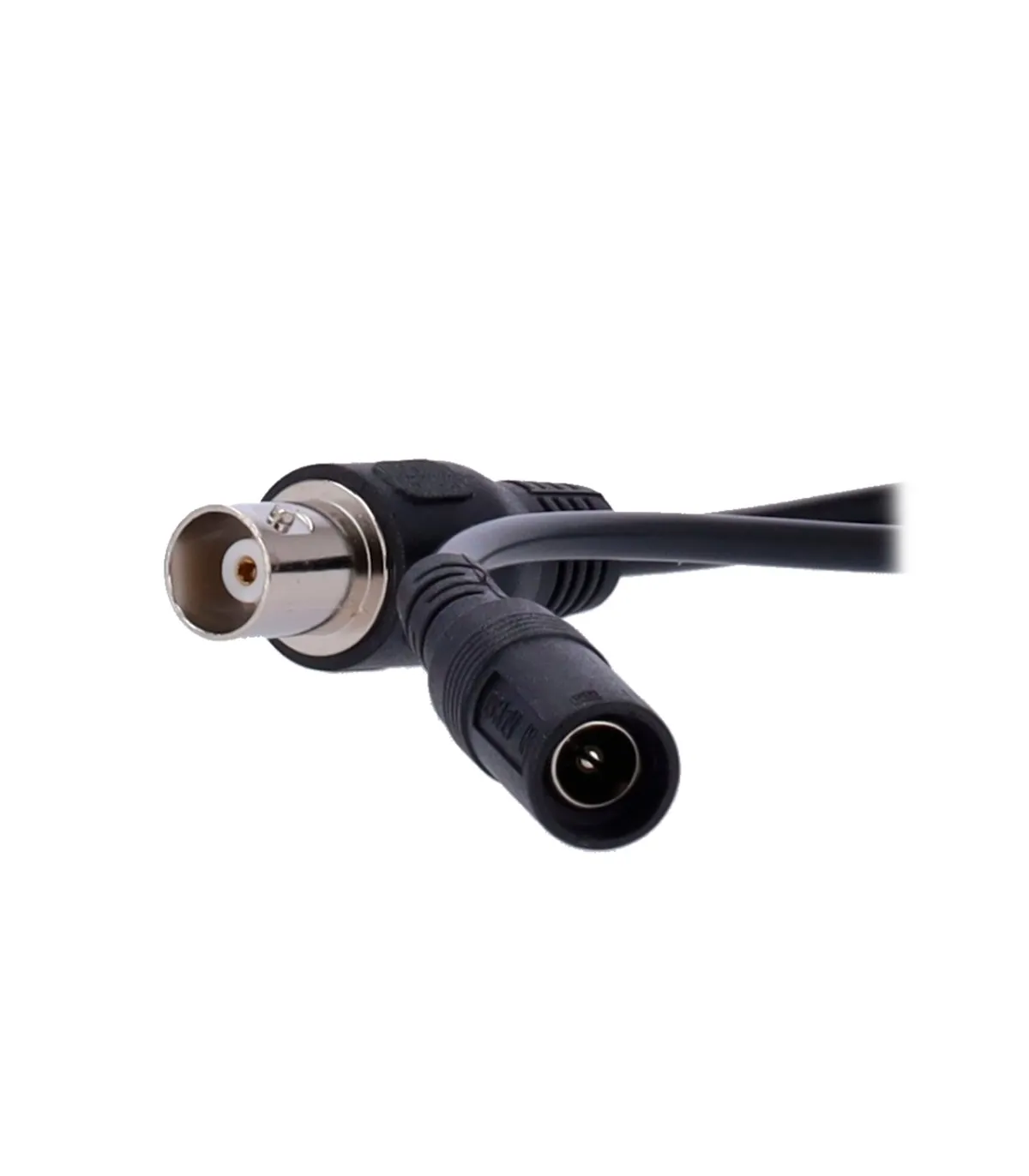

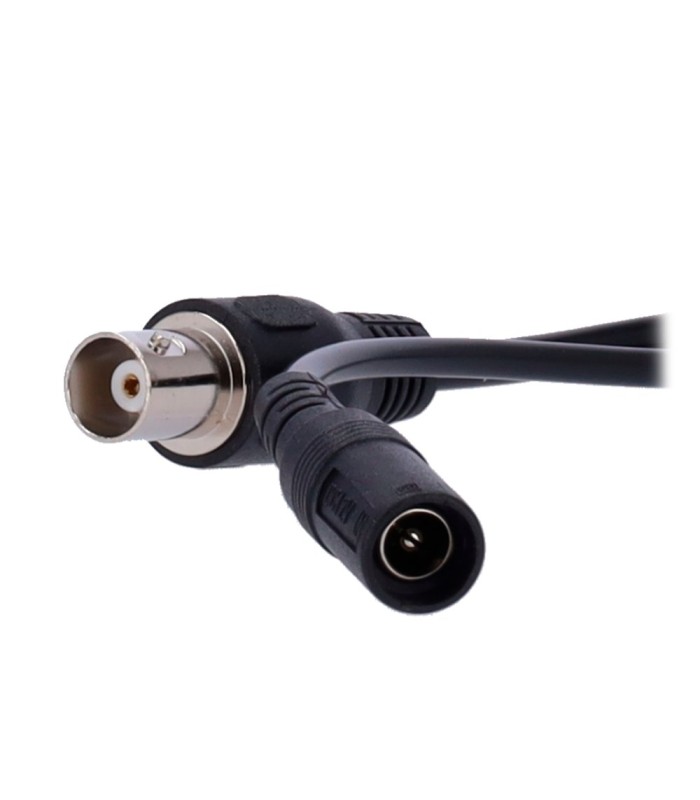

| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Switch |
| Basic Functions | OSD Menu |
| Image Enhancements | WDR (120 dB), 3D-DNR, Smart Light, BLC, HLC, AWB, AGC, Privacy Masking, Mirror Effect |
| Audio | Integrated Microphone Audio via coaxial cable in CVI technology |
| Power | DC 12 V / 6.4 W max. |
| Protection Rating | IP67 Waterproof, IK10 Vandal-proof Surge Protection |
| Material | Metal |
| Operating Temperature | -40º C ~ +60º C |
| Dimensions | Ø 126 mm x 100 mm (H) |

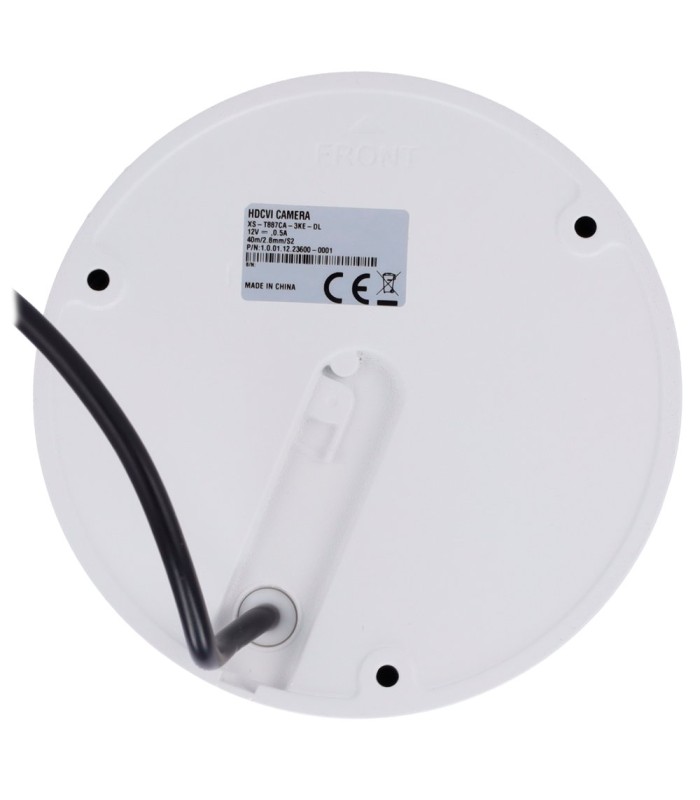

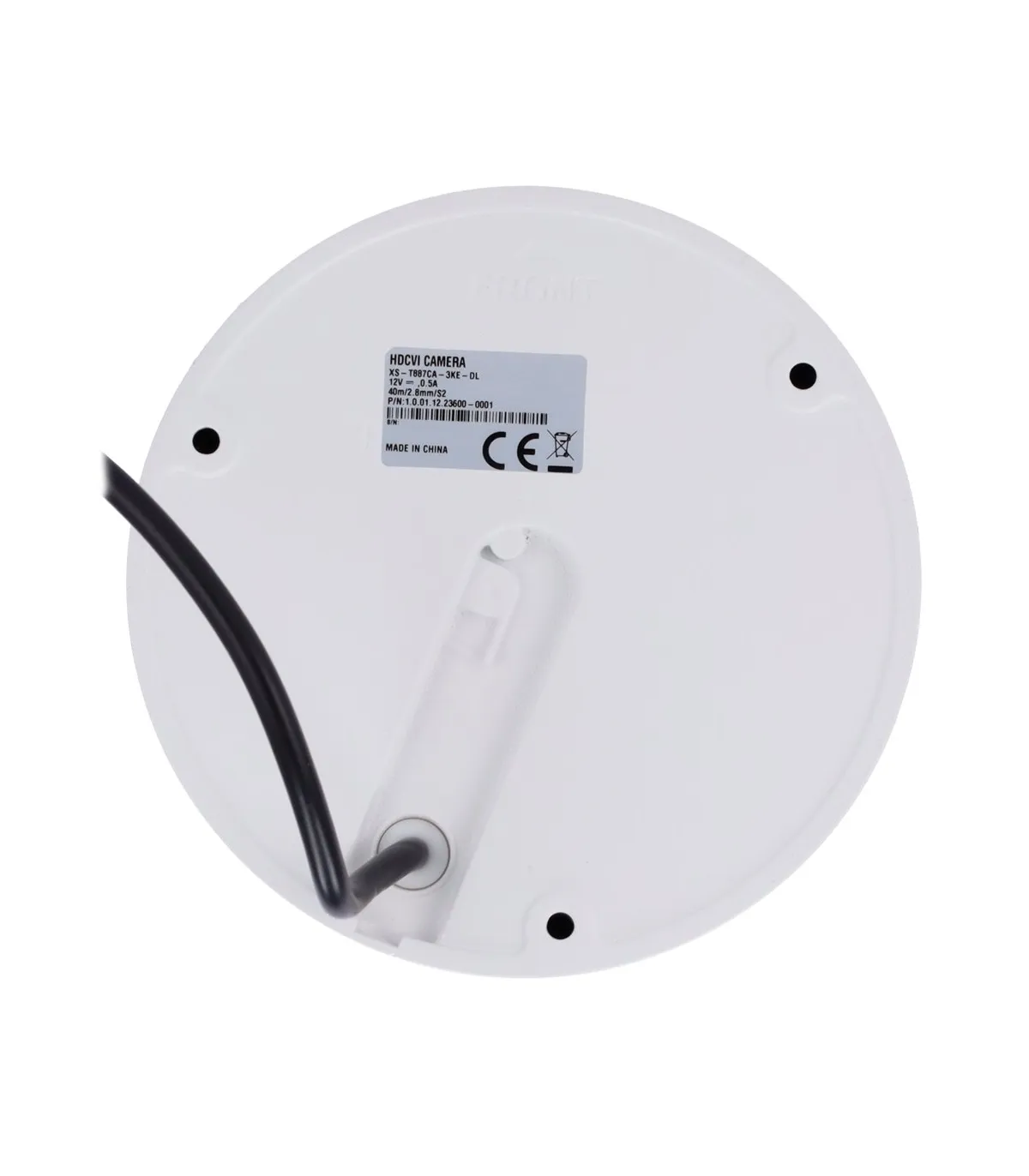

| Base Dimensions | Ø base 126 mm / Ø between screws 110 mm / 3 screws |
| Weight | 590 g |
Contents
- X-SECURITY 4-in-1 Dome Camera
- 3 plugs and 3 screws for mounting
- Installation template
- User manual
