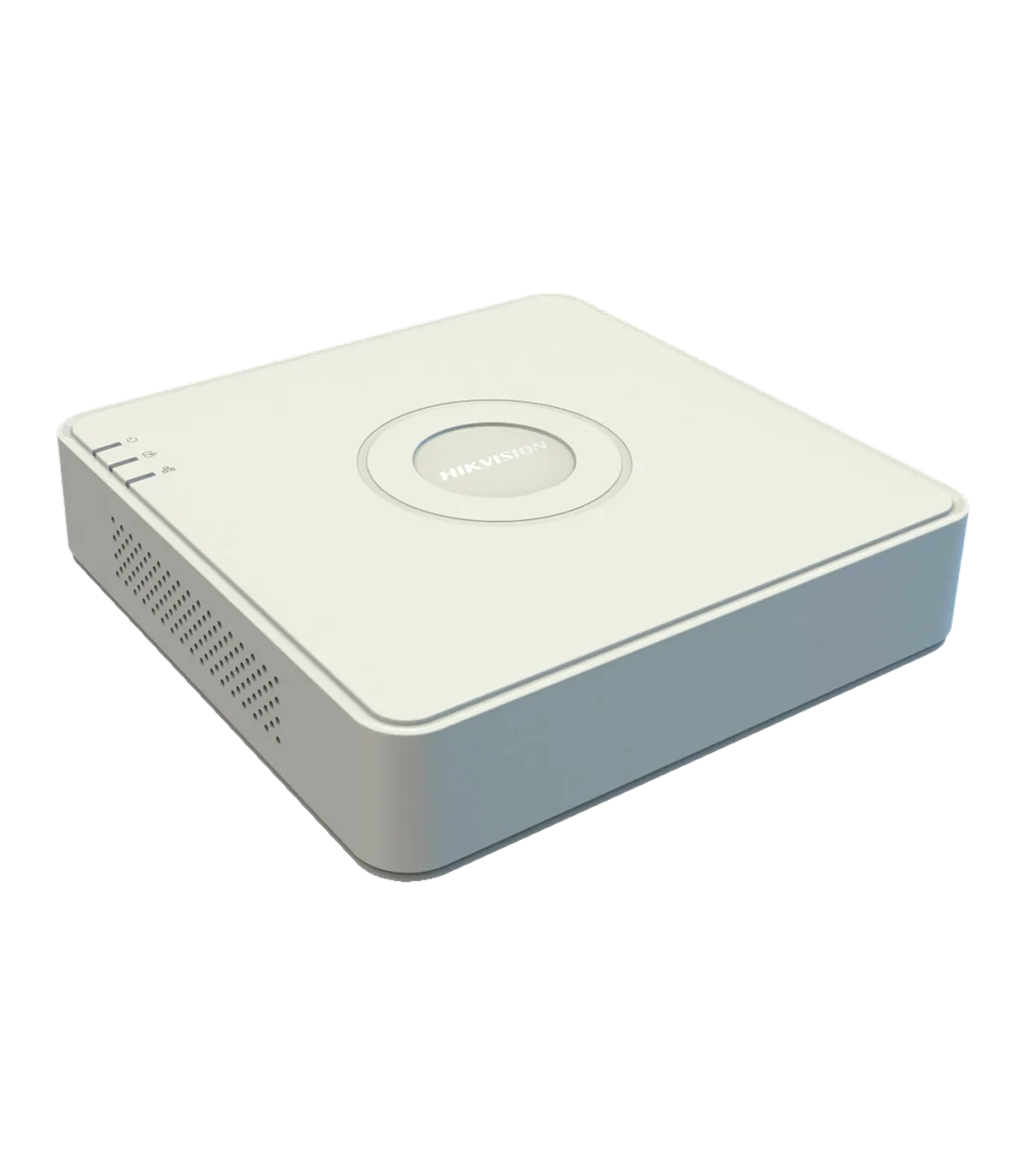

The iDS-7108HUHI-M1/S(E) is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 8 channels of video input through various formats including HDTVI, HDCVI, AHD, and CVBS, along with the capability to connect up to 16 IP cameras. This device is ideal for both residential and commercial applications, providing high-definition video recording with a maximum input resolution of 8MP at 15fps. With advanced features such as motion detection and AcuSense technology, it ensures reliable security monitoring while minimizing false alarms.
| Brand | HIKVISION |
| Range | Value |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 4 additional IP CH: Up to 12 IP channels (8Mpx), replacing all BNC channels Enhanced IP Mode: 8 additional IP CH: Up to 16 IP channels (4Mpx), replacing all BNC channels |
| Available Bandwidth | 128 Mbps |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz |
| Audio Inputs | 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8 MP (3840×2160)@15 fps, 8MP (3840×2160)@12 fps, 3K (2960x1665)@20 fps, 5MP (2560×1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4MP (2560×1440)@30 fps, 4MP (2560×1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps HDCVI: 8 MP (3840×2160)@15 fps, 8MP (3840×2160)@12 fps, 5MP (2592×1944)@20 fps, 4MP (2560×1440)@30 fps, 4MP (2560×1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps AHD: 5 MP (2560×1944)@20 fps, 5 MP(2560×1944)@12 fps, 4 MP (2560×1440)@30 fps, 4MP (2560×1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps CVBS: PAL/NTSC |
| Main Stream Encoding | 8Mpx (8 fps), 3K (12 fps), 5Mpx (12 fps), 4Mpx (15 fps), 3Mpx (18 fps), 1080p /720p/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | WD1/4CIF/CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Artificial Intelligence | Motion detection 2.0: Deep-learning based motion detection can classify humans and vehicles on motion detection. Enabled by default on all analog channels * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense: Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection. Available on up to 4 analog video channels * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Facial Detection and Capture | Supported |
| Perimeter Protection | Up to 4 channels |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD of up to 10 TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 (Ethernet) |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 12 V, 2 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 45 mm (H) x 200 mm (W) x 200 mm (D) / ≤ 1 Kg (without HDD) |
| Color | White |
The iDS-7108HUHI-M1/S(E) is an excellent choice for installers looking to implement a robust security system in retail environments. With its multi-channel support, this DVR can seamlessly integrate various camera types, ensuring comprehensive coverage of the premises. The motion detection 2.0 feature allows for precise monitoring, distinguishing between human and vehicle movements, which is crucial for reducing false alarms. Additionally, the 4K HDMI output provides high-resolution video playback, enhancing the user experience during surveillance reviews. For end users, the ability to access the system remotely via the Hik-Connect app ensures that they can monitor their property from anywhere, providing peace of mind. The compact design of the unit allows for easy installation in tight spaces, making it a versatile solution for various deployment scenarios.
