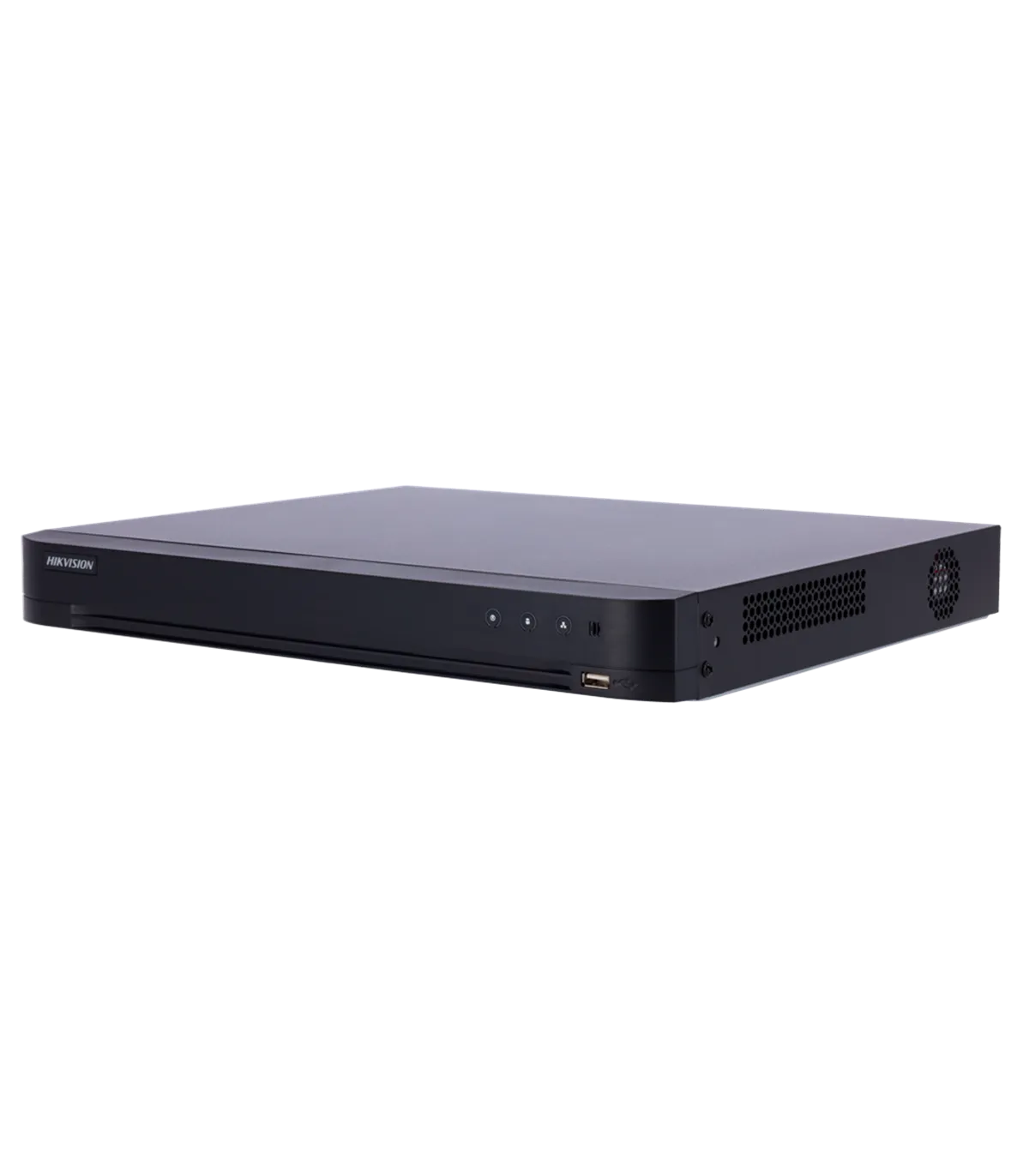

The iDS-7208HUHI-M2/PXT/4A+8/4ALM is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 8 channels of video input from various formats including HDTVI, HDCVI, AHD, and CVBS, along with the capability to connect up to 16 IP cameras. This device is ideal for both residential and commercial applications, providing enhanced security through features such as motion detection, AcuSense technology for false alarm filtering, and facial recognition capabilities. With its advanced compression formats, it ensures efficient storage and high-quality video output.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 8 additional IP CH: Up to 16 IP channels (8 MP), replacing all BNC channels |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 4 RCA Channels 8 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8MP @ 12FPS, 3K (2960x1665)@25FPS, 3K (3328x1504)@20FPS, 5MP @20FPS, 4MP @25FPS, 1080p@25FPS, 720p@25FPS HDCVI: 8MP @ 12FPS, 3K (2880x1620)@25FPS, 5MP @20FPS, 4MP @25FPS, 1080p@25FPS, 720p@25FPS AHD: 5MP @20FPS, 4MP @25FPS, 1080p@25FPS, 720p@25FPS |
| Main Stream Encoding | 8MP@8 FPS; 3K@12 FPS, 5MP@12 FPS; 4MP @15 FPS; 8MP Lite@15 FPS; 3MP@18 FPS; 1080p /720p/WD1/4CIF/VGA/CIF@25 FPS(P) |
| Extra Stream Encoding | WD1 / 4CIF / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection Available on all analog channels |
| AcuSense | AcuSense: Perimeter protection based on VCA rules with false alarm filtering for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 8 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Facial Recognition | Up to 16 facial libraries; Up to 4 cameras for image comparison alarm (HD analog camera) |
| Facial Detection | Facial detection; photo search; Up to 4 channels for image capture. |
| Alarms | 8 inputs / 4 outputs |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 2 SATA 3.5" HDDs of up to 12 TB each (not included) |
| Communication | 2 x USB 3.0 (rear panel) / 1 x USB 2.0 (front panel) / RS-485 / RJ45 (Ethernet) |
| Bandwidth | 256 Mbps |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 48 V, 2.5 A, ≤ 20 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 384 (W) x 313 (D) x 52 (H) mm |
| Weight | ≤ 1.78 Kg (without HDD) |
The iDS-7208HUHI-M2/PXT/4A+8/4ALM is ideally suited for a variety of surveillance environments, such as retail stores, office buildings, and residential complexes. Installers can leverage its 5-in-1 DVR capabilities to integrate multiple camera types seamlessly, ensuring comprehensive coverage. With features like motion detection 2.0 and AcuSense technology, users can minimize false alarms while enhancing security measures. The device's ability to support facial recognition and remote monitoring through web browsers and mobile apps allows for real-time alerts and easy access to footage. This makes it an excellent choice for businesses looking to enhance their security infrastructure while maintaining user-friendly operation.
