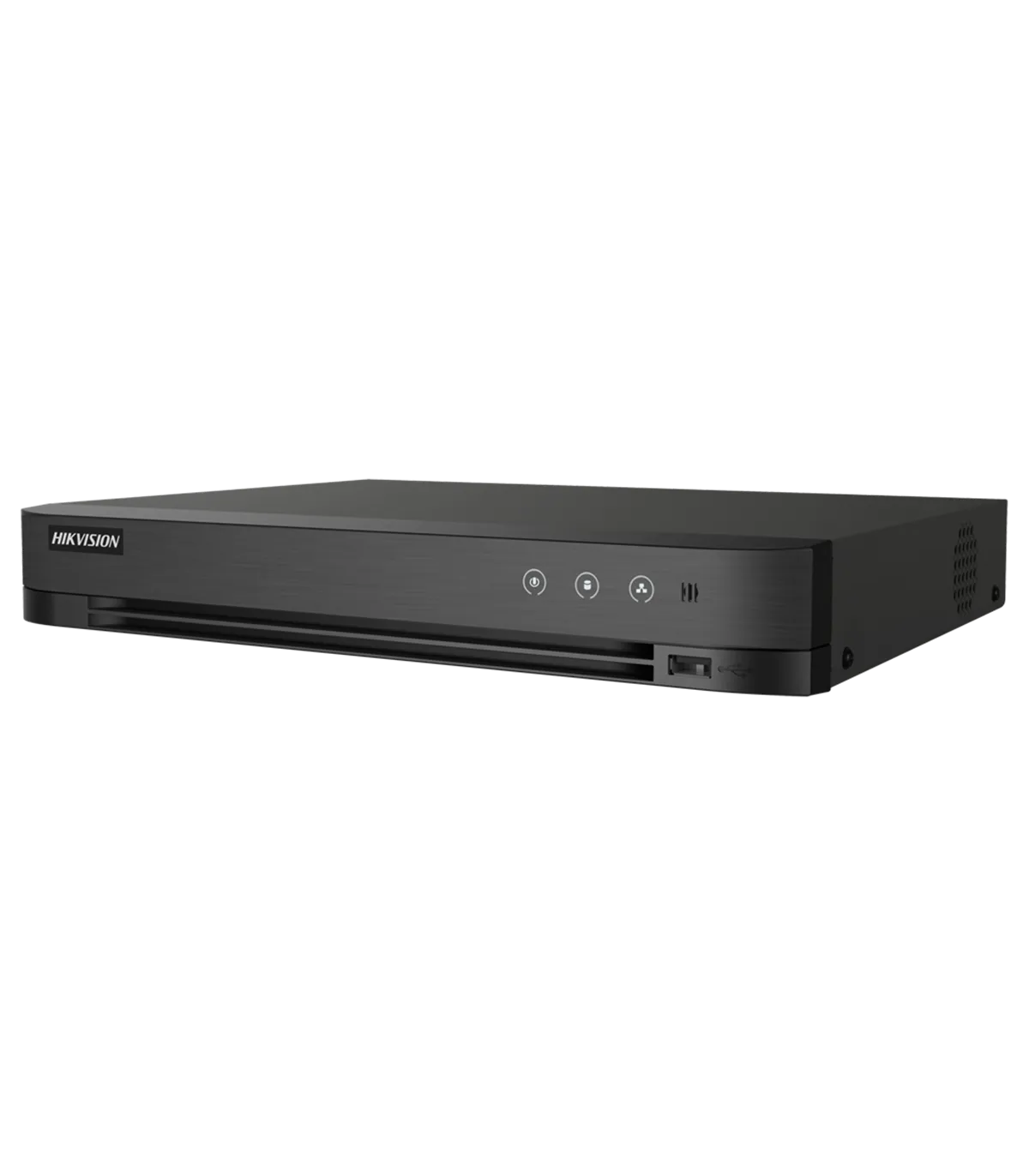

The iDS-7204HUHI-M1/P(C)/4A+4/1ALM is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports multiple video formats including HDTVI, HDCVI, AHD, CVBS, and IP, making it ideal for various installation environments. With advanced features such as motion detection and AcuSense technology, this device is perfect for enhancing security in residential and commercial settings.
| Brand | HIKVISION |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2 additional IP CH: Up to 6 IP channels (8Mpx), replacing all BNC channels Enhanced IP mode: 4 additional IP CH: Up to 8 IP channels (8Mpx), replacing all BNC channels |
| Available Bandwidth | 96 Mbps |
| PoC Power | Up to 4 PoC AT channels (12 W) |
| Video Outputs | 1 HDMI 2K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 4 RCA Channels |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8Mpx (15 fps), 3K (5Mpx 16:9) (20 fps), 4Mpx (25~30 fps), 3Mpx (18 fps), 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5MPx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 8Mpx (8 fps), 3K (12 fps), 5Mpx (12 fps), 4Mpx (15 fps), 3Mpx (18 fps), 1080p /720p/WD1/4CIF/VGA/CIF (25 fps) (P) * 8Mpx (8 fps) is only available for channel 1 |
| Extra Stream Encoding | WD1/4CIF/CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 4 Inputs / 1 Output |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection, can classify humans and vehicles on motion detection. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Artificial Intelligence | AcuSense: Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 (Ethernet) / RS-485 half-duplex |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 48 V, 1.35 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 315 mm (W) x 242 mm (D) x 45 mm (H) / ≤ 2.2 Kg (without HDD) |
The iDS-7204HUHI-M1/P(C)/4A+4/1ALM is ideally suited for a variety of surveillance applications, including retail stores, warehouses, and residential properties. In a retail environment, for instance, the device can be deployed to monitor customer activity and deter theft. With its 4-channel video input and support for 8 IP cameras, it provides comprehensive coverage of the premises. The motion detection 2.0 feature enhances security by accurately identifying human and vehicle movements, reducing false alarms. Additionally, the remote access capabilities allow users to monitor their property in real-time via a web browser or mobile app, ensuring peace of mind. The dual video output options (HDMI and VGA) facilitate easy integration with existing display systems, making it a flexible choice for installers. Overall, the iDS-7204HUHI-M1/P(C)/4A+4/1ALM offers a robust solution for effective surveillance management.
