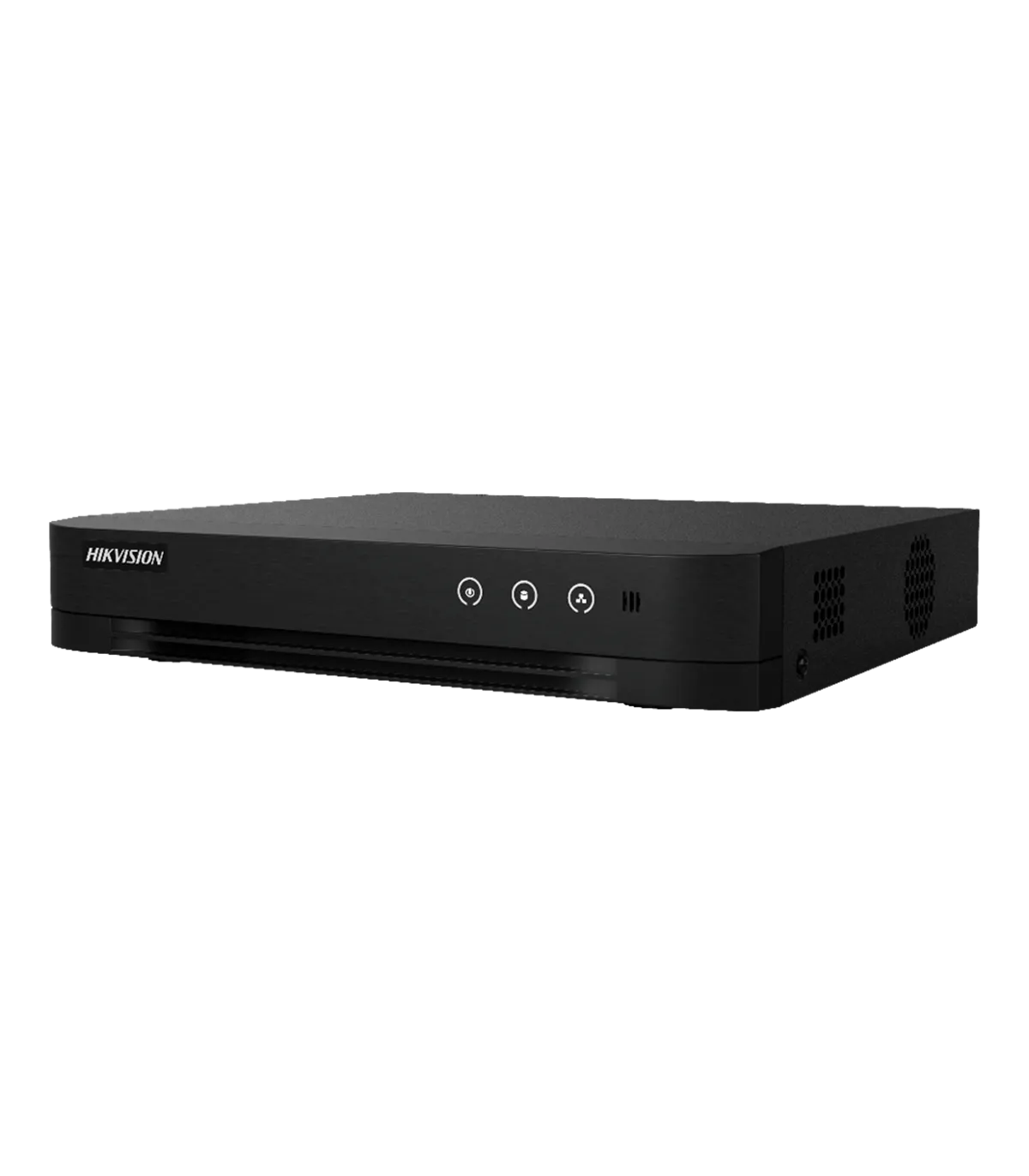

The iDS-7208HUHI-M1/E(C) is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it suitable for various security applications. With a maximum input resolution of 4K at 15fps, this device is ideal for installations requiring high-quality video capture and playback.
| Brand | HIKVISION |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 4 additional IP CH: Up to 12 IP channels (8 MP), replacing all BNC channels Enhanced IP mode: 8 additional IP CH: Up to 16 IP channels (8 MP), replacing all BNC channels |
| Available Bandwidth | 128 Mbps |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8MP @ 15FPS, 3K (5MP 16:9) @ 20FPS, 4MP @ 30FPS, 4MP @ 25FPS, 3MP @ 18FPS, 1080p @ 30FPS, 1080p @ 25FPS, 720p @ 60FPS, 720p @ 50FPS, 720p @ 30FPS, 720p @ 25FPS |
| Main Stream Encoding | 8MP @ 8 FPS; 3K @ 12 FPS; 5MP @ 12 FPS; 4MP @ 15 FPS; 3MP @ 18 FPS; 1080p / 720p / WD1 / 4CIF / VGA / CIF @ 25 FPS (P) |
| Extra Stream Encoding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection can classify humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Artificial Intelligence | AcuSense: Perimeter protection based on VCA rules with false alarm filtering for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 2 x USB (Mouse and backup) / Remote control / RJ45 (Ethernet) |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 2 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 256 (W) x 225 (D) x 48 (H) mm / ≤ 1.6 Kg (without HDD) |
The iDS-7208HUHI-M1/E(C) is an excellent choice for both residential and commercial security installations. For instance, a retail store can utilize this 5-in-1 DVR to monitor multiple areas simultaneously, ensuring comprehensive coverage. With its 4K video output, store owners can capture high-resolution footage, which is crucial for identifying potential theft or vandalism. The device's motion detection 2.0 feature allows for precise alerts, distinguishing between human and vehicle movements, thus reducing false alarms. Additionally, the remote access capability enables store managers to monitor live feeds from anywhere using the Hik-Connect app, enhancing security management. The pentaplex functionality allows for simultaneous recording, playback, and remote access, making it a versatile solution for modern security needs. Overall, the iDS-7208HUHI-M1/E(C) provides a robust and efficient surveillance solution tailored for various environments.
