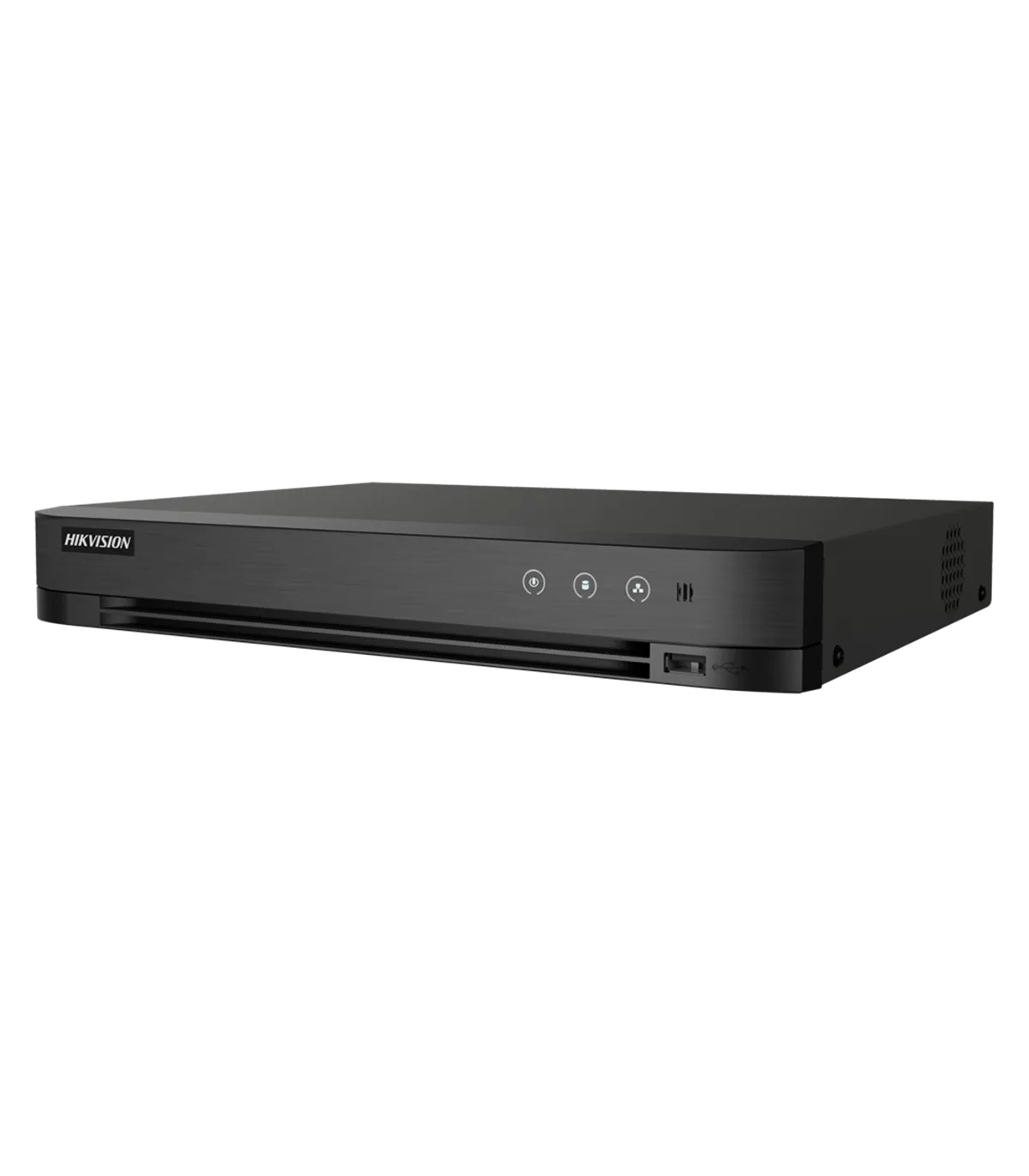

The iDS-7204HUHI-M1/X/4A+4/1ALM is a versatile DVR designed for advanced video surveillance applications. This device is ideal for both residential and commercial settings, providing robust security solutions with its 5-in-1 capability, supporting multiple video formats. With features such as motion detection and face recognition, it ensures comprehensive monitoring and enhanced safety. The device is particularly suited for environments requiring high-definition video quality and intelligent analytics.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2CH IP, additional: Up to 6 IP channels (8 Mpx), replacing all BNC channels Up to 8 IP channels in advanced mode |
| Video Outputs | 1 HDMI 2K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 1 RCA Channel 4 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing the audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8Mpx (12~15 fps), 3K (2960x1665) (25~20 fps), 3K (3328x1504) (20 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 8Mpx (12~15 fps), 3K (2880x1620) (25 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 8 Mpx (8 FPS), 3K (12 FPS), 5 Mpx (12 FPS), 4 Mpx (15 FPS), 8 Mpx Lite (15 FPS), 3 Mpx (18 FPS), 1080p/720p/WD1/4CIF/VGA/CIF (25 FPS) *8 Mpx at 8 fps is only available for channel 1. 8 Mpx Lite is only available for channels 2 to 4. |
| Extra Stream Encoding | WD1 / 4CIF / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 4 inputs / 1 output |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection, capable of classifying humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense: Perimeter protection based on VCA rules with false alarm filtering for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Recognition | Face image comparison, searching images with faces on up to 2 channels. Up to 16 face libraries. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 1xUSB 2.0 (front), 1xUSB 2.0 (rear) / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex |
| Bandwidth | 96 Mbps |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1.5A, ≤ 10 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 48 (H) mm x 319 (W) mm x 235 (D) mm |
| Weight | ≤ 1.16 Kg |
The iDS-7204HUHI-M1/X/4A+4/1ALM is an excellent choice for a variety of surveillance applications, particularly in retail environments where security is paramount. For instance, a retail store can deploy this 5-in-1 DVR to monitor multiple entry points and high-traffic areas. With its motion detection 2.0 feature, the system can intelligently differentiate between human and vehicle movements, reducing false alarms and enhancing security. Additionally, the face recognition capability allows for tracking known individuals, which can be crucial for loss prevention strategies. The device's remote access functionality enables store managers to monitor live feeds from anywhere, ensuring peace of mind. Furthermore, the HDMI output allows for high-definition display on monitors, providing clear visuals for security personnel. Overall, the iDS-7204HUHI-M1/X/4A+4/1ALM offers a comprehensive solution for effective surveillance and security management.
