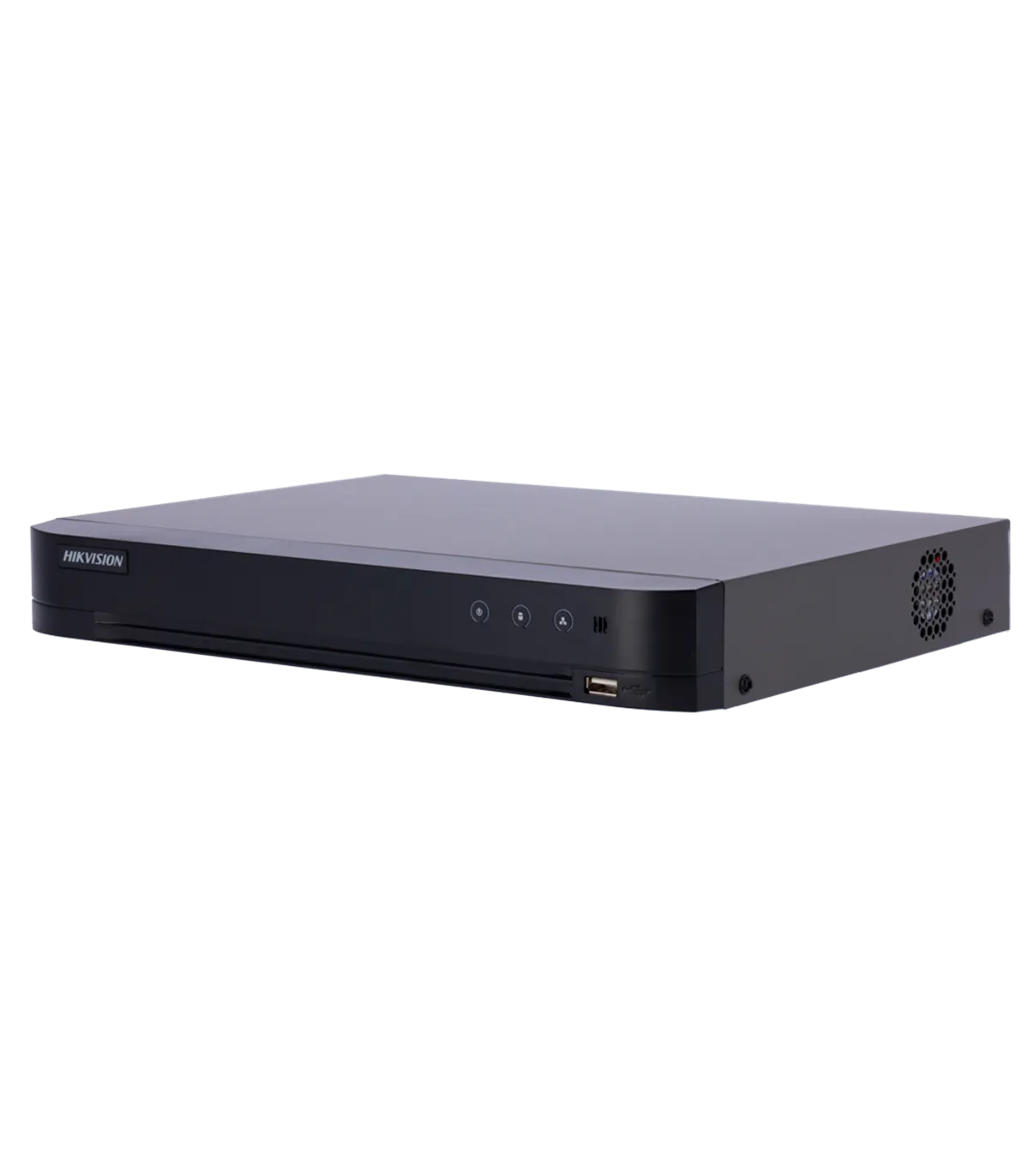

The iDS-7208HQHI-M2/XT is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports up to 8 channels of video input, accommodating various formats such as HDTVI, HDCVI, AHD, and CVBS, along with 12 IP channels. This device is ideal for both residential and commercial applications, providing advanced features like motion detection and face recognition to enhance security measures.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2CH additional IP: Up to 10 IP channels (6 Mpx), replacing all BNC channels Enhanced IP mode: 4CH additional IP: Up to 12 IP channels (6 Mpx), replacing all BNC channels * Enhanced IP mode may conflict with smart events (motion detection 2.0, AcuSense, or face recognition). |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 1 RCA Channel 8 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | With 1080p Lite mode disabled: 3K Lite / 5 Mpx Lite / 4Mpx Lite / 1080p / 720p / WD1 / 4CIF / VGA / CIF With 1080p Lite mode enabled: 3K Lite / 5Mpx Lite / 4Mpx Lite / 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Input Resolution | HDTVI: 3K (20 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 1080P Lite disabled 3K Stream: 3K Lite (12 FPS), 4 Mpx Lite/1080p (15 FPS); 720p/WD1/4CIF/VGA/CIF (20 FPS) 5 Mpx Stream: 5 Mpx Lite (12 FPS), 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (20 FPS) 4 Mpx Stream: 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (25 FPS) 1080p Stream: 1080p/720p (15 FPS); VGA/WD1/4CIF/CIF (25 FPS) (P) 720p Stream: 720p/VGA/WD1/4CIF/CIF (25 FPS) (P) 1080P Lite enabled 3K Lite/4 Mpx Lite (12 FPS), 4 Mpx lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF (25 FPS) (P) |
| Extra Stream Encoding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection can classify humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Features | AcuSense: Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Recognition | Face image comparison, searching images with faces on up to 2 channels. Up to 16 face libraries. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 2 SATA 3.5" HDDs up to 10 TB (not included) |
| Communication | 1xUSB 2.0 (front), 1xUSB 2.0 (rear) / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex |
| Bandwidth | 96 Mbps |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 2.5A, ≤ 30 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 48 (H) mm x 380 (W) mm x 320 (D) mm / ≤ 1.78 Kg |
The iDS-7208HQHI-M2/XT is an excellent choice for installers looking to set up a comprehensive security system in retail environments. With its ability to support up to 8 channels of video input, this multi-format DVR allows for seamless integration of existing cameras, ensuring a cost-effective upgrade path. The device's motion detection 2.0 feature utilizes advanced deep-learning algorithms to accurately identify and classify human and vehicle movements, significantly reducing false alarms. Additionally, the face recognition capability enhances security by enabling quick identification of individuals across multiple channels. For end users, the convenience of remote monitoring through web browsers and mobile applications ensures that they can keep an eye on their premises from anywhere. This combination of features makes the iDS-7208HQHI-M2/XT a robust solution for enhancing security in various settings.
