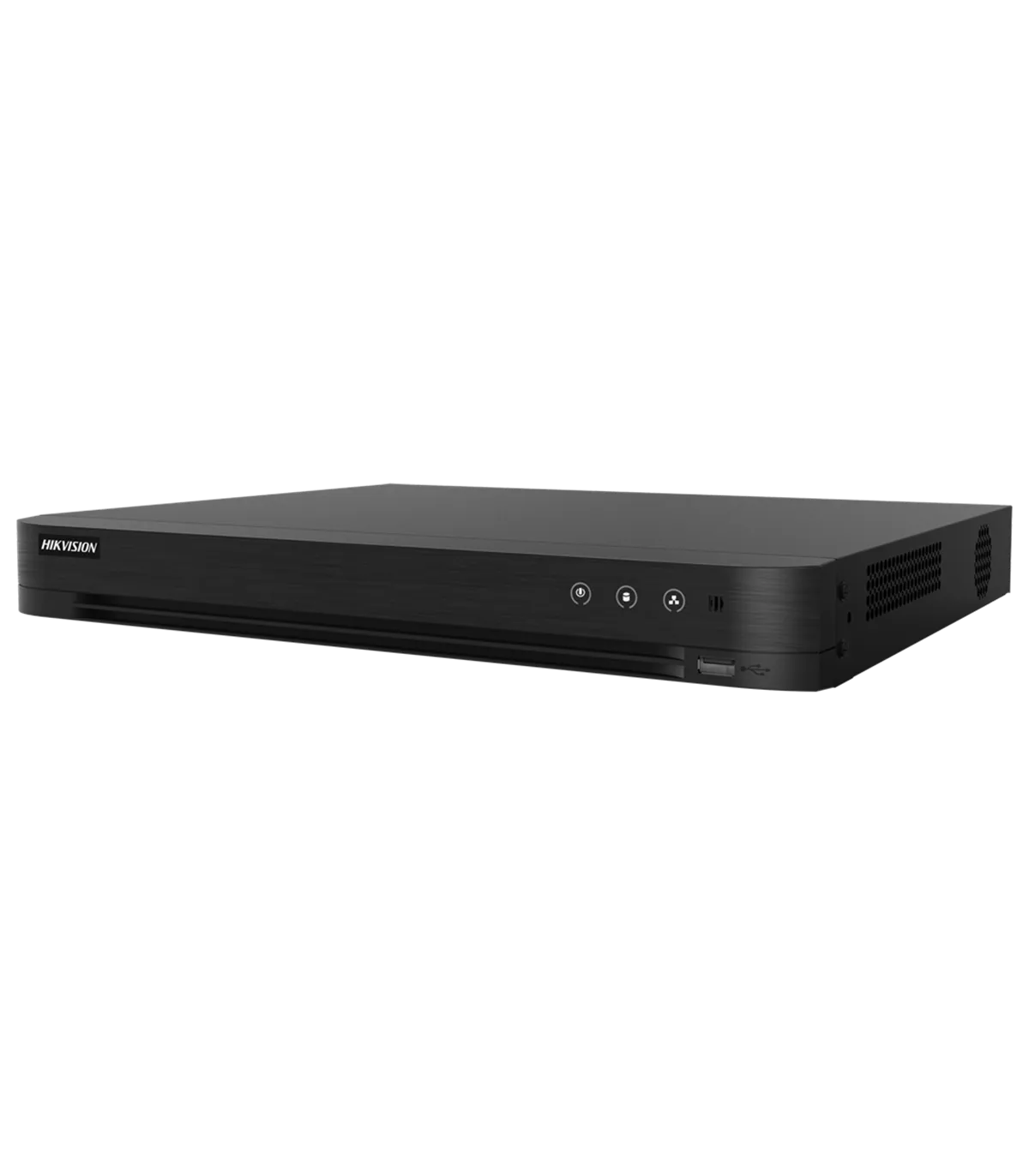

The iDS-7216HUHI-M2/P(C)/4A+4/1ALM is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 16 channels of video input, accommodating various formats such as HDTVI, HDCVI, AHD, and CVBS, along with 32 IP channels. This device is ideal for both residential and commercial applications, providing high-definition video recording and playback capabilities.
| Brand | HIKVISION |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 8 additional IP CH: Up to 24 IP channels (8Mpx), replacing all BNC channels Enhanced IP mode: 16 additional IP CH: Up to 32 IP channels (8Mpx), replacing all BNC channels |
| Available Bandwidth | 128 Mbps |
| PoC Power | Up to 16 PoC channels (8 AT channels 12 W, 8 AF channels 6 W) |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 4K (3840x2160) / 30 Hz; 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 4 RCA Channels |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8Mpx (12.5~15 fps), 3K (5Mpx 16:9) (20 fps), 5MPx (12~20 fps), 4Mpx (25~30 fps), 3Mpx (18 fps), 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5MPx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 8Mpx (8 fps), 3K (12 fps), 5Mpx (12 fps), 4Mpx (15 fps), 3Mpx (18 fps), 1080p /720p/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | WD1/4CIF/CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 4 Inputs / 1 Output |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection can classify humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Artificial Intelligence | AcuSense: Perimeter protection based on VCA rules with false alarm filtering for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 2 SATA 3.5" HDDs of up to 10 TB each (not included) |
| Communication | 2 x USB (Mouse and backup) / 1 x RJ45 (Ethernet) / 1 x RS-485 half-duplex |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | AC 100~240 V, ≤ 20 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 380 mm (W) x 320 mm (D) x 48 mm (H) / ≤ 3.8 Kg (without HDD) |
The iDS-7216HUHI-M2/P(C)/4A+4/1ALM is ideally suited for a variety of surveillance environments, including retail stores, warehouses, and office buildings. For instance, a retail store can deploy this 5-in-1 DVR to monitor customer activity and enhance security. With its capability to support up to 16 channels of video input, the device allows for comprehensive coverage of the premises. The 4K HDMI output ensures that the recorded footage is of the highest quality, providing clear images for review. Additionally, the motion detection 2.0 feature, which utilizes deep learning to differentiate between humans and vehicles, minimizes false alarms, making it a reliable choice for busy environments. Furthermore, the remote access capabilities via web browsers and mobile apps enable store managers to monitor their locations in real-time, enhancing overall security management. This device not only simplifies installation with its plug-and-play functionality but also offers robust storage options with support for two HDDs, making it a perfect fit for any security installation.
