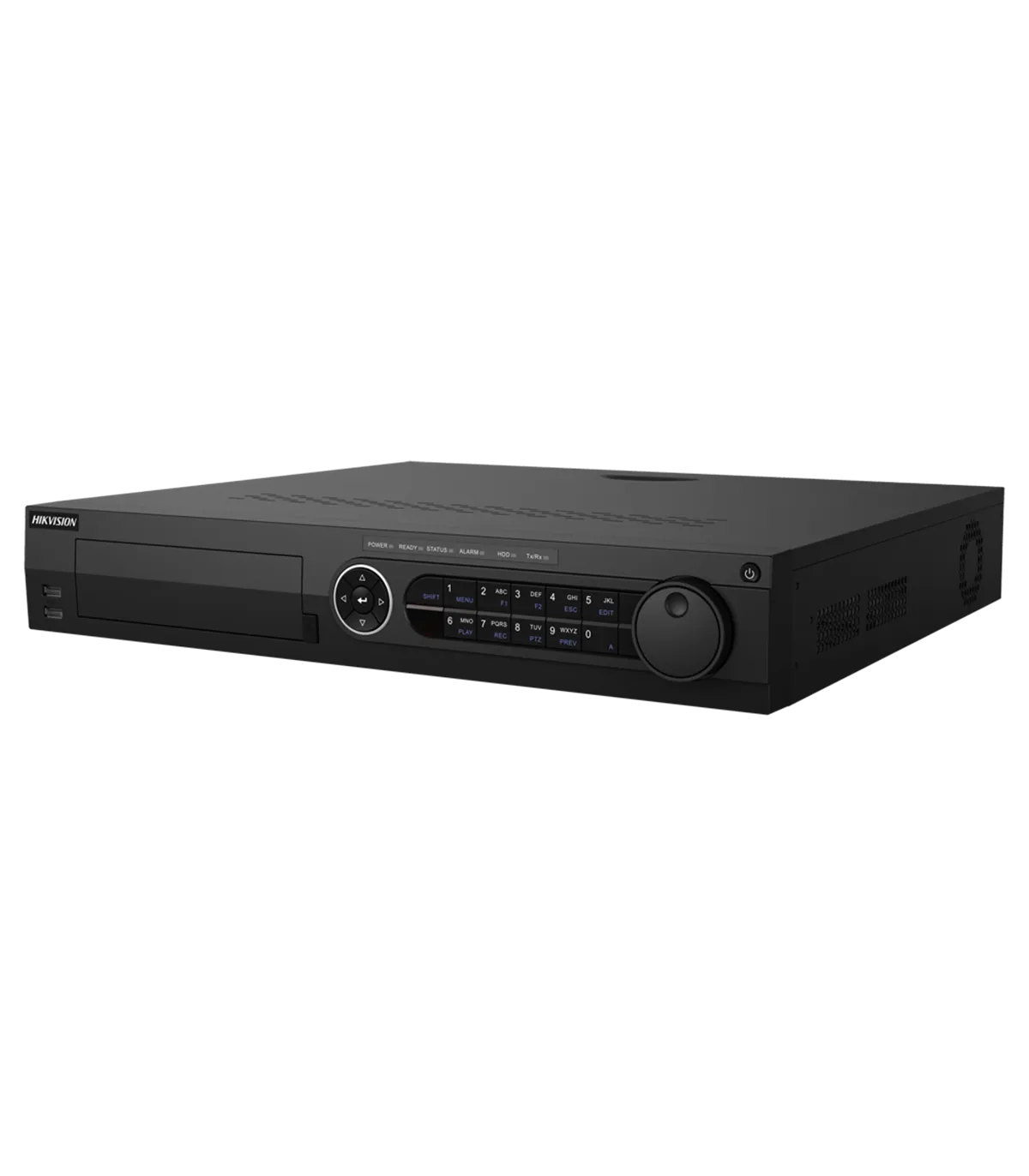

The iDS-7332HUHI-M4/S is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 32 channels of video input using various formats including HDTVI, HDCVI, AHD, and CVBS, making it ideal for both new installations and upgrades of existing systems. With a maximum input resolution of 4K at 8 frames per second, this device ensures high-quality video capture and playback, suitable for a wide range of security applications.
| Brand | HIKVISION |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 32 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 32 additional IP CH: Up to 64 IP channels (12 MP), replacing all BNC channels |
| Available Bandwidth | 320 Mbps input 256 Mbps output |
| Video Outputs | 1 HDMI 4K, 1 HDMI 1080p, and 1 VGA (independent HDMI 4K and VGA, simultaneous HDMI 1080p and VGA); 1 BNC CVBS |
| Display Resolution | HDMI 4K: 3840x2160 (4K) / 30 Hz; 2560x1440 (2K), 1920x1080, 1280x1024, 1280x720, 1024x768 / 60Hz HDMI 1080p: 1920x1080, 1280x1024, 1280x720, 1024x768 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 4 RCA Channels |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8MPX, 3K, 5MPx, 4Mpx, 3MPx, 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 4Mpx, 1080p (25~30 fps), 720p (25~30 fps) AHD: 5MPx, 4Mpx, 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 8 MPx@8FPS; 3K@12FPS; 5MPx@12FPS; 4 Mpx@15 FPS; 3MPx@18FPS; 1080p /720p/WD1/4CIF/VGA/CIF@25 FPS (P)/30 FPS (N) |
| Extra Stream Encoding | WD1/4CIF/CIF@25 FPS (P)/30 FPS (N) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 16 inputs / 4 relay |
| POS | Yes |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 4 SATA 3.5" HDDs of up to 12 TB each (not included) |
| Communication | 3 x USB (Mouse and backup) / 2 x RJ45 (Ethernet) / 1 x RS-485 full-duplex / 1 x RS-232 / 1 x e-SATA |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | AC 100~240 V, ≤ 55 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 445 (W) x 400 (D) x 71 (H) mm / ≤ 7 Kg (without HDD) |
The iDS-7332HUHI-M4/S is ideally suited for a variety of surveillance environments, including retail stores, warehouses, and office buildings. For instance, a retail store can deploy this 5-in-1 DVR to monitor customer activity and enhance security. With its ability to support up to 32 channels of video input, the device allows for comprehensive coverage of the premises. The remote monitoring capabilities via the Hik-Connect app enable store managers to keep an eye on operations from anywhere, ensuring quick responses to any incidents. Additionally, the multi-functionality of the DVR allows for simultaneous live viewing, recording, and playback, making it a powerful tool for security personnel. The integration of RAID configurations provides added data protection, ensuring that critical footage is securely stored. Overall, the iDS-7332HUHI-M4/S offers a robust solution for enhancing security and operational efficiency in various settings.
