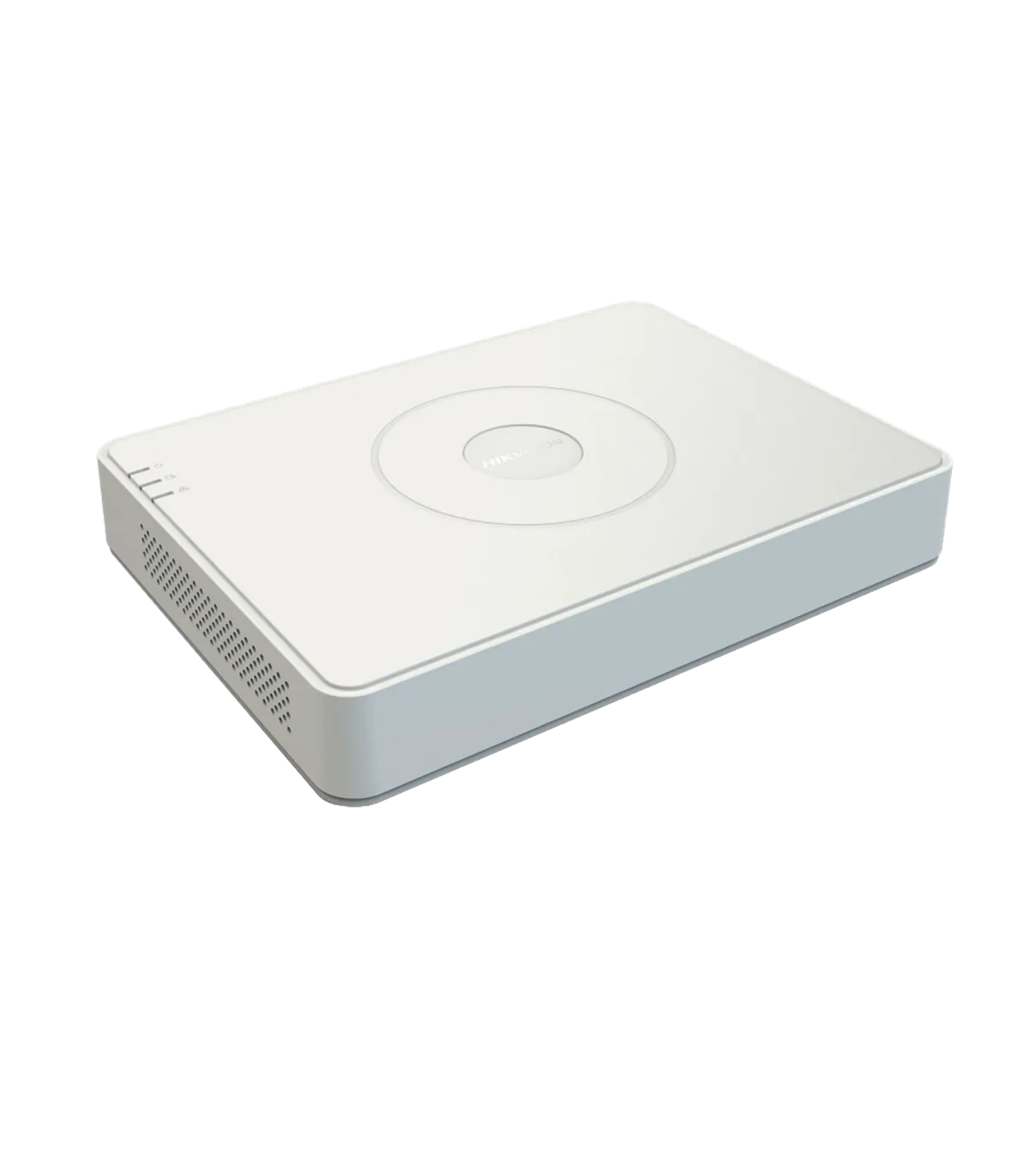

The iDS-7116HQHI-M1/S(F) is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 16 channels of video input, including HDTVI, HDCVI, AHD, and CVBS, along with 24 IP channels, making it ideal for both residential and commercial applications. With advanced features such as motion detection and face detection, this device ensures enhanced security and monitoring capabilities.
| Brand | HIKVISION |
| Series | VALUE |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2 additional IP CH: Up to 18 IP channels (6 MP), replacing all BNC channels Enhanced IP mode: 8 additional IP CH: Up to 24 IP channels (6 MP), replacing all BNC channels |
| Available Bandwidth | Total: 128 Mbps Incoming bandwidth: 96 Mbps |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Audio Inputs | 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | When 1080P Lite mode is not enabled: 3K Lite / 5MP Lite / 4MP Lite / 1080p / 720p / WD1 / 4CIF / VGA / CIF When 1080P Lite mode is enabled: 3K Lite / 5MP Lite / 4MP Lite / 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Input Resolution | HDTVI: 3K (20 fps), 5MP (20 fps), 4MP (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 5MP (20 fps), 4MP, 1080p (25~30 fps), 720p (25~30 fps) AHD: 5MP (20 fps), 4MP (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 1080P Lite not enabled: For the 3K stream: 3K Lite (12 fps), 4 MP lite/1080p (15 fps), 720p/VGA/WD1/4CIF/VGA/CIF (20 fps) For the 5 MP stream: 5 MP Lite (12 fps), 4 MP Lite/1080p (15 fps), 720p/VGA/WD1/4CIF/CIF (20 fps) For the 4 MP stream: 4 MP lite/1080p (15 fps), 720p/VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) For the 1080p stream: 1080p/720p (15 fps), VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) For the 720p stream: 720p/VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) 1080P Lite enabled: 3K Lite/5 MP Lite/4 MP lite (15 fps), 1080p lite/720p lite/VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region Available on 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Face detection, face search |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 2 x USB 2.0 (rear) / 1xRJ45 (Ethernet) |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 12 V, 1.9 A, ≤ 15 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 45 (H) mm x 285 (W) mm x 210 (D) mm / ≤ 1 Kg (without HDD) |
| Color | White |
The iDS-7116HQHI-M1/S(F) is an excellent choice for installers and end users looking to enhance their security systems. In a typical deployment scenario, a small business can utilize this 5-in-1 DVR to monitor multiple entry points with its 16-channel capability. The remote monitoring feature allows business owners to access live feeds via the Hik-Connect app, ensuring they can keep an eye on their premises from anywhere. With advanced motion detection and AcuSense technology, false alarms are significantly reduced, allowing for more accurate alerts. The device's compact design makes it easy to install in tight spaces, while the 4K HDMI output provides high-resolution video playback for detailed surveillance analysis. Overall, the iDS-7116HQHI-M1/S(F) offers a robust solution for effective security management.
