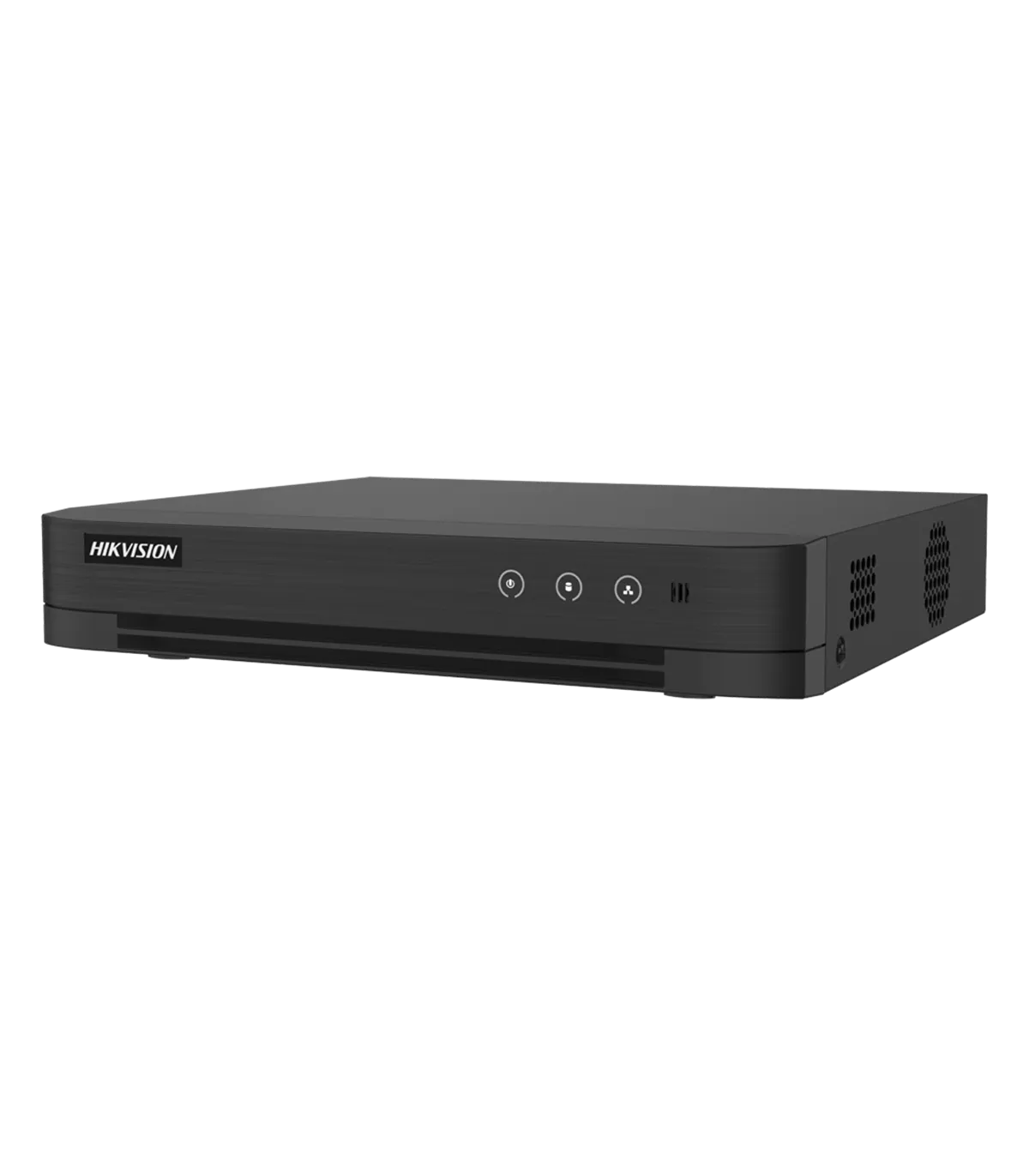

The DS-7208HGHI-M1/T is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 8 channels of video input using various formats such as HDTVI, HDCVI, AHD, and CVBS, making it ideal for both new installations and upgrades of existing systems. With the capability to add 2 additional IP channels, this device can accommodate a total of 10 channels, ensuring flexibility in deployment. The DVR features advanced compression technologies like H.265 Pro+ and H.264+, providing high-quality video while optimizing storage space.
| Brand | HIKVISION |
| Series | VALUE |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2 additional IP CH: Up to 10 IP channels (5 MP), replacing all BNC channels |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio Inputs | Audio over coaxial on all channels 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog Channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP Channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 1080p Lite/ 720p Lite/ VGA/ WD1/ 4CIF/ CIF |
| Input Resolution | HDTVI: 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | For 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (15 fps) For 720p stream: 720p/WD1/4CIF/VGA/CIF (15 fps) For SD stream: WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | For 1080p and 720p stream: CIF/QVGA (15 fps) For SD stream: CIF/QVGA (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 4 TB (not included) |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 64 |
| Bandwidth | 72 Mbps |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1.5 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 48 (H) mm x 263 (W) mm x 220 (D) mm |
| Weight | ≤ 1 Kg (without HDD) |
The DS-7208HGHI-M1/T is an excellent choice for small to medium-sized businesses looking to enhance their security infrastructure. For instance, a retail store can deploy this 5-in-1 DVR to monitor multiple areas simultaneously, utilizing its 8-channel video input capability. The motion detection 2.0 feature allows for precise alerts, distinguishing between human and vehicle movements, which is crucial for reducing false alarms. Additionally, the device's remote access capabilities enable store managers to monitor live feeds from their smartphones or PCs, ensuring that they can respond to incidents in real-time. With its H.265 Pro+ compression technology, the DVR optimizes storage without compromising video quality, making it a cost-effective solution for long-term surveillance needs. Overall, the DS-7208HGHI-M1/T provides a robust and flexible security solution that meets the demands of modern surveillance applications.
