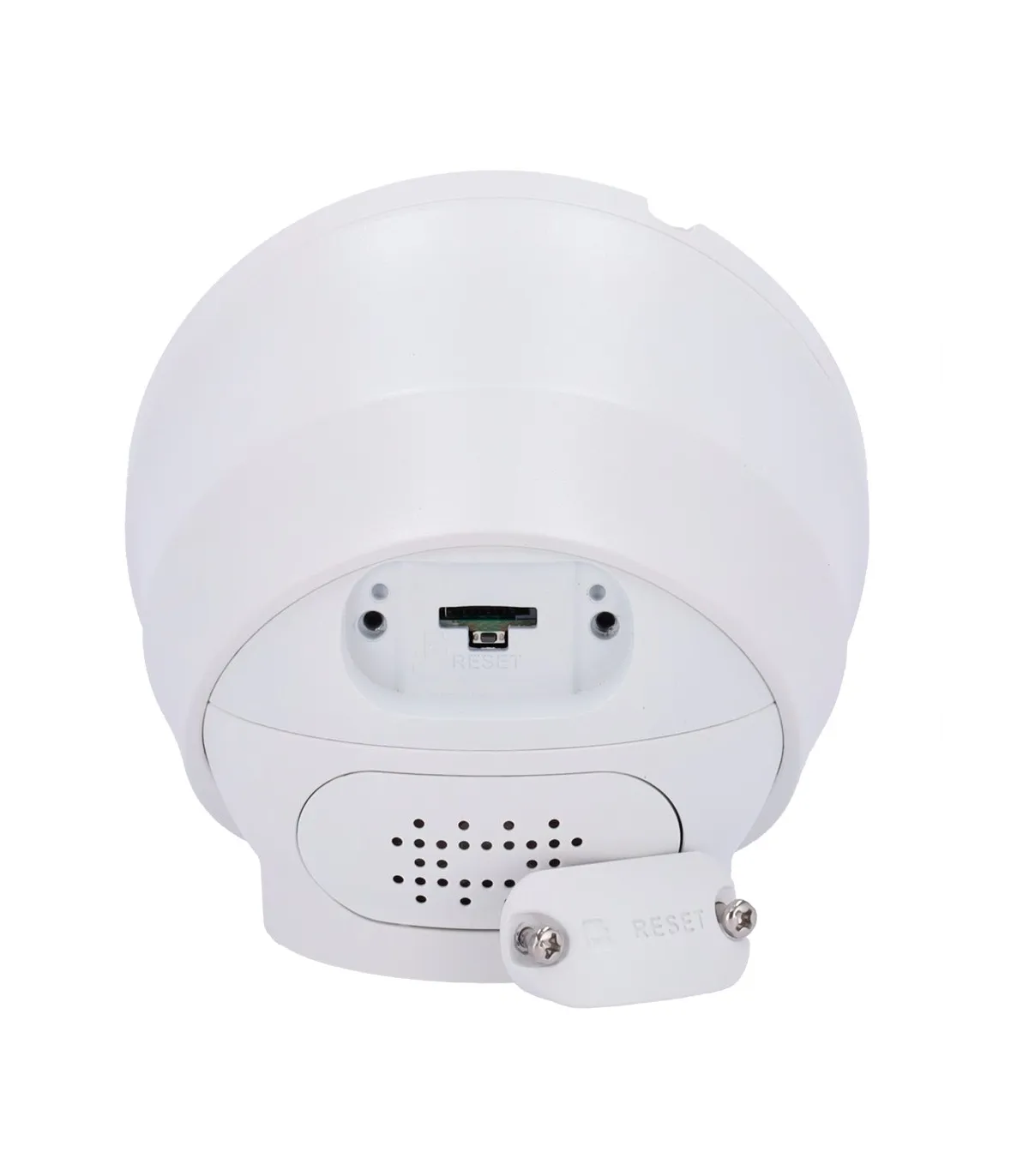

Name: X-Security Turret IP Camera XS-IPT981A-4P-SL-WIZ
Brand: X-SECURITY
Price: 95.9175 EUR
Availability: InStock

X-Security IP Turret Camera PRO Range XS-IPT981A-8P-WIZ-DL-BLACK

Turret IP Camera 4Mpx PRO range X-Security XS-IPT224S-4PW-TIOC

Brand: X-SECURITY

SKU: XS-IPT981A-4P-SL-WIZ

Condition: New product

X-Security IP Turret Camera
4 Megapixel (2688x1520)
2.8mm Lens / DualLight (30m IR+30m White Light)
WDR 120 dB | Active deterrence with speaker and light
WizSense, with human and vehicle classification

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

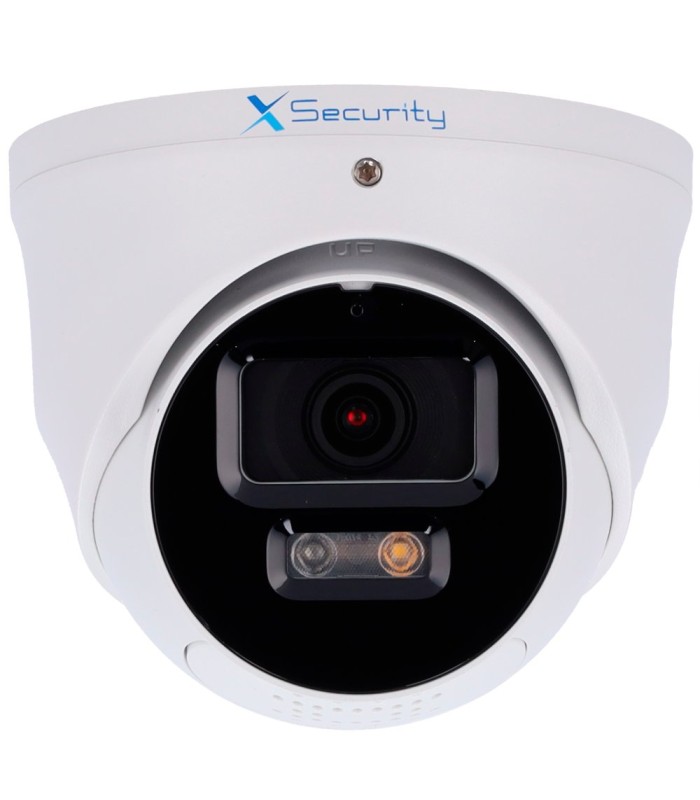

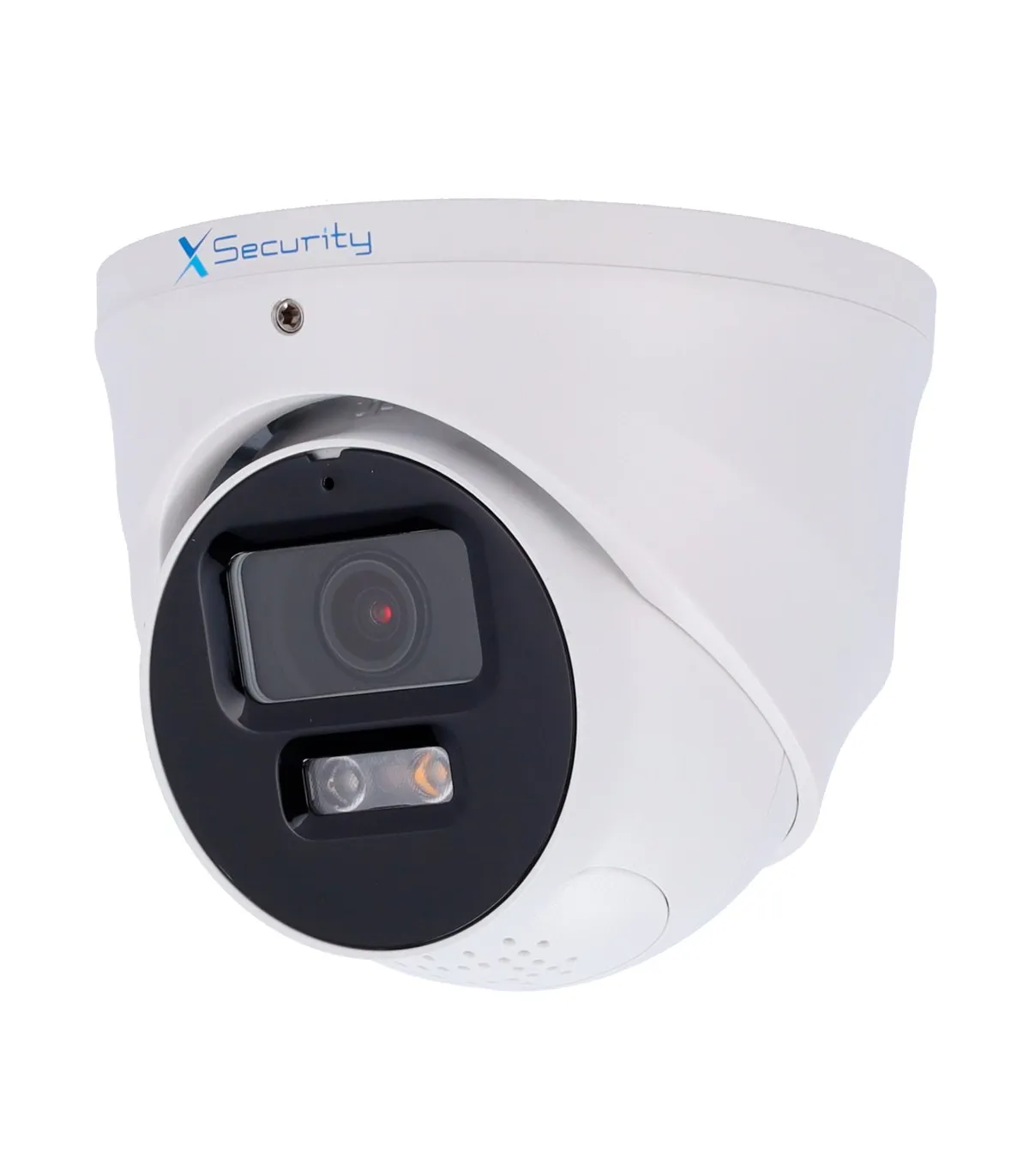

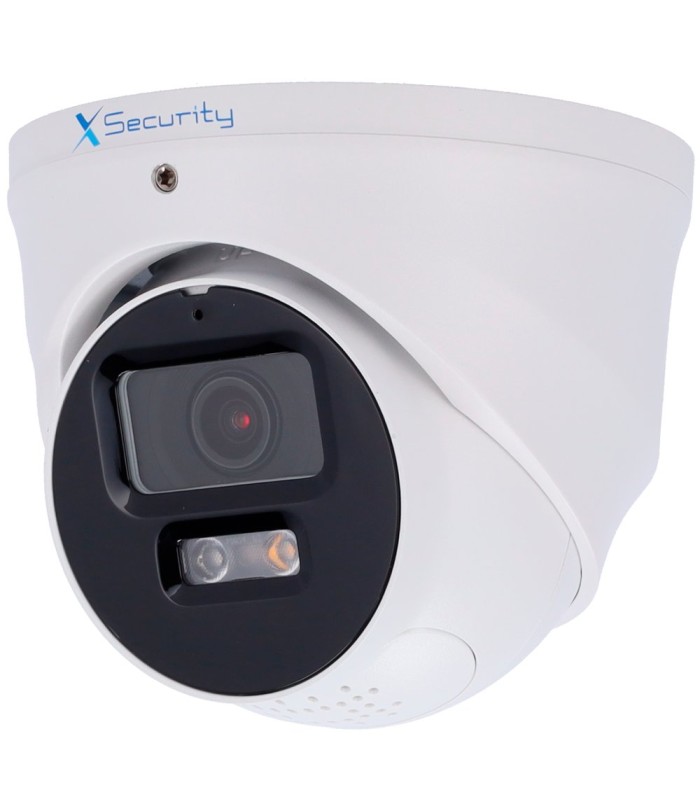

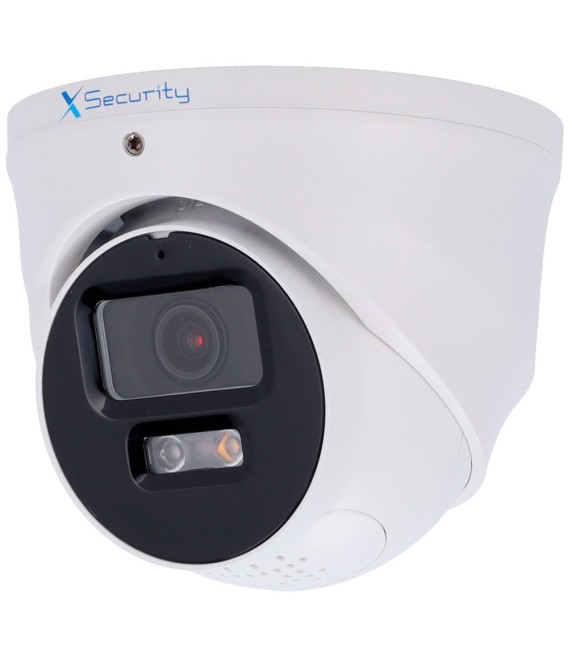

X-Security IP Turret Camera XS-IPT981A-4P-SL-WIZ

X-Security
IP Turret Camera with active deterrence
PRO Range
1/2.9" Progressive CMOS
4 Megapixel (2688×1520)
2.8mm Lens
0.004 Lux
IR60 m
Compression H.265+/H.265/H.264+/H.264
RJ-45 10/100 BaseT
SMD Plus
IVS WizSense: human and vehicle classification
Smart search
Built-in microphone
Audio
WDR 120dB
IR CUT

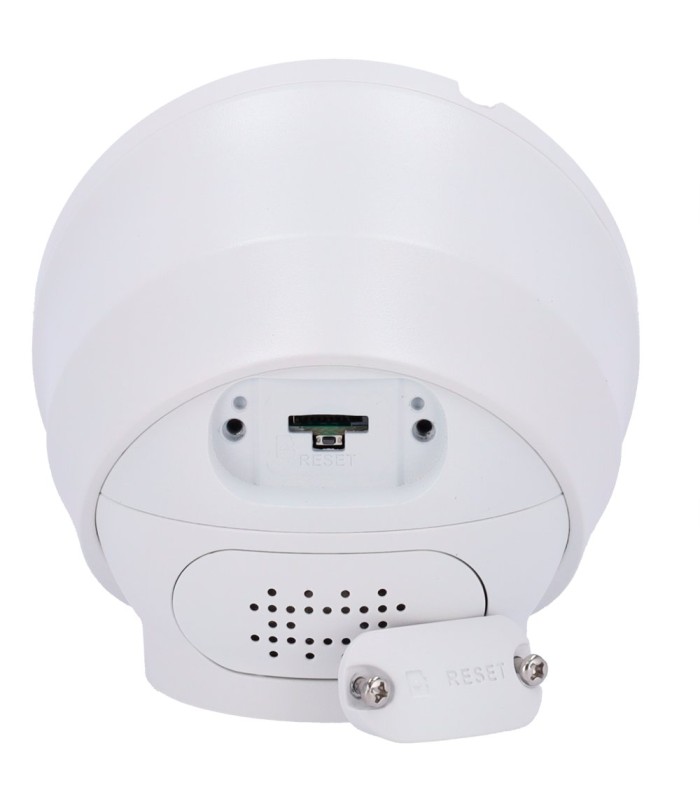

MicroSD up to 256GB
Active deterrence with speaker and police light
PoE IEEE802.3af
Waterproof IP67
Compatible with ONVIF

Technical Specifications

Brand	X-SECURITY
Maximum Resolution	4 Megapixel (2688x1520)
Image Sensor	1/2.9” Progressive CMOS
Lens	2.8mm (H: 101.6°; V: 54.8°; D: 122.1°)
Main Stream Rate	2688x1520@(1–20 fps) / 2560×1440@(1-25/30 fps)
Extra Stream Rate	704 × 576@(1–25 fps) / 704 × 480@(1–30 fps)
Compression	H.265; H.264; H.264H; H.264B; MJPEG
DORI	64-210 (D), 25.6-84 (O), 12.8-42 (R), 6.4-21 (I)
Minimum Illumination	0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)
Dual Light	Operating modes: Intelligent Mode (Default, IR activated and switches to white LED upon target detection) IR Mode White LED Mode
IR Range	30 m (IR) 30 m (White light)
Image Enhancements	WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR
SMD Plus	Yes (Human and vehicle-based motion detection)
IVS (Perimeter Protection)	Intrusion, line crossing (both functions support accurate classification and detection of vehicles and people)
Smart Search	Using microSD card or X-Security NVR
Active Deterrence	Red and blue LED flash / Audible warning Activated by an artificial intelligence event
Network Interface	Ethernet 10/100M BaseT
Audio	1 Input / 1 Output / Built-in microphone / Speaker
Audio Compression	G.711a; G.711Mu; PCM; G.726
Remote Access	WEB interface, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR
Material	Metal
Interoperability	ONVIF (Profile S/Profile T); CGI
Power	DC 12 V / 3W, PoE IEEE802.3af
Operating Temperature	-40º C ~ +60º C
Protection Grade	Waterproof IP67
Dimensions	109.9 (Φ) x 103.5 (H) mm
Weight	390 g
