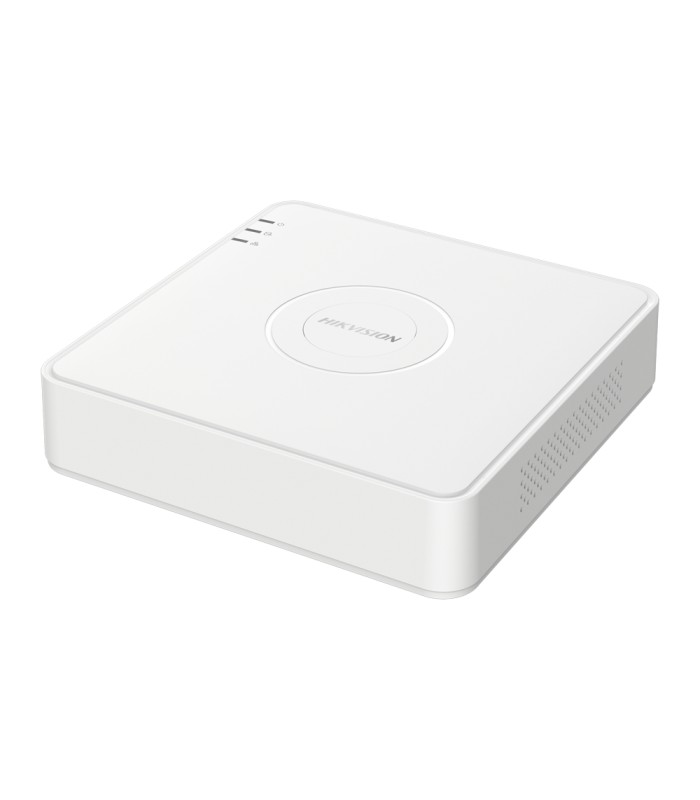

| Brand | HIKVISION | ||
| Range | Value | ||
| Video format | HDTVI / HDCVI / AHD / CVBS / IP | ||
| Video inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) | ||
| Hybrid Configuration | 1CH additional IP: Up to 5 IP channels (6MPx), replacing all BNC channels Enhanced IP mode: 2CH additional IP: Up to 6 IP channels (6MPx), up to 4 Mbps, replacing all BNC channels | ||
| Available bandwidth | 72 Mbps * In enhanced IP mode, bandwidth is 24 Mbps | ||
| Video outputs | 1 HDMI Full HD and 1 VGA, simultaneous; | ||
| Display resolution | HDMI: 1920x1080, 1280x1024, 1280x720, 1024x768 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 / 60 Hz | ||
| Audio inputs | 1 RCA channel Audio over coax on all BNC input channels | ||
| Audio outputs | 1 RCA Channel | ||
| Two-way audio | Reusing the audio input | ||
| Audio Bit Rate | 64 Kbps | ||
| Audio compression | G.711u | ||
| Video compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 enabled: 4MPx Lite/ 3 MPx/ 1080p/ 720p/ WD1/ 4CIF/ CIF valign="middle" class="table-data"> | Input resolution | HDTVI: 4MPx, 3MPx, 1080p (25~30 fps), 720p (25~30 fps) *3MPx signal is only enabled for channel 1 HDCVI: 4MPx, 1080p (25~30 fps), 720p (25~30 fps) AHD: 4MPx, 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Encoding Main Stream | When 1080p Lite mode is not enabled: For 4 MPx stream: 4MPx Lite (15 fps), 1080p/720p/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) For 3MPx stream: 3MPx/1080p/720p/VGA/WD1/4CIF/CIF (15 fps) 720p/VGA/WD1/4CIF/CIF (25fps (P), 30fps (N)) When 1080p Lite mode is enabled: 4MPx/3MPx (15fps), 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF (25fps (P), 30fps) Video Bit Rate | 32 Kbps to 6 Mbps | |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access | ||
| Alarms | Not available | ||
| Motion detection | Yes | ||
| Recording method | Manual, scheduled, motion detection movement | ||
| Internal storage | 1 SATA 3.5" HDD up to 6 TB (not included) | ||
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) | ||
| Remote Connections | 32 | ||
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central | ||
| Power | DC 12 V, 1.5 A, ≤ 8 W (without HDD) | ||
| Power temperature Operation | -10° ~ +55° C | ||
| Dimensions / Weight | 45 (H) mm x 200 (W) mm x 200 (D) mm / ≤ 1 Kg (without HDD) | ||
| Color | White |
Data sheet
