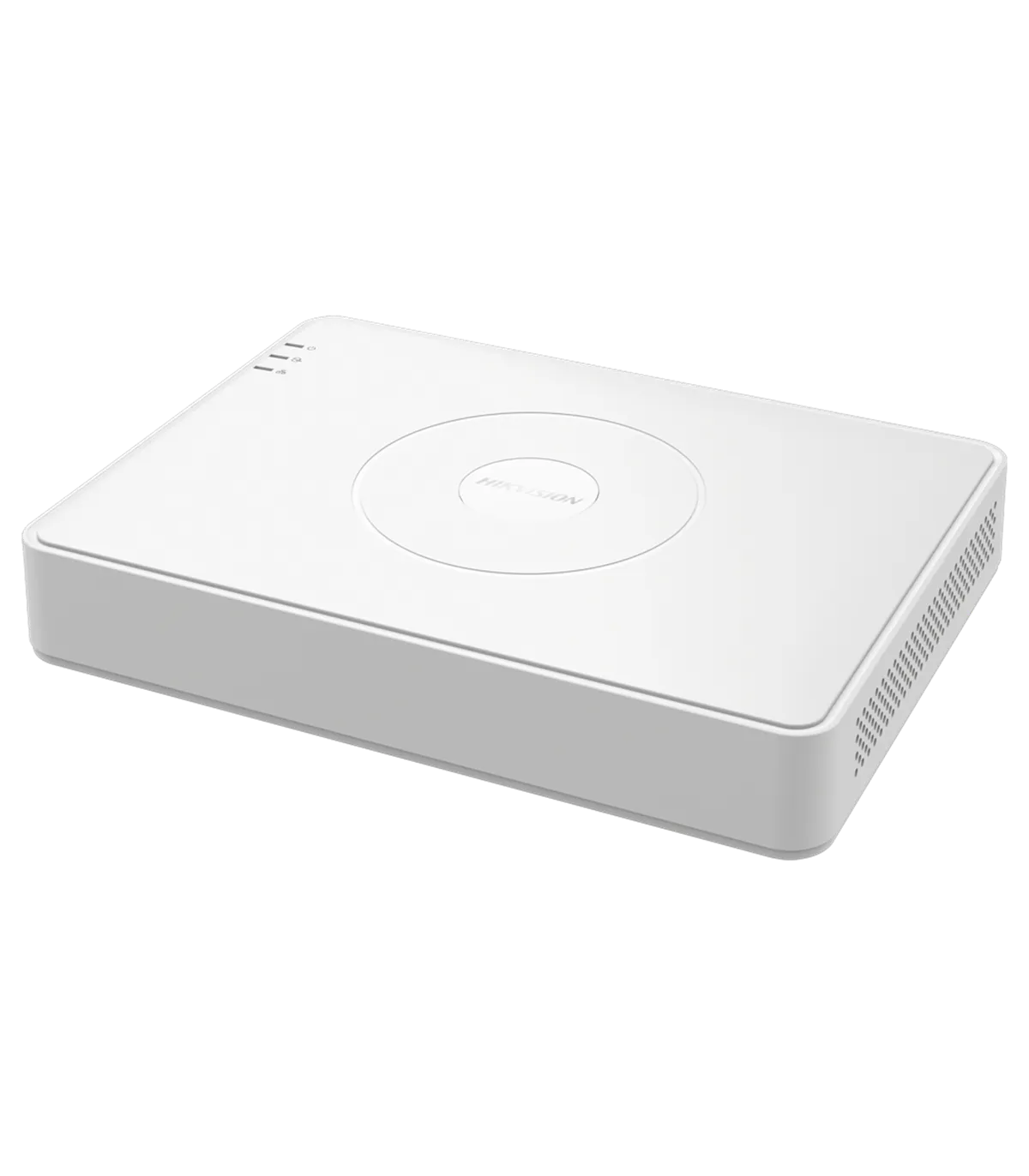

The iDS-7116HQHI-M1/T is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 10 channels of video input from various formats including HDTVI, HDCVI, AHD, and CVBS, along with 12 IP channels. This device is ideal for both residential and commercial applications, providing high-definition recording capabilities with a maximum input resolution of 3K at 12fps. The integration of advanced features such as motion detection and AcuSense technology enhances security by minimizing false alarms and improving the accuracy of alerts.
| Brand | HIKVISION |
| Series | VALUE |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2CH additional IP: Up to 18 IP channels (6Mpx), replacing all BNC channels Enhanced IP mode: 8CH additional IP: Up to 24 IP channels (4Mpx), replacing all BNC channels |
| Available Bandwidth | 128 Mbps |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Audio Inputs | 1 RCA Channel Audio over coaxial (up to 4 channels) |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video Compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | With 1080p Lite mode disabled: 2K / 3K Lite / 5Mpx Lite / 4 Mpx Lite / 3 Mpx / 1080p / 720p / VGA / WD1 / 4CIF / CIF With 1080p Lite mode enabled: 2K / 3K Lite / 5Mpx Lite / 4 Mpx Lite / 3 Mpx / 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF |
| Input Resolution | HDTVI: 3K (20 fps), 5 Mpx (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 3K (20 fps), 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | With 1080p Lite mode disabled: For 3K stream: 3K Lite @12fps, 4Mpx Lite/1080p @15fps, 720p/WD1/4CIF/VGA/CIF @20fps For 5Mpx stream: 5Mpx Lite @12fps, 4Mpx Lite/1080p @15fps, 720p/WD1/4CIF/VGA/CIF @20fps For 4Mpx stream: 4Mpx Lite/1080p @15fps, 720p/WD1/4CIF/VGA/CIF @25fps For 3Mpx stream: 3 Mpx @10fps, 1080p @15fps, 720p/WD1/4CIF/VGA/CIF @25fps For 2K stream: 2K @10fps, 1080p @15fps, 720p/WD1/4CIF/VGA/CIF @20fps For 1080p stream: 1080p/720p @15fps, WD1/4CIF/VGA/CIF @25fps For 720p stream: 720p/WD1/4CIF/VGA/CIF @25fps With 1080p Lite mode enabled: 3K lite/5Mpx Lite @12fps, 4Mpx Lite @15fps, 3Mpx/2K @10fps, 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF @25fps |
| Extra Stream Encoding | WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region Available on 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Face detection and search |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 2 x USB 2.0 (rear) / 1xRJ45 (Ethernet) |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 12 V, 2 A, ≤ 24 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 48 (H) mm x 285 (W) mm x 210 (D) mm |
| Weight | ≤ 1 Kg (without HDD) |
| Color | White |
The iDS-7116HQHI-M1/T is an excellent choice for installers looking to deploy a robust video surveillance system in various environments, such as retail stores, warehouses, or office buildings. With its multi-format support, this DVR can seamlessly integrate with existing camera systems, providing flexibility and ease of installation. The remote monitoring capabilities allow users to access live feeds and recorded footage from anywhere, enhancing security management. Additionally, the motion detection 2.0 feature, combined with AcuSense technology, significantly reduces false alarms by accurately distinguishing between human and vehicle movements. This makes it ideal for busy locations where unnecessary alerts can disrupt operations. Furthermore, the compact design ensures that the device can be easily installed in tight spaces, making it a versatile solution for any security setup.
