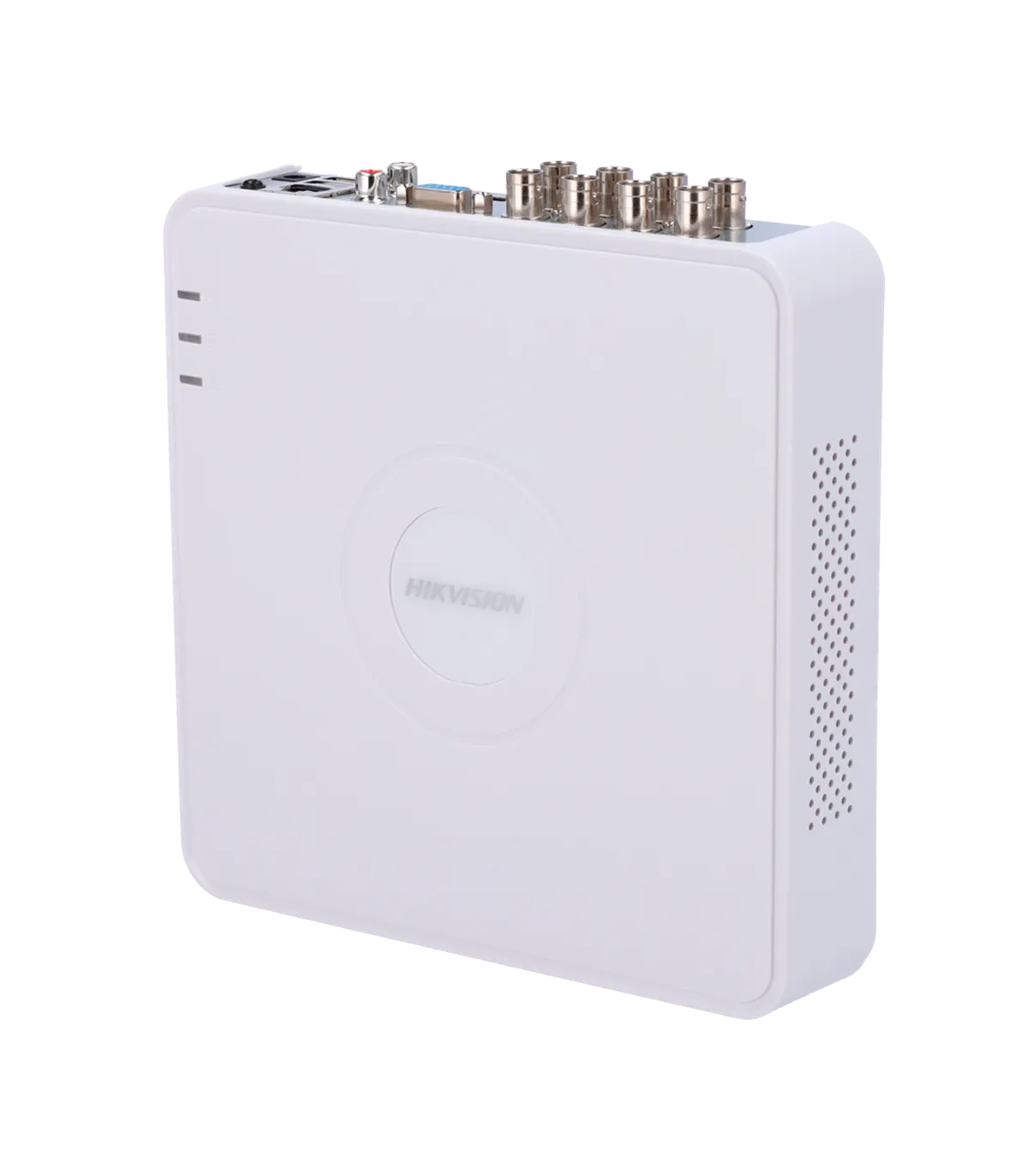

The DS-7108HGHI-M1/T is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports up to 8 channels of video input, including HDTVI, HDCVI, AHD, and CVBS, making it ideal for various security applications. With the capability to add 2 additional IP channels, it can accommodate a total of 10 channels, providing flexibility for expanding your security system. This compact device offers a maximum input resolution of 1080p Lite and features advanced motion detection across all analog channels, ensuring reliable monitoring.
| Brand | HIKVISION |
| Series | Value |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2 additional IP CH: Up to 10 IP channels (5 MPx), replacing all BNC channels |
| Available Bandwidth | 72 Mbps |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio Inputs | 1 RCA Channel 8 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog Channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP Channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 1080p Lite/ 720p/ 720p Lite/ WD1/ 4CIF/ VGA/ CIF |
| Input Resolution | HDTVI: 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | For 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) For 720p stream: 720p/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) For SD stream: WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | CIF/QVGA (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 4 TB (not included) |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1.5 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 48 (H) mm x 200 (W) mm x 200 (D) mm |
| Weight | ≤ 1 Kg (without HDD) |
| Color | White |
The DS-7108HGHI-M1/T is an excellent choice for small to medium-sized businesses looking to enhance their security infrastructure. In a typical deployment, this 5-in-1 DVR can be installed in retail environments, allowing for seamless integration with existing analog cameras while also supporting new IP cameras as the business grows. The device's motion detection 2.0 feature ensures that only relevant events are recorded, minimizing storage use and simplifying playback. With its remote monitoring capabilities via the Hik-Connect app, users can access live feeds and recorded footage from anywhere, providing peace of mind. Additionally, the compact design allows for easy installation in tight spaces, making it a versatile solution for various applications. Overall, the DS-7108HGHI-M1/T offers a robust combination of performance, flexibility, and ease of use, making it an ideal choice for modern security needs.
