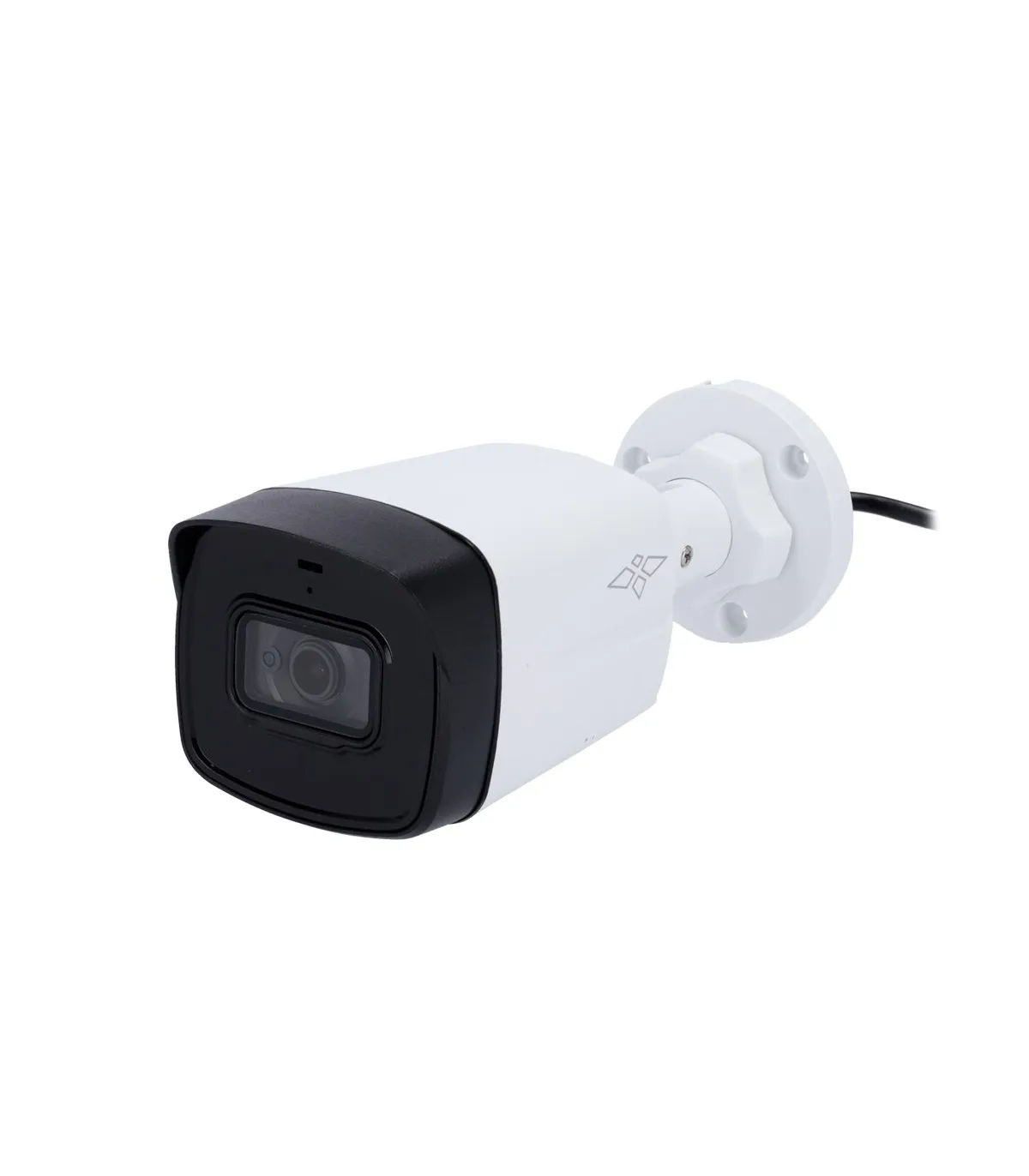

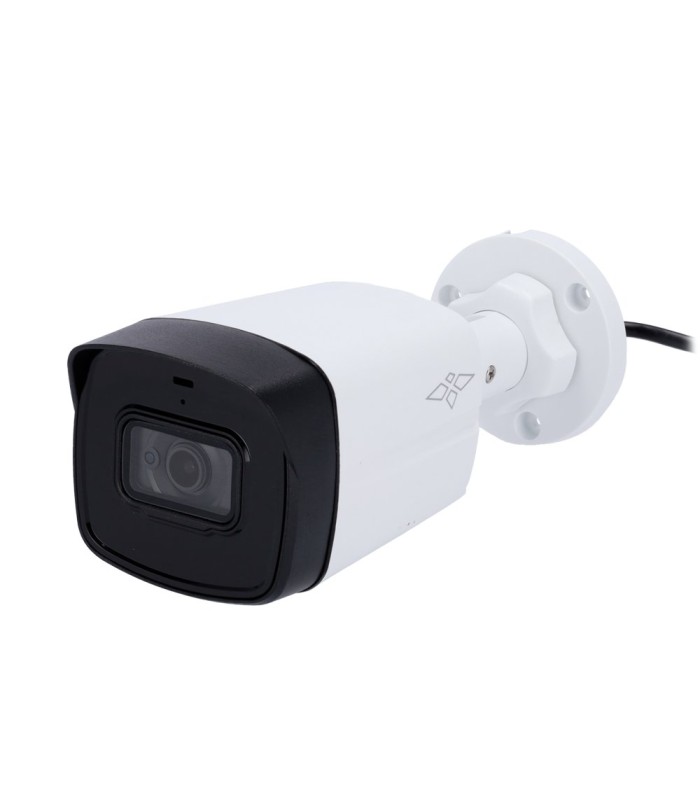

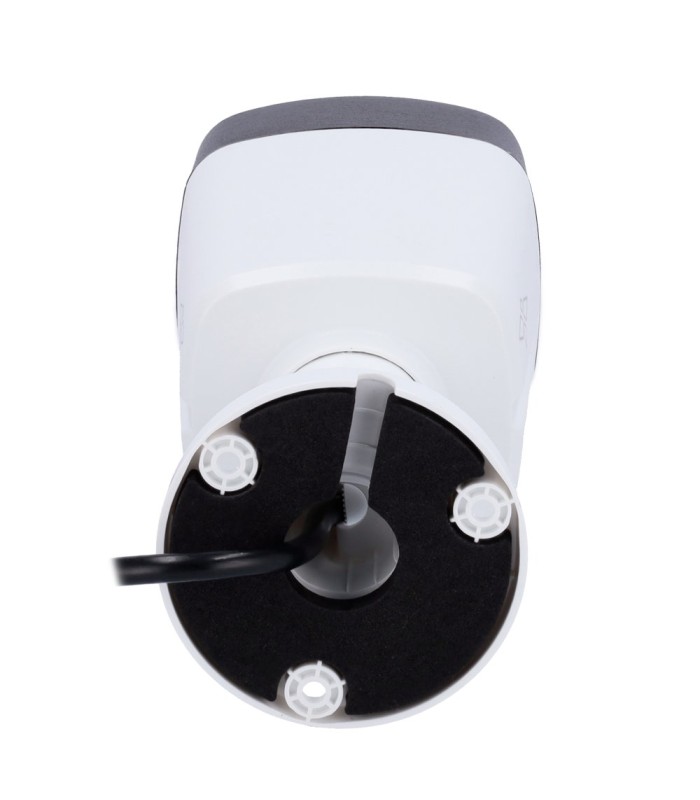

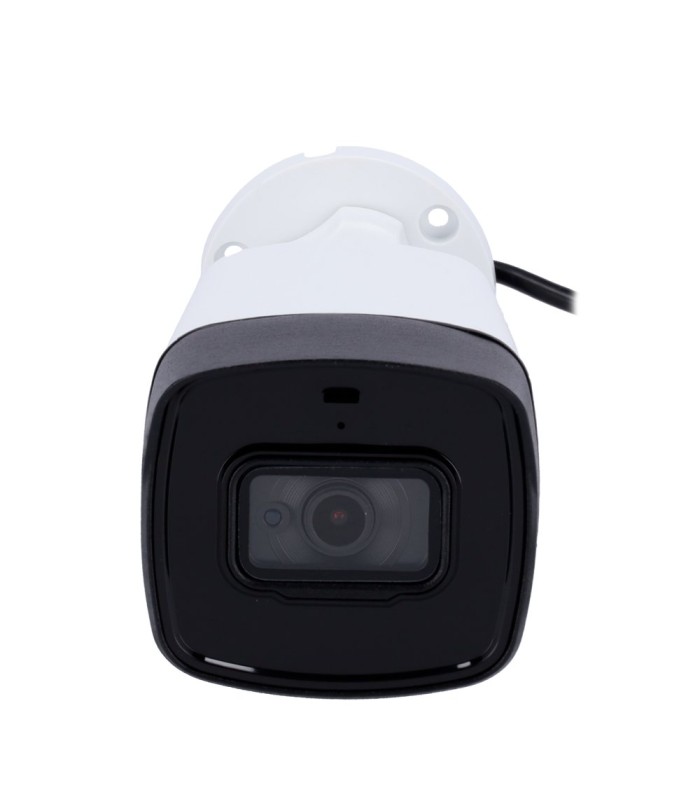

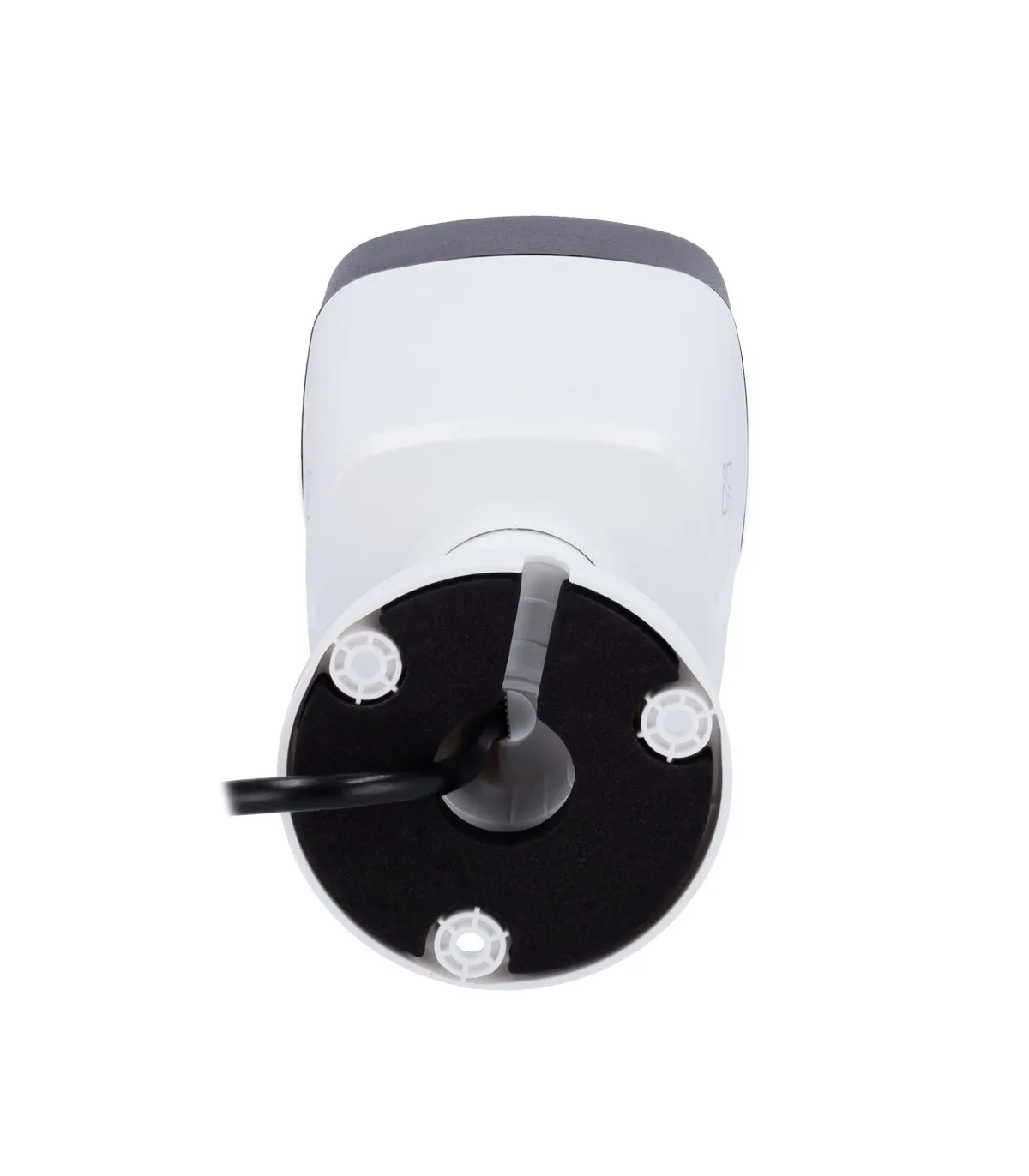

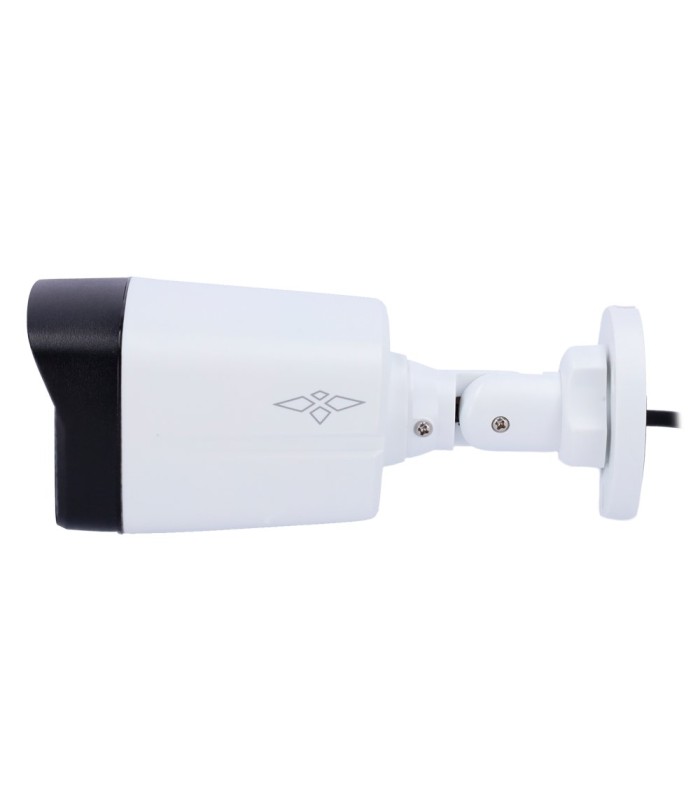

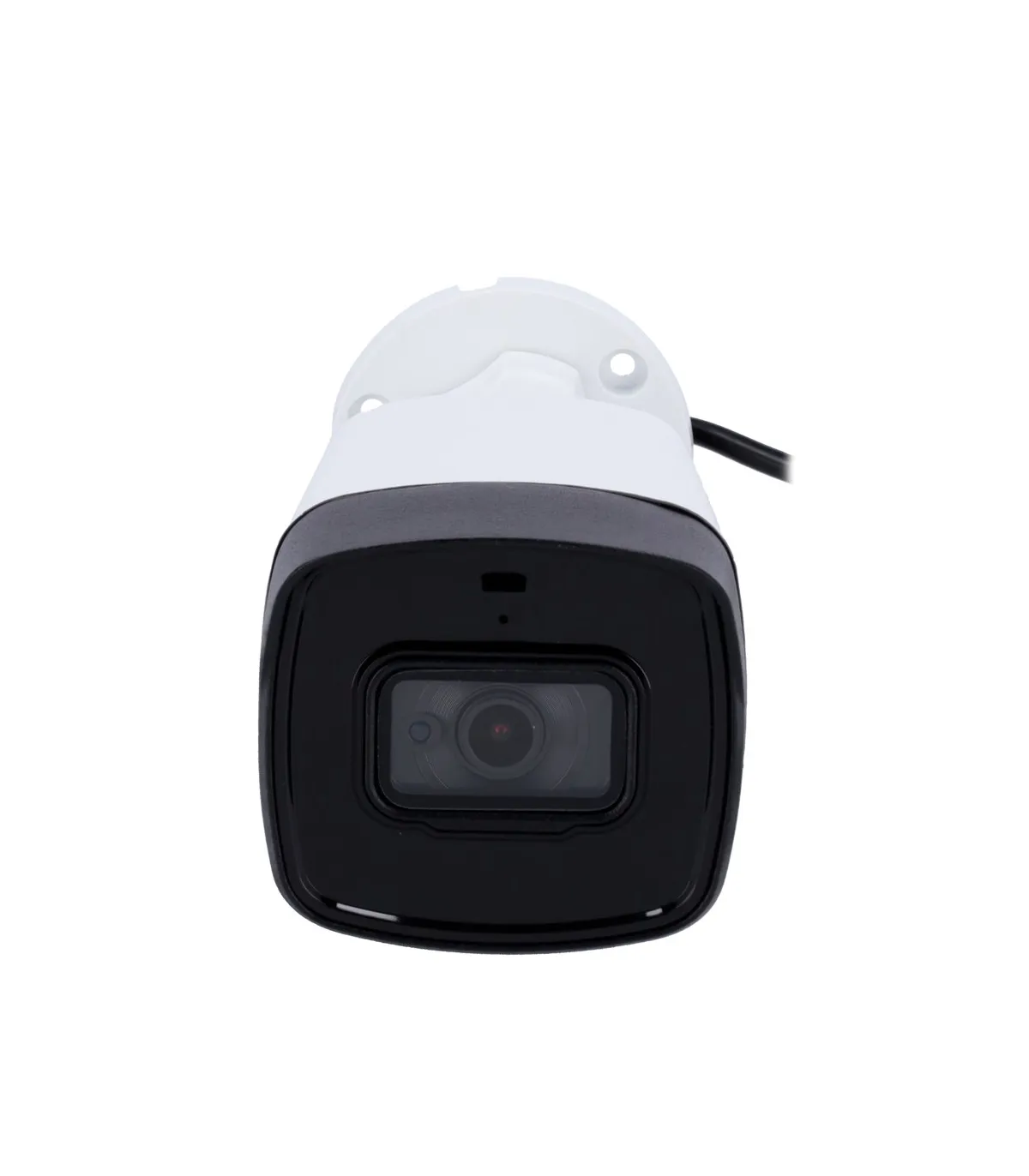

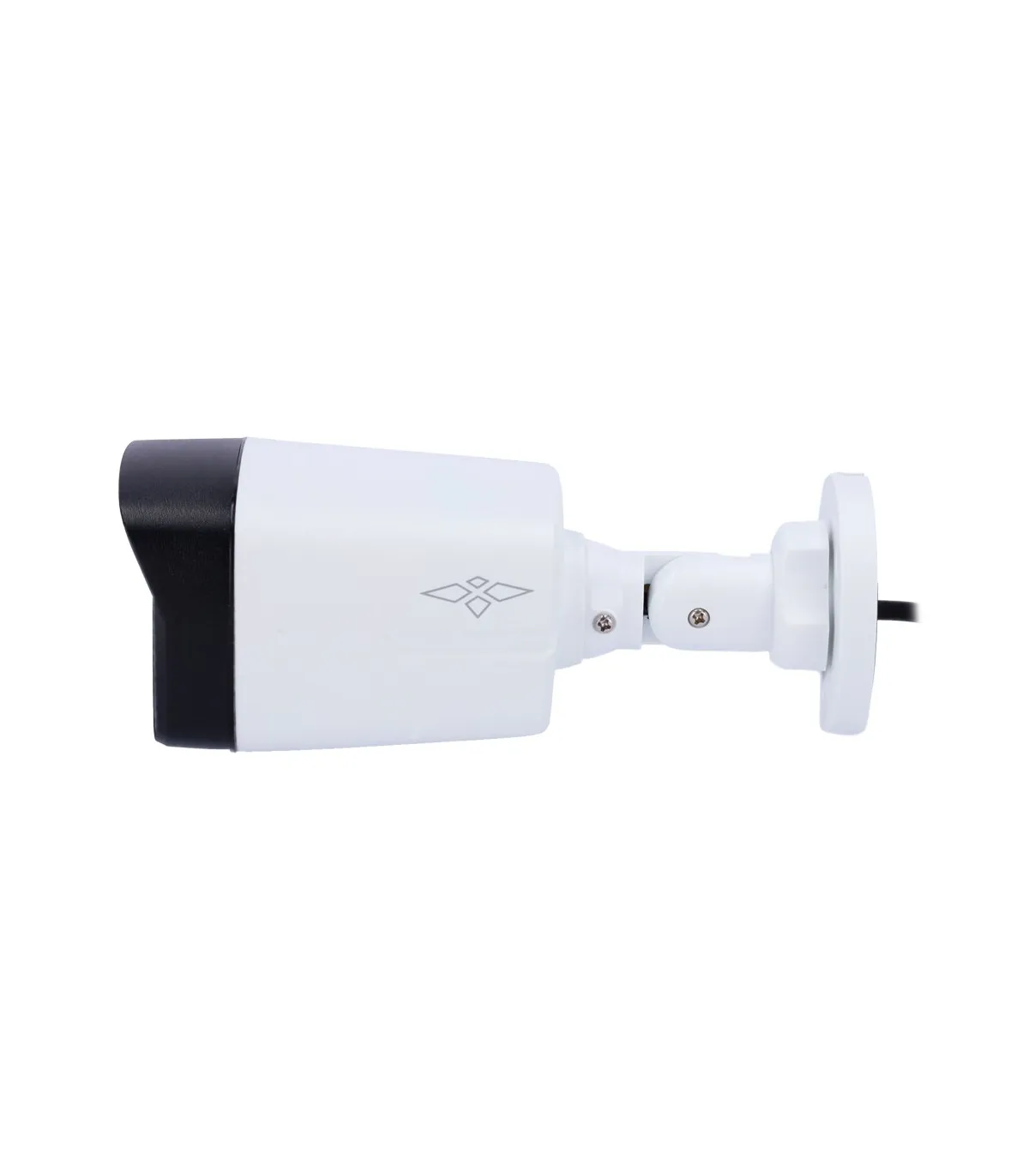

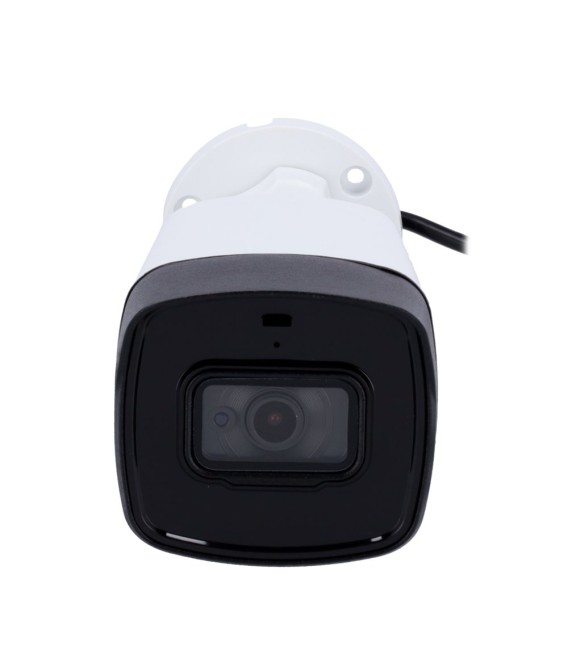

X-Security Bullet Camera PRO Range XS-B201A-8P
Brand: X-SECURITY
- X-Security PRO Range Bullet Camera
- 4 in 1 Output
- 1/2.7" CMOS
- 2.8mm Lens | IR range 80m
- Audio over Coaxial Cable in HDCVI
X-Security PRO Range Bullet Camera XS-B201A-8P
- X-Security
- HDTVI, HDCVI, AHD, and Analog Bullet Camera
- PRO Range
- 1/2.7 CMOS
- 8Mpx HD (3840×2160)
- 4 in 1 Output
- 2.8 mm Lens
- 0 Lux
- IR Matrix Range 80 m
- 2D NR
- IR CUT
- Audio over Coaxial in HDCVI
- Integrated Microphone
- IP67 Waterproof
Technical Specifications
| Brand | X-Security |
| Range | PRO |
| Image Sensor | 1/2.7" CMOS |
| Maximum Resolution | 8 Mpx (3840×2160) |
| Resolution | 4K at 25 fps |
| Lens | 2.8 mm |
| Minimum Illumination | 0.03 Lux @(F2.0, AGC ON) |
| Infrared Illumination | 0 Lux / SMART IR (80 m) |
| Day/Night | Auto / Color / BW (Black and White) |
| Audio | Integrated Microphone (Audio via coaxial cable in HDCVI) |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Through OSD |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | DWDR, 2D-DNR, HLC, BLC, AGC, Smart IR |
| Power | DC 12 V / 500 mA / 6 W max |
| Protection Grade | IP67 Waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Aluminum and plastic |
| Dimensions | 198.9 (L) x 80.2 (W) x 76.2 (H) mm |
| Weight | 280 g |
Content
- X-Security 4N1 Bullet Camera
- 3 plugs and 3 screws for mounting
- Instruction manual
- Allen key
- Installation template
