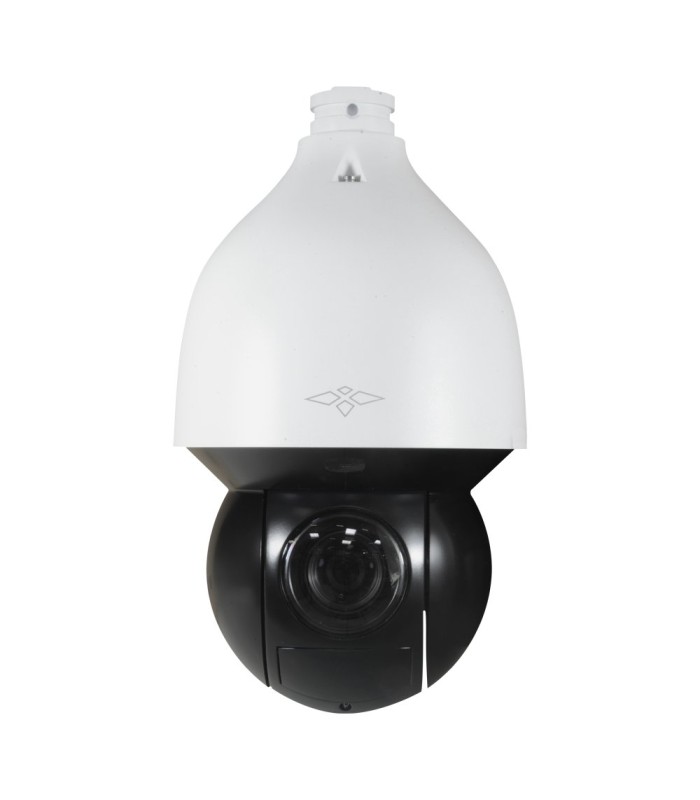

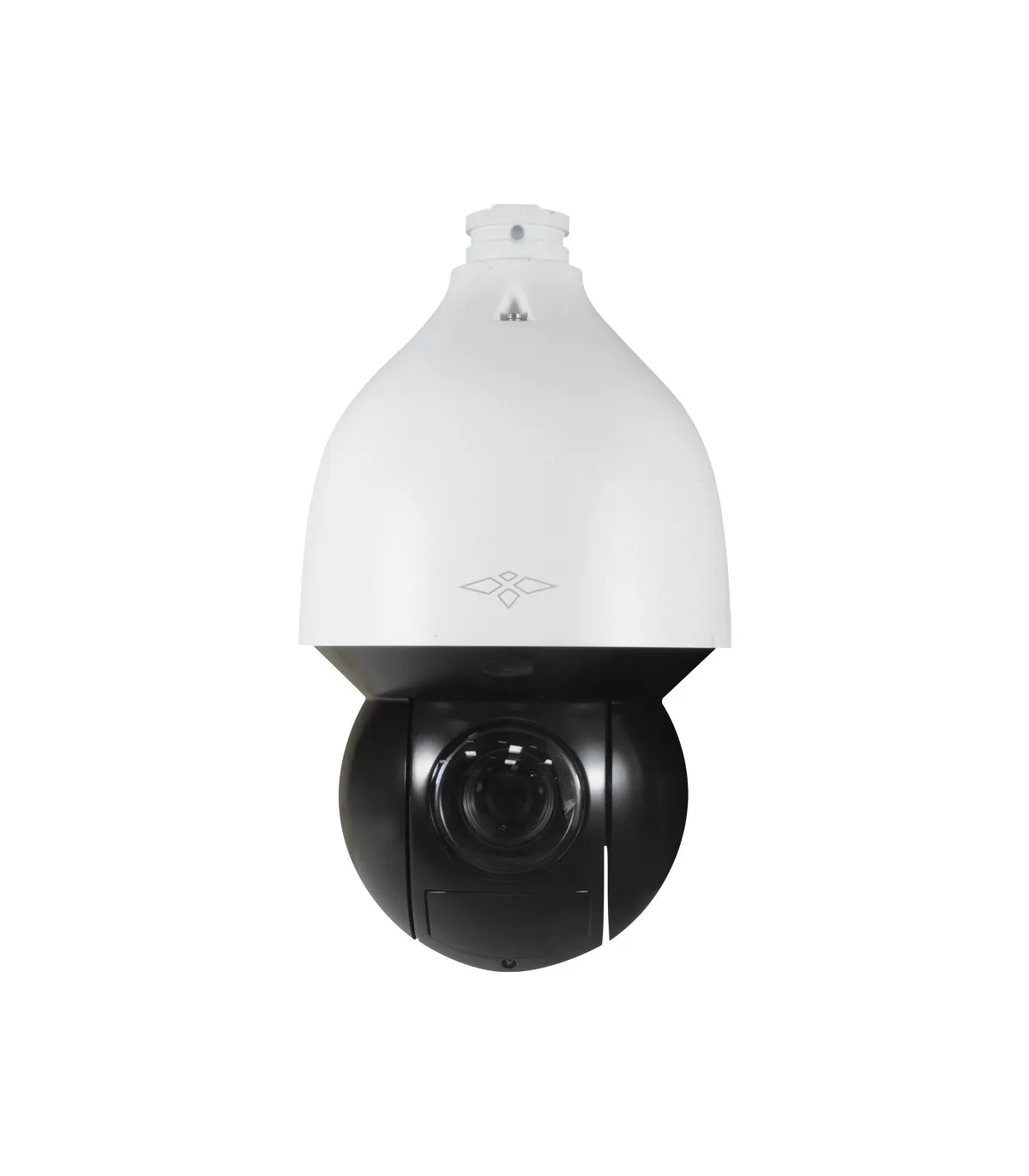

X-Security 8 Mpx PTZ IP Camera Ultra Range XS-IPSD7525ISWHTA-8U-AI
Brand: X-SECURITY
- PTZ X-Security 8MP Ultra Range IP Camera
- Autotracking / Face Detection
- H.265+ Compression
- Varifocal Lens 5.4-135mm (X25)
- Audio / High Speed 400º/second
X-Security Ultra Range 8 Mpx PTZ IP Camera XS-IPSD7525ISWHTA-8U-AI
- X-Security
- PTZ IP Camera
- Ultra Range
- High speed 400º/second
- 25X optical zoom
- 1/2.8" Sony STARVIS™ CMOS Starlight
- 8 Megapixel (3840x2160)
- Varifocal lens 5.4~135 mm
- High sensitivity Starlight
- 0.005 Lux
- IR Range 150 m
- Compression H.265+/H.265/H.264+/H.264/MJPEG
- RJ-45 10/100 BaseT
- PoE+ 802.3at
- Waterproof IP67, Vandal-proof IK10
- Audio
- IR CUT
- Alarms
- Smart functions
- WizSense: False alarm filter for humans and vehicles
- Autotracking and face detection
- Recording on SD card
- WEB interface, CMS (DSS/PSS), Smartphone, and NVR
- Compatible with ONVIF
- Wall mount included
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/1.8" STARVIS™ CMOS |
| Resolution | 4K (3840 x 2160); 1080P (1920 × 1080); 1.3M (1280x 960); 720P (1280 × 720); D1 (704 × 576); CIF (352 ×288) |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG (sub stream) |
| Main Stream Rate | 8M / 1080P / 1.3M / 720P (1–25/30 fps) |
| Extra Stream Rate | 2nd: D1 / CIF (1–25/30 fps), 3rd:1080P / 1.3M / 720P / D1 / CIF (1–25/30 fps) |
| Bitrate | H.265/H.264: 32 kbps–8192 kbps |
| Lens | Varifocal 5.4 ~ 135 mm (25X optical zoom) Auto Iris, Auto Focus |
| Digital Zoom | x16 |
| Image Enhancements | WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask |
| Minimum Illumination | 0.005 Lux (Color) / 0.0005 Lux (B/W) |
| Infrared Illumination | 0 Lux range 150m |
| Day / Night | Removable mechanical ICR filter |
| Smart Functions | Autotracking, face detection, line crossing, abandoned object, intrusion, false alarm filter for humans and vehicles |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Alarms | 2 inputs / 1 relay |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | WEB interface, CMS software, mobile application, and NVR |
| Memory | Micro SD card slot (Max 256 GB) |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180° |
| Manual Speed | Horizontal: 0.1°~300° /s, Vertical: 0.1°~200° /s |
| Speed between Presets | Horizontal: 400° /s, Vertical: 300° /s |
| Pre-set Positions | 300, 5 auto pattern, 8 auto tour, 5 auto scan |
| Communication | DH-SD, ONVIF Compatible |
| Power | AC 24 V / 3 A , PoE+(802.3at) |
| Protection Rating | Waterproof IP67, Vandal-proof IK10 |
| Operating Temperature | -40º C ~ +70º C |
| Dimensions | 332 mm (H) x 190 mm (Ø) |
| Weight | 4700 g |
Content
- Motorized PTZ IP Camera
- CD with software and instructions
- Wall mount
