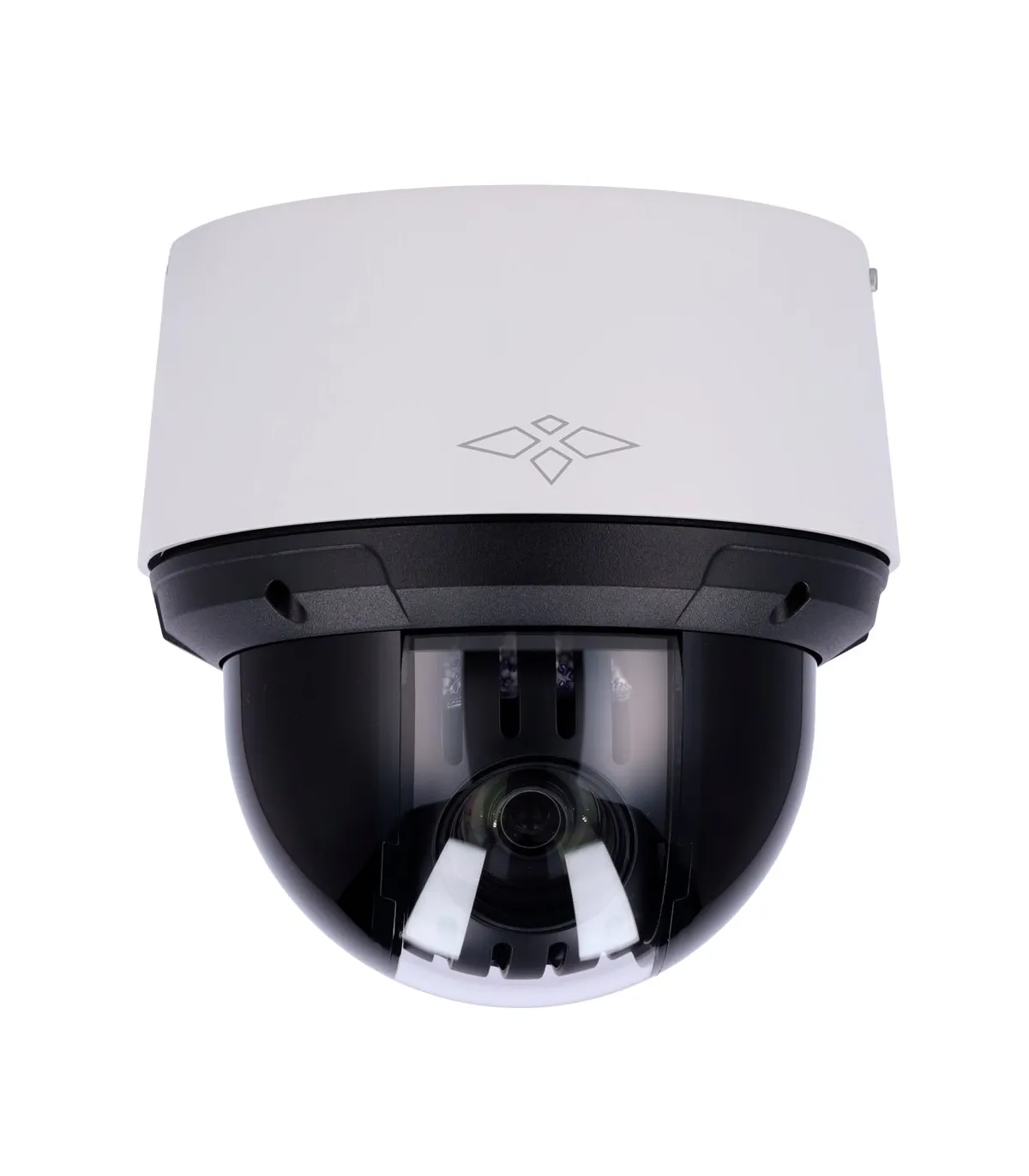

Name: X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD4025ITA-4U-WIZ
Brand: X-SECURITY
Price: 475.02 EUR
Availability: InStock

Motorized IP camera 4 Megapixel Pro Range X-Security XS-IPSD4604H-4P

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD3005ITA-4UW-WIZ-DL

Brand: X-SECURITY

SKU: XS-IPSD4025ITA-4U-WIZ

Condition: New product

PTZ X-Security 4MP Pro Range IP Camera
Varifocal lens 5~125 mm (25x optical zoom)
100m IR | Starlight
IVS (Perimeter Protection) | SDM 3.0
Facial detection | Auto Tracking

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

X-Security 4 Mpx Pro Range PTZ IP Camera XS-IPSD4025ITA-4U-WIZ

X-Security
WizSense PTZ IP Camera
4 Megapixel (2560x1440)
Pro Range
1/2.8" Progressive Scan CMOS
Varifocal lens 5–125 mm
25X optical zoom
Starlight technology, color image in low light conditions
0 lux
IR Range 100 m
Compression H.264H / H.264B / Smart H.265+ / H.265 / H.264 / MJPEG
IVS (Perimeter Protection)
Smart SMD 3.0 search
Face detection
Auto Tracking
Audio
Alarms
WDR (120 dB)
3D DNR
IR CUT
MicroSD card slot up to 512GB
WEB interface, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone, and NVR
Compatible with ONVIF

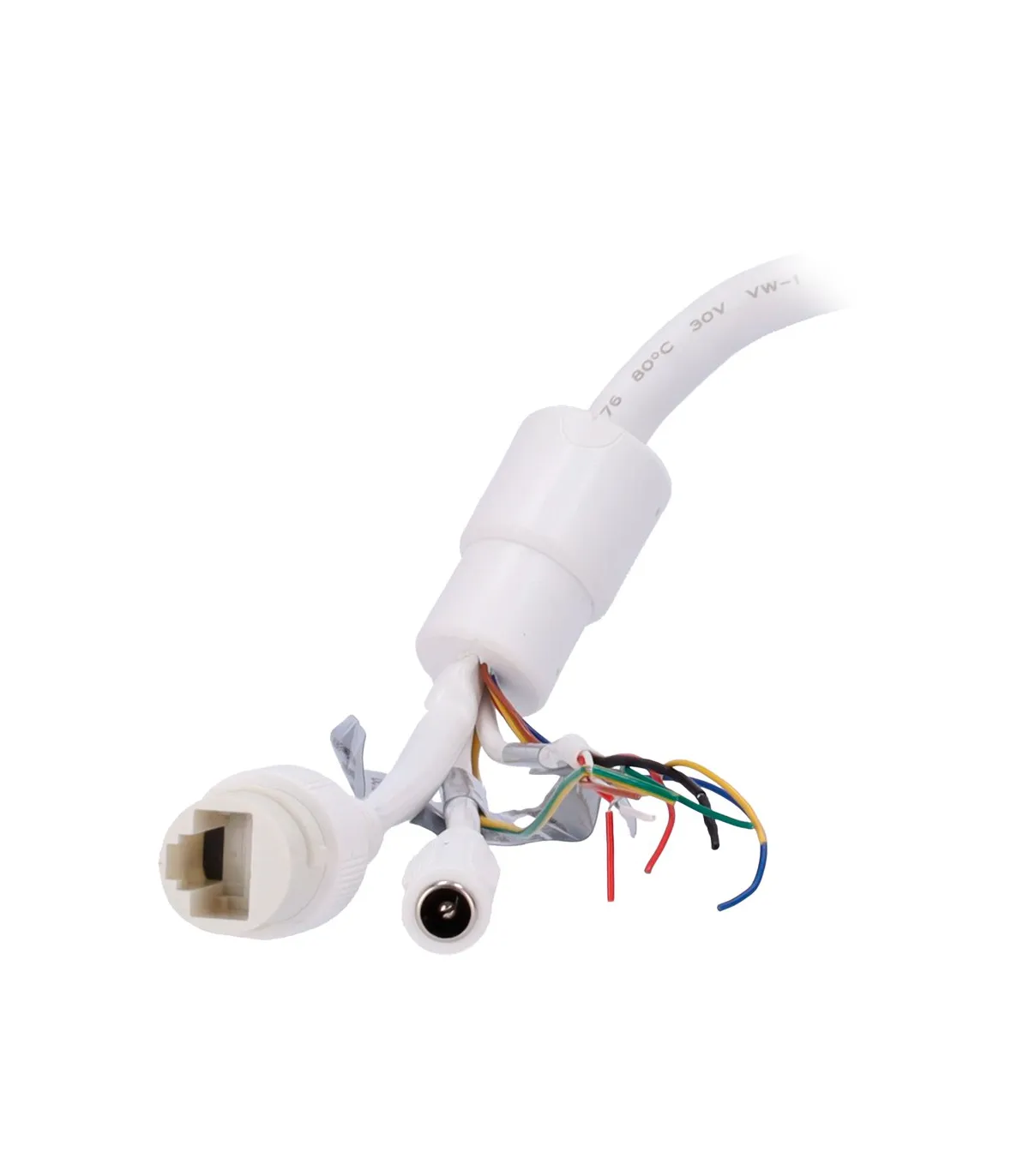

RJ-45 10/100 BaseT
PoE+ (IEEE802.3at)
IP66 Waterproof
Surge protection 6000 V

Technical Specifications

Brand	X-Security
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	4 Megapixel (2560x1440)
Lens	Varifocal 5~125 mm (25x optical zoom)
Field of View (FOV)	H: 51.9º~3º, V: 39.7º~2.2º, D: 63.1º~3.7º
DORI	2500 m (D), 987.5 m (O), 500 m (R), 250 m (I)
Focus	Auto; semi-auto; manual
Digital Zoom	16X
Electronic Shutter	1 s~1/30.000 s
Minimum Illumination	0.005 Lux @(F1.6, AGC ON) 0 lux with IR range 100 m
Day/Night	Removable ICR mechanical filter
Compression	H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (ExtraStream); Smart H.264+
Main Stream Rate	4Mpx/3Mpx/1080p/1.3Mps/720p @(1–25/30 fps)
Extra Stream 1 Rate	D1/VGA/CIF @(1–25/30 fps)
Extra Stream 2 Rate	720p/CIF @(1–25/30 fps)
Bitrate	H264: 96 Kbps~14848 Kbps H265: 38 Kbps~8960 Kbps
Image Enhancements	WDR (120dB), 2D/ 3DNR, HLC, BLC, ATW, AGC, ROI, 180º Rotation, Privacy masking
EIS (Electronic Image Stabilization)	Yes
SMD (Smart Motion Detection)	SMD 3.0, advanced motion detection
IVS (Perimeter Protection)	Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/missing object; fast-moving; parking detection; people gathering; Vehicle/human alarm classification
Face Detection	Supports face detection, image capture, and face enhancement. Supports face cropping: face, one-inch photo. Capture strategies include real-time capture and quality prioritization.
Audio	1 Input / 1 Output
Audio Compression	G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Alarms	2 inputs / 1 output
Internal Storage	MicroSD card slot up to 512 GB
Pan/Tilt Range	Horizontal: 0°~360° endless Vertical: -5°~90°, auto flip 180º
Manual Speed	Horizontal: 0.1°~240°/s Vertical: 0.1°–160°/s
Speed between Presets	Horizontal: 240°/s Vertical: 160°/s
Pre-set Positions	300, 8 tours, 5 Patterns, 5 Scans
Auto Tracking	Yes, vehicle and person tracking
Communication	ONVIF (Profile S, G, T), CGI, SDK, P2P
Network Interface	Ethernet 10/100 BaseT
Remote Access	WEB interface, CMS (DSS/PSS), Smartphone, and NVR
Power	DC 12 V / 2 A, max. 21.5 W PoE+ (IEEE802.3at)
Operating Temperature	-40º C ~ +65º C
Protection Grade	IP66 Waterproof Surge protection 6000 V
Dimensions	170.4 mm (H) x 171.1 mm (Ø)

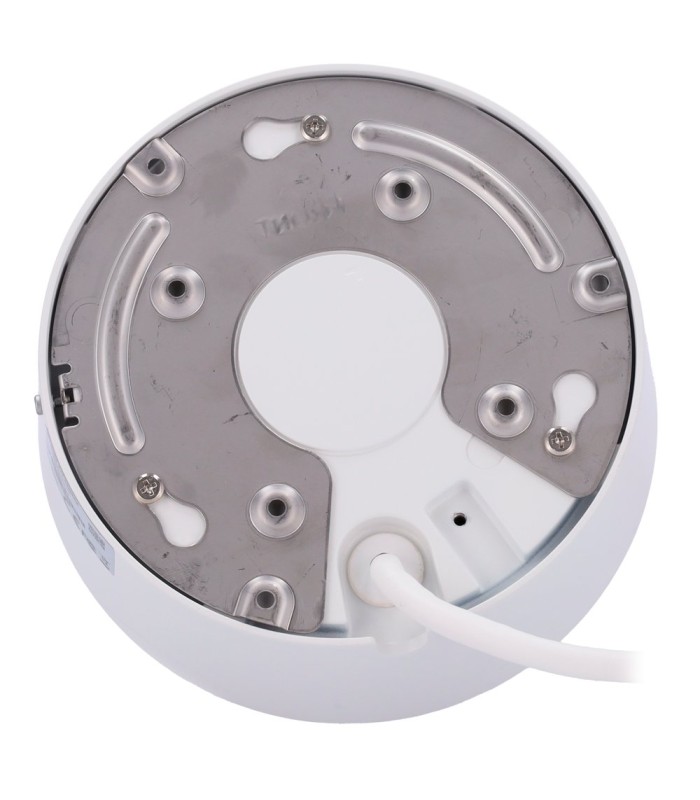

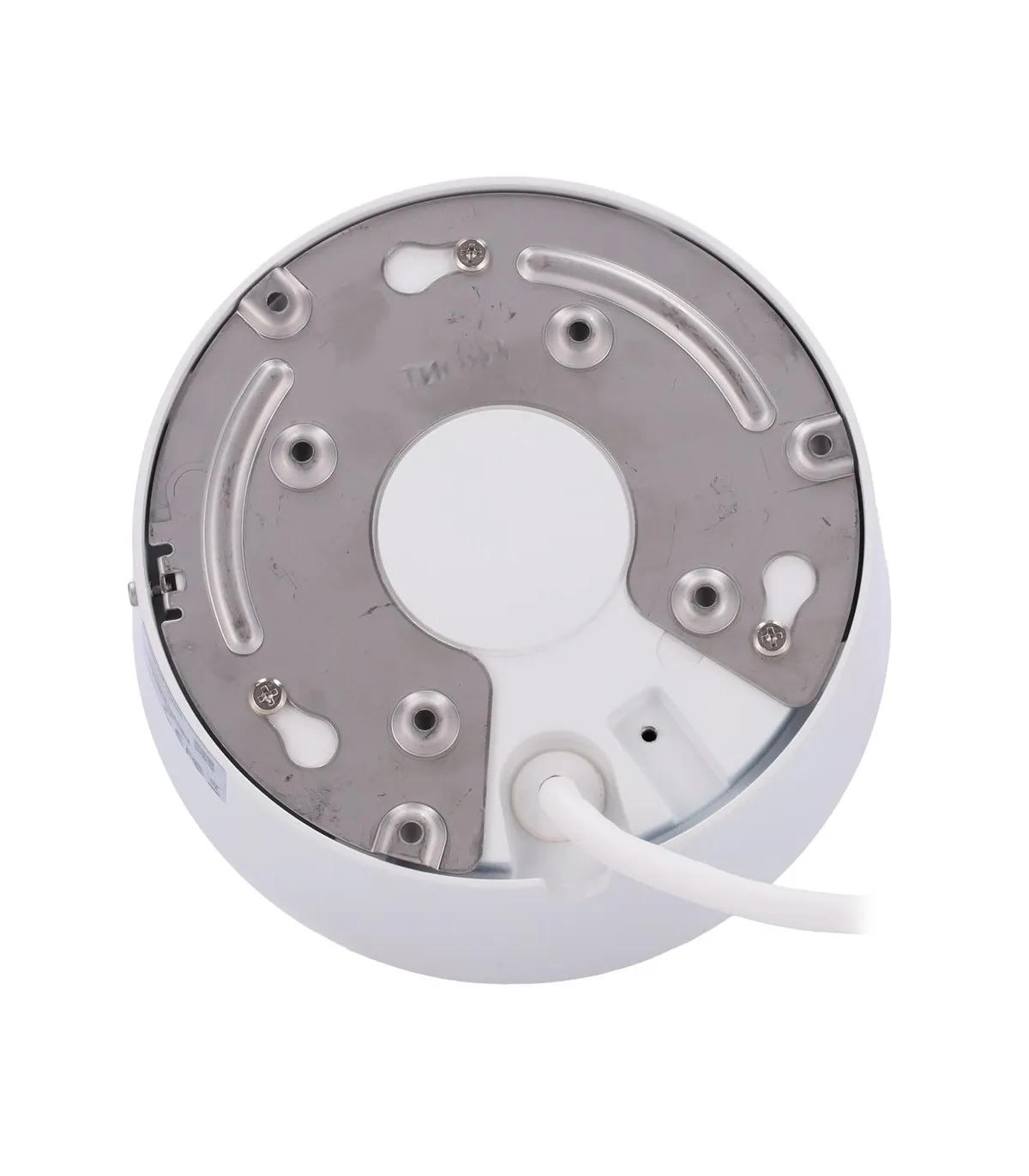

Base Dimensions	Base Ø 152 mm / Screw spacing Ø 92 mm / 4 screws
Weight	2.5 Kg
