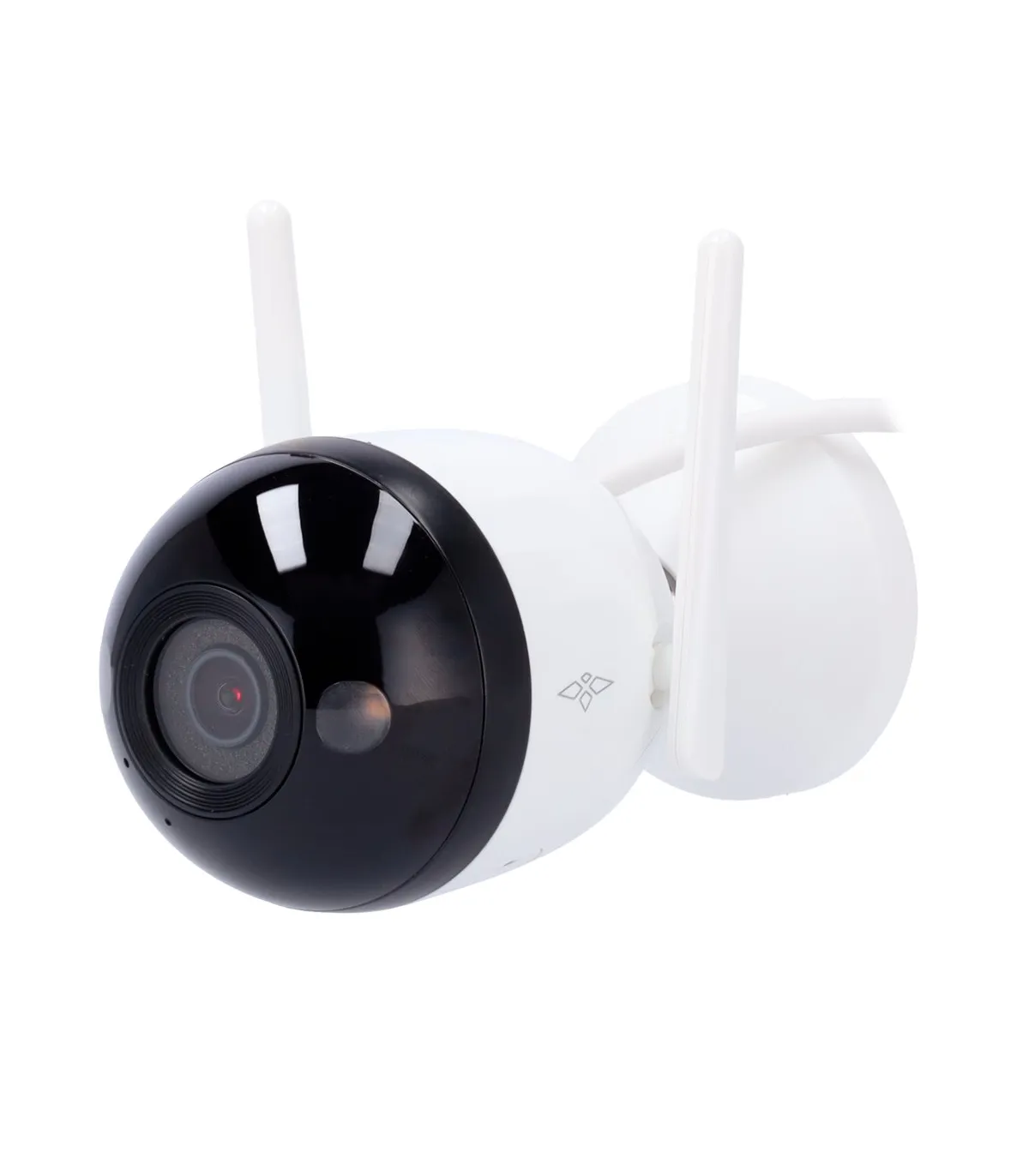

| Brand | X-Security |
| Range | PRO |
| Image Sensor | 1/3" CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 2560x1440 @ (1–30 fps) |
| Extra Stream Rate | 640x480 @ (1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 98º, V: 55º, D: 115º |
| Minimum Illumination | 0 lux with dual light |
| Supplementary Illumination | Dual light (IR + white light) range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Electronic Shutter | 1/3 s–1/100.000 s |
| Image Enhancements | Smart Dual Light, Flip 180º |
| Audio | Integrated microphone and speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Intelligent Functions | People detection and classification |
| Network Interface | Ethernet 10/100 BaseT Wi-Fi IEEE802.11 b/g/n |
| WiFi Frequency | 2.4–2.4835 GHz |
| Internal Storage | MicroSD card slot up to 256 GB |
| Remote Access | Web Browser, CMS Software (DSS/PSS), Smartphone (DMSS), and NVR |

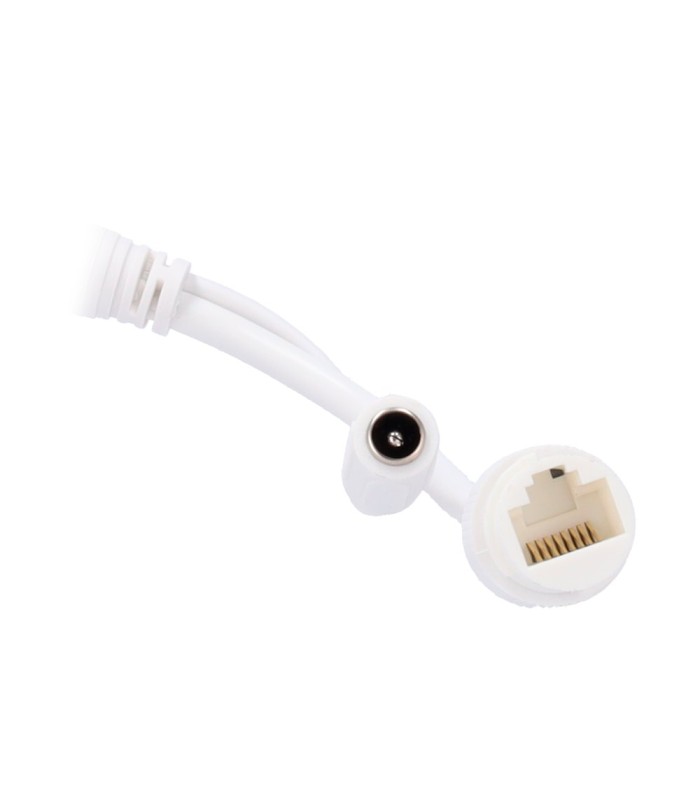

| Power Supply | DC 12 V / 6.6 W |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal and plastic |
| Protection Rating | IP67 Waterproof |
| Dimensions | 131 mm (W) x 78.4 mm (D) x 97.2 mm (H) |
| Weight | 254 g |
Data sheet
Specific References
