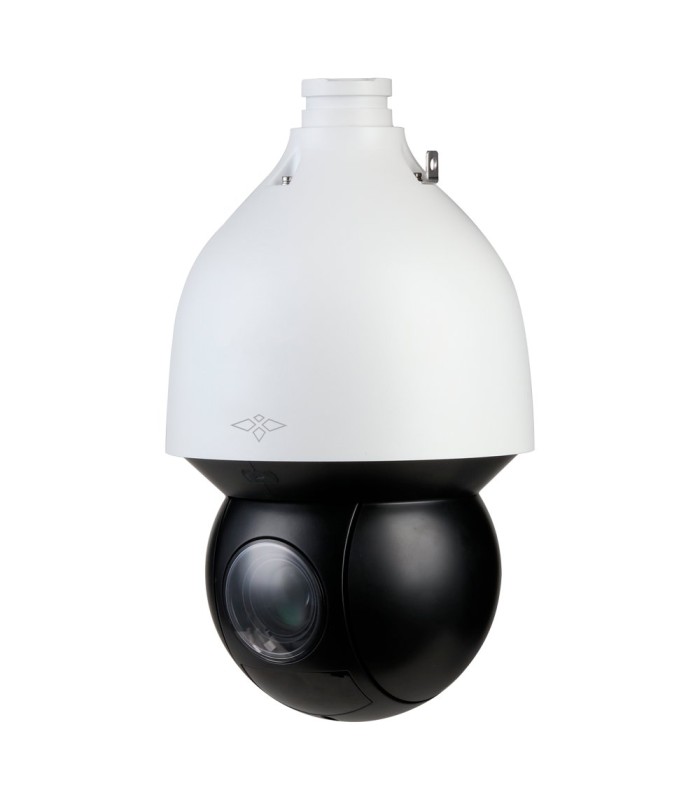

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD5025ITA-4U-WIZ
Brand: X-SECURITY
- PTZ X-Security 4MP Pro Range IP Camera
- Varifocal lens 5.4~135 mm (25x optical zoom)
- IR 150 m | Starlight
- IVS (Perimeter Protection) | SDM 4.0
- Face Detection | Counting | Auto Tracking
X-Security 4 Mpx Pro Range PTZ IP Camera XS-IPSD5025ITA-4U-WIZ
- X-Security
- WizSense PTZ IP Camera
- 4 Megapixel (2560x1440)
- Pro Range
- 1/1.8" Progressive Scan CMOS
- Varifocal lens 5.4–135 mm
- 25X optical zoom
- Starlight technology, color image in low light conditions
- 0 lux
- IR Range 150 m
- Compression H.264H / H.264B / Smart H.265+ / Smart H.264+ / H.265 / H.264 / MJPEG
- IVS (Perimeter Protection)
- Smart SMD 4.0 search
- Face detection
- People counting
- Acupick
- Video metadata
- Auto Tracking
- Audio
- Alarms
- WDR (120 dB)
- 3D DNR
- IR CUT
- MicroSD card slot up to 512GB
- WEB interface, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone and NVR
- ONVIF compatible
- RJ-45 10/100 BaseT
- PoE+ (IEEE802.3at)
- IP67 waterproof
- IK10 vandal-proof
- 6000 V surge protection
- Wall mount bracket included PFB305W
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2560x1440) |
| Lens | Varifocal 5.4~135 mm (25x optical zoom) |
| Field of View (FOV) | H: 61.6º~3.6º, V: 35.7º~2º, D: 66.6º~4º |
| DORI | 1724 m (D), 689 m (O), 344 m (R), 172 m (I) |
| Focus | Auto; semi-auto; manual |
| Digital Zoom | 16X |
| Electronic Shutter | 1 s~1/30.000 s |
| Minimum Illumination | 0.001 Lux @(F1.6, AGC ON) 0 lux with IR range 150 m |
| Day/Night | Removable ICR mechanical filter |
| Compression | H.264H; H.264B; Smart H.265+; Smart H.264+; H.264; H.265; MJPEG (ExtraStream); Smart H.264+ |
| Main Stream Rate | 4Mpx/3Mpx/1080p/1.3Mpx/720p @(1–25/30 fps) |
| Extra Stream 1 Rate | D1/VGA/CIF @(1–25/30 fps) |
| Extra Stream 2 Rate | 1080p/1.3Mpx/720p @(1–25/30 fps) |
| Bitrate | H264: 96 Kbps~14848 Kbps H265: 38 Kbps~8960 Kbps |
| Image Enhancements | WDR (120dB), 2D/ 3DNR, HLC, BLC, AWB, AGC, ROI, 180º Rotation, Privacy masking |
| EIS (Electronic Image Stabilization) | Yes |
| SMD (Smart Motion Detection) | SMD 4.0, advanced motion detection |
| IVS (Perimeter Protection) | Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/missing object; fast-moving; parking detection; people gathering; Vehicle/human alarm classification |
| Face Detection | Supports facial detection, facial bounding box, snapshot capture, facial snapshot upload, facial image enhancement, and selection of a preferred image from a group of snapshots. Also supports attribute extraction, allowing detection of 6 attributes and 8 expressions. Attributes include gender, age, glasses, mask, mustache, and expressions. Expressions include anger, sadness, hatred, fear, surprise, calmness, happiness, and confusion. Also offers face cropping function, allowing cropping of one face at a time and customizing the size to be a one-inch photo. Supported methods for snapshot capture are real-time capture, quality first, and selection of a preferred image from a group of snapshots. |
| Video Metadata | Detects motorized and non-motorized vehicles, faces, and human bodies. Also performs tracking, takes snapshots, uploads high-quality facial images, and optimizes images. Extracts motor vehicle attributes, detecting up to 10 attributes. |
| People Counting | Uses advanced image processing technology to extract detailed information from images. The extracted information is then processed using advanced deep learning algorithms to analyze and detect human bodies and track targets in real-time. The camera provides separate individual entry and exit statistics with a counting accuracy of up to 95%. |
| Acupick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search live and recorded videos to quickly locate targets. |
| Audio | 1 Input / 1 Output |
| Audio Compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
| Alarms | 2 inputs / 1 output |
| Internal Storage | MicroSD card slot up to 512 GB |
| Pan/Tilt Range | Horizontal: 0°~360° endless Vertical: -15°~90°, auto flip 180º |
| Manual Speed | Horizontal: 0.1°~300°/s Vertical: 0.1°–140°/s |
| Speed between Presets | Horizontal: 400°/s Vertical: 300°/s |
| Pre-set Positions | 300, 8 tours, 5 Patterns, 5 Scans |
| Auto Tracking | Yes |
| Communication | ONVIF (Profile S, G, T), CGI, SDK |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Power | DC 24 V / 2.5 A, max. 21 W PoE+ (IEEE802.3at) |
| Operating Temperature | -40º C ~ +70º C |
| Protection Grade | IP67 waterproof IK10 vandal-proof 6000 V surge protection |
| Dimensions | 332 mm (H) x 190 mm (Ø) |
| Weight | 4.7 Kg |
Content
- Motorized dome IP camera
- CD with software and instructions
- Included PFB305W bracket
- Power adapter
