| Brand | X-SECURITY |
| Image Sensor | 1/2.7” Progressive CMOS |
| Maximum Resolution | 8 Megapixel (3840 × 2160) |
| Lens | 2.8 mm (H: 106°; V: 56°; D: 125°) |
| Main Stream Rate | 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) |
| Extra Stream Rate | 7704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Compression | H.264H; H.265; H.264; H.264B; MJPEG (only compatible with substream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Infrared Illumination | 0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| DORI | 88 (D), 35.2 (O), 17.6 (R), 8.8 (I) |
| Image Enhancements | WDR 120dB, BLC, HLC, AWB, AGC, 3D-DNR |
| IVS (Perimeter Protection) | Intrusion, line crossing (both functions support accurate classification and detection of vehicles and people) |
| Smart Search | Work together with Smart NVR for refined smart search, event extraction, and event video merging |
| Day/Night | Removable ICR mechanical filter |

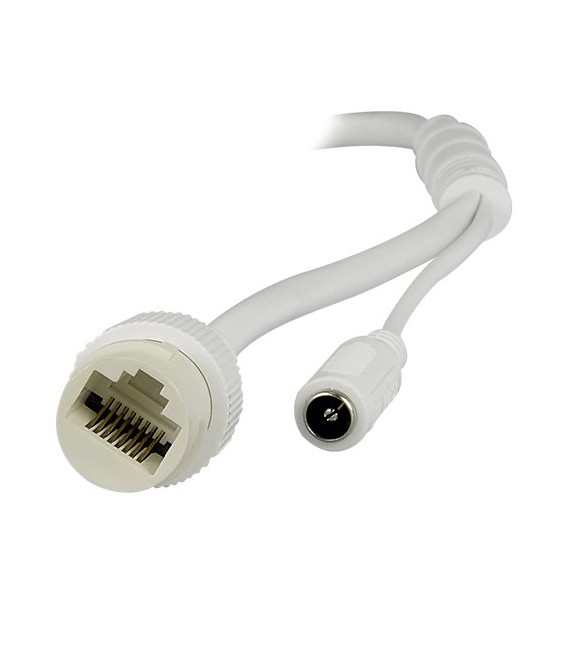

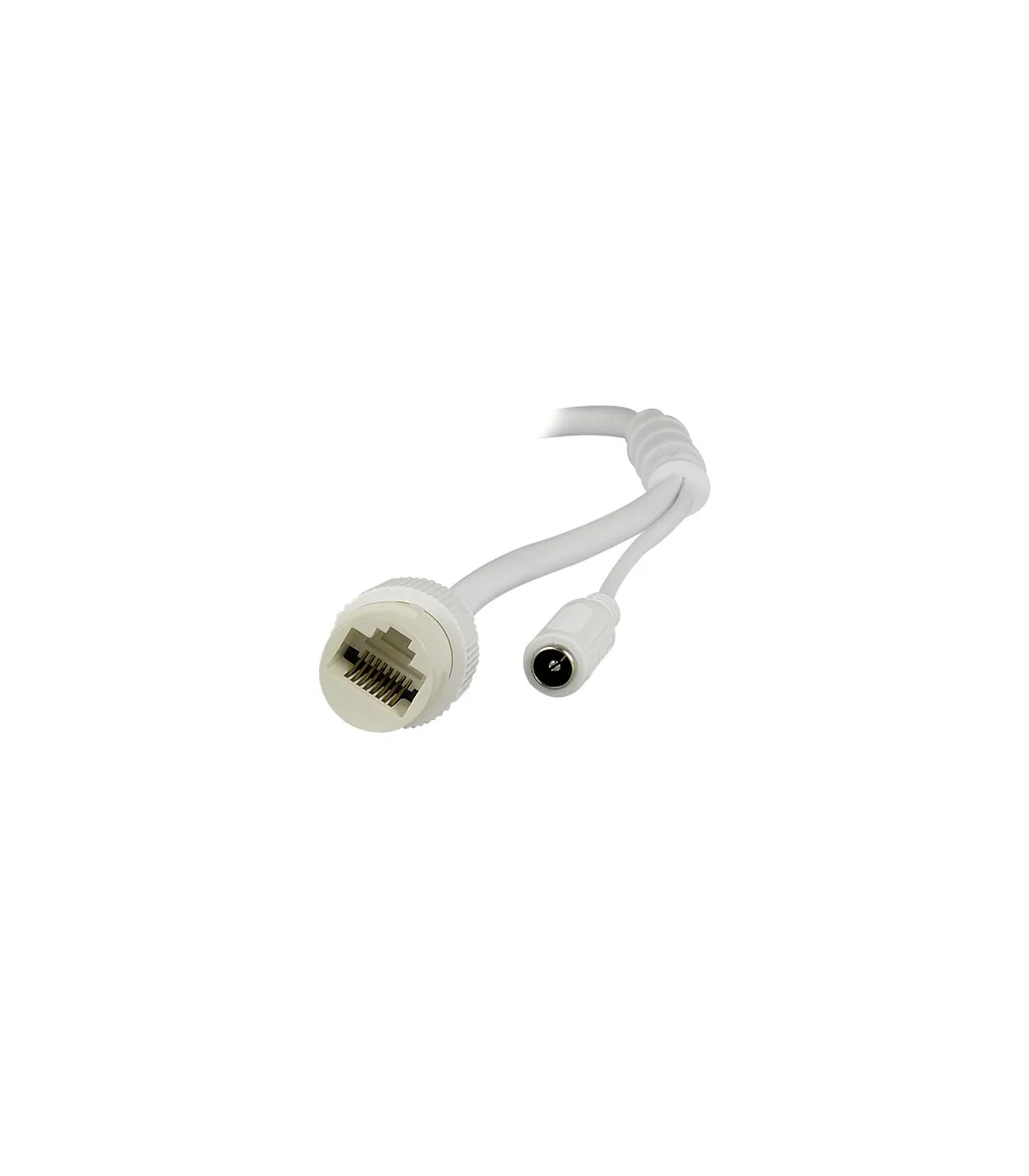

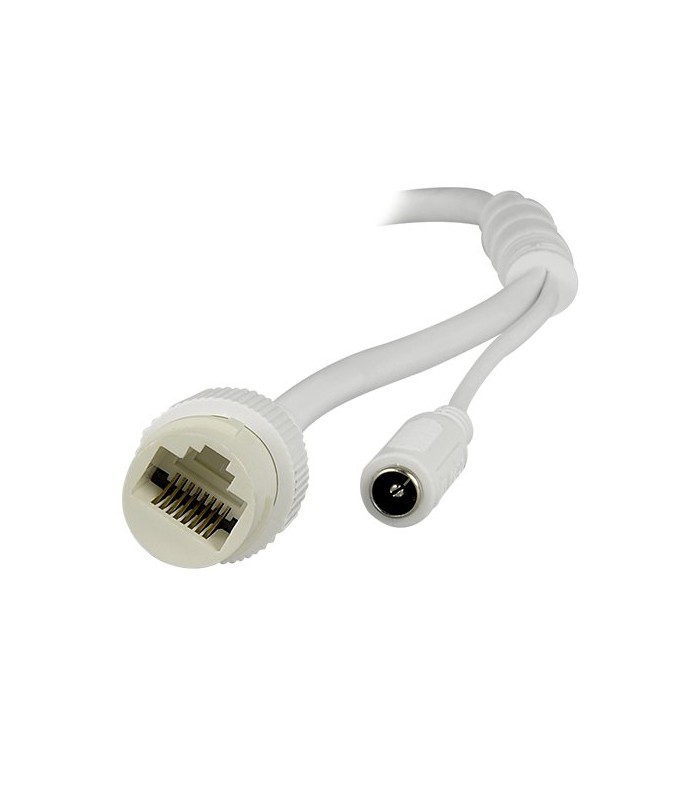

| Network Interface | Ethernet 10/100 BaseT |
| Audio | Integrated Microphone |
| Remote Access | WEB Interface, CMS (DSS/PSS), Smartphone, and NVR |
| Interoperability | ONVIF |
| Material | Metal |
| Power | DC 12 V / 3.4W, PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +60º C |
| Internal Storage | Micro SD Max 256GB |
| Protection Rating | IP67 Waterproof |
| Dimensions | 166.2 mm × 70 mm × 70 mm (L × W × H) |
| Weight | 480 g |
Data sheet
