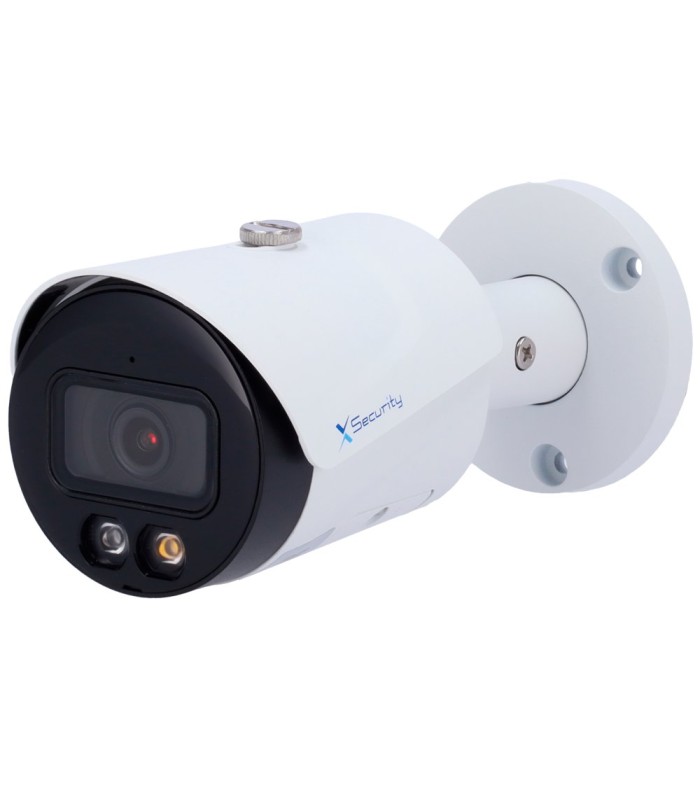

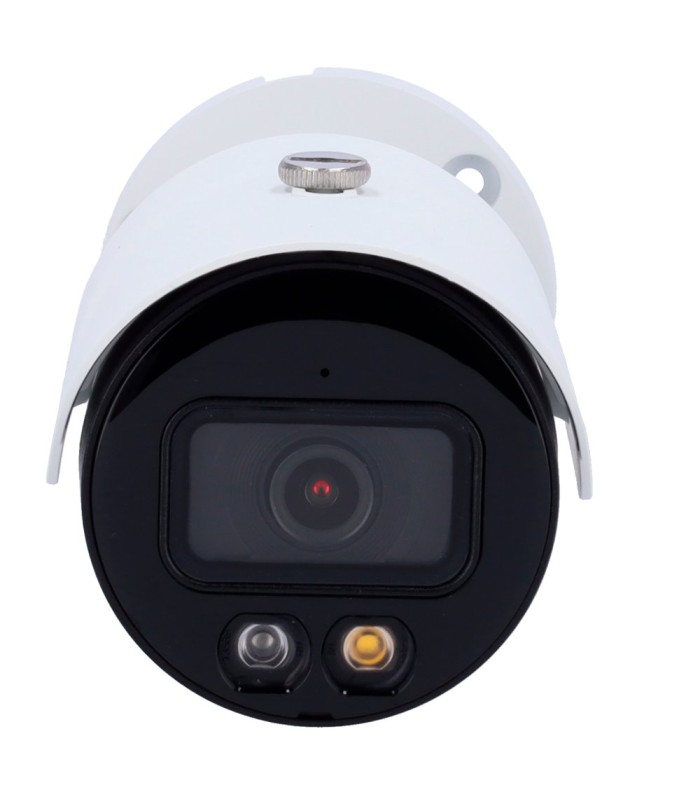

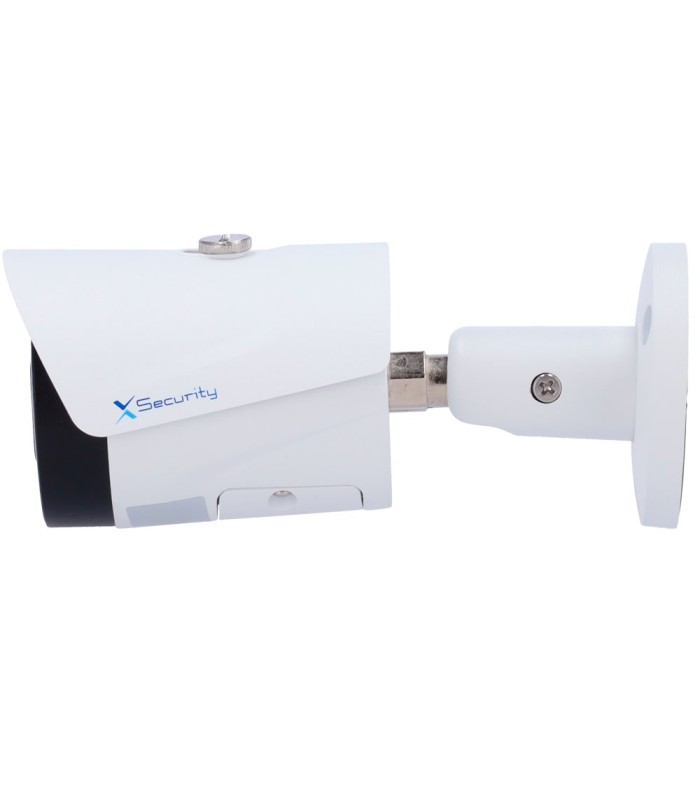

| Brand | X-SECURITY |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Image Sensor | 1/2.8” Progressive CMOS |
| Lens | Fixed 2.8mm (H: 107°; V: 56°; D: 127°) |
| Main Stream Rate | 1920x1080@1-25/30 fps) |
| Extra Stream Rate | 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| DORI | 64-210 (D), 25.6-84 (O), 12.8-42 (R), 6.4-21 (I) |
| Minimum Illumination | 0.006 lux@F1.0 (Color, 30 IRE) 0.0006 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Dual Light | Working Modes: Intelligent Mode (Default, IR activated and switches to white LED in the presence of a target) IR Mode White LED Mode |
| IR Range | 30 m (IR) 30 m (White light) |
| Image Enhancements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| SMD Plus | Yes (Motion detection based on human and vehicle) |
| IVS (Perimeter Protection) | Intrusion, line crossing (both functions support accurate classification and detection of vehicles and people) |

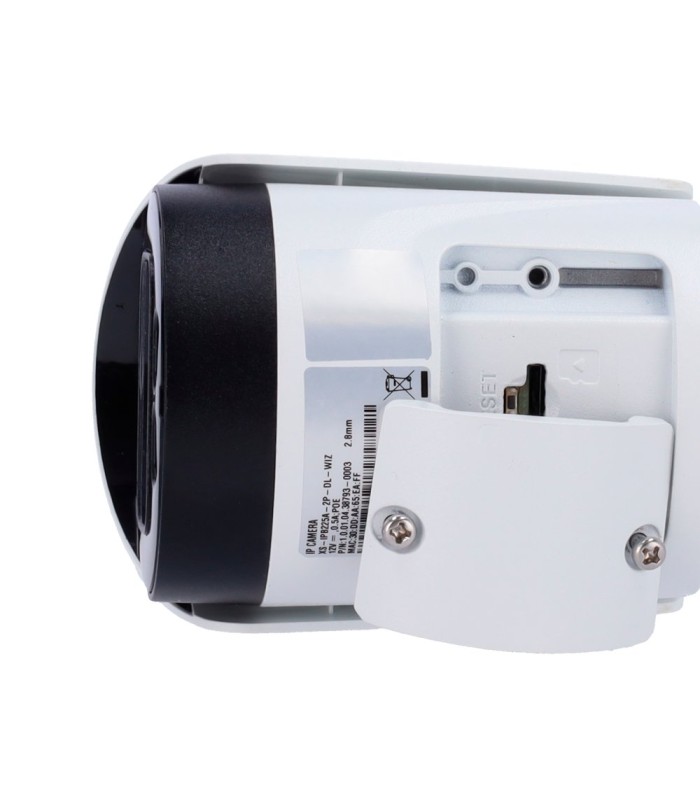

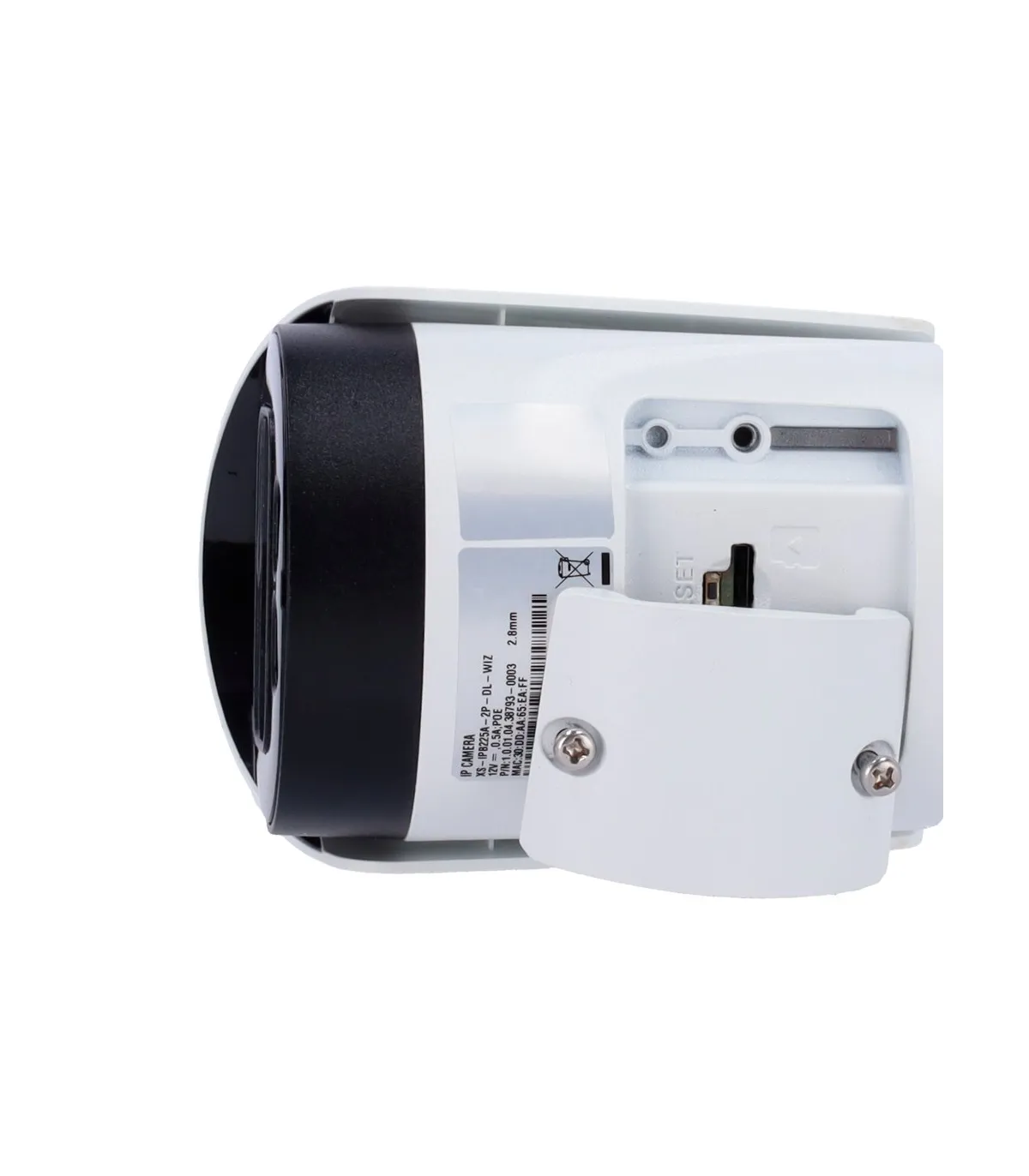

| Smart Search | Using microSD card or X-Security NVR |
| Network Interface | Ethernet 10/100M BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote Access | WEB interface, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR |
| Material | Metal |
| Interoperability | ONVIF (Profile S/Profile T); CGI |

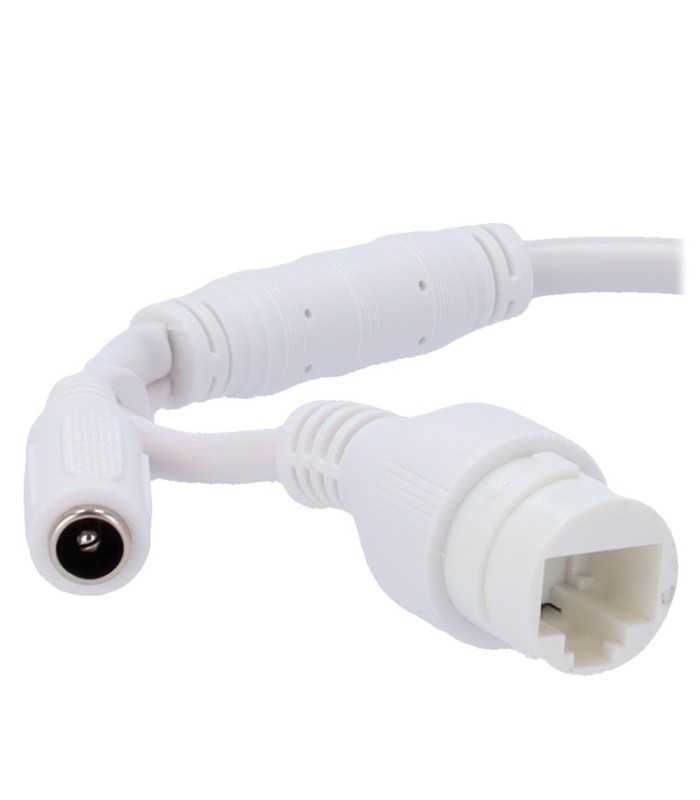

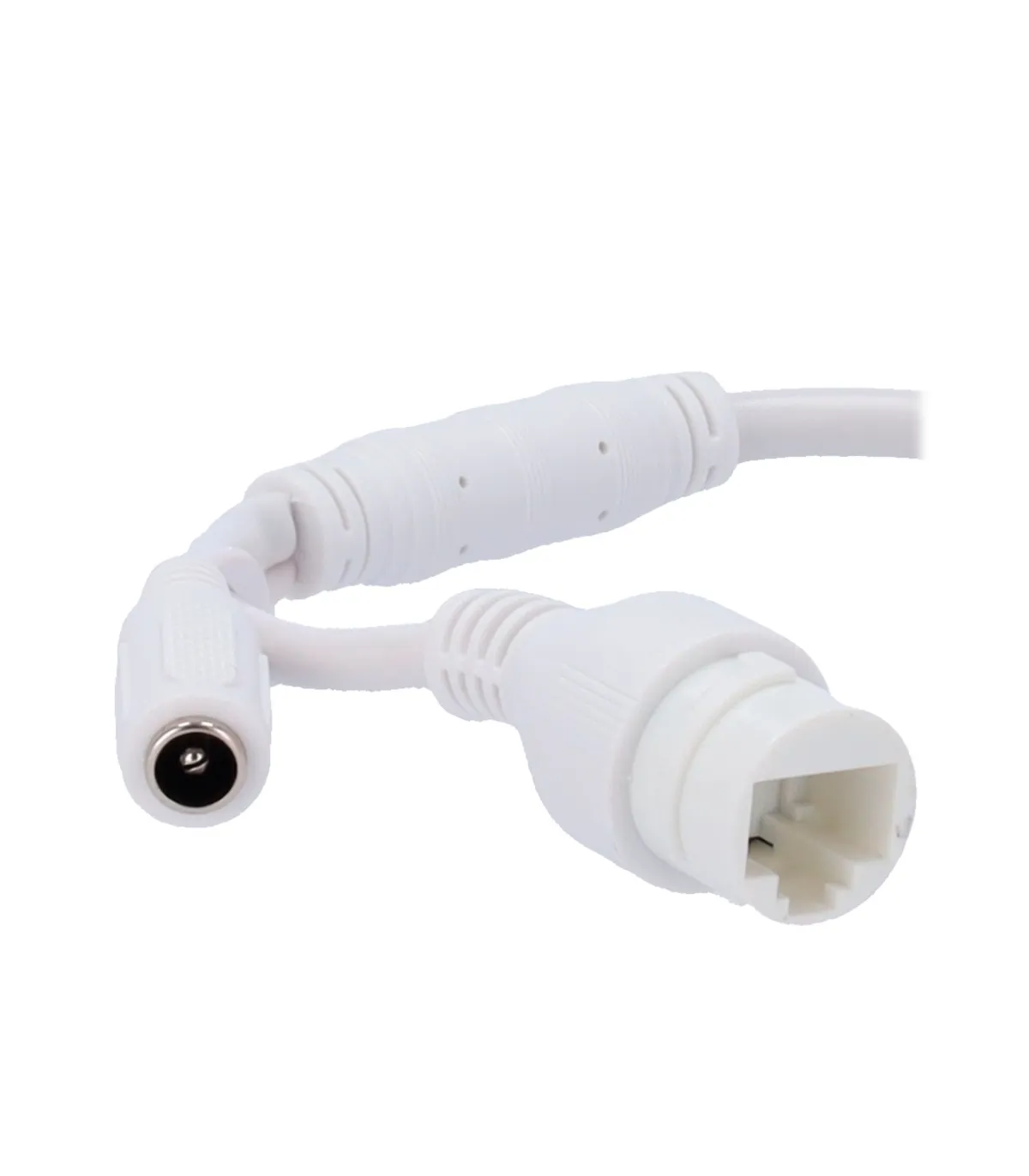

| Power | DC 12 V / 3W, PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +60º C |
| Protection Rating | Waterproof IP67 |
| Dimensions | 166.2(L) x 70 (W) x 70 (H) mm |
| Weight | 480 g |
