| Brand | X-SECURITY |
| Image Sensor | 1/2.9” Progressive CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |

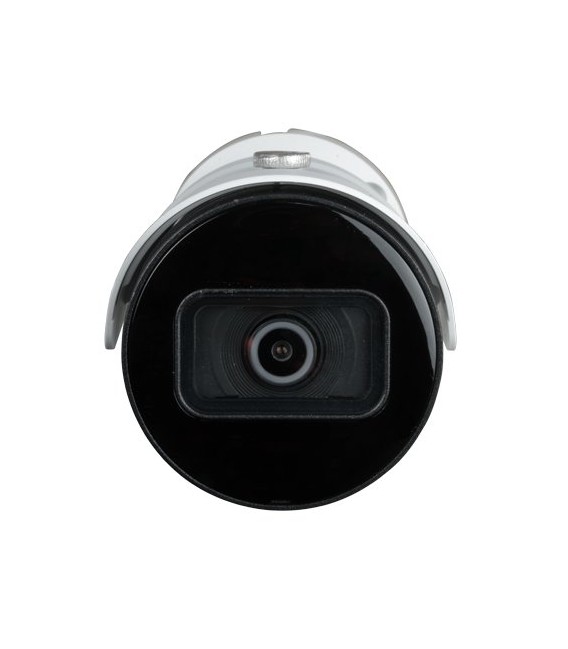

| Lens | 2.8 mm (H: 95°; V: 52°; D: 114º) |
| Main Stream Rate | 1920x1080@ (1–25/30 fps) |
| Extra Stream Rate | 704×576@ (1–25 fps) / 704×480@ (1–30 fps) |
| Compression | H.264H; H.265; H.264; H.264B; MJPEG (only compatible with extra stream) |
| Infrared Illumination | 0.002 lux@F1,6 (color, 30 IRE) 0.0002 lux@F1,6 (black and white, 30 IRE), 0 lux (illuminator on) |
| DORI | 43.9 (D), 17.5 (O), 8.8 (R), 4.4 (I) |
| Image Enhancements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-DNR |
| IVS (Perimeter Protection) | Intrusion, tripwire (both functions support accurate classification and detection of vehicles and people) |
| Day/Night | Removable ICR mechanical filter |

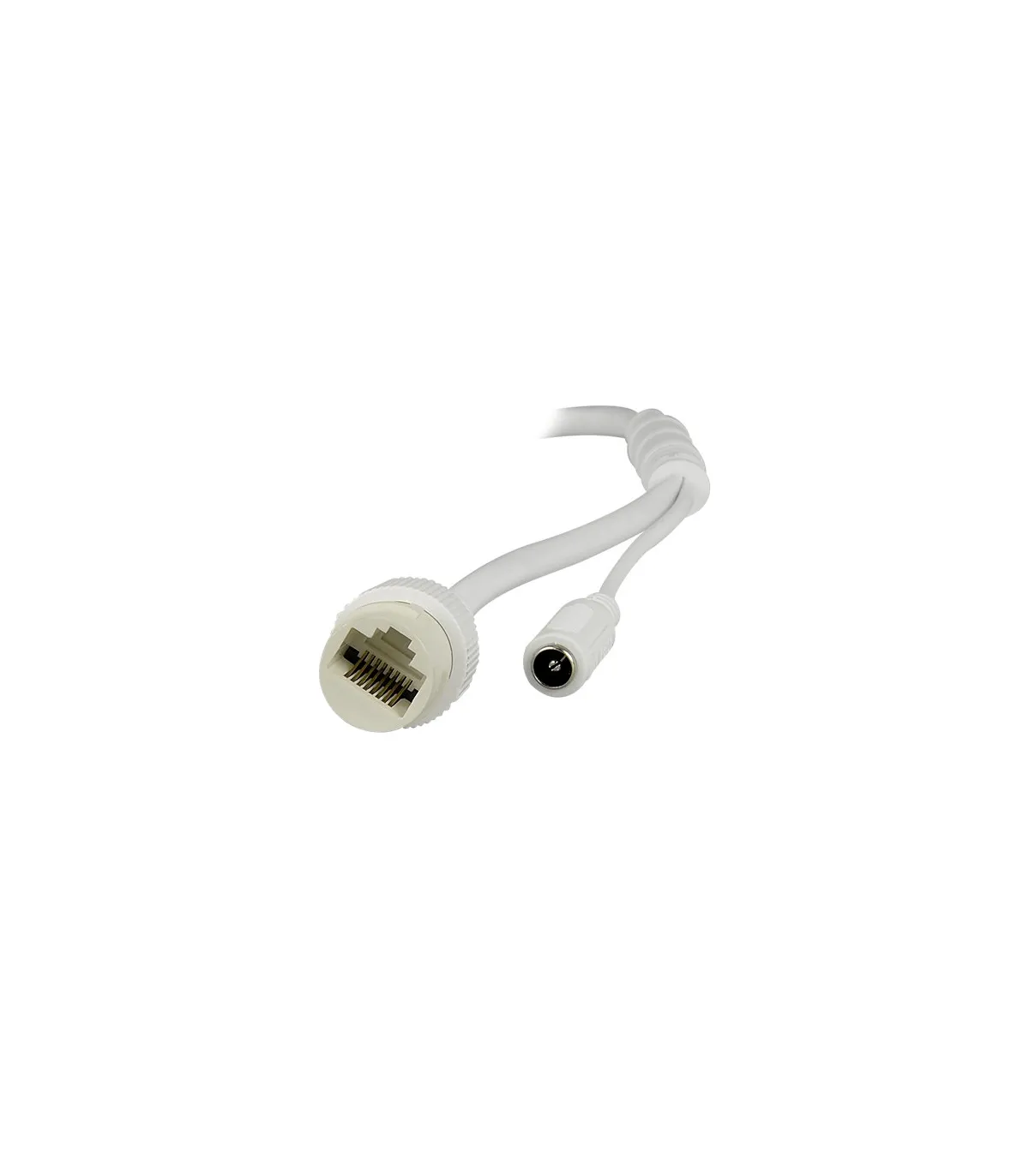

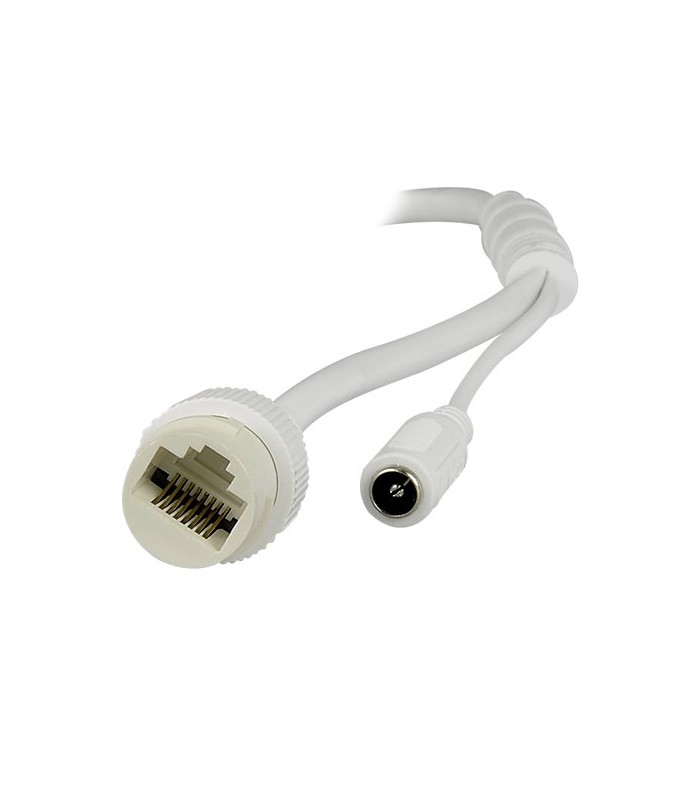

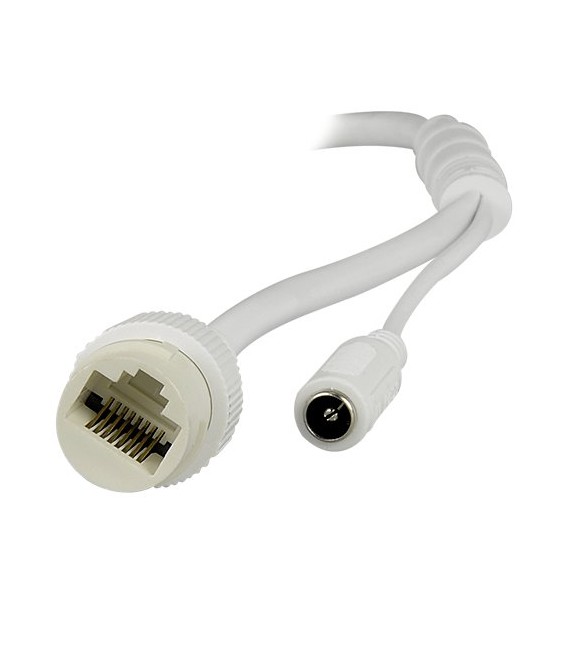

| Network Interface | Ethernet 10/100 BaseT |
| Audio | Integrated Microphone |
| Internal Storage | Micro SD Max 256 GB |
| Remote Access | WEB Interface, CMS (DSS/PSS), Smartphone, and NVR |
| Interoperability | ONVIF |
| Power | DC 12 V / 3.3W, PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Protection Rating | IP67 Waterproof |
| Dimensions | 166.2 mm × 70 mm × 70 mm (L × W × H) |
| Weight | 480 g |
Data sheet
Specific References
