| Brand | X-SECURITY |
| Maximum Resolution | 4 Megapixel (3840×2160) |
| Image Sensor | 1/2.7” Progressive CMOS |
| Lens | 2.8 mm (H: 106°; V: 56°; D: 125°) |
| Main Stream Rate | 3840 × 2160@(1–20 fps)/ 2688 × 1520@(1–25/30 fps) |
| Extra Stream Rate | Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only compatible with sub stream) |
| Minimum Illumination | 0.009 lux@F2.0 (color, 30 IRE) 0.0009 lux@F2.0 (black and white, 30 IRE) 0 lux (IR illuminator on) |
| Image Enhancements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter Protection) | Intrusion, line crossing (both functions support vehicle and person classification and accurate detection) |
| Smart Search | Work together with Smart NVR to refine smart search, event extraction, and event video merging |

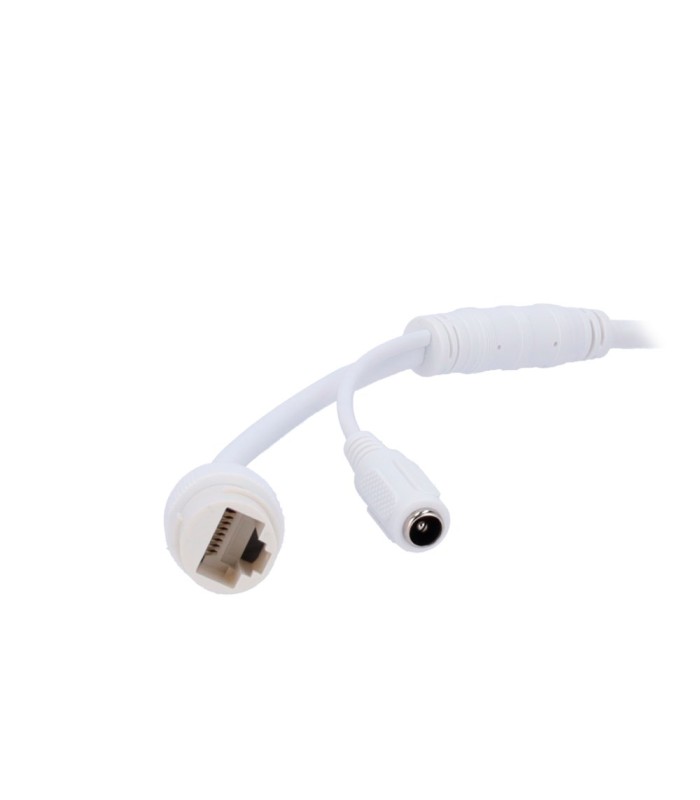

| Network Interface | Ethernet 10/100 BaseT |
| Audio | Built-in Microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote Access | WEB Interface, CMS (DSS/PSS), Smartphone, and NVR |
| Material | Inner core: Metal Cover: Metal Decoration ring: Plastic |
| Interoperability | ONVIF (Profile S/Profile T); .CGI; P2P; Hik-Connect |
| Power | DC 12 V / 3.4W, PoE IEEE802.3af |
| Operating Temperature | -30º C ~ +60º C |
| Protection Rating | IP67 Waterproof |
| Dimensions | 100.9 mm (D) x 109.9 mm (Ø) |
| Weight | 370 g |
Data sheet
