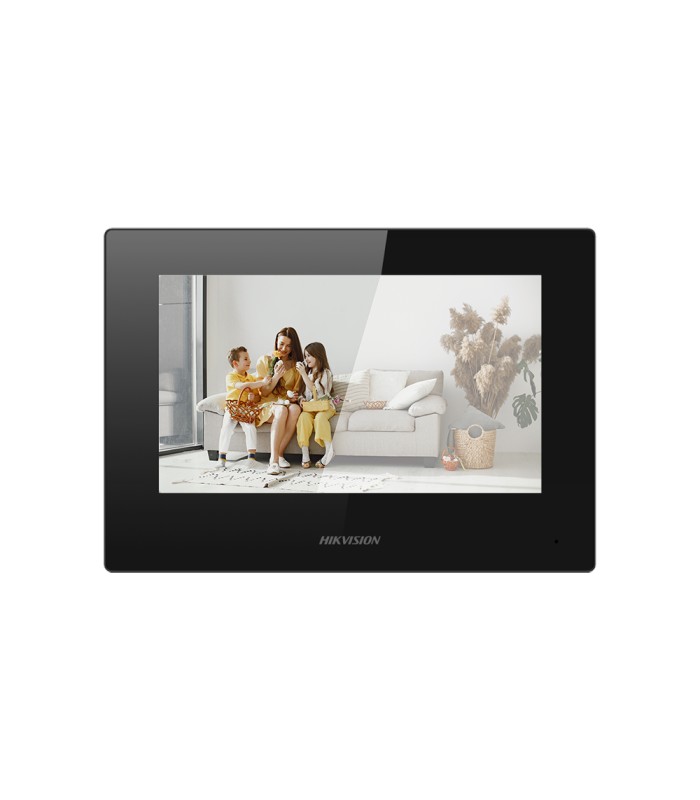

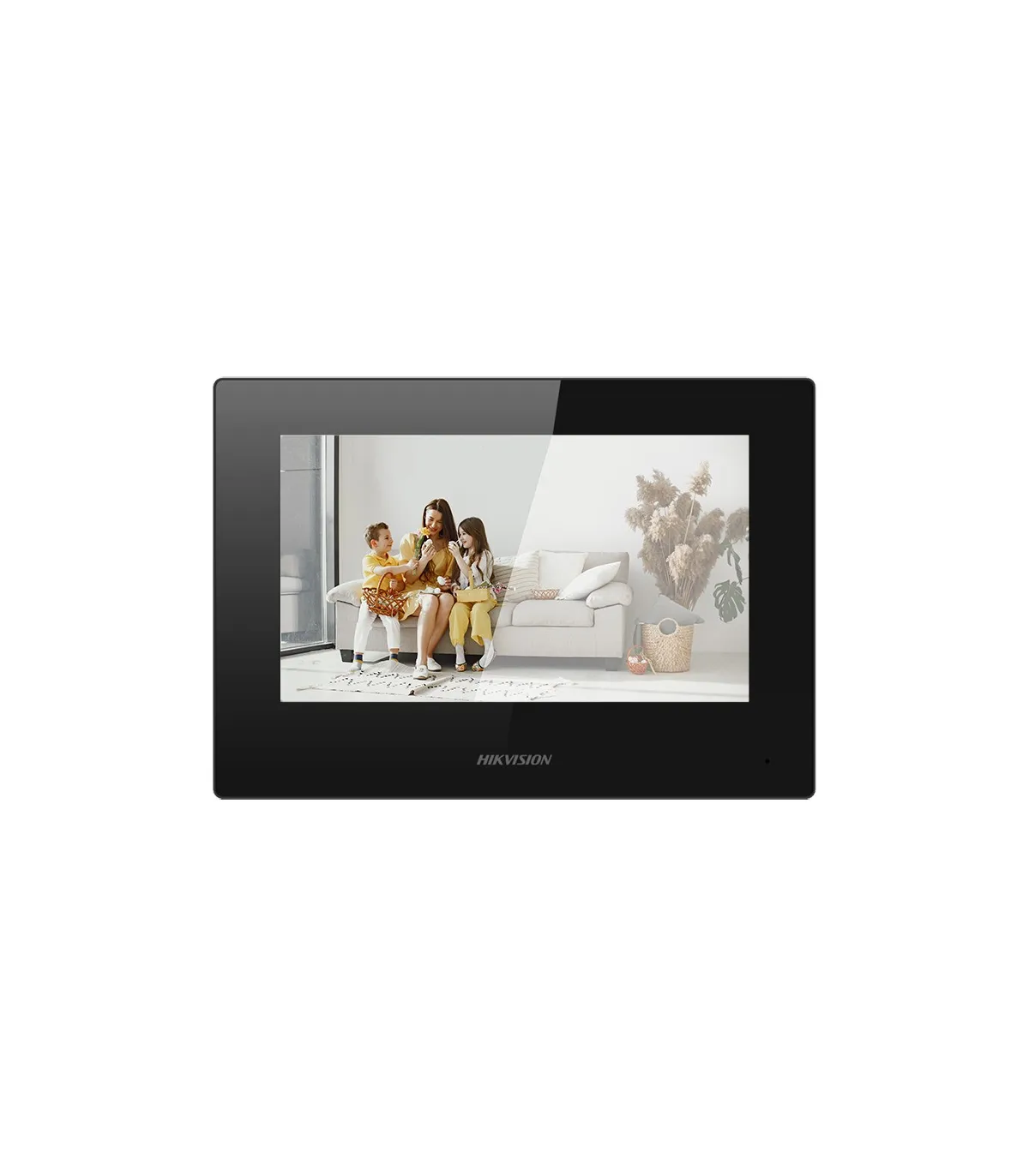

Hikvision DS-KH6320-LE1(B) video intercom monitor
- Hikvision
- 7" TFT touch screen for video intercom
- Built-in microphone and speaker
- Two-way audio
- 8 alarm inputs
- Multiple extension of displays
- TCP/IP
- PoE IEEE802.3af
- Internal calls between devices
- Surface mounting
Technical specifications
| Brand | Hikvision |
| Model | DS-KH6320-LE1(B) |
| Operating system | Linux |
| Screen type | 7" color touch TFT |
| Screen resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm inputs |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP 2.0 Protocol |
| Remote Access | iVMS-4200 Software |
| Power | DC 12 V / 500 mA max. / PoE IEEE802.3af |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 140 (H) x 200 (W) x 23.6 (D) mm |
| Weight | 325 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
Contents
- Hikvision video intercom indoor monitor
- Installation material
- Instructions for use
