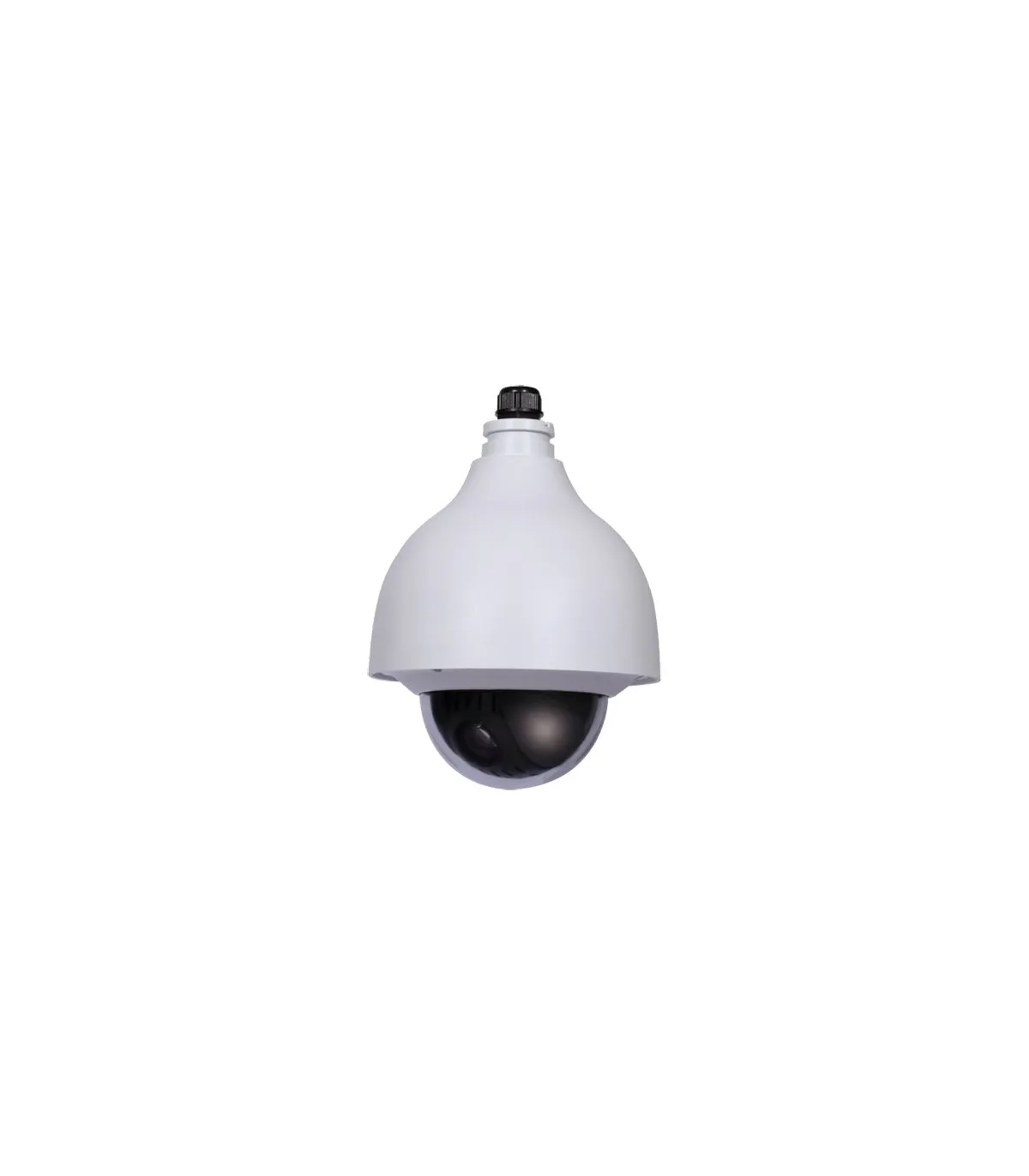

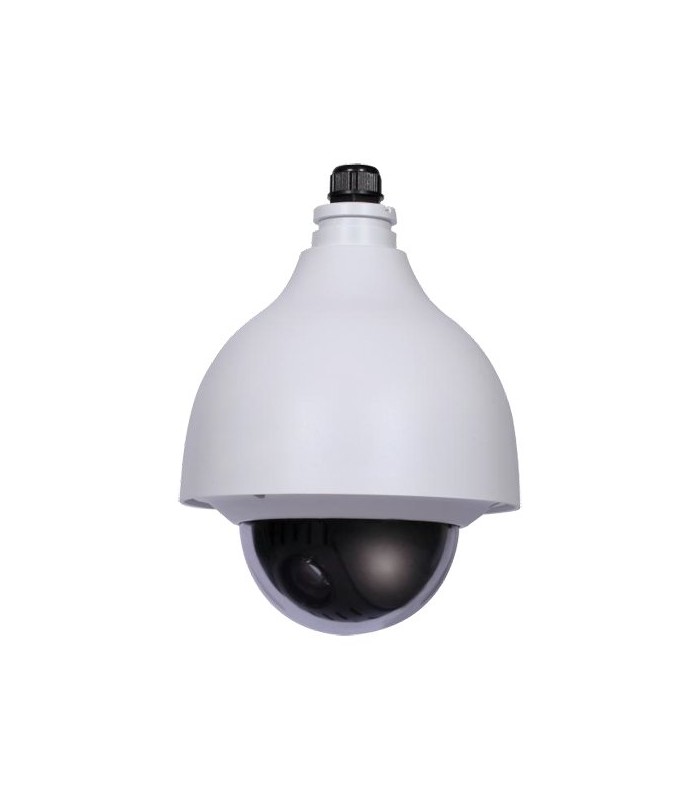

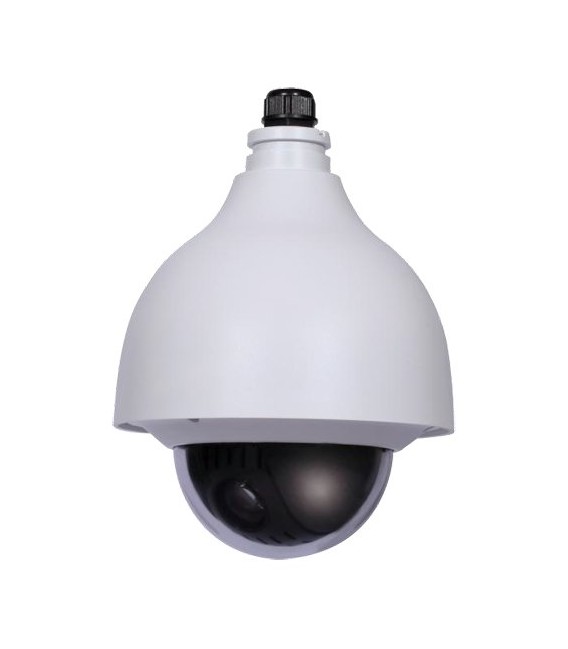

X-Security IP PTZ Camera XS-IPSD7212SAW-2
Brand: X-SECURITY
- X-Security IP PTZ Camera
- 2 Megapixel Sony© Starlight
- H.265+ Compression
- Intelligent IVS Functions
- PoE+ / Audio / Alarms
X-Security IP PTZ Camera XS-IPSD7212SAW-2
- X-Security
- IP PTZ Camera
- High speed 300º/second
- 12X optical zoom
- 1/2.8” STARVIS CMOS
- 2 Megapixel (1920x1080)
- High sensitivity Starlight
- Varifocal lens 5.1~61.2 mm
- 0.005 Lux/F1.6 (Color), 0.0005 Lux/F1.6 (B/W)
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- Waterproof IP66, Vandal-proof IK10
- IR CUT
- Alarms and audio
- WDR
- Recording on SD card
- IVS intelligent functions: line crossing, intrusion, abandoned object, facial detection
- WEB interface, CMS (DSS/PSS), Smartphone and NVR
- Compatible with ONVIF
- Wall mount support PFB300S and thread PFA110 included
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/2.8” STARVIS CMOS |
| Resolution | 1080P(1920x1080), 720P(1280x720), D1(704x576), CIF(352x288) |
| Compression | H.265+/H.265/H.264+/H.264 (video), G711a / G771u / PCM (audio) |
| Main Stream Rate | 1080P (1~25 FPS) / 720P (1~50 FPS) |
| Extra Stream Rate | D1 / CIF (1~25 FPS) |
| Bitrate | 448 Kbps ~ 8 Mbps |
| Lens | Varifocal 5.1 ~ 61.2 mm (12X optical zoom) Auto Iris |
| Digital Zoom | 16X |
| Image Enhancements | WDR (120dB), Ultra DNR, HLC, BLC, ATW, AGC, Privacy Mask, Motion detection |
| Intelligent Detection | Line crossing, intrusion, abandoned object, face detection |
| Minimum Illumination | 0.005 Lux (color) / 0.0005 Lux (B/W) |
| Day/Night | Removable ICR mechanical filter |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | WEB interface, CMS software, mobile app and NVR |
| Memory | Micro SD card slot (Max 128 GB) |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -2°~90° auto flip 180° |
| Manual Speed | Horizontal: 0.1°~300° /s, Vertical: 0.1°~120° /s |
| Speed between Presets | Horizontal: 300° /s, Vertical: 200° /s |
| Pre-set Positions | 300, 5 auto pattern, 8 auto tour, 5 auto scan |
| Communication | DH-SD, ONVIF Compatible |
| Alarms | 2 inputs / 1 relay NO/NC |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Power | AC 24 V / 1.5 A , PoE IEEE802.3at |
| Protection Grade | Waterproof IP66, Vandal-proof IK10 |
| Operating Temperature | -40º C ~ +60º C |
| Dimensions | 234 mm (H) x 186 mm (Ø) |
| Weight | 2300 g |
Content
- Motorized IP dome camera
- Wall mount support PFB300S
- Thread adapter PFA110
- AC/DC adapter 24 V / 1.5 A
- Torx key
- CD with software and instructions
- User manual
- Installation gloves
