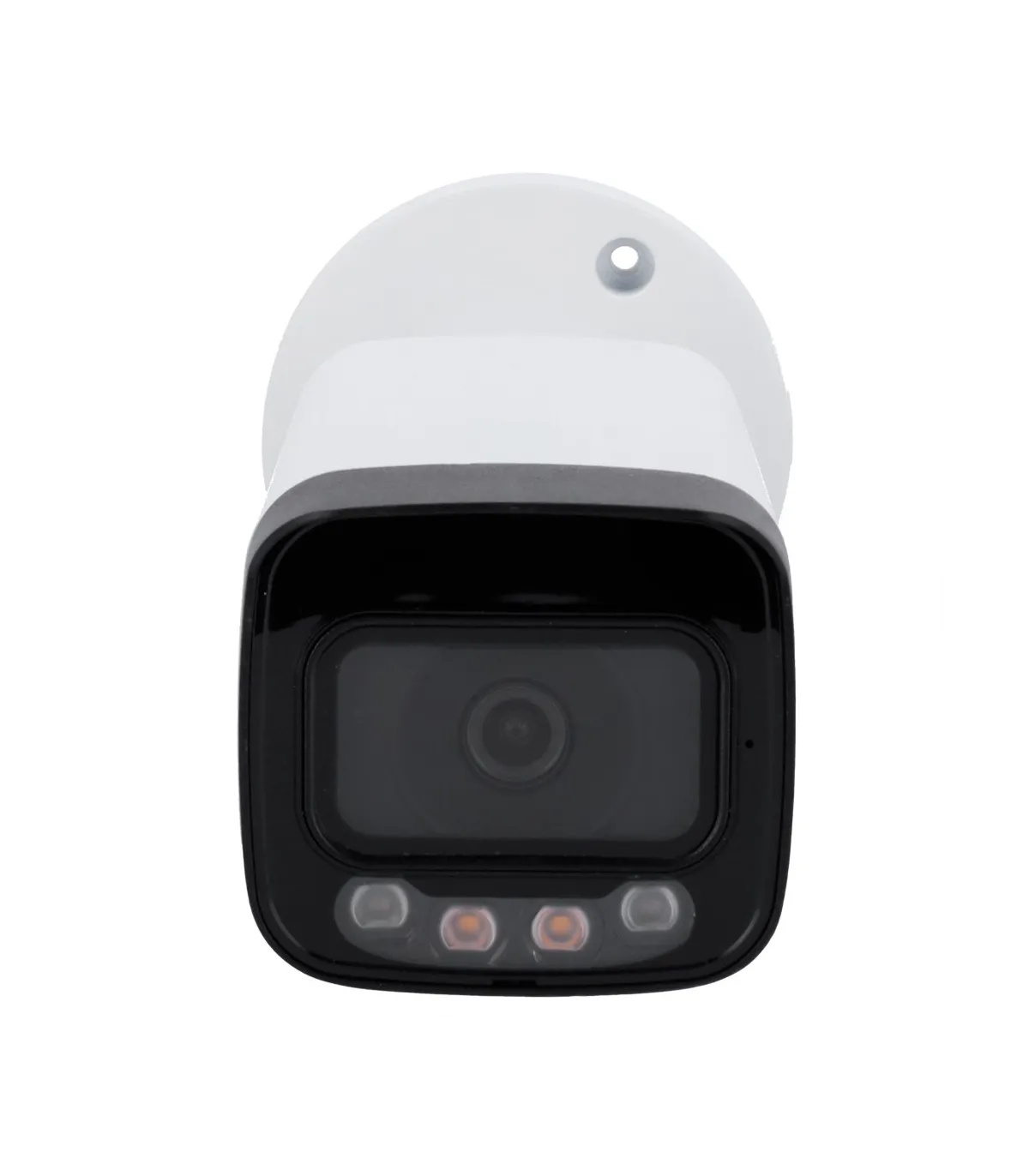

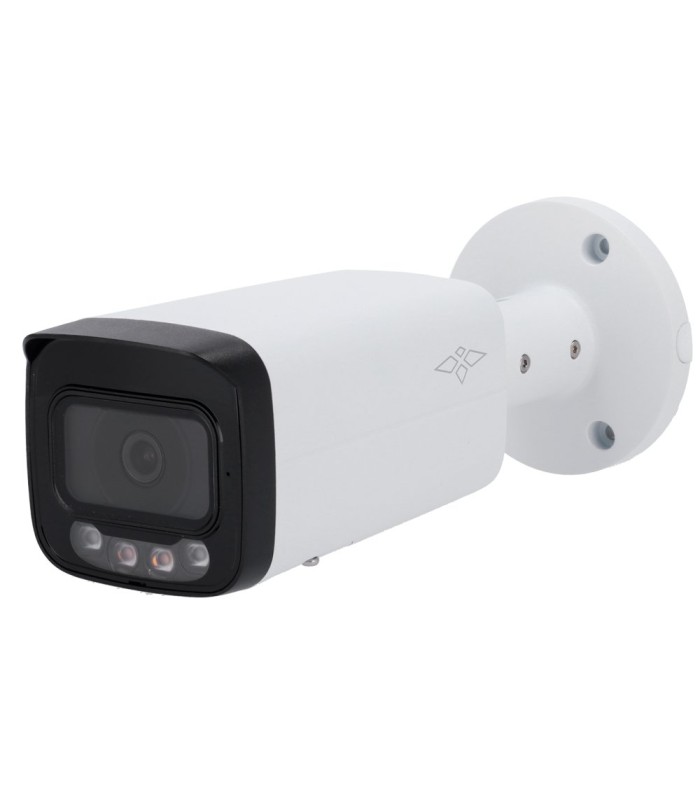

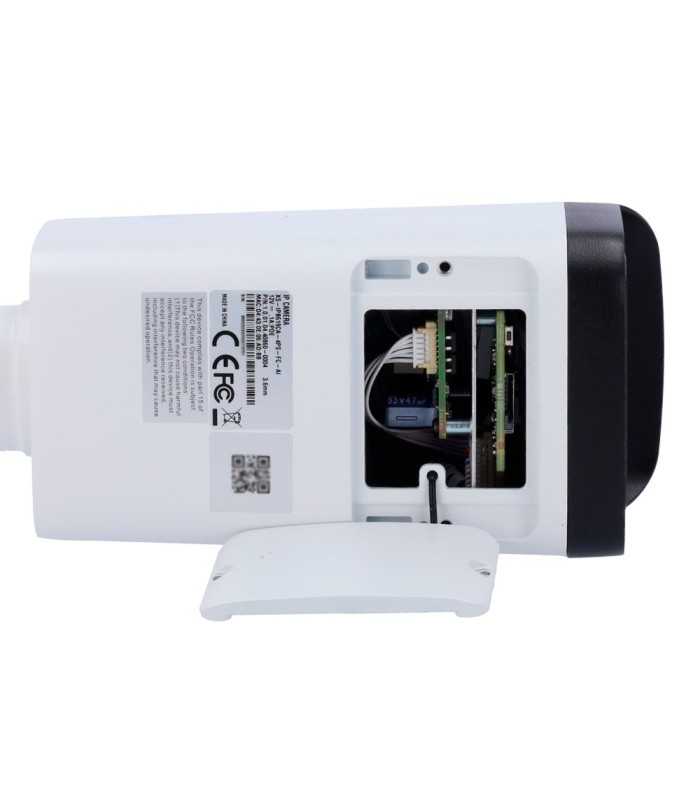

| Brand | X-SECURITY |
| Image Sensor | 1/2.9” Progressive CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 2688×1520 (1~20fps), 2560×1440 (1~25/30fps) |
| Extra Stream Rate | 2nd: 704×576 (1~25fps), 704×480 (1~20/30fps) |
| Compression | H.265+/H.265/H.264+/H.264 |
| Lens | 3.6 mm (H: 84°; V: 42°; D: 101°) |
| Minimum Illumination | 0.006 Lux@F1.6 |

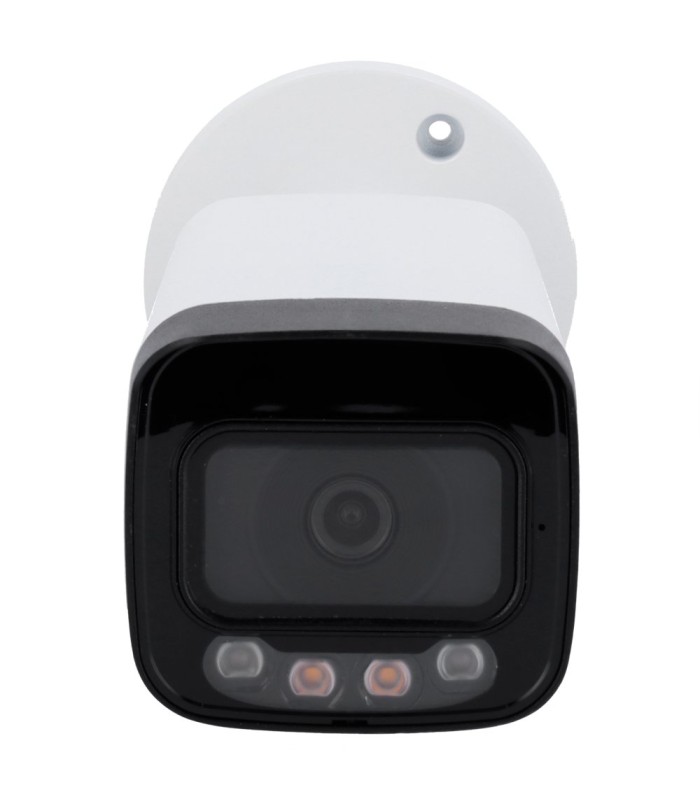

| Dual Light | IR Range 60m / Warm Light Range 50m |
| Image Enhancements | WDR, BLC, HLC, AWB, AGC, 3D-DNR, SMD |
| IVS (Perimeter Protection) | Intrusion, tripwire (both functions support accurate classification and detection of vehicles and people) |
| Day/Night | Removable ICR mechanical filter |
| Network Interface | Ethernet 10/100 BaseT |

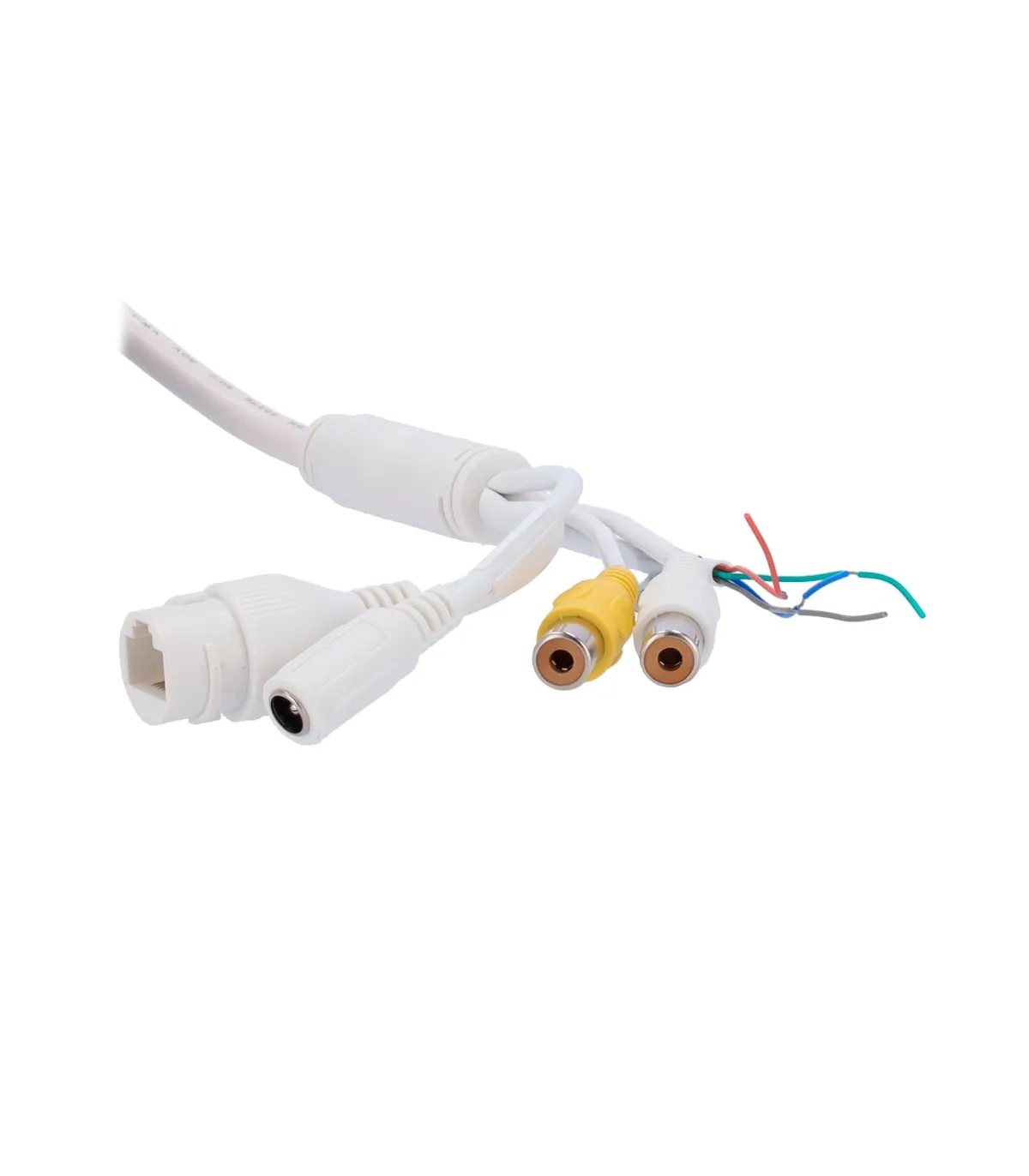

| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output / Built-in Microphone |
| Remote Access | WEB Interface, CMS (DSS/PSS), Smartphone, and NVR |
| Interoperability | ONVIF |
| Power | DC 12 V / 7.2W PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +60º C |

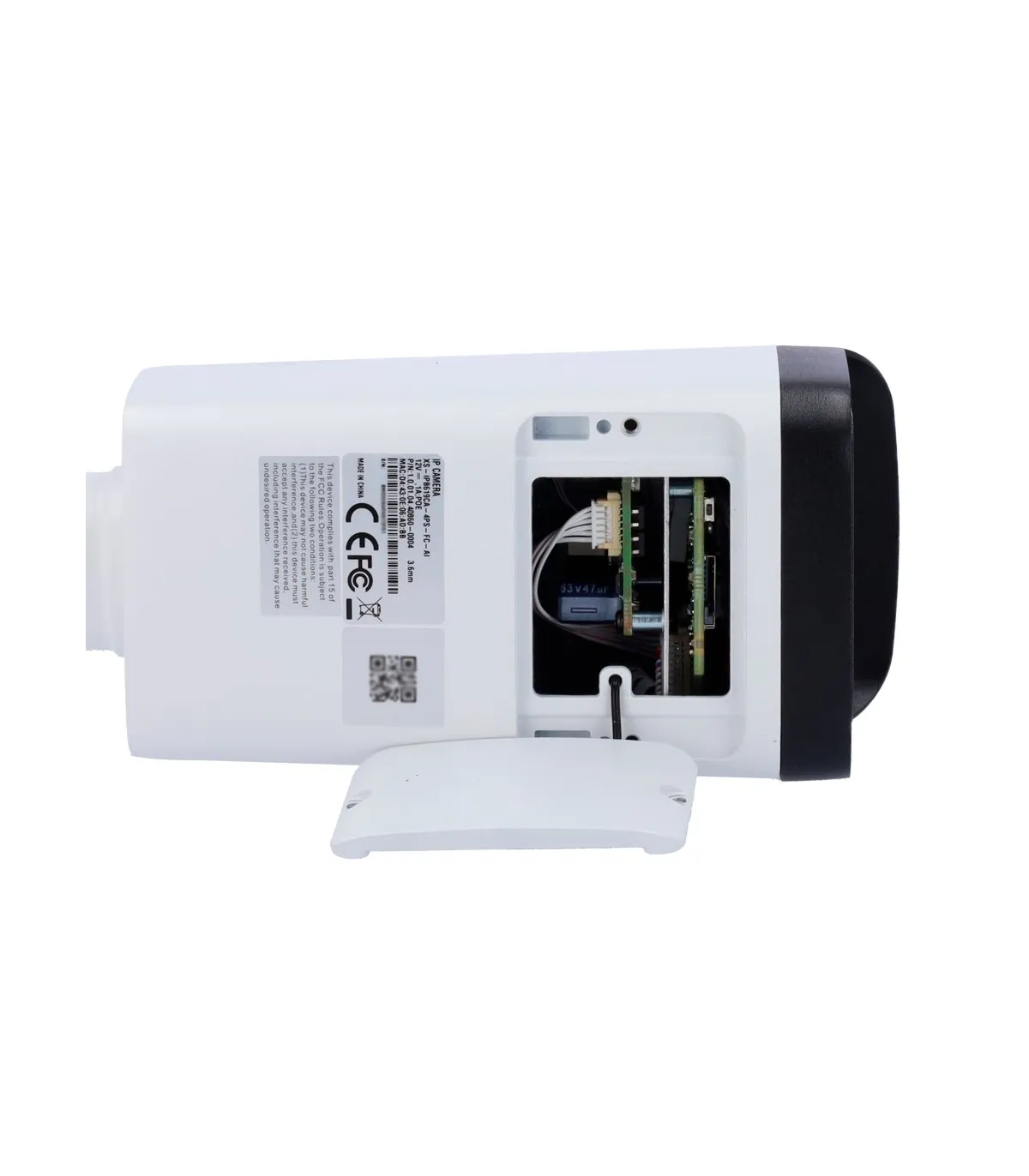

| Internal Storage | Micro SD Max 256GB |
| Protection Rating | IP67 Waterproof, IK10 Vandal Proof (optional) |
| Dimensions | 238.5× 90.7×90.7 mm |
| Weight | 950 g |
Data sheet
