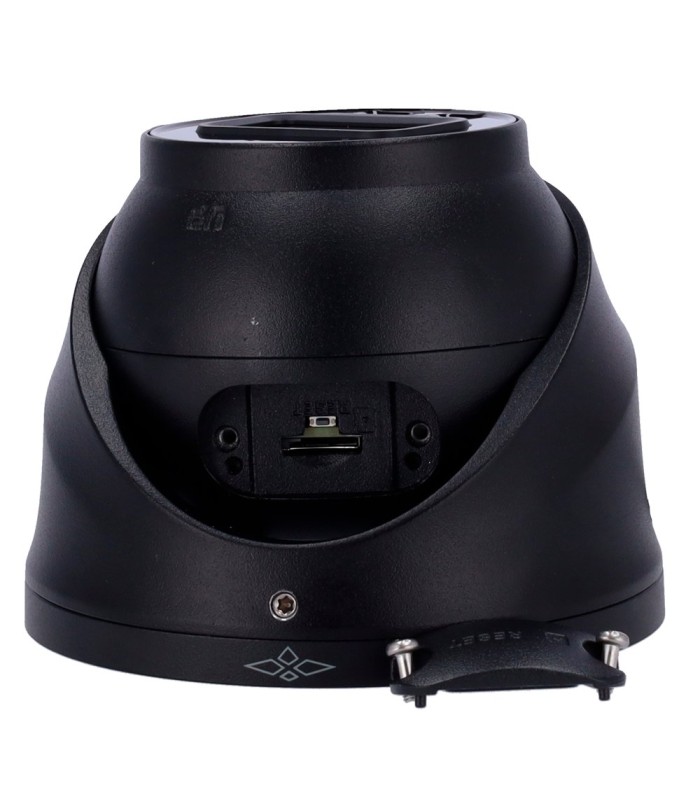

| Brand | X-SECURITY |
| Image Sensor | 1/2.7” Progressive CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 3840x2160 @ (1~20) fps 2688x1520@ (1~25/30) fps |
| Extra Stream Rate | 704×576 @(1~25 fps) 704×480 @ (1~30 fps) |
| Compression | H.265+/H.264+/H.265/H.264/H.264H/H.264B |
| Video Bitrate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 111º, V: 58º, D: 132º |
| DORI | 84.8 m (D), 33.9 m (O), 17 m (R), 8.5 m (I) |
| Electronic Shutter | 1/3 s~1/100.000 s |
| Minimum Illumination | 0.008 Lux @(F1.6, AGC ON) 0 lux (Illuminator on) |
| Supplementary Illumination | Dual Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Mirror effect, Privacy masking, Image rotation 0°/90°/180°/270° |
| IVS (Perimeter Protection) | Intrusion, line crossing (both functions support vehicle and person classification and accurate detection) |
| SMD (Smart Motion Detection) | Work together with Smart NVR to refine intelligent search, event extraction, and event video merging |
| Audio | Integrated microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |

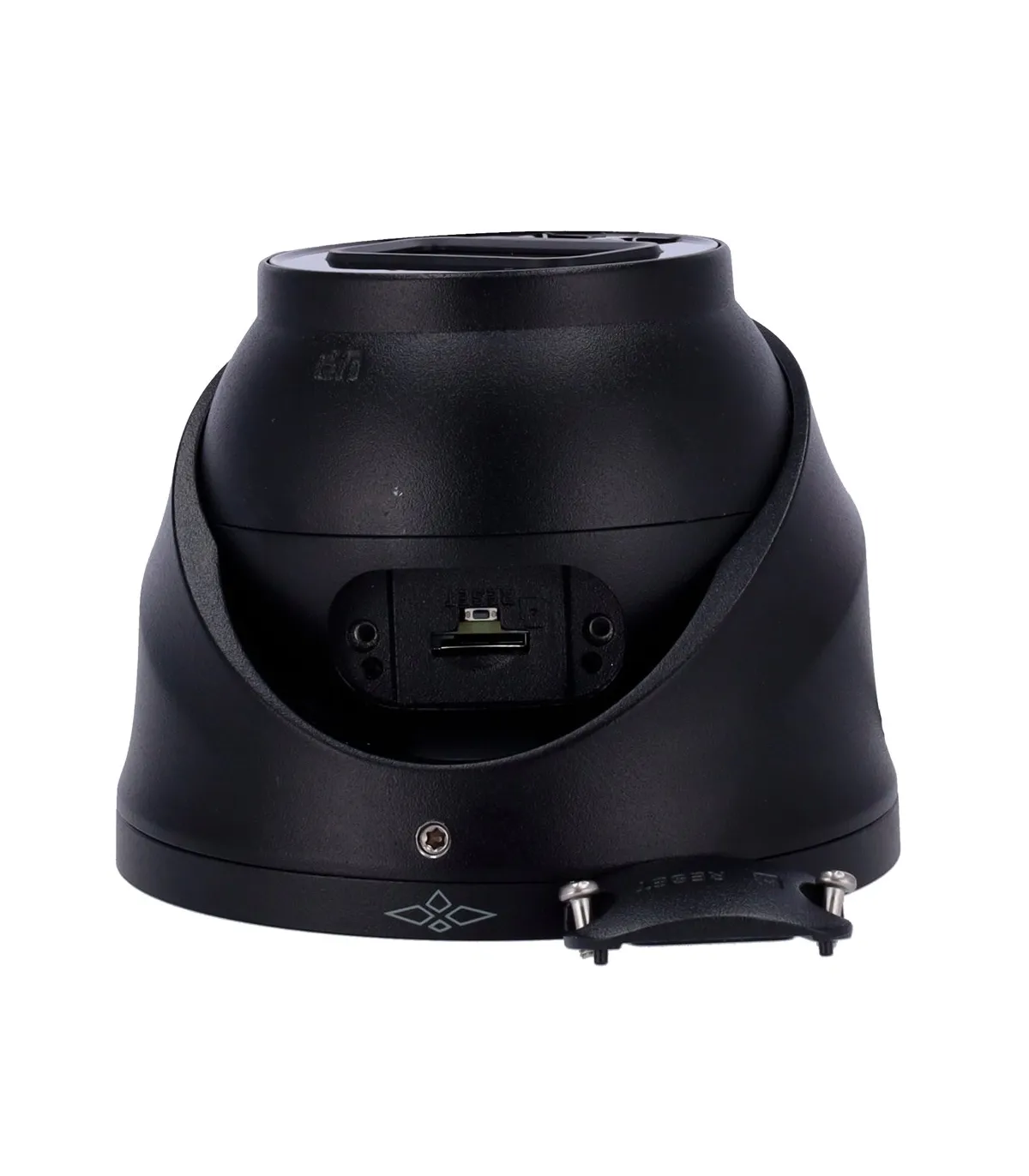

| Internal Storage | MicroSD card slot up to 256 GB |
| Remote Access | WEB interface, CMS (DSS/PSS), Smartphone, and NVR |

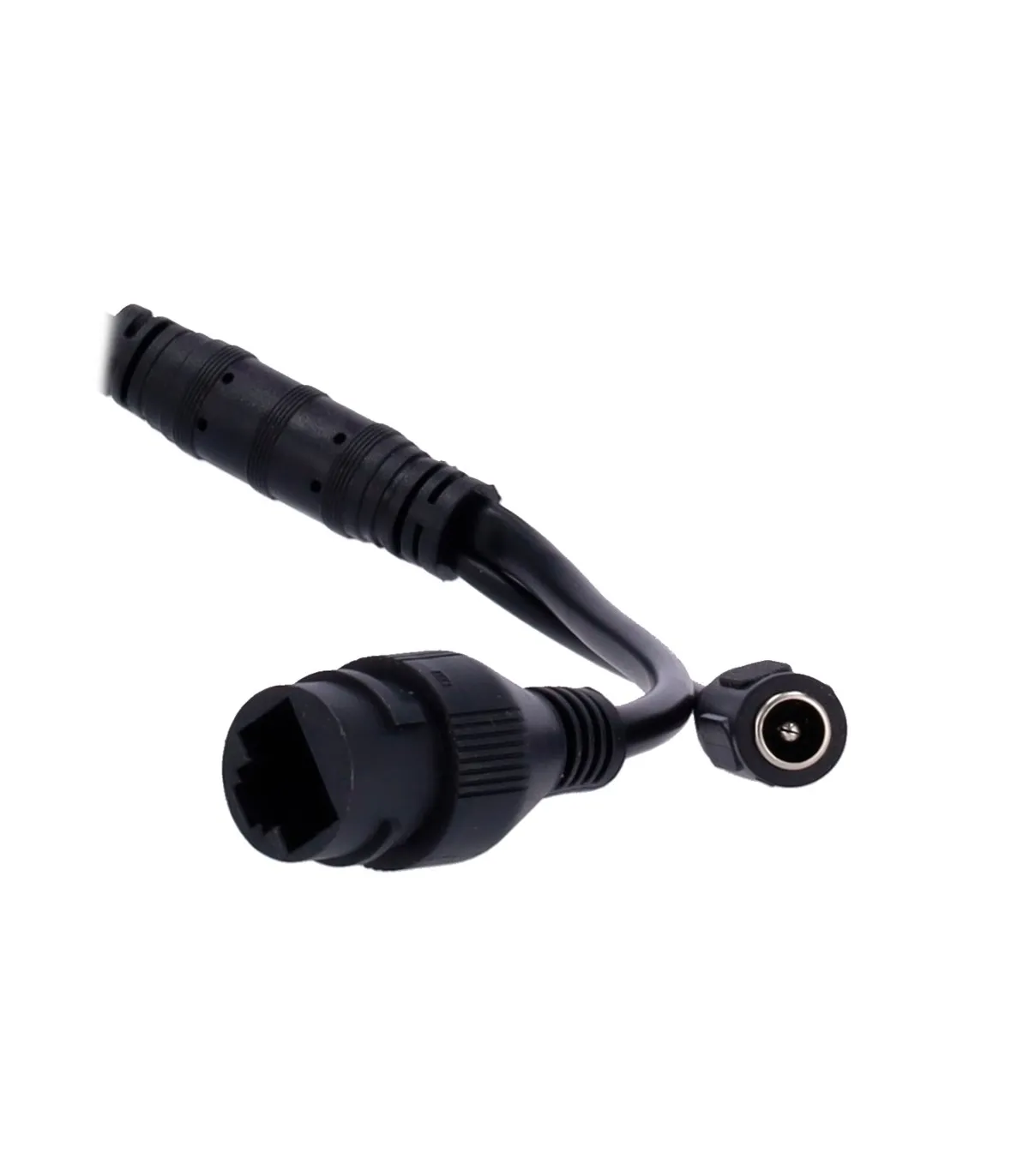

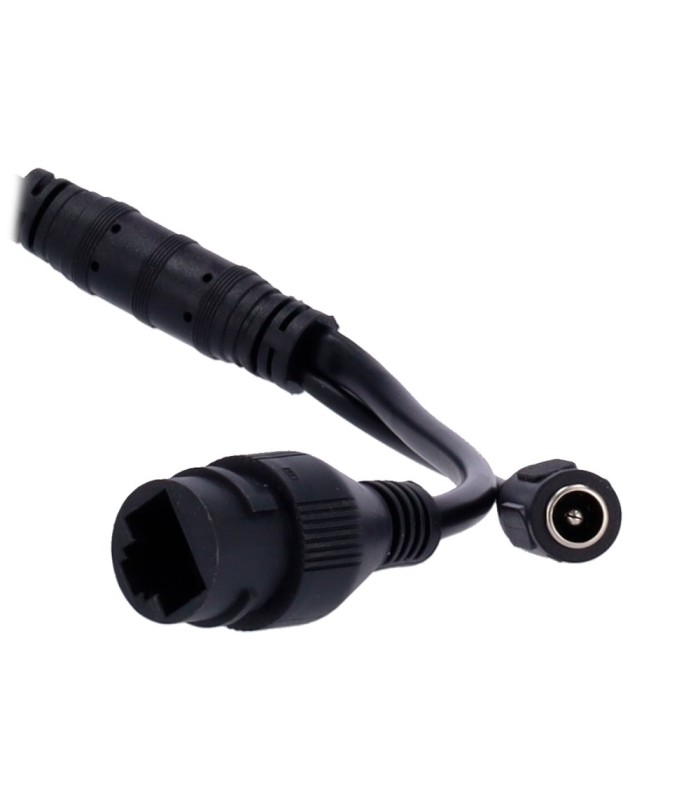

| Network Interface | Ethernet 10/100 BaseT |
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Milestone |
| Power | DC 12 V / 3.3 W PoE IEEE802.3af |
| Operating Temperature | -40º C ~ 55º C |
| Protection Rating | IP67 Waterproof |
| Material | Body: Metal Cover: Plastic |
| Dimensions | 100.9 mm (D) x 109.9 mm (Ø) |
| Base Dimensions | Ø base 109.9 mm / Ø between screws 84 mm / 3 screws |
| Weight | 380 g |
| Color | Black |
