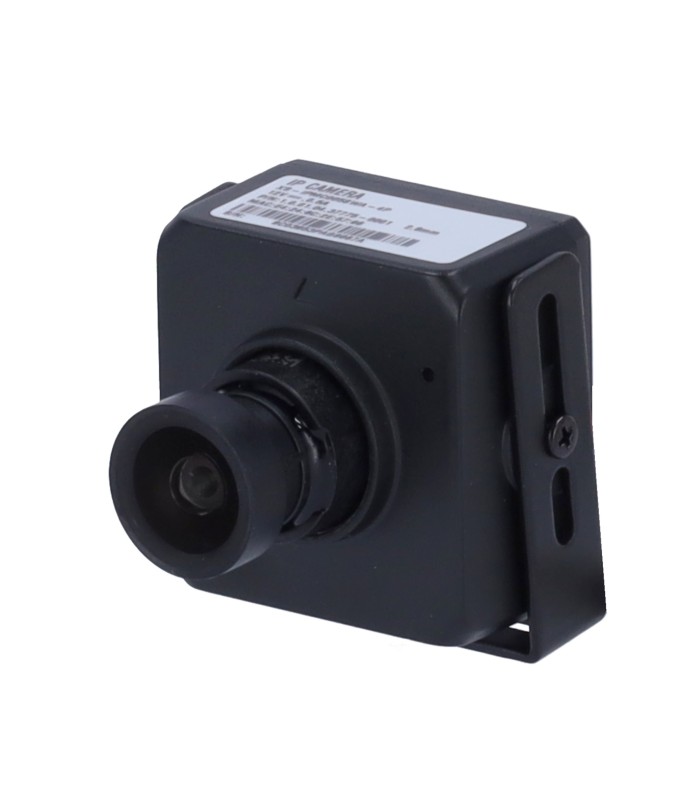

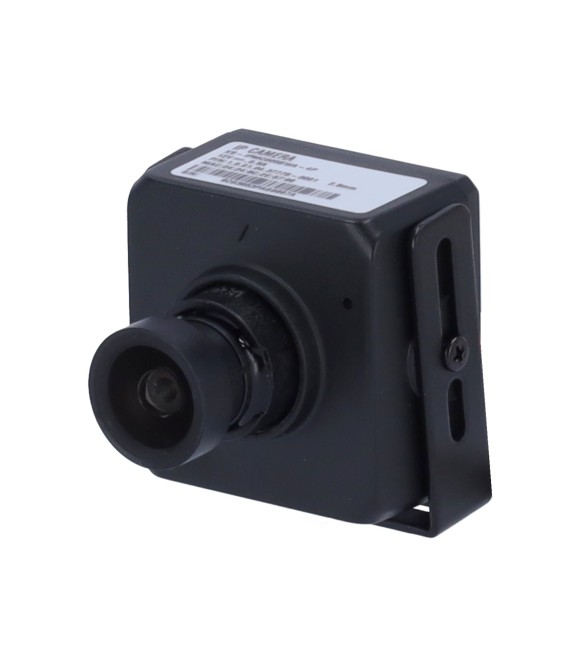

4 Megapixel IP Camera X-Security XS-IPMC005SWA-4P
Brand: X-SECURITY
- 4 Megapixel IP Camera
- 1/3" Progressive Scan CMOS Starlight
- Compression H.265+/H.265/H.264+/H.264/MJPEG
- 2.8 mm Lens | WDR (120 dB)
- Minimum Illumination 0.001 Lux
4 Megapixel X-Security XS-IPMC005SWA-4P IP Camera
- X-Security
- IP Camera
- 1/3" Progressive Scan CMOS Starlight
- 4 Megapixel (2688×1520)
- 2.8 mm Pinhole Lens
- Color 0.01 Lux / B/W 0.001 Lux
- Compression H.265+/H.265/H.264+/H.264
- Intelligent detection: faces, line crossing, intrusion
- WDR (120 dB)
- Integrated microphone
- RJ-45 10/100 BaseT
- Compatible with ONVIF
- WEB, CMS (DSS/PSS), and Smartphone interface
Technical Specifications
| Brand | X-SECURITY |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2688×1520) |
| Main Stream Rate | 2688×1520 (1 ~ 20 FPS) |
| Sub Stream Rate | 704×576 (1–25 fps) |
| Compression | H.265+, H.265, H.264+, H.264 |
| Lens | 2.8 mm |
| Minimum Illumination | Color 0.001 Lux 1/3s @ F1.6 |
| Image Enhancements | WDR, ROI, AWB, 3DNR, MD, Mask, Mirror |
| Internal Storage | Not available |
| Alarms | Not available |
| Audio | 1 Integrated microphone, 1 IN / 1 OUT |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Smartphone App, and PC Software |
| Interoperability | ONVIF, PSIA, CGI |
| Power | DC 12 V / 150 mA max. |
| Protection Rating | Suitable for indoor use |
| Operating Temperature | -40º C ~ +60º C |
| Dimensions | 57.7 (H) x 44.9 (W) x 34.35 (D) mm |
| Weight | 81 g |
Contents
- IP Mini Camera
- Allen Key
- Instruction Manual
