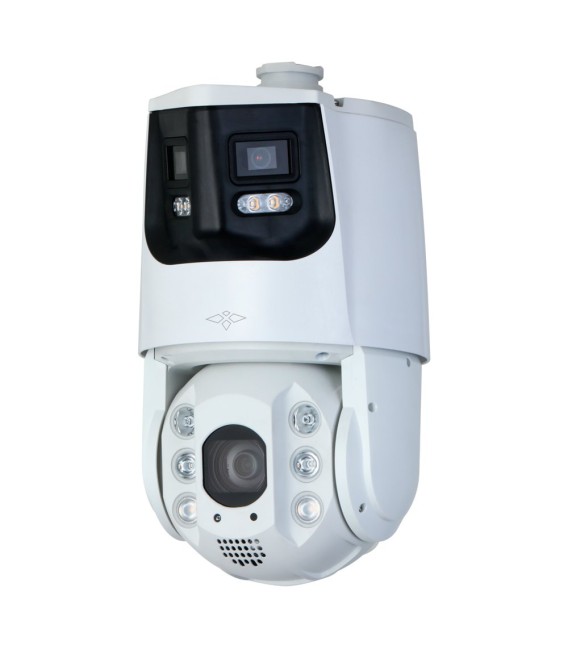

X-Security PTZ IP ULTRA range XS-IPSD7925TIOC-4U-TANDEM
Brand: X-SECURITY
- X-Security PTZ IP ULTRA range
- Dual Lens (4Mpx Panoramic + 4Mpx PTZ)
- PTZ Lens 5~125 mm | 25X | Face Detection
- Panoramic Lens 2.8 mm | Dual Light 200 m
- AutoTracking | Alarms | Audio | MicroSD | IP66
X-Security PTZ IP ULTRA range XS-IPSD7925TIOC-4U-TANDEM
- X-Security
- ULTRA range
- PTZ IP Camera
- 1/2.8" Progressive Scan CMOS
- PTZ Resolution 4 Megapixel (2560x1440)
- PTZ Lens 5~125 mm
- 25X Optical Zoom
- Panoramic Resolution 4 Megapixel (2560x1440)
- Panoramic Lens 2.8 mm
- 180º Panoramic View
- 0 lux
- Dual Light: IR and white light
- IR range for PTZ 200 m
- White light range for Panoramic 30 m
- Starlight, color image in low light conditions
- WDR (120 dB)
- 2D/3D-DNR
- Auto Focus PTZ
- Smart H.265+/Smart H.264+/H.265/H.264H/H.264B/H.264M Compression
- IR CUT
- IVS perimeter protection
- Face detection
- Alarms
- Audio
- Active Deterrence: Siren and deterrent flash
- Autotracking
- Speed 240 º/s
- RJ-45 10/100 BaseT
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- MicroSD slot up to 512 GB
- IP66 Waterproof
Technical Specifications
| Brand | X-Security |
| Range | ULTRA |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Resolution | PTZ: 4 Megapixel (2560×1440) Panoramic: 4 Megapixel (2560×1440) |
| Main Stream Rate | PTZ: 2560x1440 @25fps; 2048x1536 @25fps; 2304x1296 @25fps; 1920x1080 @25fps; 1280x960 @25fps; 1280x720 @25fps Panoramic: 3840x1080 @25fps |
| Extra Stream 1 Rate | PTZ: 704x576 @25fps; 640x480 @25fps; 352x288 @25fps Panoramic: 960x268 @25fps; 704x576 @25fps; 640x480 @25fps; 352x288 @25fps |
| Extra Stream 2 Rate | PTZ: 1280x720 @25fps Panoramic: 1920x540 @25fps; 1920x1080 @25fps; 1280x960 @25fps; 1280x720 @25fps |
| Minimum Illumination | PTZ: 0.005 Lux Color@(F1.6, AGC ON) / 0 lux with IR IR Range: 200 m Panoramic: 0.001 Lux Color@(F1.0, AGC ON) / B/W: 0.0001 Lux Color@(F1.0, AGC ON) White Light Range: 30 m Starlight, color image in low light conditions |
| Compression | Smart H.265+/ Smart H.264+/ H.265/ H.264H/ H.264B/ H.264M /MJPEG (extra stream) |
| Bitrate | PTZ: H.264: 2.816 kbps-13.056 kbps H.265: 1.024 kbps-7.936 kbps Panoramic: H.264: 2.816 kbps-13.824 kbps H.265: 1.024 kbps-8.192 kbps |
| Optics | PTZ: Varifocal 5~125 mm (25X Optical Zoom) Panoramic: 2.8 mm |
| Field of View (FOV) | PTZ: H: 53.4~3.4º, V: 30.4º~1.95º, D: 59.3º~3.9º Panoramic: H: 180º ±5º, V: 51º |
| DORI | PTZ: 2500 m (D), 987.5 (O), 500 (R), 250 (I) Panoramic: 38.6 m (D), 15.3 (O), 7.7 (R), 3.9 (I) |
| Digital Zoom | 16X |
| Electronic Shutter | PTZ: 1~1/30.000 s Panoramic: 1~1/10.000 s |
| Day/Night | Removable mechanical ICR filter |
| Auto Focus | PTZ: Semi-auto, Manual or Auto |
| Image Enhancements | WDR (120 dB), BLC, HLC, 2D/3D-DNR, AGC, AWB, Privacy Masking, ROI, Flip |
| EIS (Electronic Image Stabilization) | Yes |
| Motion Detection | Yes |
| IVS (Perimeter Protection) | Intrusion, line crossing (both functions support accurate classification and detection of vehicles and people) |
| Face Detection | Supports face detection, optimization, tracking, image capture, high-quality face capture upload. Extracts 6 attributes and 8 expressions. Allows cropping faces: Face, one-inch photo. Capture strategies include real-time capture, optimization, and quality prioritization. |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -20°~90° |
| Manual Speed | Horizontal: 0.1~ 160°/s, Vertical: 0.1~120°/s |
| Speed between Presets | Horizontal: 240°/s, Vertical: 200°/s |
| Pre-set Positions | 300 preset, 5 auto pattern, 8 auto tour, auto pan, auto scan |
| Autotracking | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 2 Inputs / 1 Output |
| Active Deterrence | Built-in siren and strobe flash in the camera White light Flash duration: 5~30 s 11 alarm sounds available |
| Audio | 1 Input / 1 Output |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | WEB Interface, CMS (DMSS/DSS Pro), Smartphone, and NVR |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), CGI |
| Power | DC 36 V, max. 32 W |
| Operating Temperature | -40º C ~ +65º C |
| Protection Rating | IP66 Waterproof |
| Material | Aluminum alloy and plastic |
| Dimensions (without bracket) | 359.8 mm (H) x 247 mm (D) x 202 mm (W) |
| Weight (without bracket) | 5.3 kg |
Content
- Motorized dome IP camera X-Security
- Allen key
- CD with software and instructions
- Wall mount bracket PFB303W
- DC 36 V power adapter
- Adapter thread PFA114
