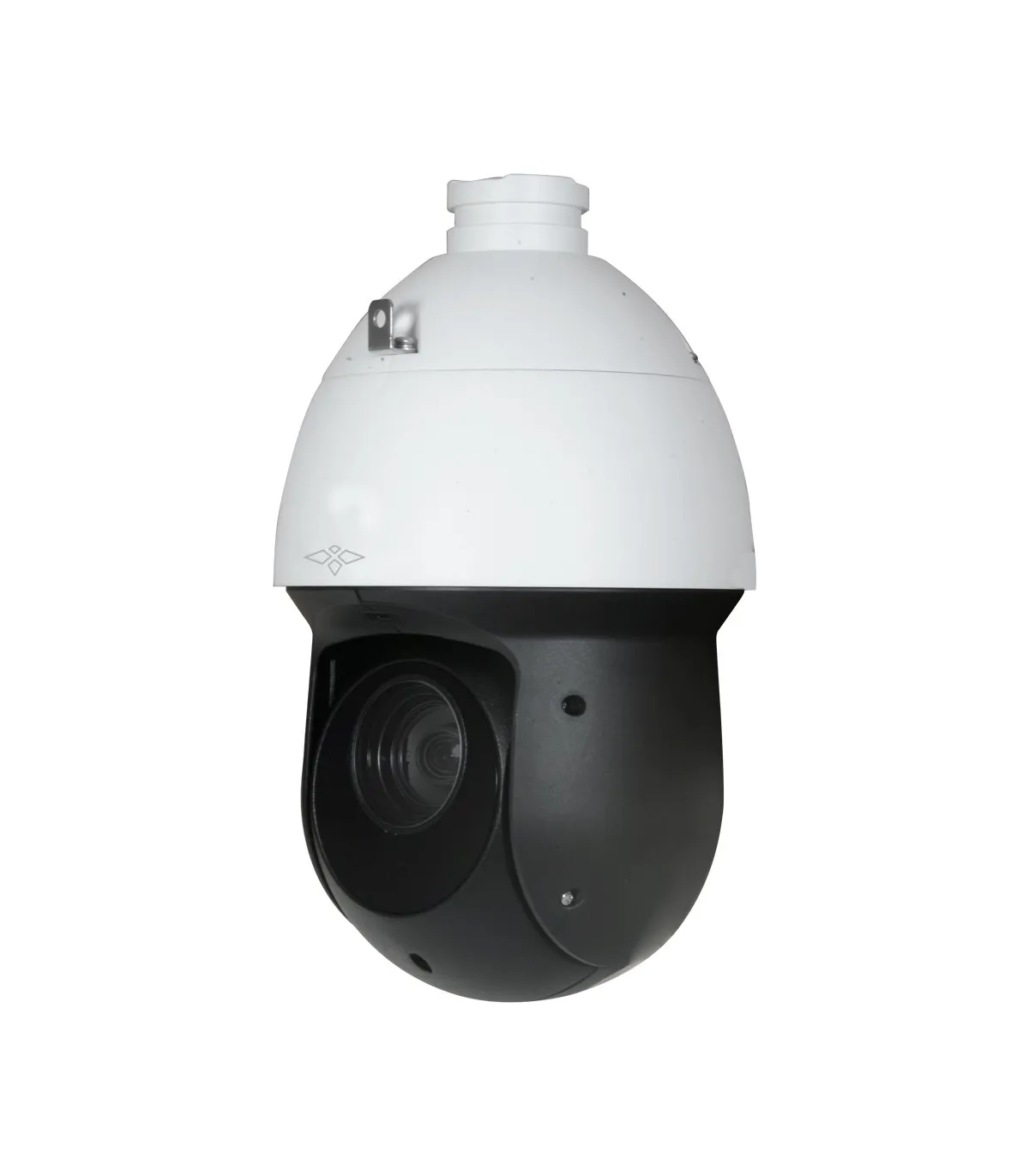

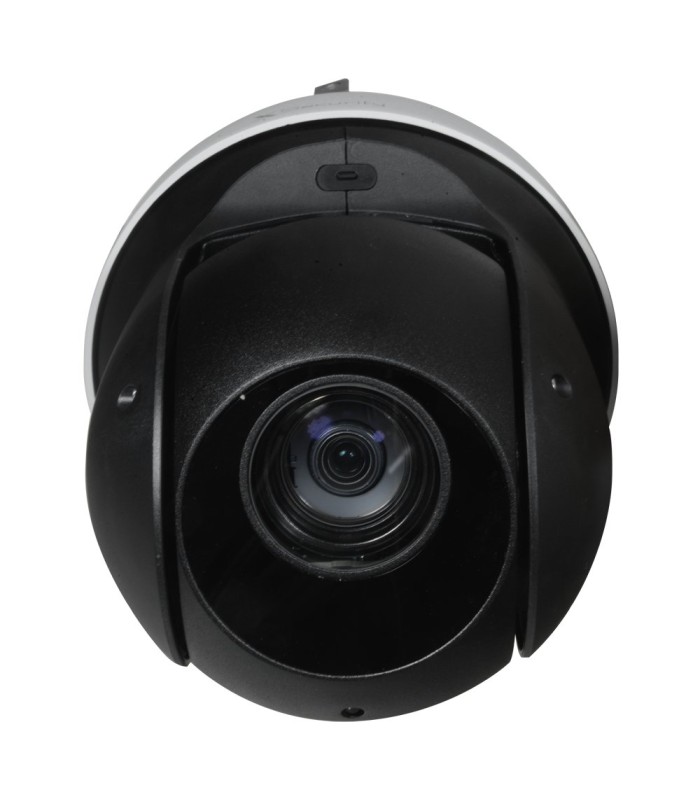

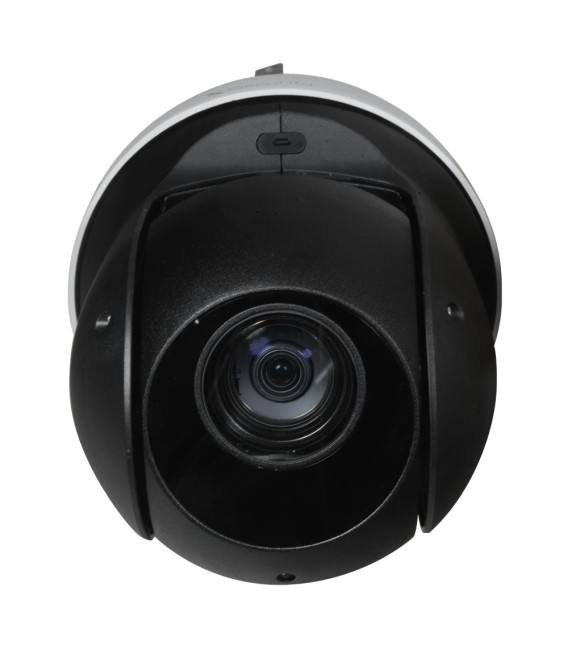

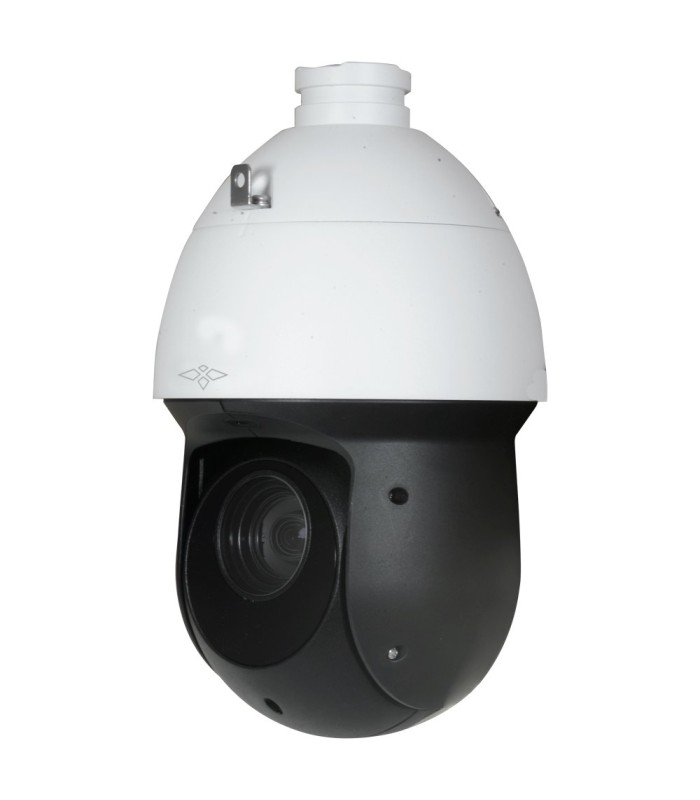

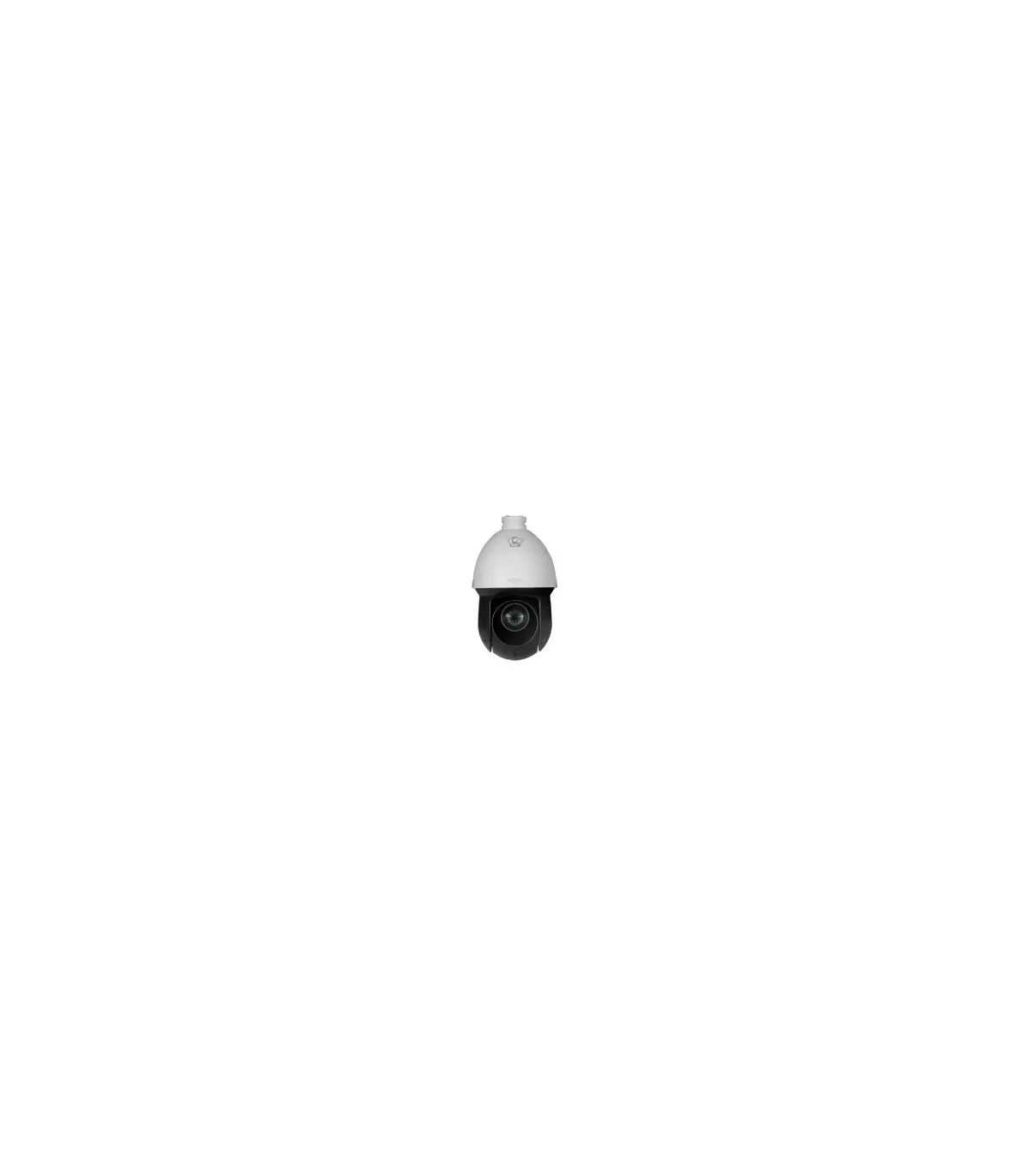

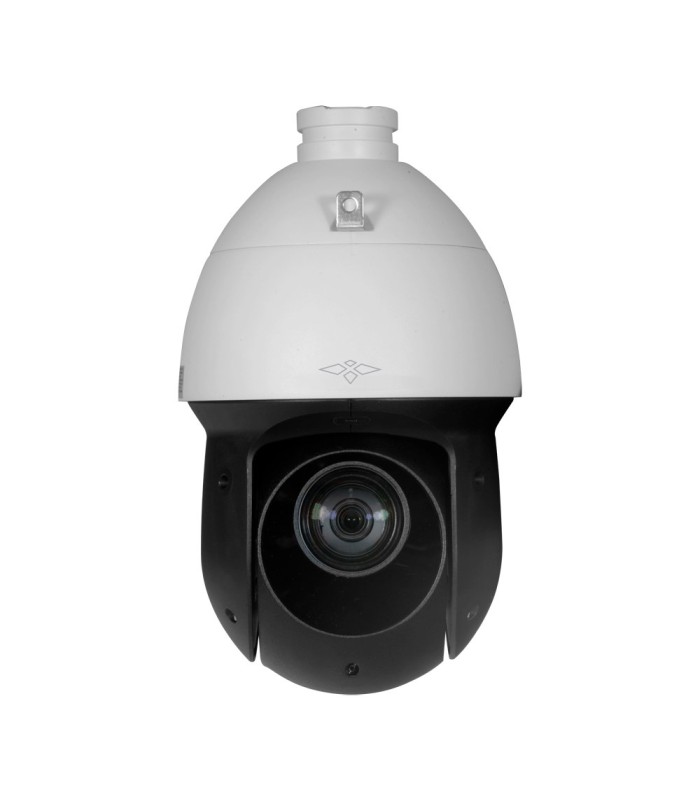

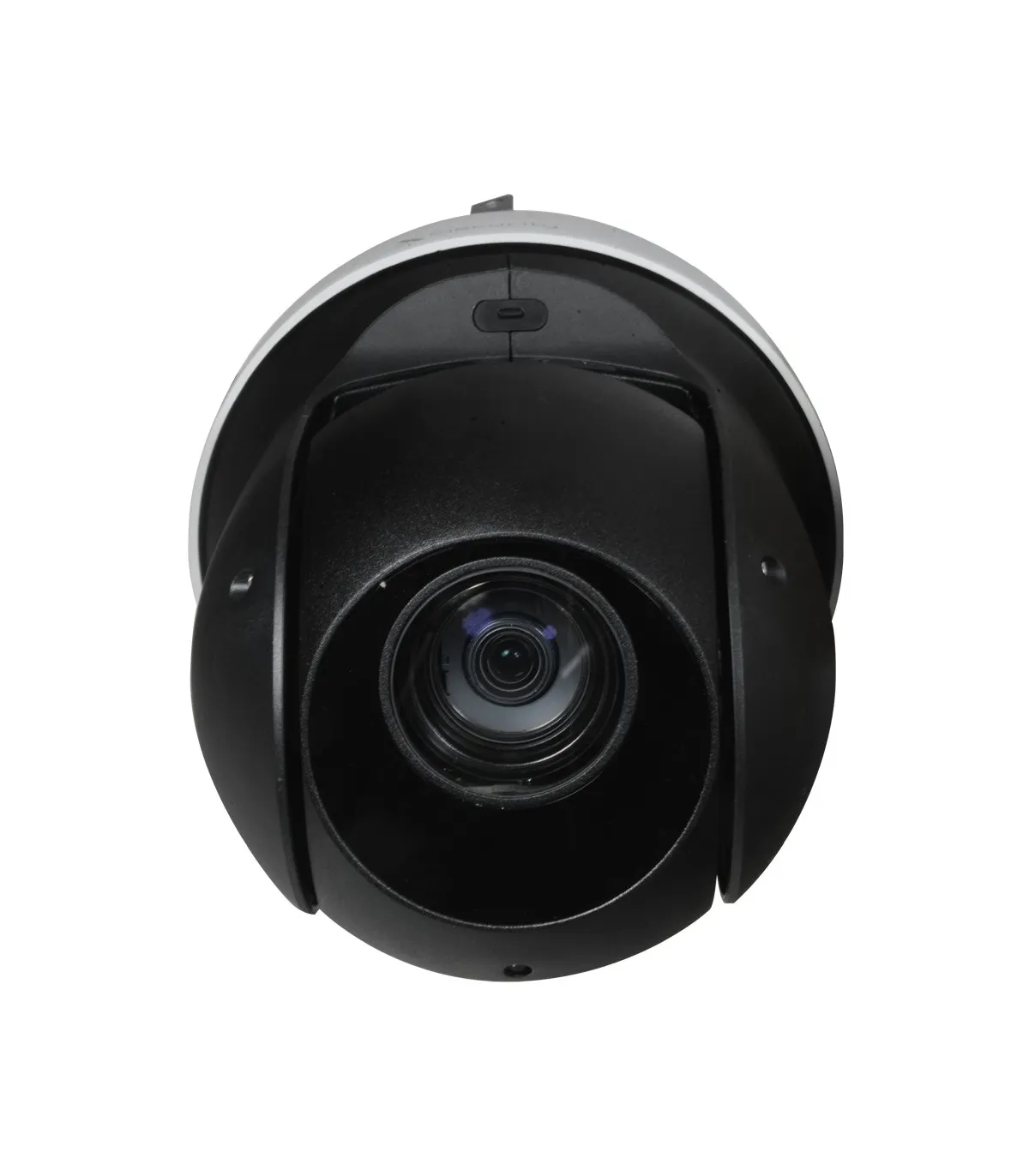

Name: X-Security 8 Mpx PTZ IP Camera Ultra Range XS-IPSD6325SIWHA-8U-AI
Brand: X-SECURITY
Price: 579.4925 EUR
Availability: InStock

X-Security IP PTZ Camera XS-IPSD7212SAW-2

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD6325SIA-4P-WIZ

Brand: X-SECURITY

SKU: XS-IPSD6325SIWHA-8U-AI

Condition: New product

X-Security 8MP Ultra Range PTZ IP Camera
1/2.8” STARVIS CMOS
Varifocal lens 5-125mm (25x)
IR distance 100m. > H.265+ encoding
Intelligent Functions | IP66 | Audio | Alarms

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

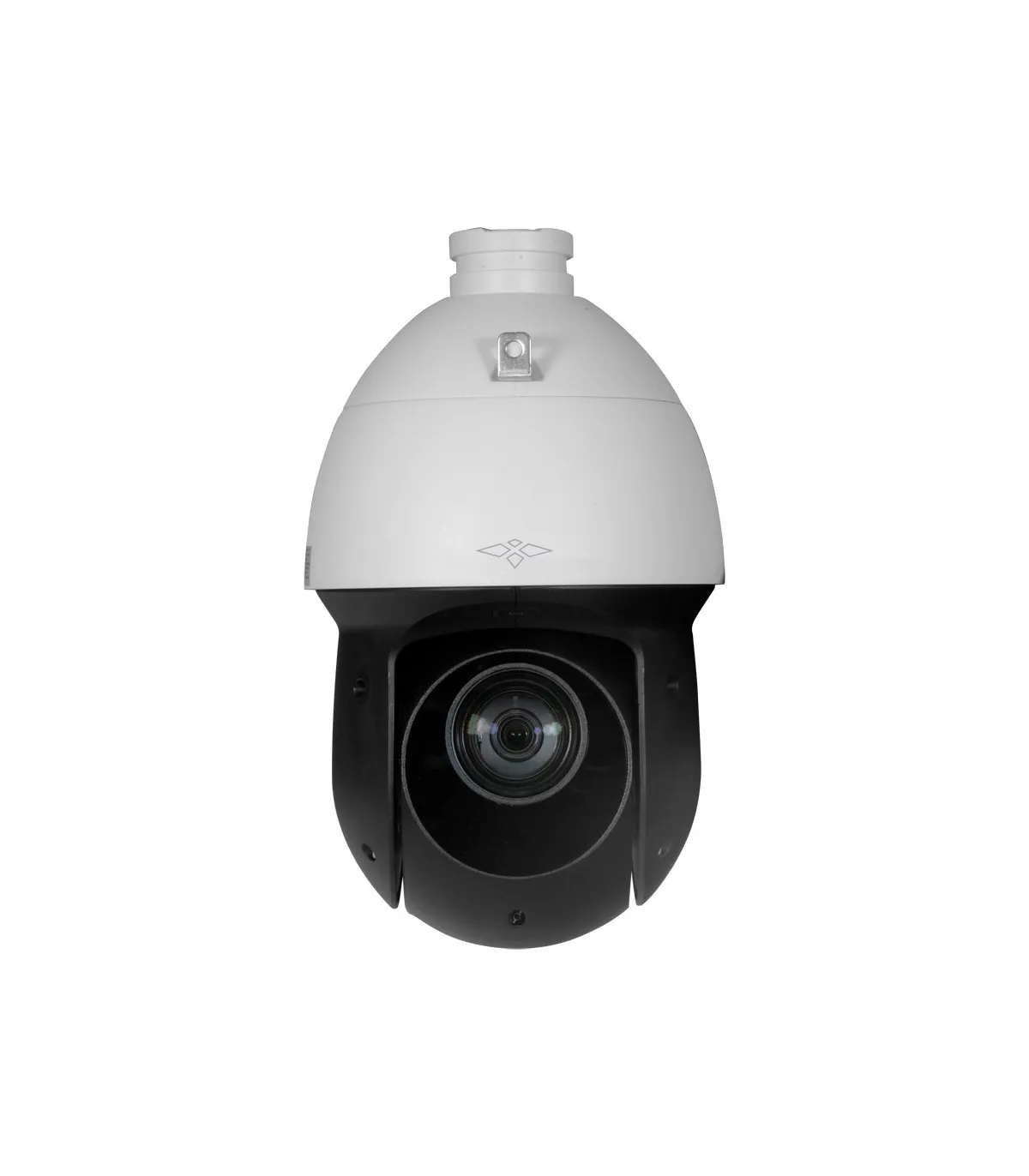

X-Security Ultra Range 8MP PTZ IP Camera XS-IPSD6325SIWHA-8U-AI

X-Security
PTZ IP Camera
8 Megapixel (3840 × 2160)
Ultra Range
1/2.8" Progressive Scan CMOS
25X Optical Zoom
Varifocal Lens 5–125 mm
High Sensitivity Starlight
0.005 Lux
IR Range 100 m
Compression H.264H/H.264B/Smart H.265+/H.265/MJPEG
RJ-45 10/100 BaseT
PoE+ 802.3at
IVS (Perimeter Protection)
Face Detection
SMD
IP66 Waterproof
Alarms
Recording on SD card
WEB Interface, CMS (DSS/PSS), Smartphone, and NVR
ONVIF Compatible
Wall Mount Included

Technical Specifications

Brand	X-Security
Image Sensor	1/2.8" STARVIS™ CMOS
Lens	Varifocal 5 ~ 125 mm (25X Optical Zoom) Auto Iris, Auto Focus
Digital Zoom	25X
Resolution	4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA(640×480); CIF (352 × 288/352 × 240)
Compression	H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
Main Stream Rate	4K / 4M / 1080p / 1.3M / 720p (1-25/30 fps)
Extra Stream Rate	Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps)
Bitrate	H.264: 3.328 kbps–8.192 kbps H.265: 1.280 kbps–8.192 kbps
Image Enhancements	WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask
Minimum Illumination	Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux@F1.6 (IR light on)
SMD	Yes
IVS (Perimeter Protection)	Tripwire; intrusion; cross line detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; Vehicle/human alarm classification
Face Detection	Supports face detection, optimization, tracking, high-quality facial snapshot capture, and facial enhancement; Supports attribute extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, fear, surprise, calm, happy, and confused), mask, mustache; Supports facial cropping: Face, one-inch photo. Capture strategies include real-time capture, optimization, and quality first. Supports up to 5 facial databases; registers people one by one or in batches; sets face similarity; Compares faces with 10,000 faces.
Day/Night	Removable ICR mechanical filter
Network Interface	Ethernet 10/100 BaseT
Remote Access	WEB Interface, CMS software, mobile app, and NVR
Memory	Micro SD card slot (Max 256 GB)
Pan/Tilt Range	Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180°
Manual Speed	Horizontal: 0.1°~200° /s, Vertical: 0.1°~120° /s
Speed between Presets	Horizontal: 240° /s, Vertical: 200° /s
Pre-set Positions	300, 5 auto pattern, 8 auto tour, 5 auto scan
Communication	DH-SD, ONVIF Compatible
Audio	1 input / 1 output
Audio Compression	PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Alarms	2 inputs / 1 relay NO/NC
Power	DC 12 V / 3 A, PoE+(802.3at)
Protection	IP66, TVS 6000 V lightning-proof; surge protection; Transient voltage protection
Operating Temp.	-40º C ~ +70º C
Dimensions	270.4 mm (H) x 160 (Ø) mm
Weight	2.4 Kg
