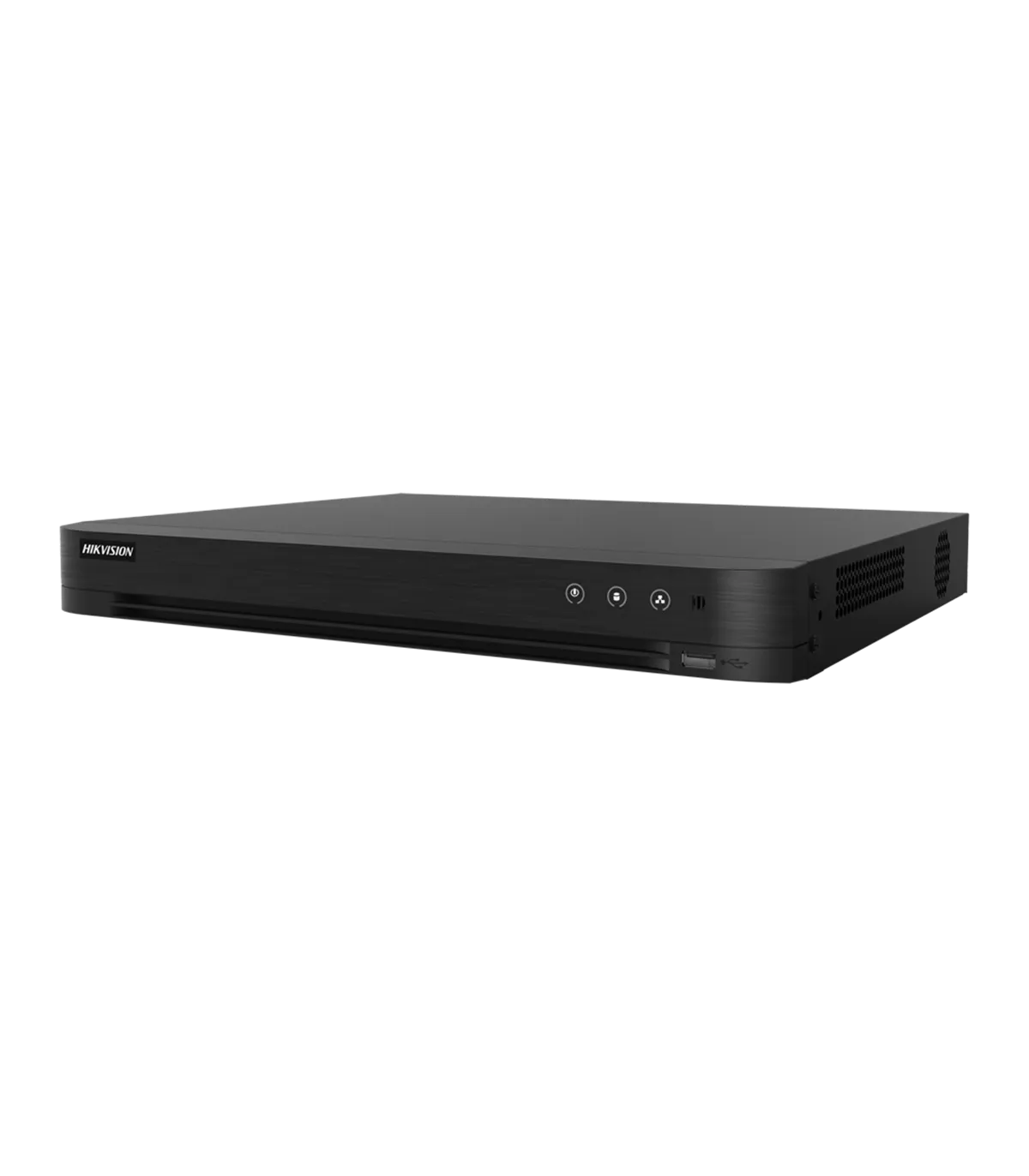

The iDS-7208HUHI-M2/S(C)/4A+8/4ALM is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 8 channels of video input from various formats including HDTVI, HDCVI, AHD, and CVBS, along with 8 additional IP channels. This device is ideal for both residential and commercial applications, providing high-definition video recording with a maximum input resolution of 4K at 15fps. The integration of advanced features such as motion detection and AcuSense technology enhances security by filtering false alarms, making it a reliable choice for effective surveillance.
| Brand | HIKVISION |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 4 additional IP CH: Up to 12 IP channels (8Mpx), replacing all BNC channels Enhanced IP mode: 8 additional IP CH: Up to 16 IP channels (8Mpx), replacing all BNC channels * Enhanced IP mode may conflict with smart events such as Motion Detection 2.0 or AcuSense. |
| Available Bandwidth | 128 Mbps |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 4K (3840x2160) / 30 Hz; 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 4 RCA Channels |
| Audio Outputs | 1 RCA Channel |
| Two-Way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8Mpx (12~15 fps), 3K (20 fps), 5MPx (12~20 fps), 4Mpx (25~30 fps), 3Mpx (18 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 8Mpx (12~15 fps), 5MPx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5MPx (12~20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 8Mpx (8 fps), 3K (12 fps), 5Mpx (12 fps), 4Mpx (15 fps), 3Mpx (18 fps), 1080p /720p/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | WD1/4CIF/CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-Function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 8 Inputs / 4 Outputs |
| Motion Detection | Motion Detection 2.0: Deep-learning based motion detection, can classify humans and vehicles on motion detection. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Artificial Intelligence | AcuSense: Perimeter protection based on VCA rules with false alarm filtering for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 2 SATA 3.5" HDDs of up to 10 TB each (not included) |
| Communication | 2 x USB (Mouse and backup) / 1 x RJ45 (Ethernet) / 1 x RS-485 half-duplex |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 12 V, ≤ 15 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 380 mm (W) x 320 mm (D) x 48 mm (H) / ≤ 2 Kg (without HDD) |
The iDS-7208HUHI-M2/S(C)/4A+8/4ALM is ideally suited for a variety of surveillance environments, including retail stores, warehouses, and residential properties. For instance, a retail store can deploy this 5-in-1 DVR to monitor customer activity and enhance security. With its ability to support up to 16 channels in enhanced IP mode, the device allows for comprehensive coverage of the premises. The motion detection 2.0 feature ensures that only relevant events trigger alerts, significantly reducing false alarms. Additionally, the remote access capabilities enable store managers to monitor live feeds from anywhere using the Hik-Connect app. This flexibility, combined with the 4K resolution output, ensures that every detail is captured clearly, providing peace of mind for business owners. Furthermore, the dual HDD support allows for extensive storage, accommodating long-term video retention, which is crucial for investigations and audits.
Data sheet
