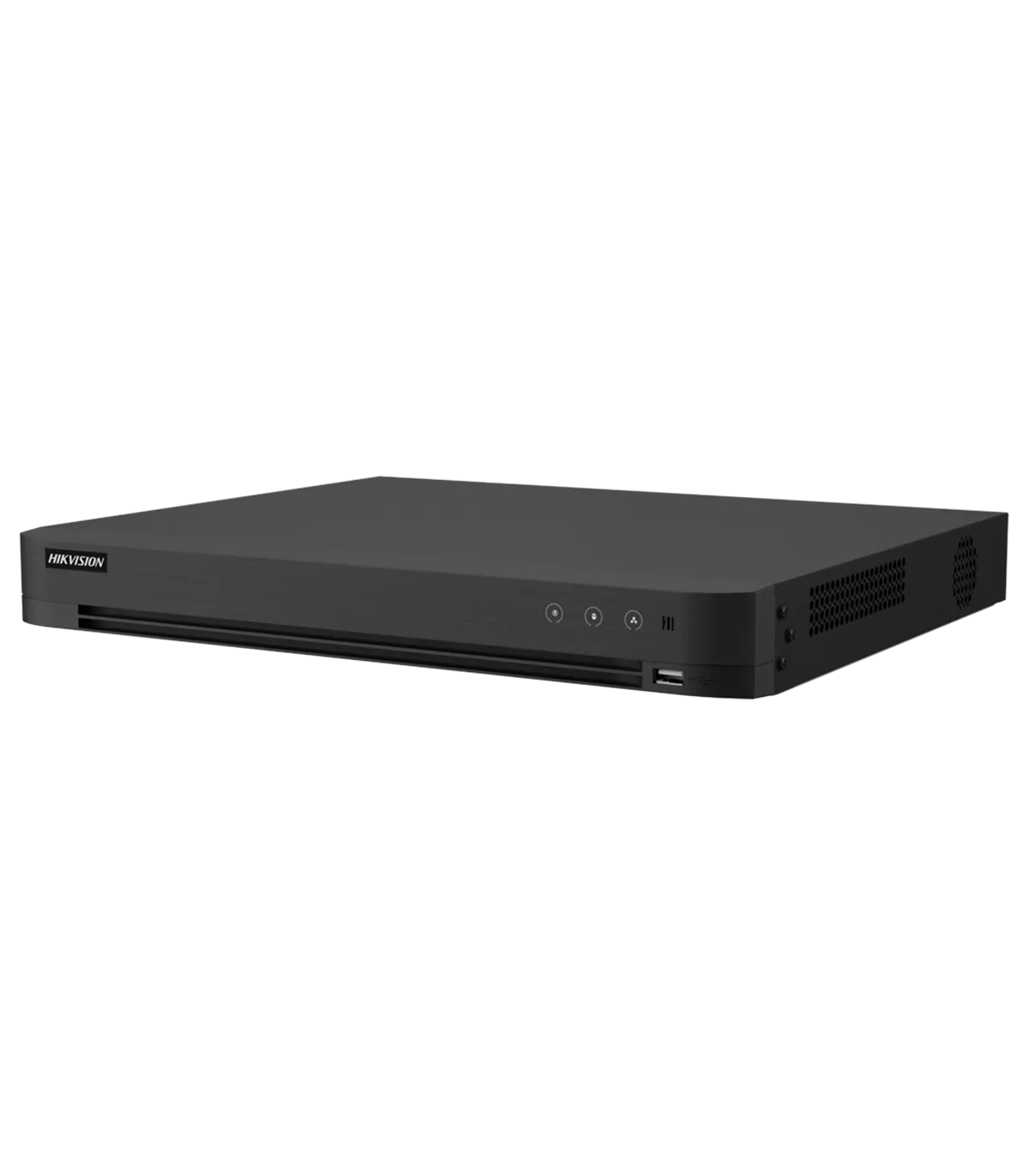

The iDS-7216HQHI-M2/XT is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. Ideal for both residential and commercial applications, this device supports up to 16 channels of video input, including HDTVI, HDCVI, AHD, and CVBS formats, along with 24 IP channels. With advanced features such as motion detection and face recognition, it ensures enhanced security and monitoring capabilities.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 8 additional IP CH: Up to 24 IP channels (up to 4 Mbps), replacing all BNC channels |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 1 RCA Channel 16 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | With 1080p Lite mode disabled: 3K Lite / 5 Mpx Lite / 4Mpx Lite / 1080p / 720p / WD1 / 4CIF / VGA / CIF With 1080p Lite mode enabled: 3K Lite / 5Mpx Lite / 4Mpx Lite / 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Input Resolution | HDTVI: 3K (20 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 5Mpx (2880x1620) (20 fps), 5 Mpx (2592x1944) (25 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 1080P Lite disabled 3K Stream: 3K Lite (12 FPS), 4 Mpx Lite (15 FPS); 1080p Lite/720p/WD1/4CIF/VGA/CIF (20 FPS) 5 Mpx Stream: 5 Mpx Lite (12 FPS), 4 MP Lite (15 FPS), 1080p Lite/720p/VGA/WD1/4CIF/CIF (20 FPS) 4 Mpx Stream: 4 MP Lite (15 FPS), 1080p Lite/720p/VGA/WD1/4CIF/CIF (25 FPS) 1080p Stream: 1080p/720p (15 FPS); VGA/WD1/4CIF/CIF (25 FPS) (P) 720p Stream: 720p/VGA/WD1/4CIF/CIF (25 FPS) (P) 1080P Lite enabled 3K Lite/5 Mpx Lite (12 FPS), 4 Mpx lite (15 FPS), 1080p lite/720p lite/VGA/WD1/4CIF/CIF (25 FPS) (P) |
| Extra Stream Encoding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0: Deep-learning based motion detection, capable of classifying humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Features | AcuSense: Perimeter protection based on VCA rules with false alarm filtering for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 8 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Face detection on up to 4 channels |
| Face Recognition | Face image comparison, searching for faces in images on up to 4 channels. Up to 16 face libraries. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 2 SATA 3.5" HDDs up to 12 TB (not included) |
| Communication | 1xUSB 2.0 (front), 2xUSB 3.0 (rear) / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex |
| Bandwidth | 256 Mbps |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 12 V, 3.3 A, ≤ 40 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 52 (H) mm x 315 (W) mm x 385 (D) mm / ≤ 2 Kg |
The iDS-7216HQHI-M2/XT is ideally suited for a variety of surveillance environments, such as retail stores, office buildings, and residential complexes. For instance, in a retail setting, the device can be deployed to monitor entrances and high-value areas, utilizing its motion detection capabilities to alert security personnel of any suspicious activity. The face recognition feature enhances security by allowing for the identification of known individuals, while the remote monitoring capabilities enable managers to access live feeds from their smartphones or PCs. Additionally, the Acusense technology minimizes false alarms by filtering out non-threatening movements, ensuring that security teams can focus on genuine threats. With support for up to 24 channels, this DVR provides comprehensive coverage, making it an excellent choice for businesses looking to enhance their security infrastructure.
