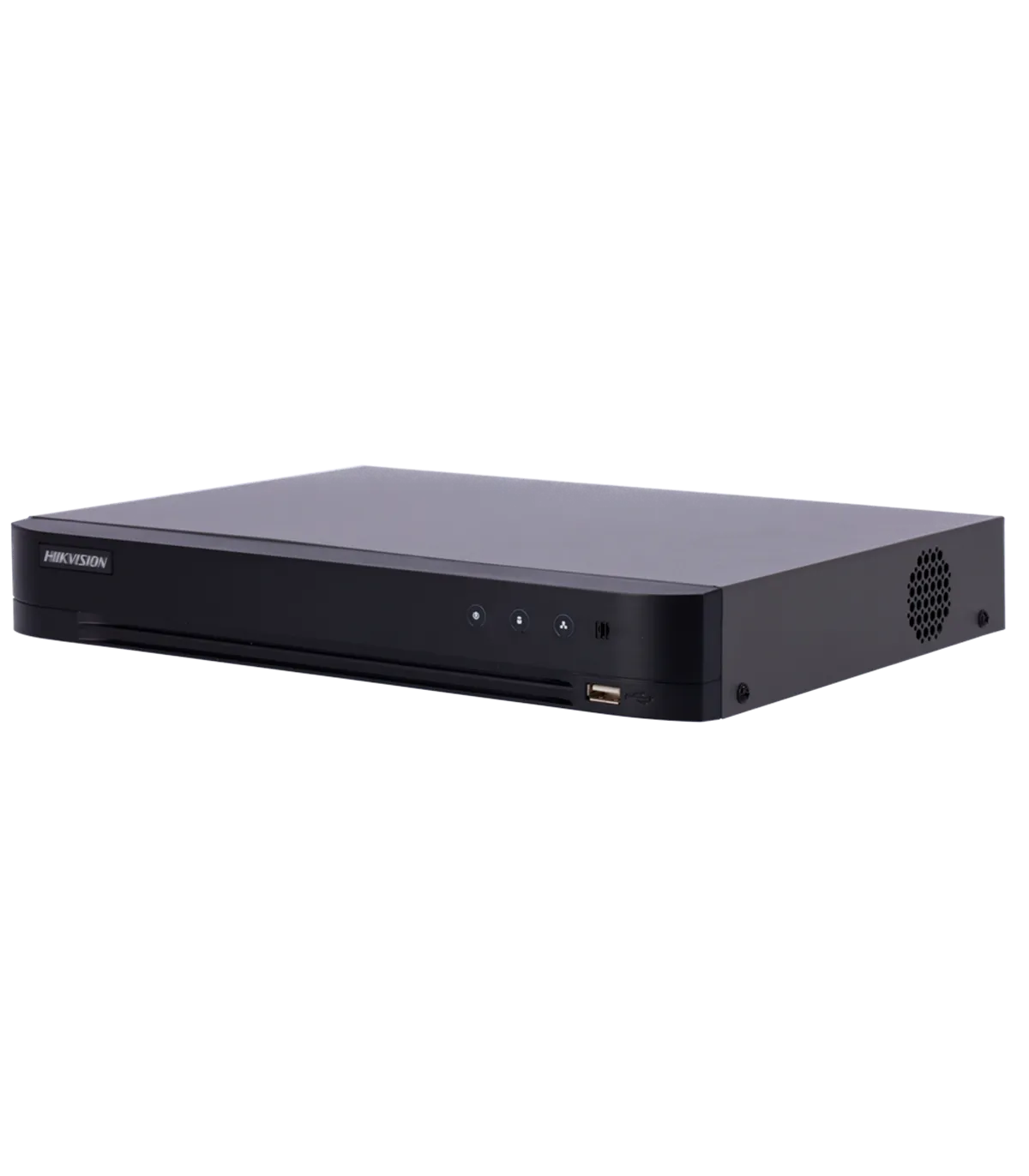

The iDS-7204HUHI-M1/XT/4A+4/1ALM is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it suitable for various installation environments. With advanced features such as motion detection and face recognition, this device is ideal for both residential and commercial security applications.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 4 additional IP channels: Up to 8 IP channels (8 Mpx), replacing all BNC channels |
| Video Outputs | 1 HDMI 2K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 1 RCA Channel 4 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing the audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8Mpx (12 fps), 3K (2960x1665) (25 fps), 3K (3328x1504) (20 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 8Mpx (12 fps), 3K (2880x1620) (25 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 8 Mpx (8 FPS), 3K (12 FPS), 5 Mpx (12 FPS), 4 Mpx (15 FPS), 8 Mpx Lite (15 FPS), 3 Mpx (18 FPS), 1080p/720p/WD1/4CIF/VGA/CIF (25 FPS) *8 Mpx at 8 fps is only available for channel 1. 8 Mpx Lite is only available for channels 2 to 4. |
| Extra Stream Encoding | WD1 / 4CIF / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 4 inputs / 1 output |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection, capable of classifying humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Features | AcuSense: Perimeter protection based on VCA rules with false alarm filtering for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Recognition | Face image comparison, searching images with faces on up to 2 channels. Up to 16 face libraries. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 1xUSB 2.0 (front), 1xUSB 2.0 (rear) / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex |
| Bandwidth | 96 Mbps |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 12 V, 1.5A, ≤ 10 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 45 (H) mm x 315 (W) mm x 242 (D) mm |
| Weight | ≤ 1.16 Kg |
The iDS-7204HUHI-M1/XT/4A+4/1ALM is an excellent choice for a variety of security installations, from small businesses to larger commercial properties. For instance, a retail store can utilize this 5-in-1 DVR to integrate both analog and IP cameras, ensuring comprehensive coverage of the premises. With its motion detection 2.0 feature, the system can intelligently differentiate between human and vehicle movements, significantly reducing false alarms. Additionally, the face recognition capability allows for enhanced security by identifying known individuals, which is particularly beneficial for access control. The device's remote monitoring capabilities via the Hik-Connect app enable store owners to keep an eye on their property from anywhere, providing peace of mind. Furthermore, the pentaplex functionality allows simultaneous live viewing, recording, playback, backup, and remote access, making it a versatile solution for modern security needs.
