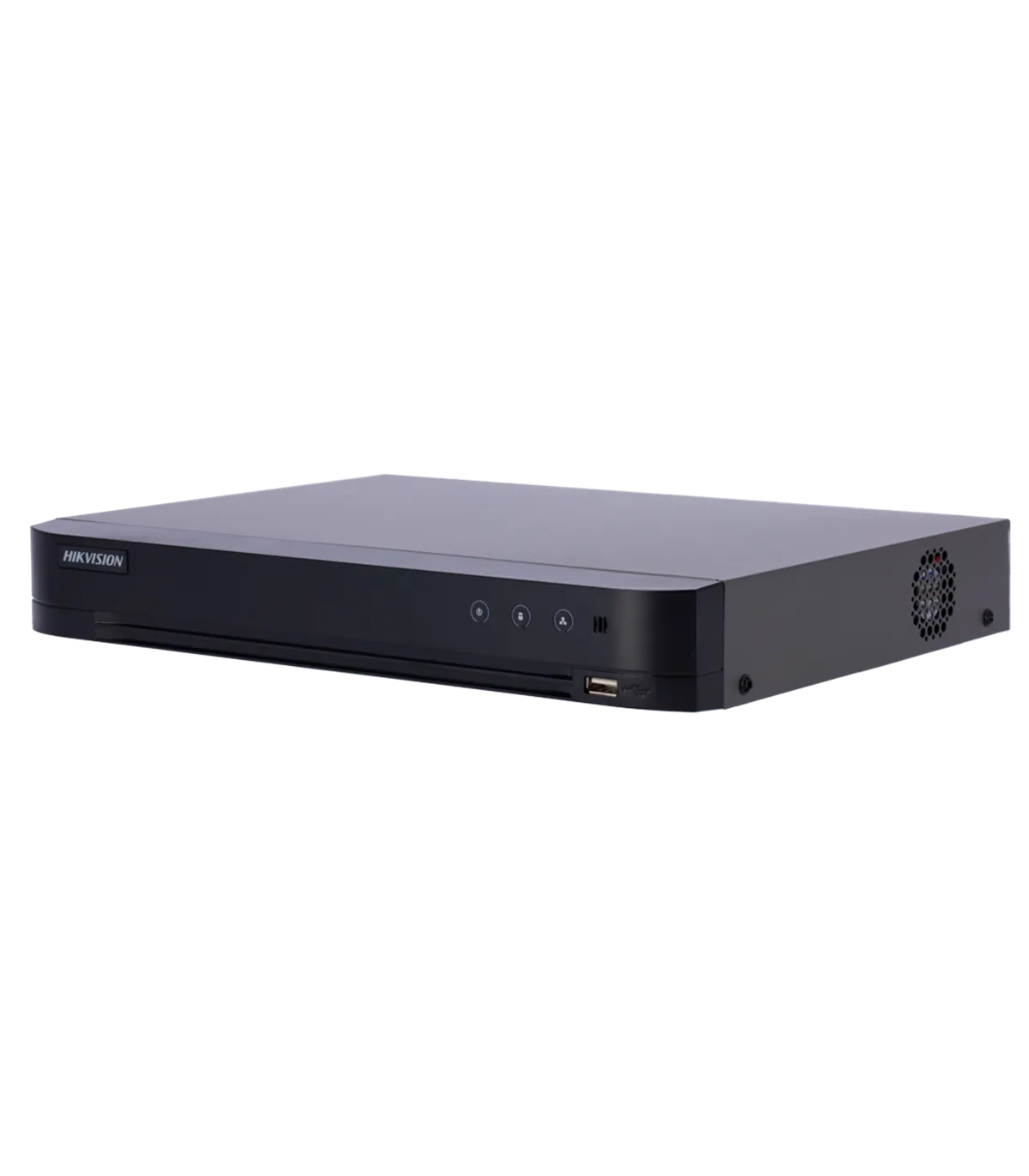

The iDS-7208HQHI-M2/XT/8A+8/4ALM is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports up to 8 channels of video input through various formats including HDTVI, HDCVI, AHD, and CVBS, along with 12 IP channels. This device is ideal for both residential and commercial applications, providing advanced features such as motion detection and face recognition to enhance security measures.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2CH additional IP: Up to 10 IP channels (6 Mpx), replacing all BNC channels Enhanced IP mode: 4CH additional IP: Up to 12 IP channels (6 Mpx), replacing all BNC channels * Enhanced IP mode may conflict with smart events (motion detection 2.0, AcuSense, or face recognition). |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 8 inputs 8 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | With 1080p Lite mode disabled: 3K Lite / 5 Mpx Lite / 4Mpx Lite / 1080p / 720p / WD1 / 4CIF / VGA / CIF With 1080p Lite mode enabled: 3K Lite / 5Mpx Lite / 4Mpx Lite / 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Input Resolution | HDTVI: 3K (20 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 1080P Lite disabled 3K Stream: 3K Lite (12 FPS), 4 Mpx Lite/1080p (15 FPS); 720p/WD1/4CIF/VGA/CIF (20 FPS) 5 Mpx Stream: 5 Mpx Lite (12 FPS), 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (20 FPS) 4 Mpx Stream: 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (25 FPS) 1080p Stream: 1080p/720p (15 FPS); VGA/WD1/4CIF/CIF (25 FPS) (P) 720p Stream: 720p/VGA/WD1/4CIF/CIF (25 FPS) (P) 1080P Lite enabled 3K Lite/4 Mpx Lite (12 FPS), 4 Mpx lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF (25 FPS) (P) |
| Extra Stream Encoding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 8 inputs / 4 outputs |
| Motion Detection | Motion Detection 2.0: Deep-learning based motion detection, capable of classifying humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense: Perimeter protection based on VCA rules with false alarm filtering for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Recognition | Face image comparison, searching images with faces on up to 2 channels. Up to 16 face libraries. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 2 SATA 3.5" HDDs up to 10 TB (not included) |
| Communication | 1xUSB 2.0 (front), 1xUSB 2.0 (rear) / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex |
| Bandwidth | 96 Mbps |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 2.5A, ≤ 30 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 52 (H) mm x 384 (W) mm x 313 (D) mm |
| Weight | ≤ 1.78 Kg |
The iDS-7208HQHI-M2/XT/8A+8/4ALM is ideally suited for a variety of surveillance environments, including retail stores, offices, and residential complexes. For instance, a retail store can deploy this 5-in-1 DVR to monitor customer activity and enhance security. With its motion detection 2.0 feature, the device can intelligently differentiate between human and vehicle movements, reducing false alarms. Additionally, the face recognition capability allows for effective monitoring of known individuals, enhancing security protocols. The device's remote access functionality enables store managers to monitor live feeds from anywhere, ensuring peace of mind. Furthermore, the ability to connect up to 12 IP cameras provides flexibility in expanding the surveillance system as needed. This makes the iDS-7208HQHI-M2/XT/8A+8/4ALM an excellent choice for comprehensive security solutions.
