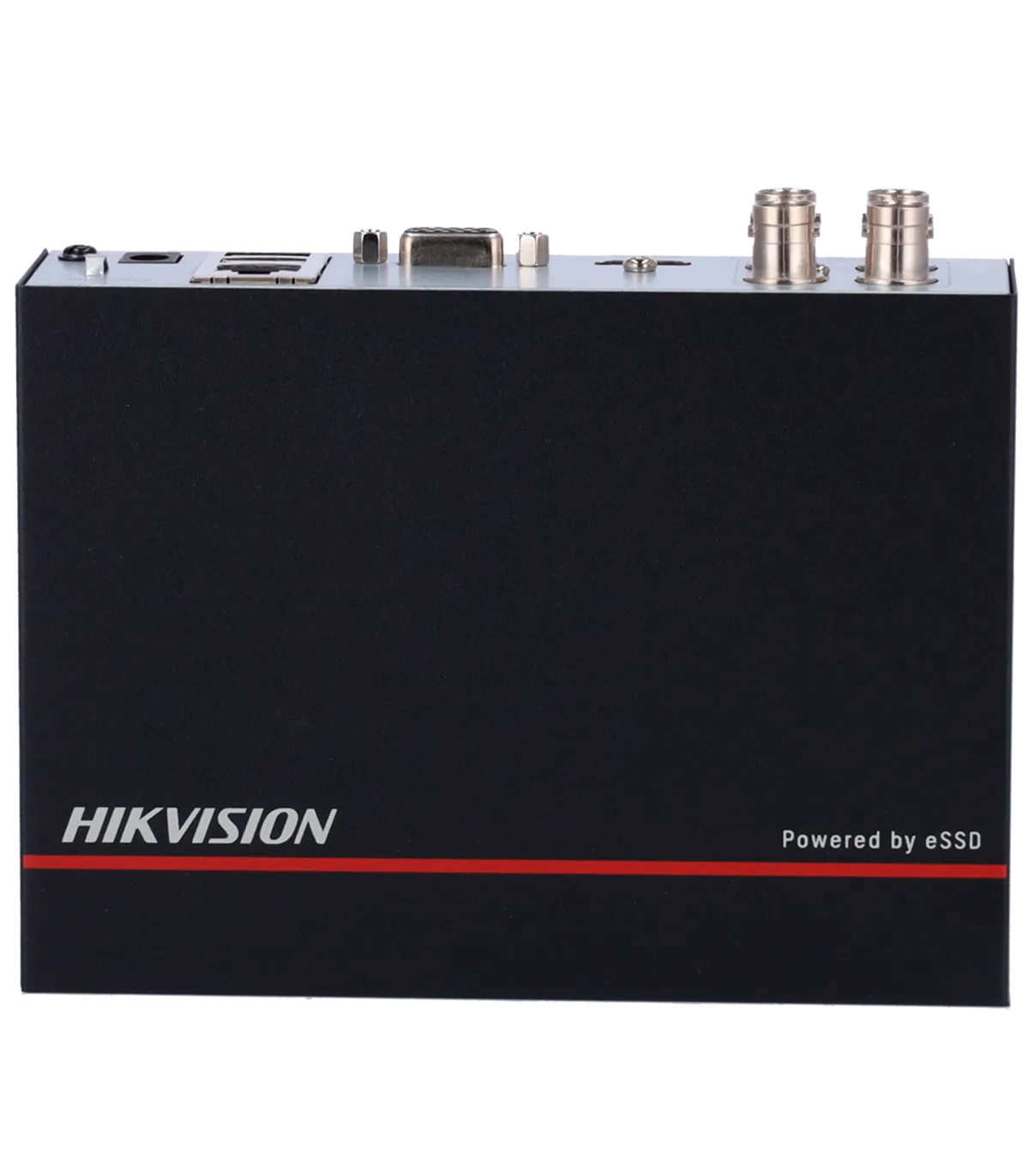

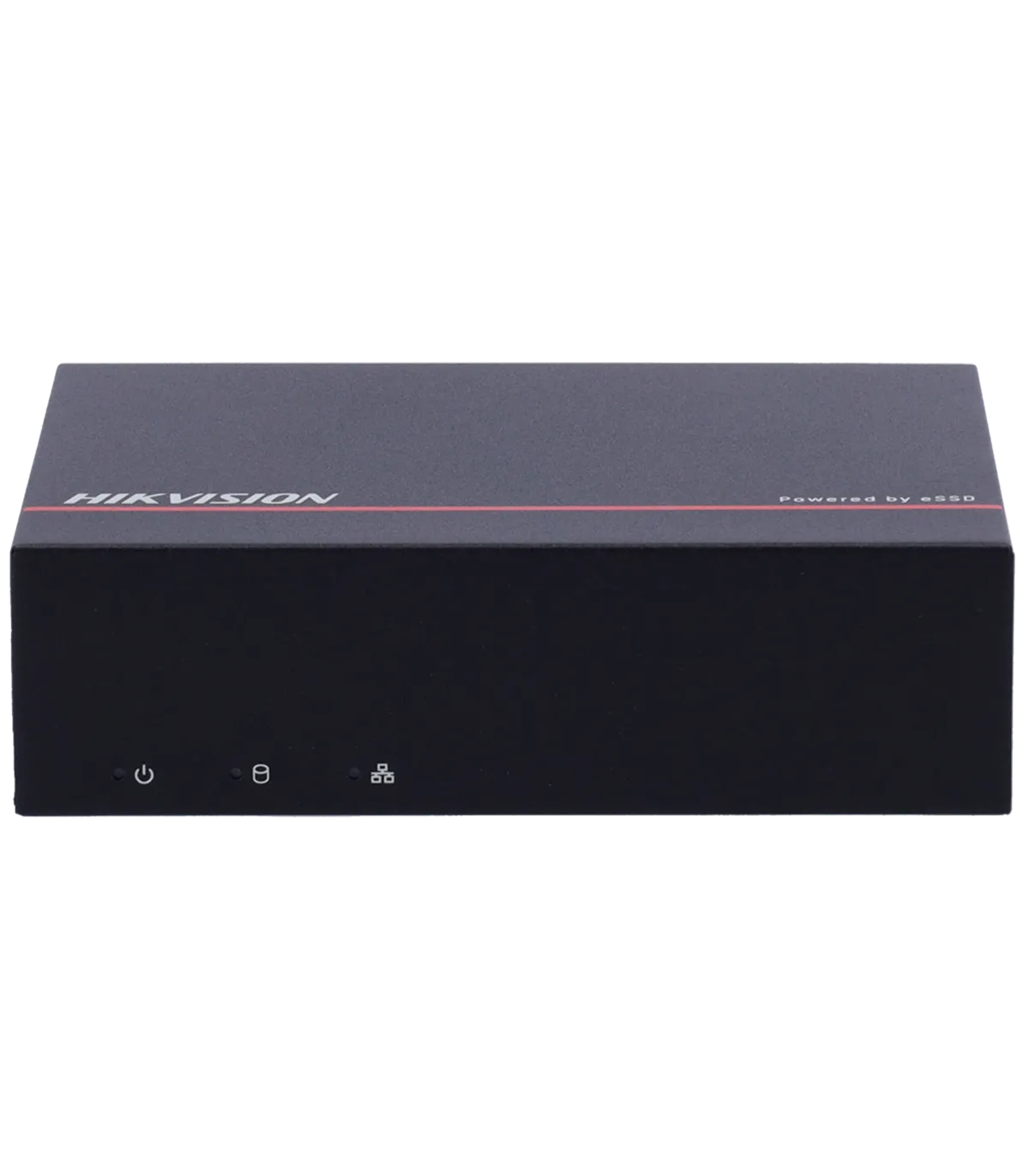

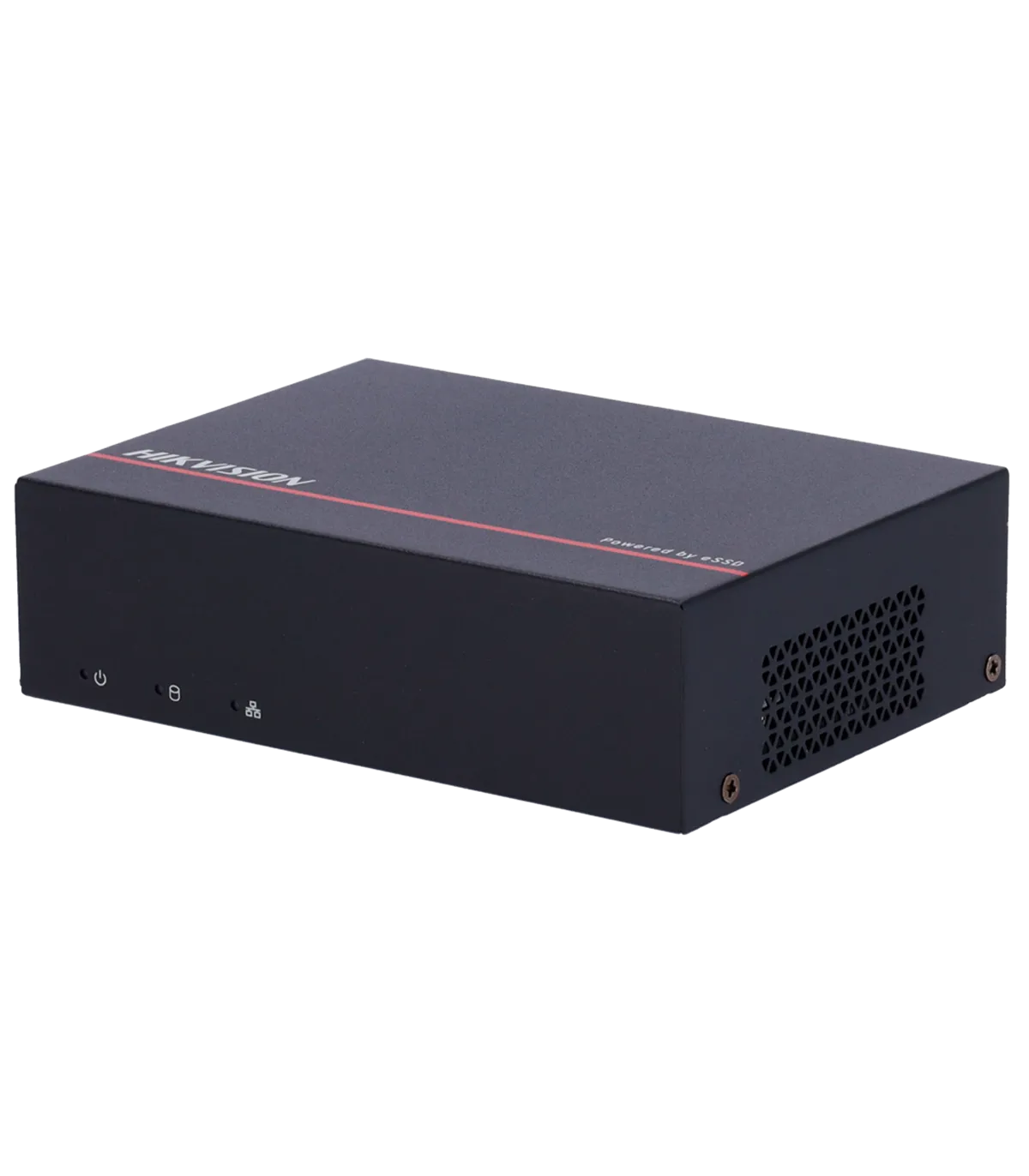

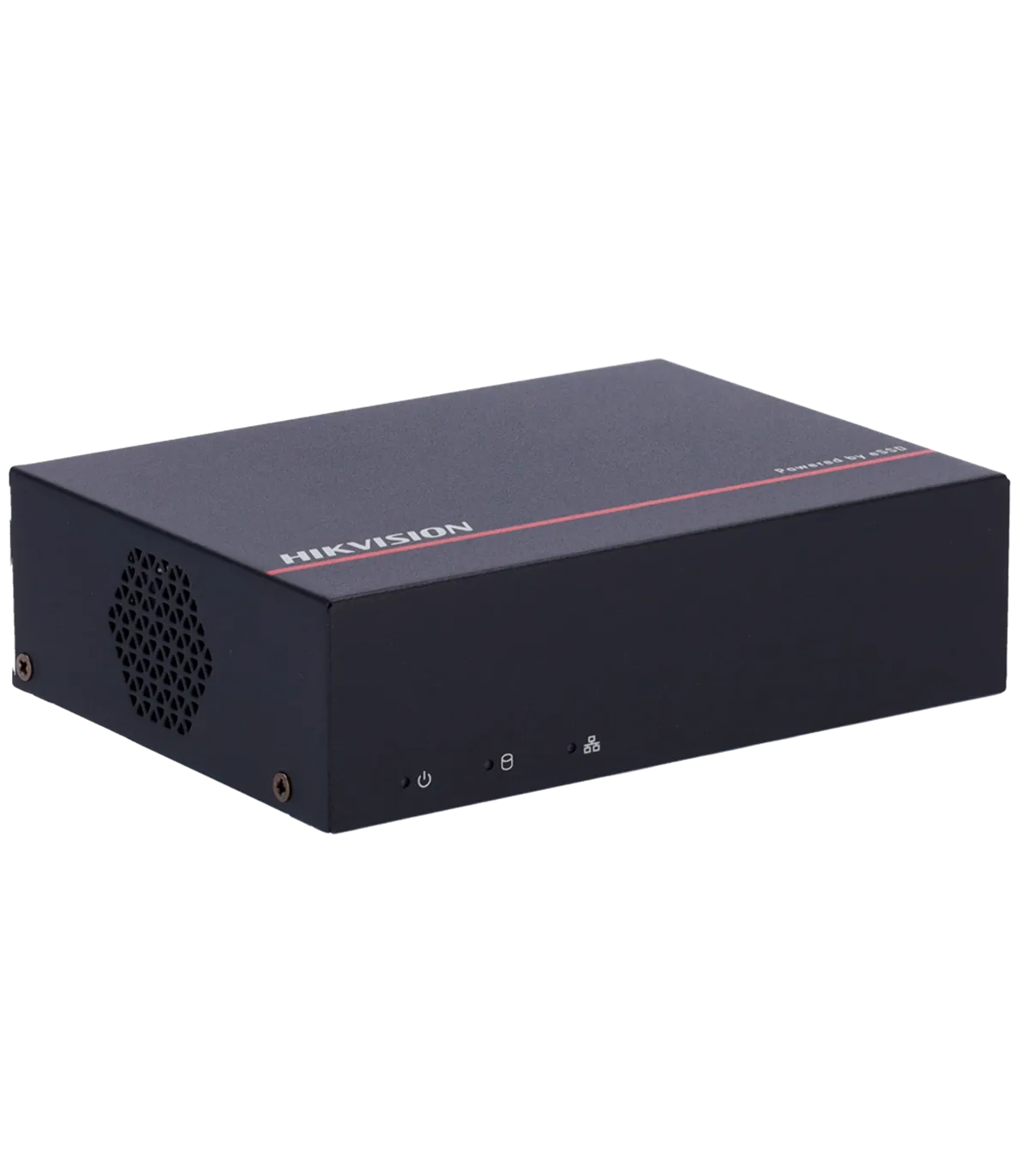

The iDS-E04HQHI-XD is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it suitable for various installation environments. With its compact design and low power consumption, this device is ideal for both residential and commercial security applications.
| Brand | HIKVISION |
| Series | Value |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 1CH IP additional up to 6 MPx |
| Available Bandwidth | 72 Mbps |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio Inputs | Audio over coaxial on all BNC input channels |
| Audio Outputs | Audio output via HDMI |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog channels: H.265 Pro / H.265 IP channels: H.265+/ H.265 |
| Recording Resolution | When 1080p Lite mode is not enabled: 5MPx Lite/ 3K Lite/ 4MPx Lite/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF When 1080p Lite mode is enabled: 5MPx Lite/ 3K Lite/ 4MPx Lite/ 1080p Lite/ 720p/ VGA/ WD1/ 4CIF |
| Input Resolution | HDTVI: 5MPx (20 fps), 3K (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | When 1080p Lite mode is not enabled: For the 3K stream: 3K Lite (12 fps), 4MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For the 5 MPx stream: 5MPx Lite (12 fps), 4MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For the 4 MPx stream: 4MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (25 fps) For the 1080p stream: 1080p/720p (15 fps), VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) For the 720p stream: 720p/VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) When 1080p Lite mode is enabled: 3K Lite/5MPx Lite (12 fps), 4MPx Lite (15 fps), 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | Video bitrate adaptable according to scene type |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied to motion detection. Available on all analog channels. |
| Smart Functions | AcuSense, available on up to 2 channels. Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 1 included eSSD of 1024 GB (960 GB available) |

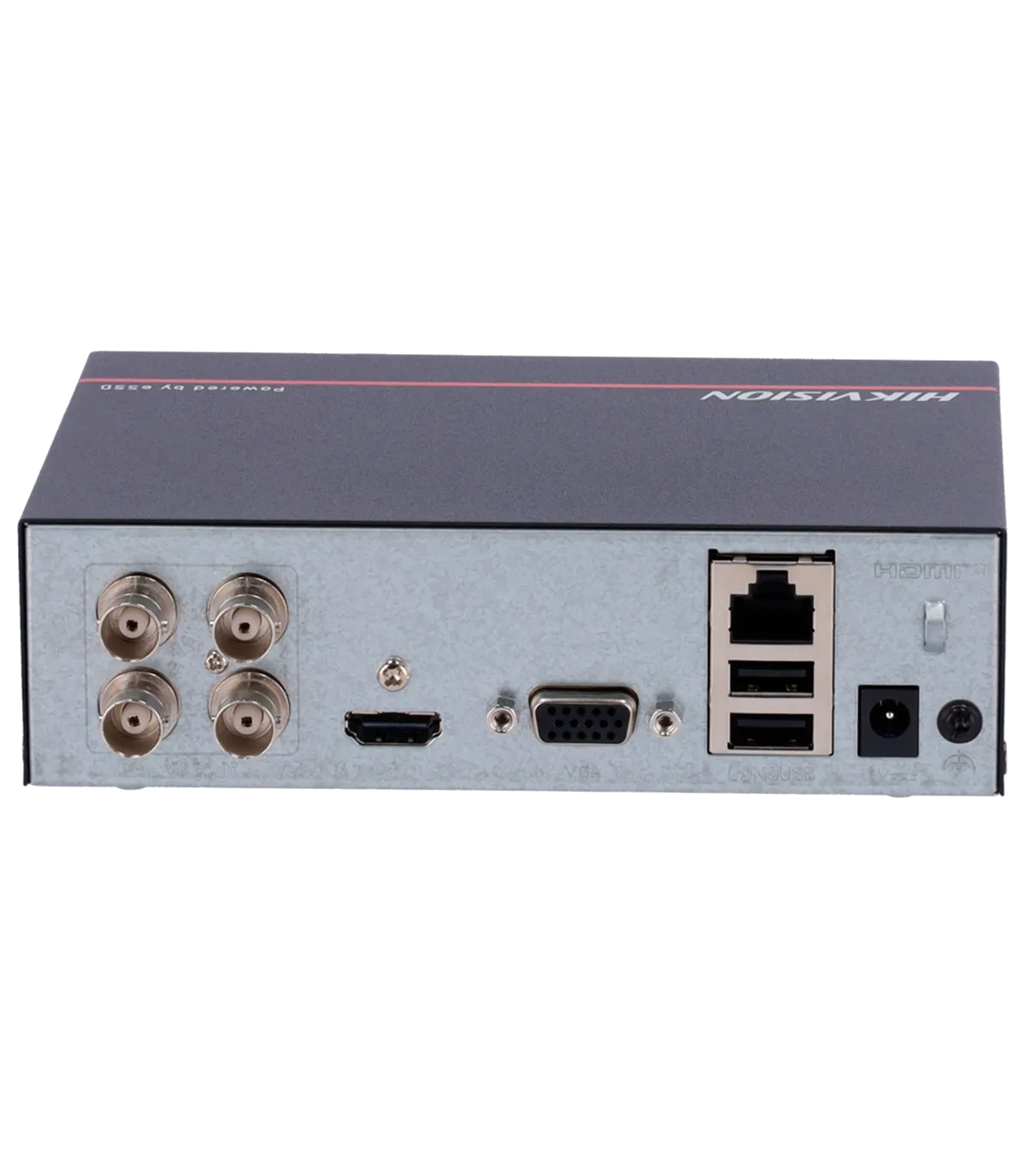

| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1 A, ≤ 5.4 W (with eSSD) |
| Operating Temperature | -10° ~ +45° C |
| Dimensions | 46 (H) mm x 151 (W) mm x 121 (D) mm |
| Weight | ≤ 0.5 Kg (with eSSD) |
The iDS-E04HQHI-XD is ideally suited for a variety of surveillance applications, such as retail stores, offices, and residential properties. Installers can easily set up this 5-in-1 DVR to manage multiple camera types, ensuring comprehensive coverage of the premises. With its motion detection 2.0 feature, the device can intelligently differentiate between human and vehicle movements, significantly reducing false alarms. This is particularly beneficial in high-traffic areas where traditional motion sensors may trigger unnecessary alerts. The remote access capabilities allow users to monitor their properties in real-time via web browsers or mobile applications, enhancing security and peace of mind. Additionally, the compact design and low power consumption make it a perfect fit for installations where space and energy efficiency are critical. Overall, the iDS-E04HQHI-XD provides a robust solution for modern security needs, combining advanced technology with user-friendly features.
