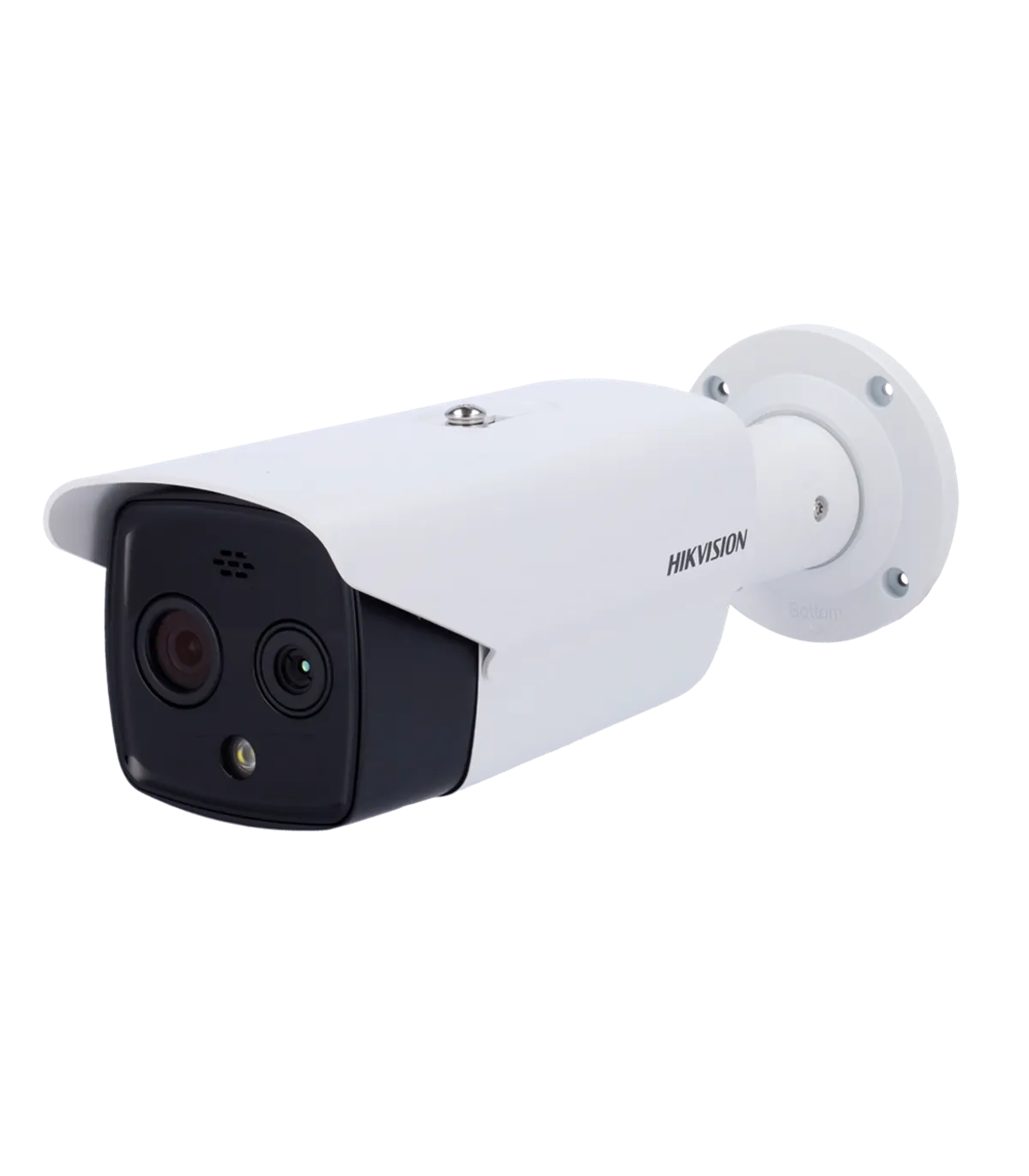

The DS-2TD2617-6/QA is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. It is ideal for environments requiring temperature measurement and fire detection, making it suitable for industrial sites, warehouses, and critical infrastructure. This device combines a thermal sensor with a high-resolution optical sensor, ensuring comprehensive monitoring capabilities in various lighting conditions.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 160x120 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×480, 352x288, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 352x288, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 6.2 mm (Thermal) / 8 mm (Optical) |
| DORI | Person: 182 m (D), 46 m (R), 23 m (I) Vehicle: 559 m (D), 140 m (R), 70 m (I) |
| VCA Ranges | Person: 30 m Vehicle: 85 m Temperature Measurement (Object 0.2x0.2m): 13.6 m Temperature Measurement (Object 1x1m): 68 m Fire Detection (Object 0.2x0.2m): 62 m |
| Field of View | Thermal: 25° (H), 18.7° (V) Optical: 39.42° (H), 22.14° (V) |
| Thermal Sensitivity | < 40 mK (0.05 º C) |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 17 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 outputs |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI |
| Power Supply | DC 12 V, 0.5 A, 6 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP67 Waterproof IK10 Vandal Resistant 6000 V Surge Protection |
| Dimensions | 115.2 mm (H) x 113.5 mm (W) x 358.3 mm (D) |
| Weight | 1.76 kg |
The DS-2TD2617-6/QA is particularly effective in industrial settings where monitoring temperature and detecting potential fire hazards are critical. For instance, in a manufacturing plant, this camera can be strategically placed to monitor machinery and storage areas. The thermal imaging capabilities allow for early detection of overheating equipment, while the fire detection feature can trigger alarms before a fire spreads. Additionally, the camera's remote monitoring capabilities enable facility managers to access live feeds via a smartphone app, ensuring constant vigilance. With its IP67 waterproof rating, the camera can withstand harsh environmental conditions, making it suitable for outdoor installations. The integration of PoE technology simplifies installation by reducing the need for additional power sources, enhancing overall efficiency.
