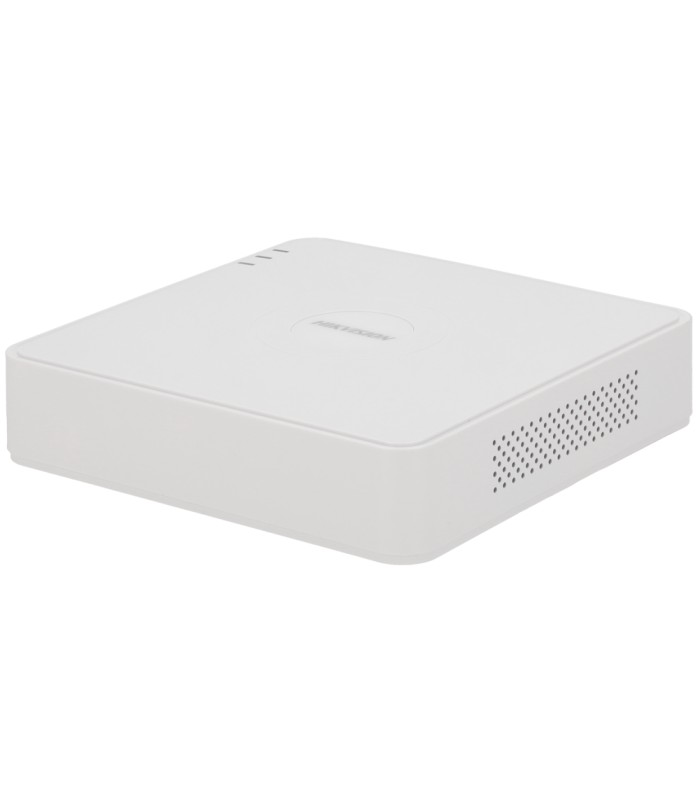

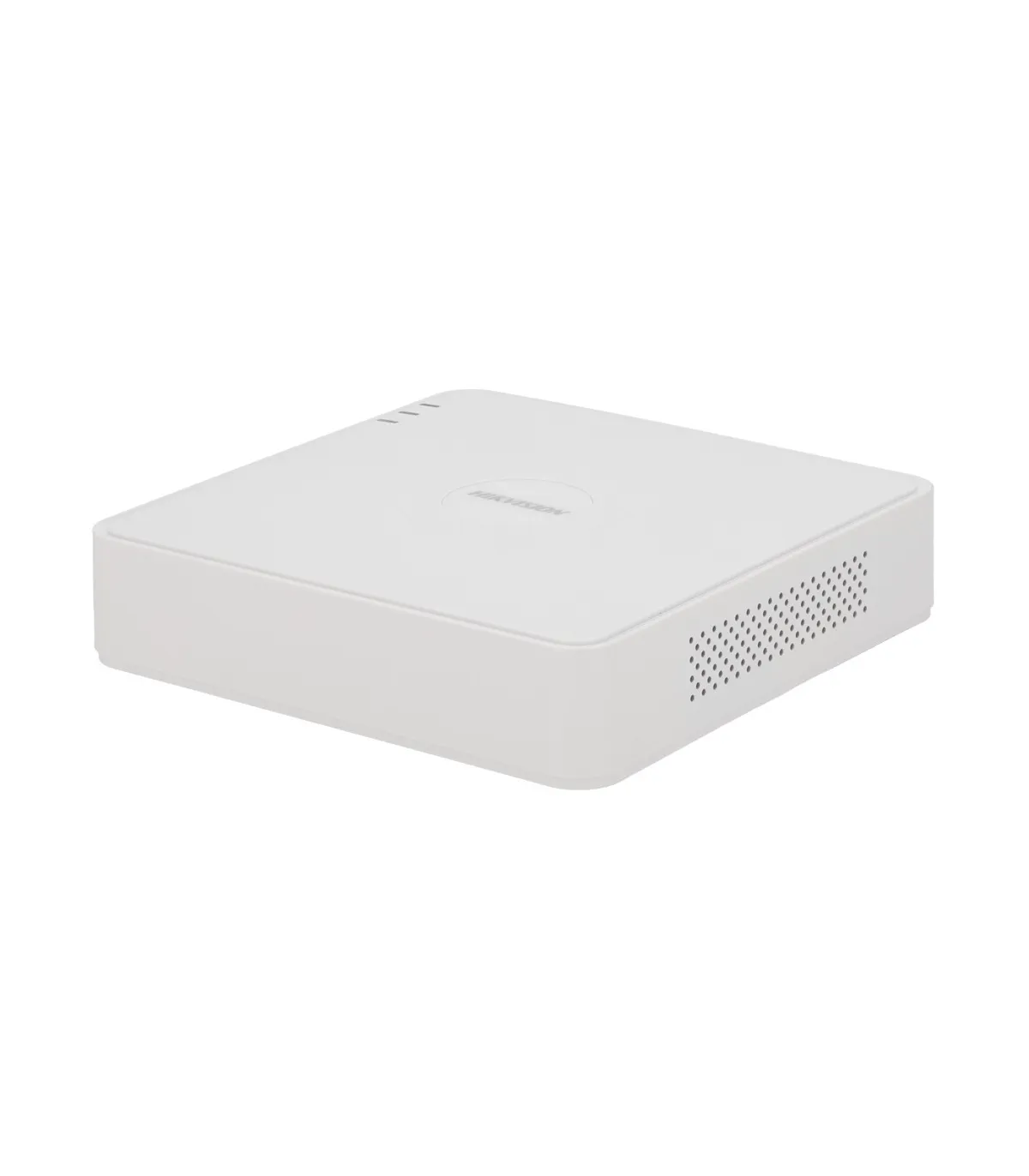

Hikvision DVR 5n1 range Core iDS-7108HQHI-M1/S(E)
Brand: HIKVISION CORE
- Hikvision DVR 5-in-1 CORE series
- 8 CH HDTVI / HDCVI / AHD / CVBS
- Up to 12 IP channels
- Maximum input resolution 3K
- AcuSense: false alarm filter
- 1 HDD 10TB | Audio | Face detection
Hikvision DVR 5n1 range Core iDS-7108HQHI-M1/S(E)
- Hikvision
- CORE range
- DVR 5n1
- 8 CH video HDTVI/HDCVI/AHD/CVBS / 12 IP
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Maximum input resolution 3K @12fps
- Audio over coaxial
- Motion detection 2.0 on all channels
- Accusense, false alarm filter for vehicles and people on up to 4 channels
- Face detection and capture
- HDMI output Full HD and VGA
- Audio input and output
- Space for 1 HDD
- Compact size
- White color
Technical specifications
| Brand | HIKVISION |
| Range | CORE |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2CH additional IP: Up to 10 IP channels (6Mpx), replacing all BNC channels Enhanced IP mode: 4CH additional IP: Up to 12 IP Channels (4Mpx), replacing all BNC channels |
| Available bandwidth | 96 Mbps |
| Video outputs | 1 HDMI Full HD and 1 VGA, simultaneous; |
| Display resolution | HDMI: 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Audio inputs | 1 Channel RCA Audio over coaxial |
| Audio outputs | 1 Channel RCA |
| Two-way audio | Reusing audio input |
| Audio compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording resolution | With 1080p Lite mode not enabled: 3K Lite / 5Mpx Lite / 4 Mpx Lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF With 1080p Lite mode enabled: 3K Lite / 5Mpx Lite / 4 Mpx Lite / 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF |
| Input resolution | HDTVI: 3K (20 fps), 5 Mpx (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | With 1080p Lite mode not enabled: For 3K stream: 3K Lite @12fps, 4Mpx Lite/1080p @15fps, 720p/WD1/4CIF/VGA/CIF @20fps For 5Mpx stream: 5Mpx @12fps, 4Mpx Lite/1080p @15fps, 720p/WD1/4CIF/VGA/CIF @20fps For 4Mpx stream: 4Mpx Lite/1080p @15fps, 720p/WD1/4CIF/VGA/CIF @25fps For 1080p stream: 1080p/720p @15fps, WD1/4CIF/VGA/CIF @25fps With 1080p Lite mode enabled: 3K lite/5Mpx Lite @12fps, 4Mpx Lite @15fps, 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF @25fps |
| Extra Stream Encoding | WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with classification of humans and vehicles applied in the detection of movement. Available on all analog channels. * Motion detection and AcuSense cannot be enabled at the same time on the same device. |
| Intelligent functions | AcuSense Technology based on DeepLearning for classification of humans and vehicles with reduction of false alarms applied to: Line Crossing, Area Intrusion, Entry Region, Exit Region faces |
| Recording method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 2 x USB 2.0 (rear) ) / 1xRJ45 (Ethernet) |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, Software PC iVMS-4200 and Hik-Central |
| Power | DC 12 V, 1.33 A, ≤ 12 W (without HDD) |
| Temperature Operation | -10° ~ +55° C |
| Dimensions / Weight | 45 (H) mm x 200 (W) mm x 200 (D) mm / ≤ 1 Kg (without HDD) |
| Color | White |
Contents
- Hikvision 5-in-1 recorder
- Mouse
- AC/DC 12 V adapter
- CD with manual and software
