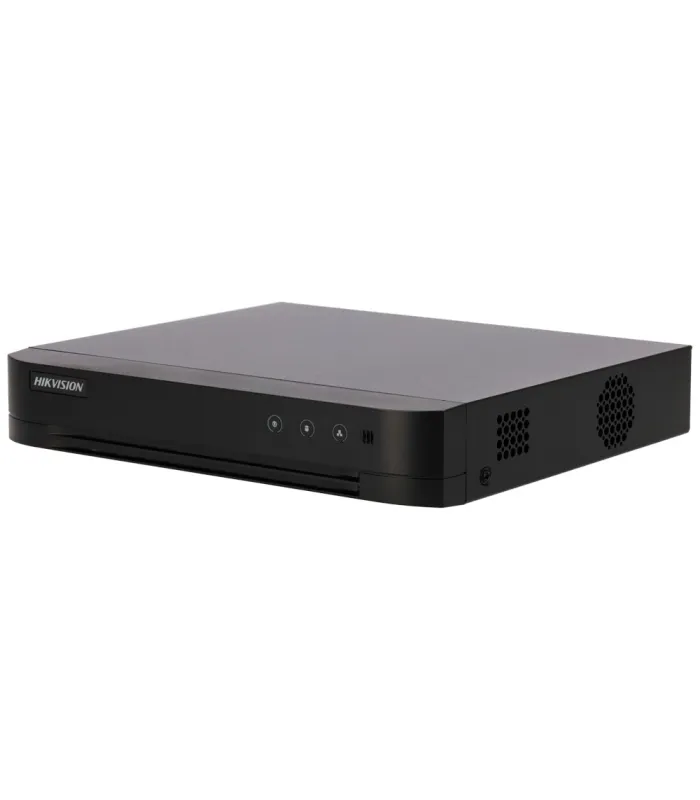

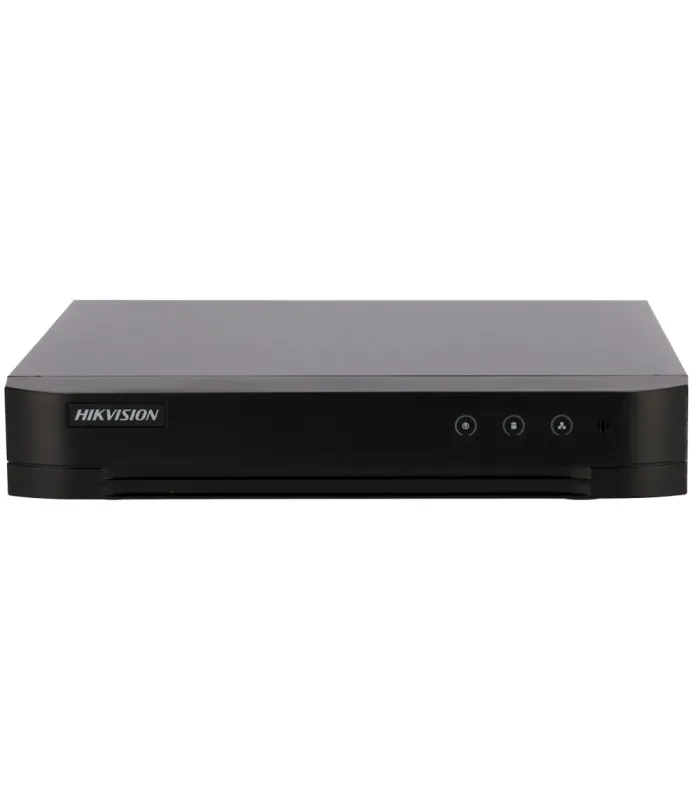

| Brand | HIKVISION | |
| Range | Value | |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP | |

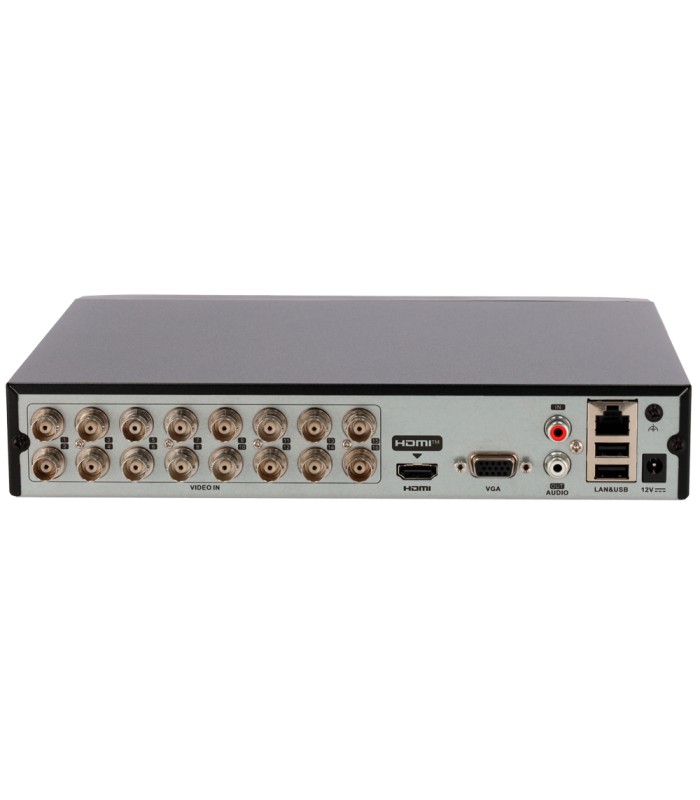

| Video inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) | |
| Hybrid configuration | 2 additional IP CHs: Up to 18 IP channels (5 Mpx), replacing all BNC channels | |
| Video outputs | 1 HDMI Full HD and 1 VGA, simultaneous; | |
| Display resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz | |
| Audio inputs | Audio via coaxial 1 RCA channel | |
| Audio outputs | 1 RCA channel | |
| Two-way audio | Reusing the audio input | |
| Audio Bit Rate | 64 Kbps | |
| Audio compression | G.711u | |
| Video compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 720p/ VGA/ WD1/ 4CIF/ CIF | |
| Input resolution | HDTVI: 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC | |
| Main Stream Encoding | For the stream 1080p: 1080p Lite/720p Lite/WD1/4CIF/VGA (15 fps), CIF (25 fps) For 720p stream: 720p/WD1/4CIF/VGA (15 fps), CIF (25 fps) For SD stream: WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) | |
| Extra Stream Encoding | For 1080p and 720p stream: CIF/QVGA (15 fps) For SD: CIF/QVGA (25 fps (P), 30 fps (N)) simultaneous | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | Not available | |
| Motion detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. | |
| Recording method | Manual, scheduled, motion detection | |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network | |
| Internal storage | 1 SATA 3.5" HDD up to 10 TB (not included) | |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) | |
| Remote Connections | 128 | |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central | |
| Power | DC 12 V, 1.5 A, ≤ 18 W (without HDD) | |
| Operating Temperature | -10° ~ +55° C | |
| Dimensions / Weight | 45 (H) mm x 260 (W) mm x 222 (Fo) mm / ≤ 2.2 Kg (without HDD) |
