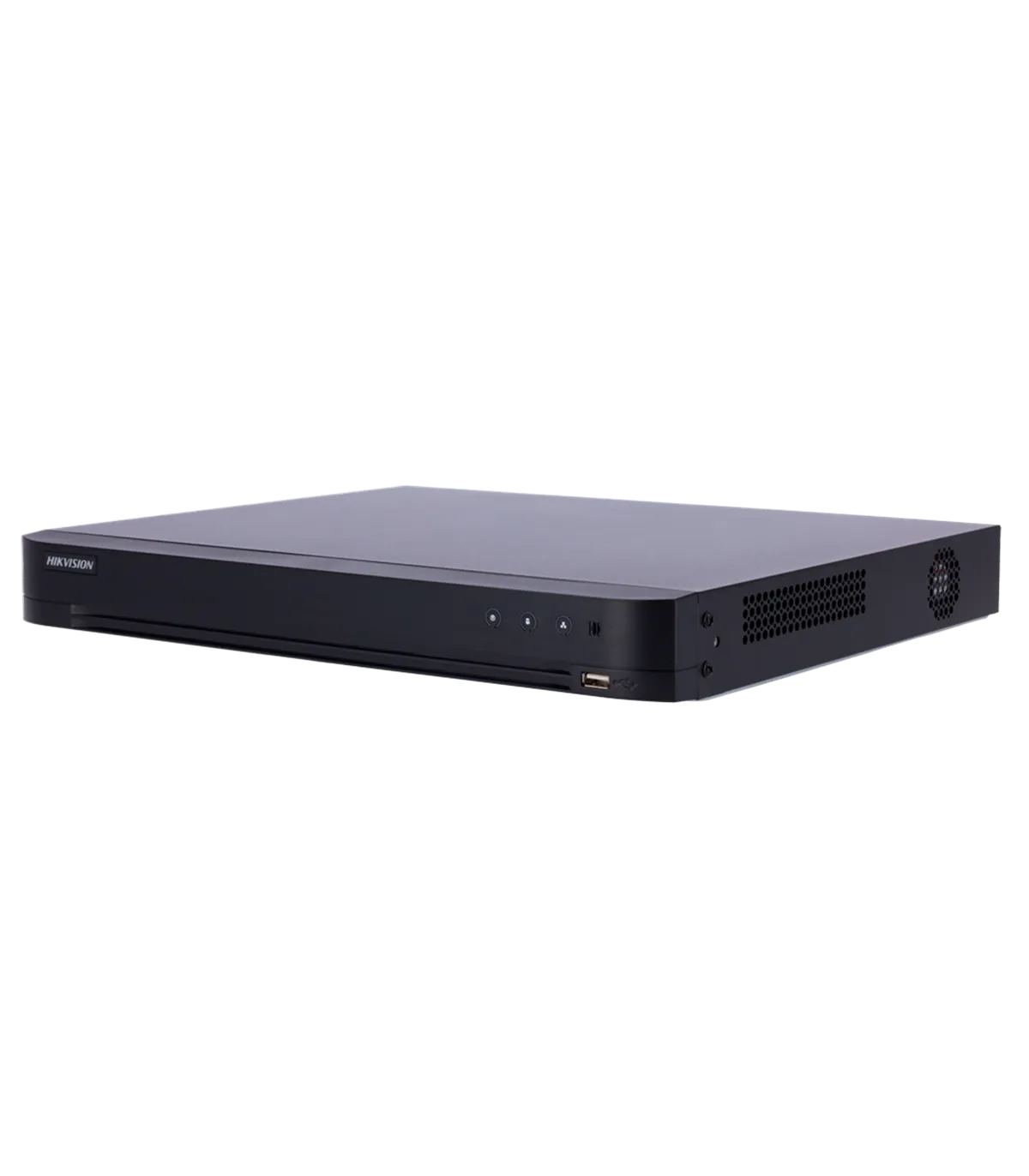

- Hikvision 5-in-1 PRO DVR
- 16 CH HDTVI / HDCVI / AHD / CVBS
- Up to 32 CH IP | 4K HDMI and VGA output
- Motion Detection 2.0 | AcuSense
- Facial Detection | Facial Recognition
- 2 HDD | Audio | Alarms
Description & Key Features: iDS-7216HUHI-M2/PXT/4A+4/1ALM
The iDS-7216HUHI-M2/PXT/4A+4/1ALM is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports up to 16 channels of video input, accommodating various formats such as HDTVI, HDCVI, AHD, and CVBS, making it ideal for both new installations and upgrades. With advanced features like motion detection and AcuSense technology, this device enhances security by filtering false alarms and providing facial recognition capabilities.
- Hikvision
- DVR 5n1
- 16 CH video HDTVI/HDCVI/AHD/CVBS / 32 IP
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Maximum input resolution 8MP @8fps
- Motion detection 2.0 on all channels
- AcuSense, false alarm filter for vehicles and people on up to 8 channels
- Facial recognition on up to 4 channels, using HD analog camera
- Facial detection on up to 4 channels
- Alarms
- Audio input and output
- Audio over coaxial
- PTZ control (RS485/Coaxial)
- 4K HDMI output, VGA, and CVBS
- Space for 2 HDDs up to 12 TB each
Specifications: iDS-7216HUHI-M2/PXT/4A+4/1ALM
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 16 additional IP CH: Up to 32 IP channels (8 MP), replacing all BNC channels |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 4 RCA Channels 16 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8MP @ 12FPS, 3K (5MP 16:9)@25FPS, 5MP @20FPS, 4MP @25FPS, 1080p@25FPS, 720p@25FPS HDCVI: 8MP @ 12FPS, 3K (5MP 16:9)@25FPS, 5MP @20FPS, 4MP @25FPS, 1080p@25FPS, 720p@25FPS AHD: 5MP @20FPS, 4MP @25FPS, 1080p@25FPS, 720p@25FPS |
| Main Stream Encoding | 8MP@8 FPS; 3K@12 FPS, 5MP@12 FPS; 4MP @15 FPS; 8MP Lite@15 FPS; 3MP@18 FPS; 1080p /720p/WD1/4CIF/VGA/CIF@25 FPS(P) |
| Extra Stream Encoding | WD1 / 4CIF / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detection Available on all analog channels |
| AcuSense | AcuSense: Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 8 channels of analog video. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Facial Recognition | Up to 16 facial libraries; Up to 4 cameras for image comparison alarm (HD analog camera) |
| Facial Detection | Facial detection; photo search; Up to 4 channels for image capture. |
| Alarms | 4 inputs / 1 output |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 2 SATA 3.5" HDDs up to 12 TB each (not included) |
| Communication | 2 x USB 3.0 (rear panel) / 1 x USB 2.0 (front panel) / RS-485 / RJ45 (Ethernet) |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | AC 100~240 V, ≤ 20 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 384 (W) x 313 (D) x 52 (H) mm |
| Weight | ≤ 2.1 Kg (without HDD) |
Package Contents
- Hikvision 5-in-1 Recorder
- Mouse
- AC/DC Adapter 12 V
- CD with manual and software
Use Case
The iDS-7216HUHI-M2/PXT/4A+4/1ALM is ideally suited for a variety of surveillance applications, including retail environments, office buildings, and residential complexes. For instance, in a retail store, the device can be deployed to monitor customer activity and enhance security. With its 16-channel capability, users can connect multiple cameras to cover all angles of the store. The motion detection 2.0 feature allows for precise monitoring, reducing false alarms and ensuring that only relevant events are recorded. Additionally, the AcuSense technology can filter out non-threatening movements, such as those from customers, while alerting staff to potential security threats. The facial recognition capability can be utilized to identify known shoplifters, enhancing loss prevention strategies. Furthermore, the device supports remote monitoring through various platforms, allowing store managers to keep an eye on operations from anywhere. This combination of features makes the iDS-7216HUHI-M2/PXT/4A+4/1ALM an essential tool for effective surveillance and security management.
Data sheet
- Brand
- HIKVISION
- Technology
- HD-Coaxial
- Audio
- 4 Entradas / 1 Salida
- Channels
- 16
Specific References
- EAN13
- 6942160408514
