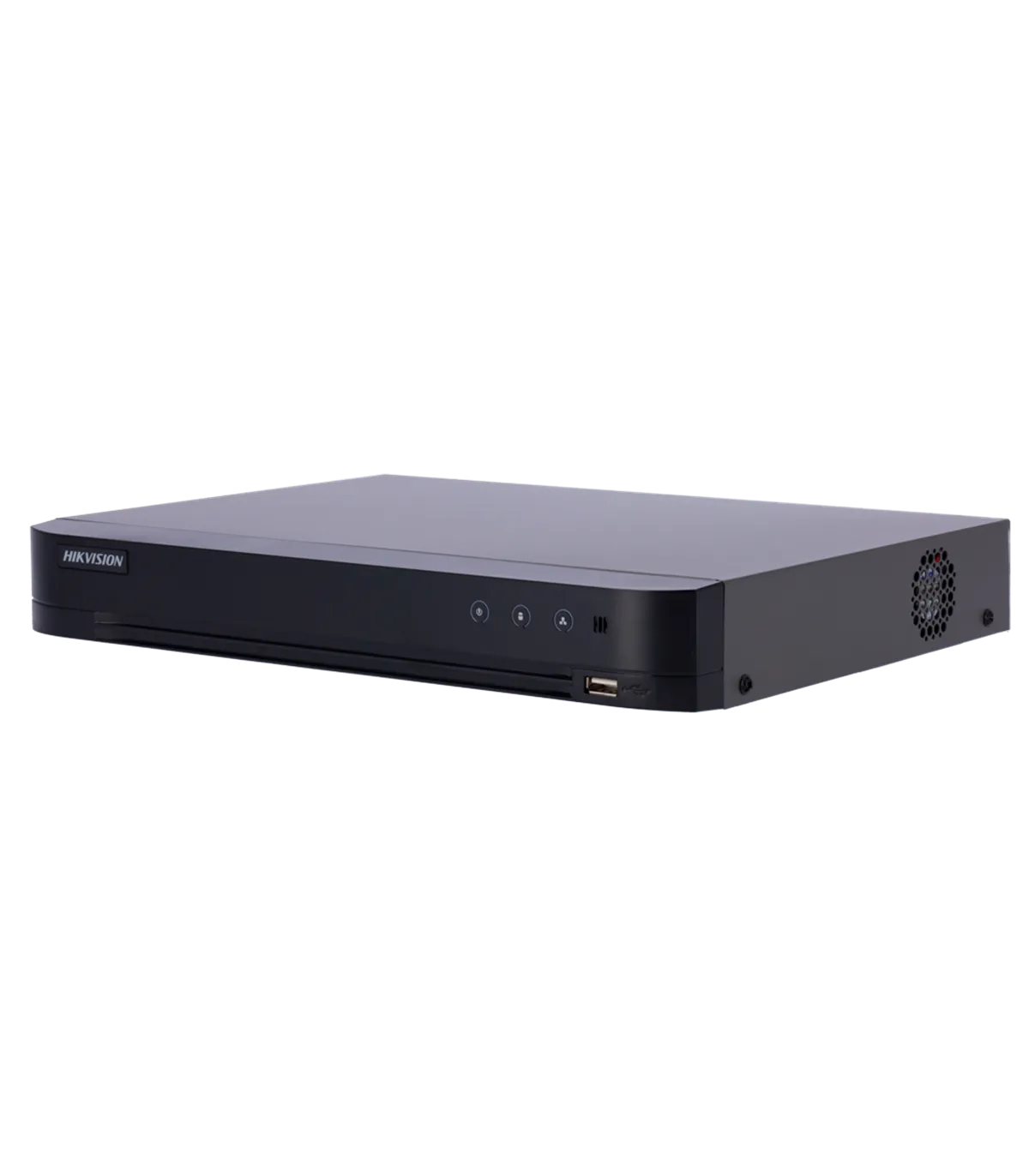

The iDS-7204HQHI-M1/XT/4A+4/1ALM is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it suitable for various installation environments. With advanced features such as motion detection and face recognition, this device is ideal for enhancing security in both residential and commercial settings.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2 additional IP CH: Up to 6 IP Channels (6 Mpx), replacing all BNC channels |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 4 RCA Channels 4 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | With 1080p Lite mode disabled: 3K Lite / 5 Mpx Lite / 4Mpx Lite / 1080p / 720p / WD1 / 4CIF / VGA / CIF With 1080p Lite mode enabled: 3K Lite / 5Mpx Lite / 4Mpx Lite / 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Input Resolution | HDTVI: 3K (2960x1665) (25 fps), 3K (3328x1504) (20 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 3K (2880x1620) (25 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 1080P Lite disabled 3K Stream: 3K Lite (12 FPS), 4 Mpx Lite/1080p (15 FPS); 720p/WD1/4CIF/VGA/CIF (20 FPS) 5 Mpx Stream: 5 Mpx Lite (12 FPS), 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (20 FPS) 4 Mpx Stream: 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (25 FPS) 1080p Stream: 1080p/720p (15 FPS); VGA/WD1/4CIF/CIF (25 FPS) (P) 720p Stream: 720p/VGA/WD1/4CIF/CIF (25 FPS) (P) 1080P Lite enabled 3K Lite/5 Mpx Lite (12 FPS), 4 Mpx lite /15 FPS), 1080p lite/720p lite/VGA/WD1/4CIF/CIF (25 FPS) (P) |
| Extra Stream Encoding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 4 inputs / 1 output |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection, capable of classifying humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense: Rule-based perimeter protection with false alarm filtering for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 2 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Recognition | Face image comparison, searching for faces in images on up to 1 channel. Up to 16 face libraries. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 1xUSB 2.0 (front), 1xUSB 2.0 (rear) / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex |
| Bandwidth | 72 Mbps |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 12 V, 1.5A, ≤ 18 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 48 (H) mm x 319 (W) mm x 236 (D) mm / ≤ 1.16 Kg |
The iDS-7204HQHI-M1/XT/4A+4/1ALM is an excellent choice for installers looking to provide comprehensive security solutions for small to medium-sized businesses. In a typical deployment, the device can be connected to multiple cameras, allowing for remote monitoring via the Hik-Connect app. This feature enables users to access live feeds and recorded footage from anywhere, enhancing the overall security management. The motion detection capabilities, powered by deep learning, ensure that only relevant alerts are sent, reducing false alarms. Additionally, the face recognition feature can be utilized for access control, making it ideal for sensitive areas. With its pentaplex functionality, users can simultaneously record, playback, and access the system remotely, providing a seamless experience. Overall, the iDS-7204HQHI-M1/XT/4A+4/1ALM offers a robust solution for modern security needs.
