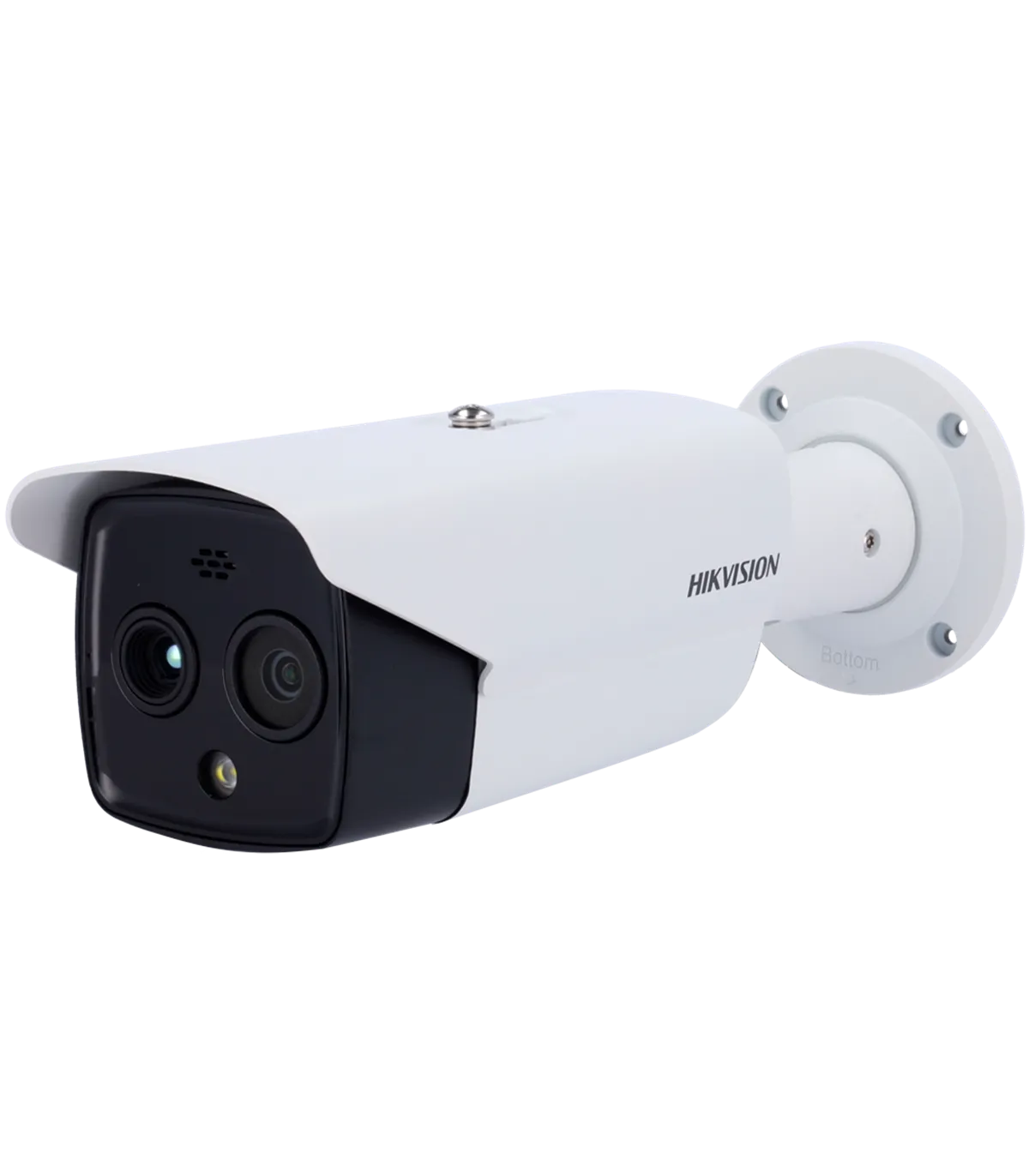

The DS-2TD2628-10/QA/GLT is a state-of-the-art dual IP thermal bullet camera designed for advanced security applications. Ideal for outdoor environments, this device excels in temperature measurement and fire prevention detection, making it suitable for industrial sites, warehouses, and critical infrastructure. With its robust features, including a high-resolution optical sensor and integrated alarm systems, it ensures comprehensive surveillance and monitoring capabilities.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Minimum Illumination | Color: 0.0089 Lux@(F1.6, AGC ON) 0 lux with IR activated range 30 m |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 9.7 mm (Thermal) / 8 mm (Optical) |
| DORI | Person: 404 m (D), 101 m (R), 50 m (I) Vehicle: 1239 m (D), 310 m (R), 155 m (I) |
| VCA Ranges | Person: 77.6 m Vehicle: 203.7 m Temperature Measurement (Object 0.2x0.2m): 32.3 m Temperature Measurement (Object 1x1m): 161.7 m |
| Field of View | Thermal: 18° (H), 13.5° (V) Optical: 39.4° (H), 22.1° (V) |
| Thermal Sensitivity | < 40 mK (0.05 º C) |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 outputs |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI |
| 4G Communication | Yes |
| SIM Card Type | Micro SIM |
| Frequency | LTE FDD: B 1/3/5/7/8/20/28 LTE TDD: B 38/40/41 WCDMA: B 1/5/8 |
| Standard | LTE FDD/LTE TDD/WCDMA |
| Power Supply | DC 12 V, 830 mA, 10 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Rating | IP67 waterproof IK10 vandal-proof Surge protection 4000 V |
| Dimensions | 105.2 mm (H) x 106 mm (W) x 208.9 mm (D) |
| Weight | 1332 g |
The DS-2TD2628-10/QA/GLT is ideally suited for deployment in high-security environments such as industrial facilities and critical infrastructure sites. For instance, in a large warehouse, this dual IP thermal camera can be strategically placed to monitor temperature fluctuations, providing early detection of potential fire hazards. The integrated fire prevention detection system alerts security personnel immediately, ensuring rapid response to emergencies. Additionally, the camera's remote monitoring capabilities allow operators to access live feeds via a smartphone app, enhancing situational awareness. With its robust IP67 waterproof and IK10 vandal-proof ratings, the camera is built to withstand harsh outdoor conditions, making it a reliable choice for perimeter security. Furthermore, the 4G connectivity feature ensures uninterrupted surveillance even in areas with limited network access, providing peace of mind for facility managers.
