The DS-2CD2623G2-LIZS2U(2.8-12mm) is a high-performance IP Bullet Camera designed for comprehensive surveillance in various environments. This device is ideal for both indoor and outdoor applications, providing exceptional image quality and advanced features for effective monitoring. With its 2 Megapixel resolution and varifocal motorized lens, it ensures clear images in diverse lighting conditions, making it suitable for security in commercial and residential settings.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 111.5~33.4°, V: 58.4~18.8°, D: 134.3~38.3° |
| DORI | 42.7~132 m (D), 16.9~52.4 m (O), 8.5~26.4 m (R), 4.3~13.2 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR range 60 m White light range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Ambient Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 1080 mA / 13 W max. PoE+ IEEE802.3at |
| Protection Rating | Waterproof IP67 Vandal-proof IK10 |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 95.7 mm (H) x 97.9 mm (W) x 298 mm (L) |

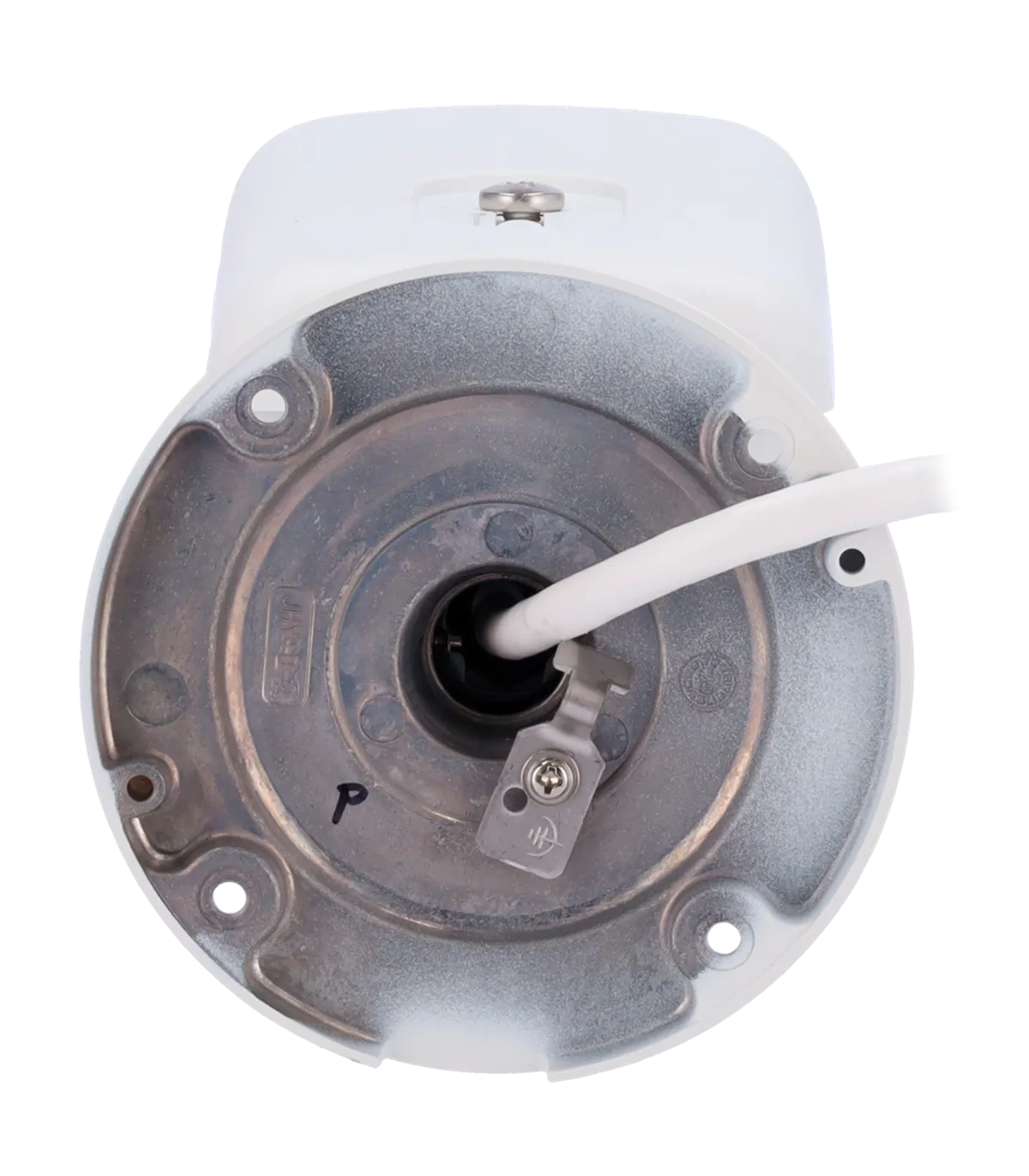

| Base Dimensions | Ø base 105 mm / Ø between screws 88 mm / 4 screws |
| Weight | 1531 g |
The DS-2CD2623G2-LIZS2U(2.8-12mm) is an excellent choice for security professionals looking to deploy a reliable surveillance solution in various settings. For instance, in a retail environment, this camera can be strategically placed at entry points and high-traffic areas to monitor customer activity and deter theft. With its hybrid light technology, the camera provides clear images even in complete darkness, ensuring 24/7 surveillance. The motion detection feature, enhanced by AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote monitoring capabilities via web browsers and mobile apps enable security personnel to keep an eye on premises from anywhere. The robust IP67 waterproof and IK10 vandal-proof ratings ensure durability in outdoor installations, making it suitable for various applications, including parking lots and building perimeters.
