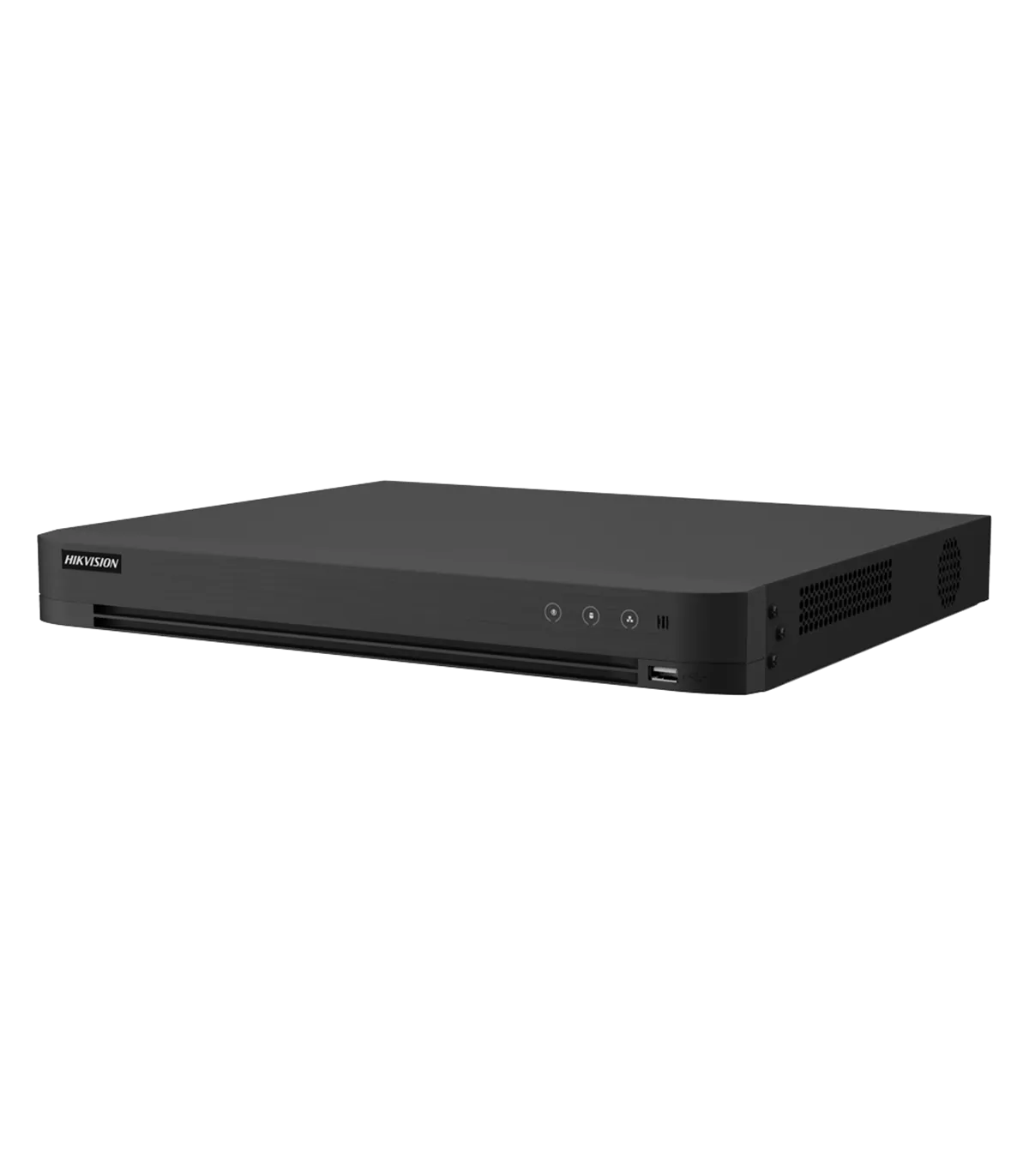

The iDS-7216HUHI-M2/XT is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports up to 16 channels of video input, including HDTVI, HDCVI, AHD, and CVBS, making it ideal for various security applications. With advanced features such as motion detection and AcuSense technology, this device provides enhanced security by filtering false alarms and recognizing faces, ensuring reliable monitoring in both residential and commercial environments.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 16 CH additional IP: Up to 32 IP channels (8 MP), replacing all BNC channels |
| Main Stream Encoding | 8MP@8 FPS; 3K@12 FPS, 5MP@12 FPS; 4MP @15 FPS; 8MP Lite@15 FPS; 3MP@18 FPS; 1080p /720p/WD1/4CIF/VGA/CIF@25 FPS(P)/30 fps (N) |
| Extra Stream Encoding | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Total Bandwidth | 256 Mbps |
| Video Outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Video Compression | Analog: H.265+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8MP (12 fps), 3K (20~25 fps), 5MP (20 fps), 4MP (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 8MP (12 fps), 3K (25 fps), 5MP (20 fps), 4MP (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5MP (20 fps), 4MP (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Audio Inputs | 1 RCA Channel (up to 16 channels via coaxial) |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Using audio input |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Alarm | Not available |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detection For NVR: Available on all channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| AcuSense | Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For NVR: Available on up to 8 channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Facial Recognition | Storage in up to 16 libraries. Face comparison on up to 4 CH. |
| Facial Detection | Facial detection; photo search; Up to 4 channels for image capture. |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 2 SATA 3.5" HDDs of up to 12 TB each (not included) |
| Communication | 1 x USB 2.0 (front panel) / 2 x USB 3.0 (rear panel) / RJ45 (Ethernet) 10/100/1000 Mbps / 1 x RS-485 |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 5 A, ≤ 60 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 385 (W) x 315 (D) x 52 (H) mm / ≤ 2.1 Kg (without HDD) |
The iDS-7216HUHI-M2/XT is an excellent choice for both residential and commercial security installations. For instance, a retail store can deploy this 5-in-1 DVR to monitor multiple areas simultaneously, utilizing its 16 channel capability. The remote monitoring feature allows store managers to keep an eye on operations from anywhere using the Hik-Connect app. Additionally, the AcuSense technology significantly reduces false alarms by filtering out non-threatening movements, such as those from customers. This ensures that security personnel can focus on genuine threats. The device's facial recognition capabilities can enhance security by identifying known shoplifters, while the 4K video output provides crystal-clear images for better analysis. Overall, the iDS-7216HUHI-M2/XT offers a comprehensive solution for effective surveillance and security management.
