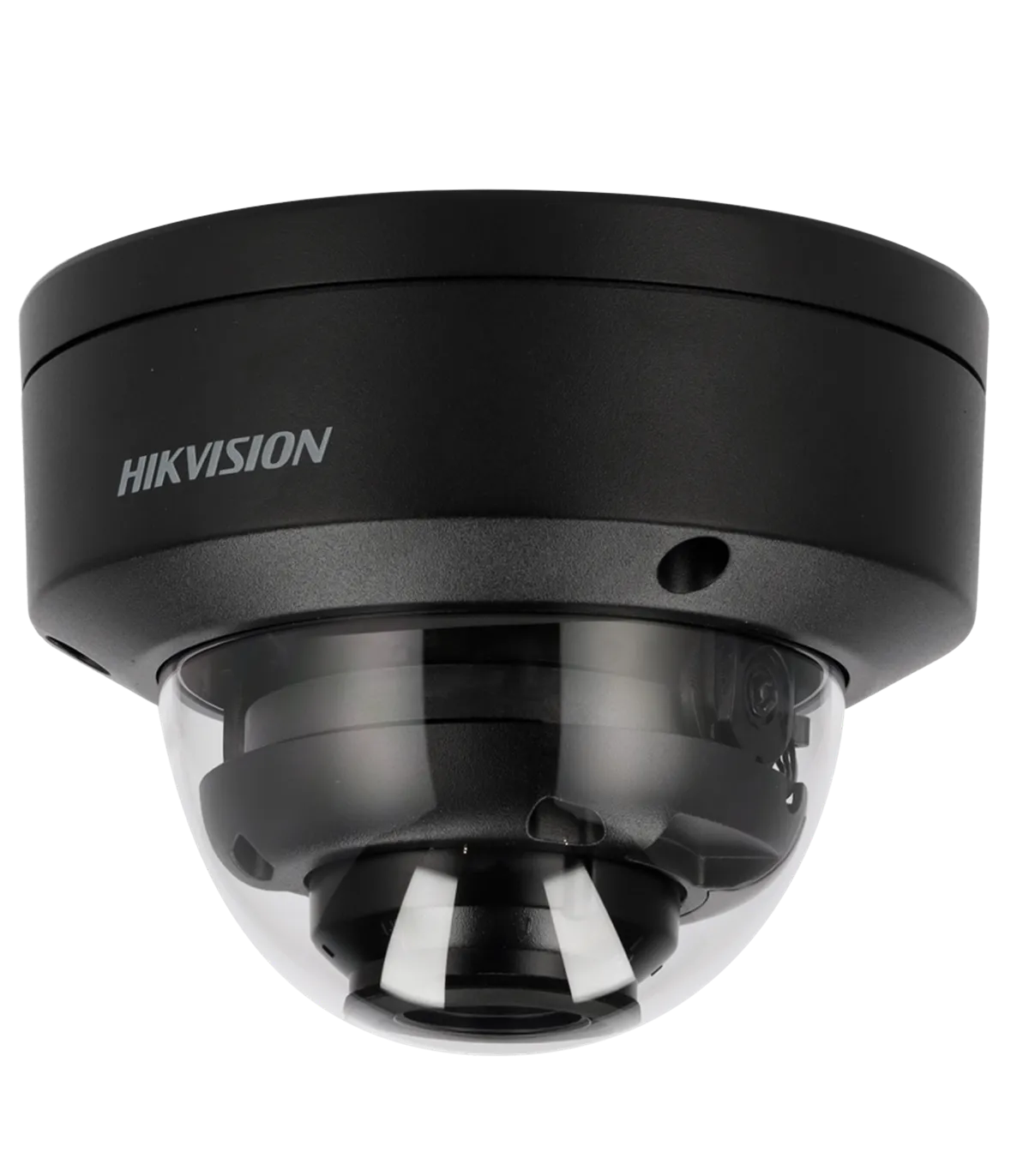

The DS-2CD2786G2HT-IZS(2.8-12)/eF//BLK is a high-performance IP dome camera designed for professional surveillance applications. It is ideal for both indoor and outdoor environments, providing exceptional image quality and advanced features. This camera is equipped with 8 Megapixel resolution, making it suitable for detailed monitoring in various settings. With its low light capabilities powered by DarkFighter technology, it ensures clear images even in challenging lighting conditions. The device also supports smart detection features, enhancing security by minimizing false alarms.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * (The third stream is available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 87~216 m (D), 35~86 m (O), 17~43 m (R), 9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 900 mA / 10.8 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 141 mm x 112 mm (H) |
| Base Dimensions | Ø base 141 mm / Ø between screws 125 mm / 3 screws |
| Weight | 840 g |
| Color | Black |
The DS-2CD2786G2HT-IZS(2.8-12)/eF//BLK is perfect for a variety of surveillance applications, such as monitoring retail stores, parking lots, and public spaces. For instance, in a retail environment, this camera can be strategically placed at entrances and high-traffic areas to provide comprehensive coverage. With its 8 Megapixel resolution, it captures detailed images that can help in identifying individuals and monitoring customer behavior. The low light capabilities ensure that the camera performs well even in dimly lit conditions, making it suitable for 24/7 surveillance. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, enhancing the overall security system's efficiency. The camera's remote access features allow security personnel to monitor live feeds from anywhere, ensuring prompt responses to incidents. Overall, the DS-2CD2786G2HT-IZS(2.8-12)/eF//BLK is an excellent choice for those seeking reliable and advanced surveillance solutions.
