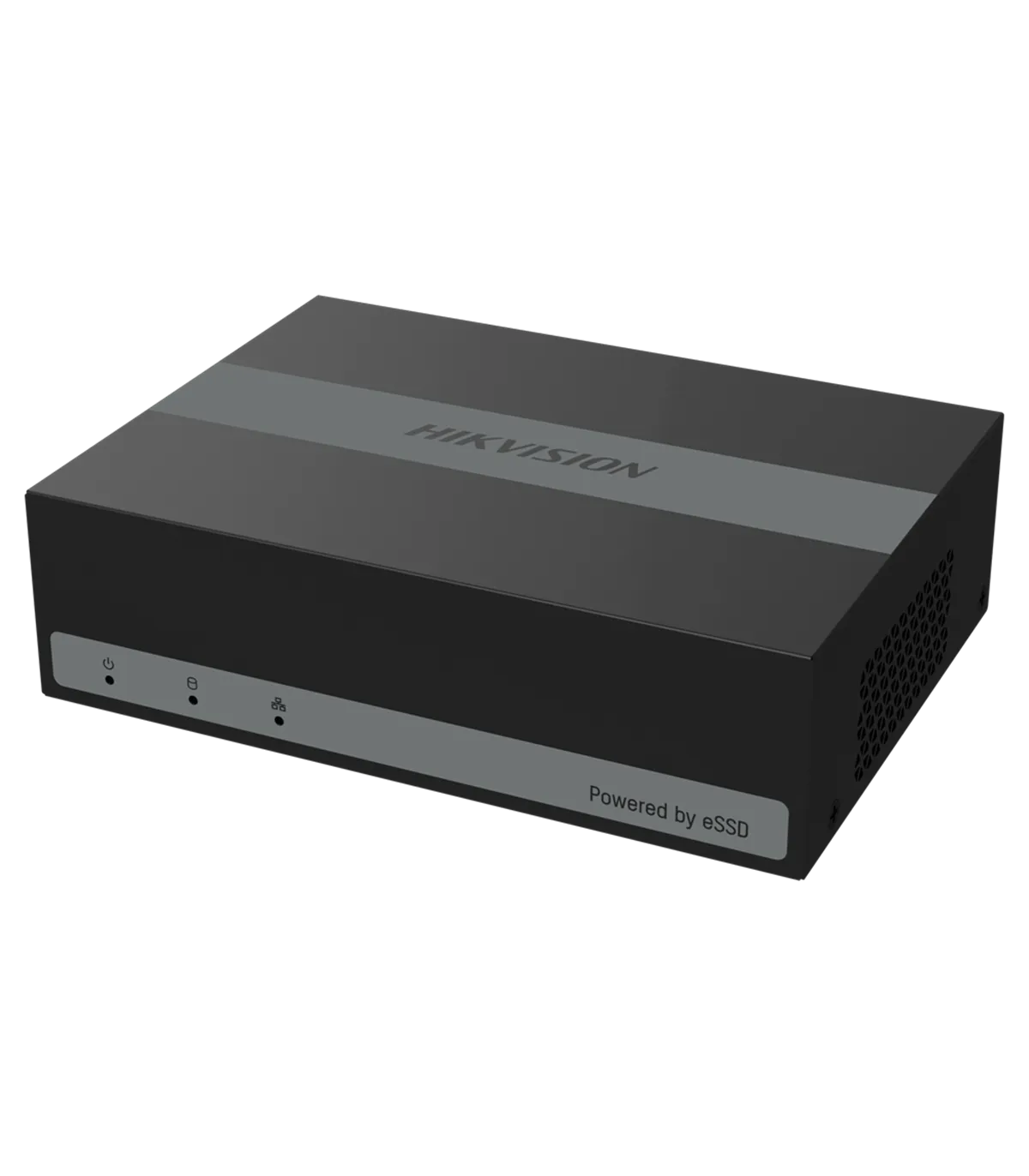

The iDS-E08HQHI-B+4/1 ALM is a versatile 5-in-1 DVR designed for high-definition video surveillance. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it suitable for various installation environments. This device is ideal for both residential and commercial applications, providing reliable security solutions with advanced features such as motion detection and AcuSense technology for enhanced alarm accuracy.
| Brand | HIKVISION |
| Series | Value |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 2CH IP additional up to 6 MPx |
| Available Bandwidth | 96 Mbps |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio Inputs | Audio over coaxial on all BNC input channels |
| Audio Outputs | Audio output via HDMI |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog channels: H.265 Pro / H.265 IP channels: H.265+/ H.265 |
| Recording Resolution | When 1080p Lite mode is not enabled: 5MPx Lite/ 3K/ 4MPx Lite/ 1080p/ 1080p Lite/ 720p/ WD1/ 4CIF/ CIF When 1080p Lite mode is enabled: 5MPx Lite/ 3K Lite/ 4MPx Lite/ 1080p Lite/ 720p/ WD1/ 4CIF |
| Input Resolution | HDTVI: 5MPx (20 fps), 3K (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 5MPx (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5MPx (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | When 1080p Lite mode is not enabled: For the 5 MPx stream: 5MPx Lite (12 fps), 4MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For the 1080p stream: 1080p/720p (15 fps), WD1/4CIF (25 fps (P), 30 fps (N)) For the 720p stream: 720p/WD1/4CIF(25 fps (P), 30 fps (N)) When 1080p Lite mode is enabled: 5MPx Lite (12 fps), 4MPx Lite (15 fps), 1080p Lite/720p/WD1/4CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | Video bitrate adaptable according to scene type |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 4 inputs / 1 output |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied to motion detection. Available on all analog channels. |
| Smart Functions | AcuSense, available on up to 8 channels. Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 1 included eSSD of 1024 GB (960 GB available) |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 64 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1 A, ≤ 8.2 W (with eSSD) |
| Operating Temperature | -10° ~ +45° C |
| Dimensions | 46 (H) mm x 170 (W) mm x 121.6 (D) mm |
| Weight | ≤ 0.5 Kg (with eSSD) |
The iDS-E08HQHI-B+4/1 ALM is an excellent choice for installers looking to provide comprehensive security solutions for both residential and commercial properties. In a typical deployment, the device can be integrated into an existing security system, allowing for remote monitoring via the Hik-Connect app. This feature enables users to access live feeds and recorded footage from anywhere, enhancing the overall security management. The motion detection capabilities, combined with AcuSense technology, significantly reduce false alarms by accurately classifying human and vehicle movements. Additionally, the lightweight and compact design of the DVR makes it easy to install in various locations, while the included 1024 GB eSSD ensures ample storage for high-resolution recordings. With its pentaplex functionality, users can simultaneously view, record, and playback footage, making it a versatile solution for any security setup.
