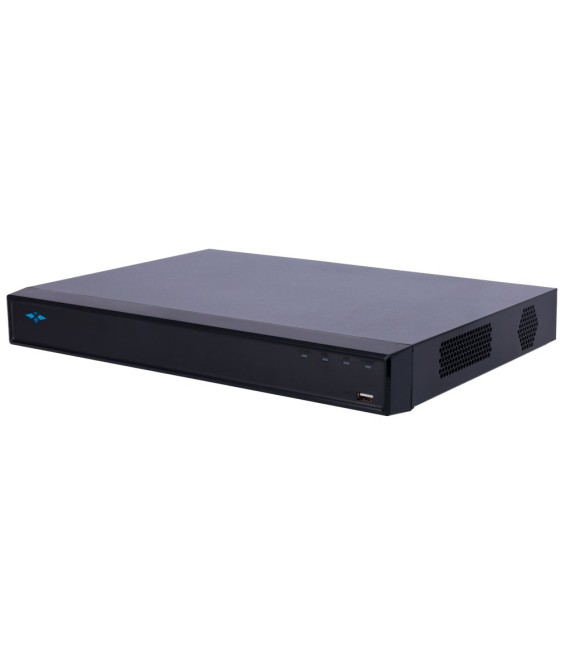

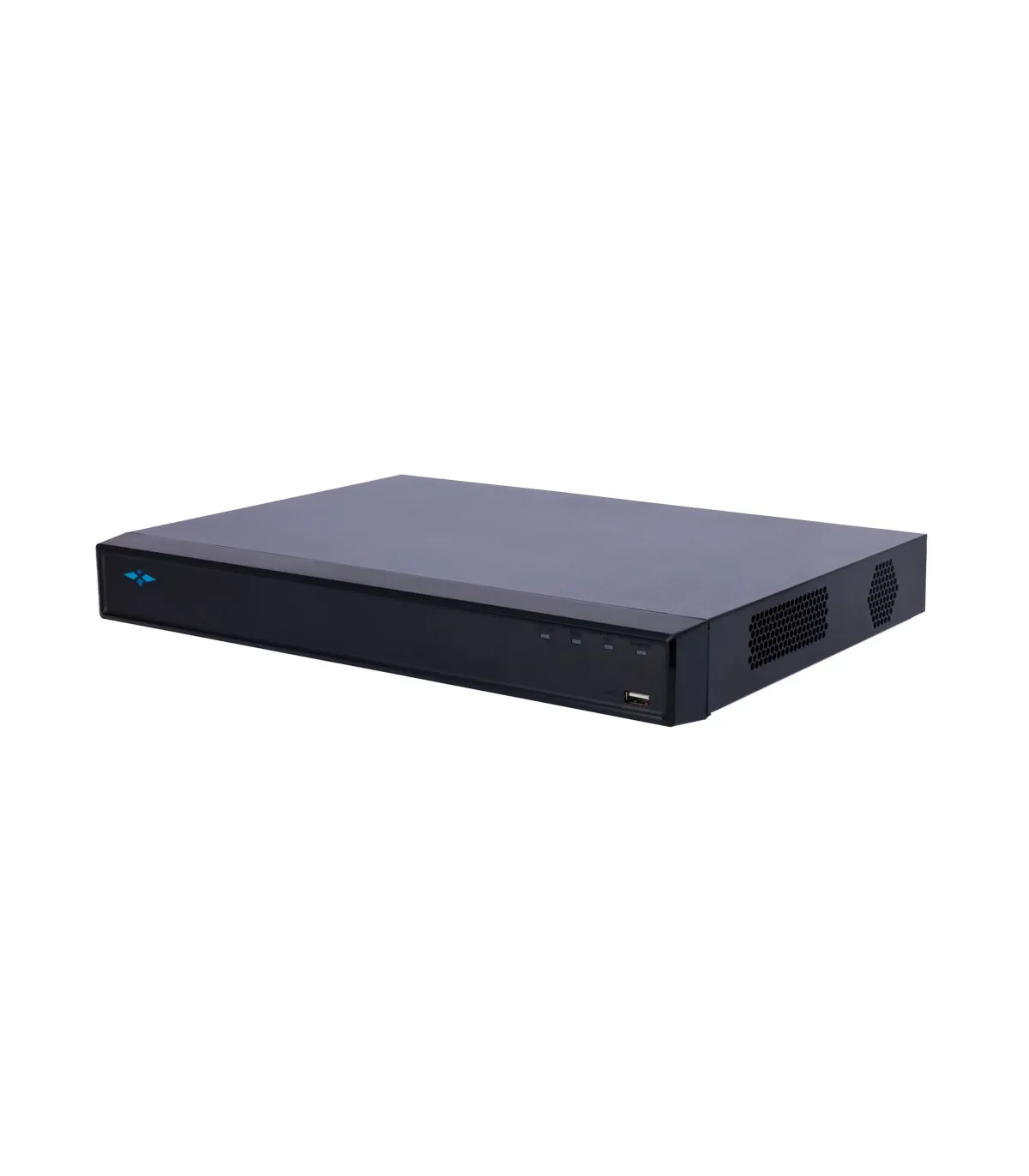

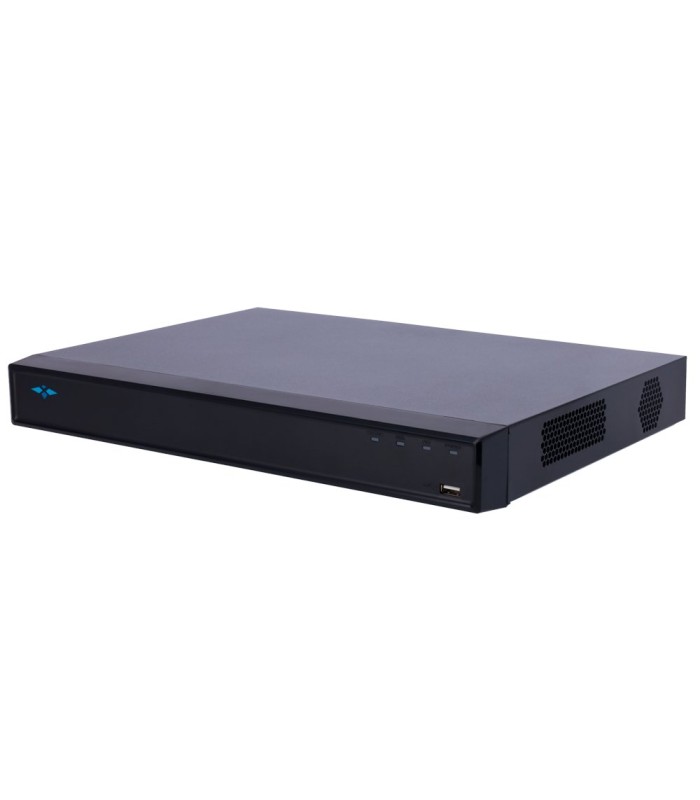

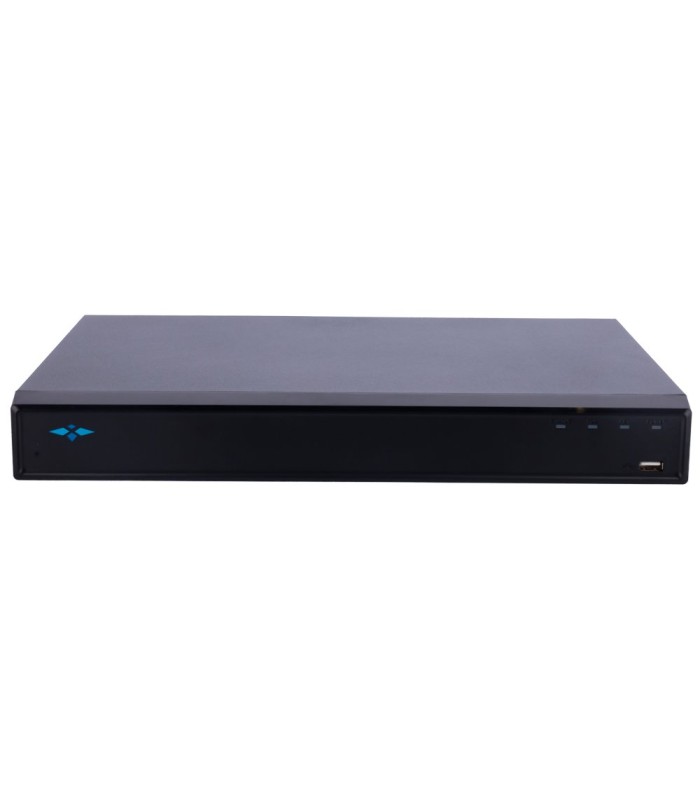

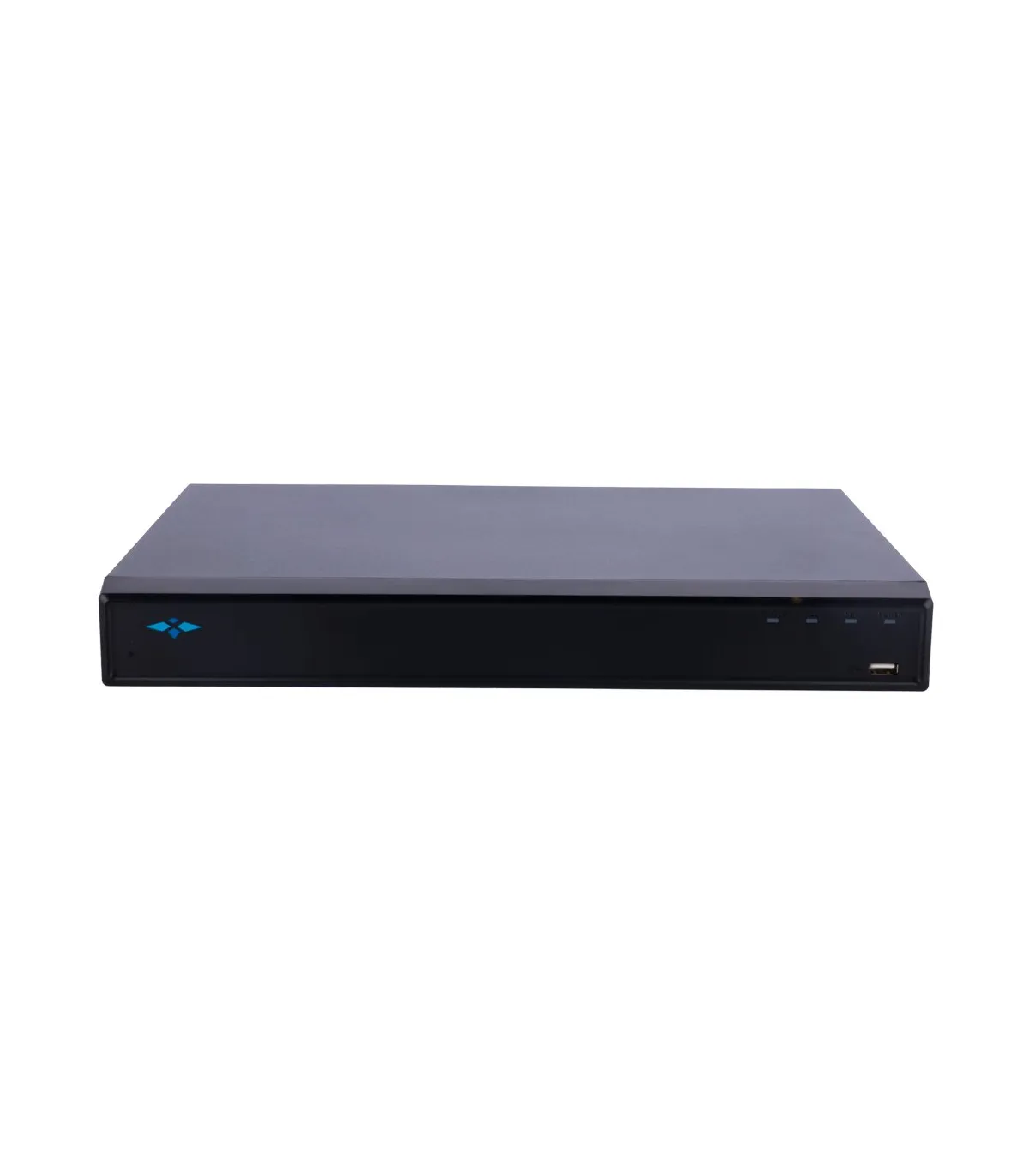

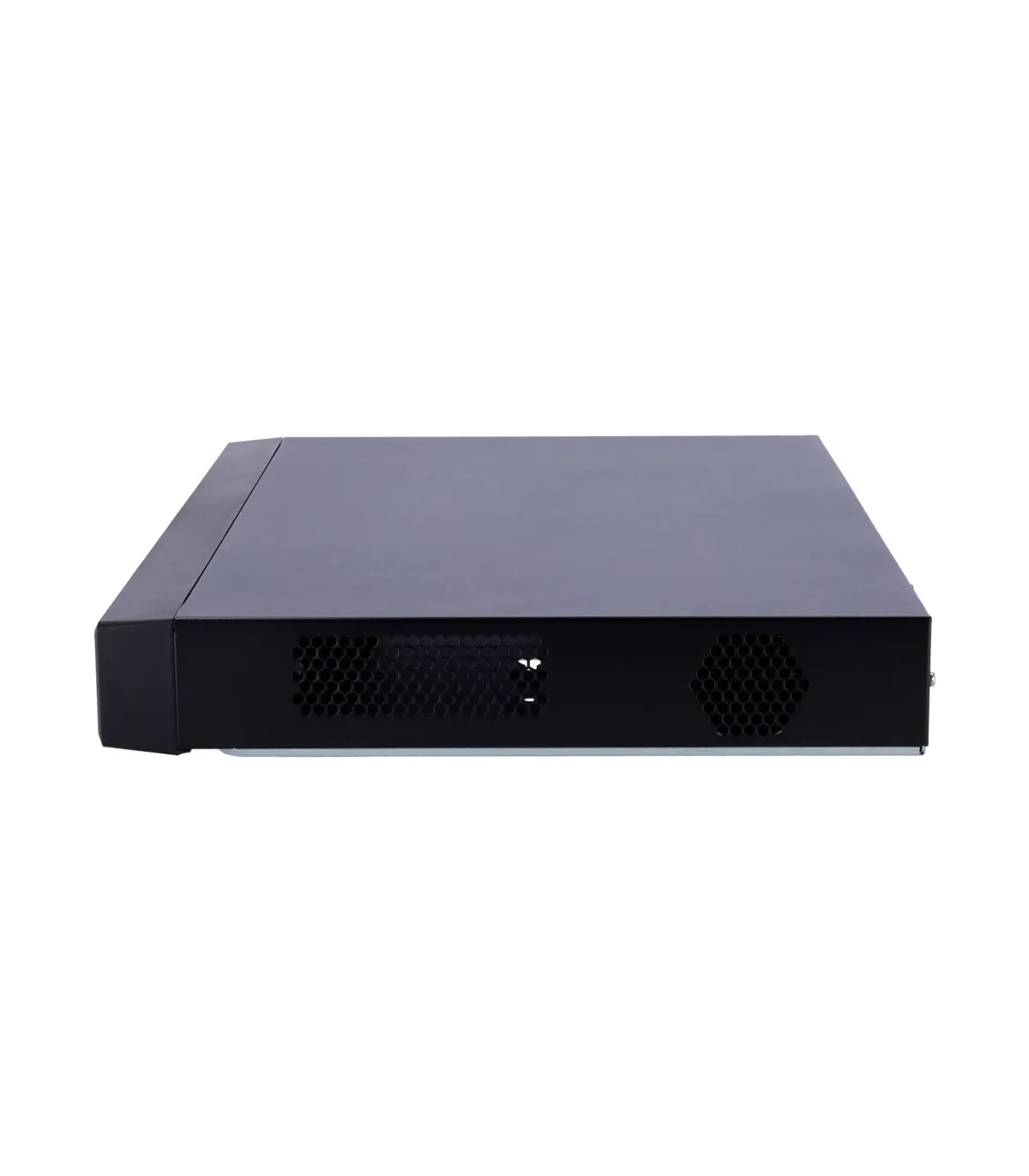

X-Security NVR Recorder ACUPICK XS-NVR6208A-AI
Brand: X-SECURITY
- X-Security NVR ACUPICK Recorder
- 8 CH IP
- Maximum resolution 32 Megapixel
- Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- 1 x HDMI and VGA output
X-Security NVR Recorder ACUPICK XS-NVR6208A-AI
- X-Security
- NVR Recorder for IP cameras
- 8 CH
- Supported bandwidth 384Mbps without AI
- H.265+/H.265/H.264+/H.264
- Resolution up to 32Mpx
- ACUPICK
- AI
- Facial detection and recognition
- Perimeter protection
- SMD Plus
- Metadata
- ANPR
- Stereo analysis
- Heat map
- People counting
- PTZ
- Alarm
- Audio

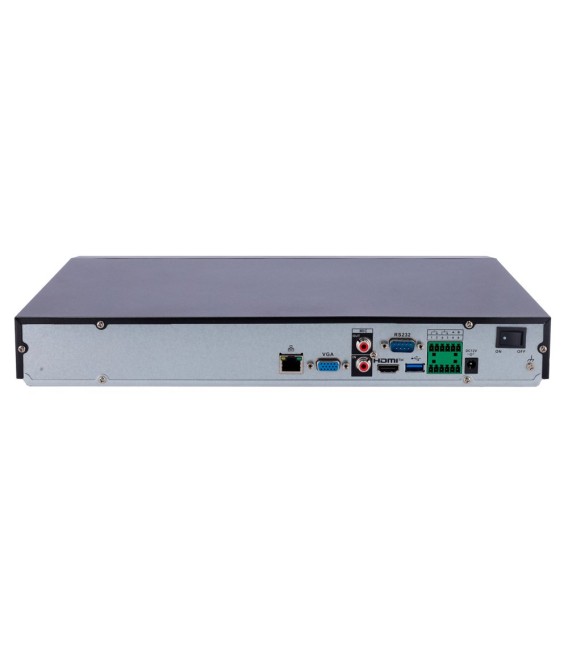

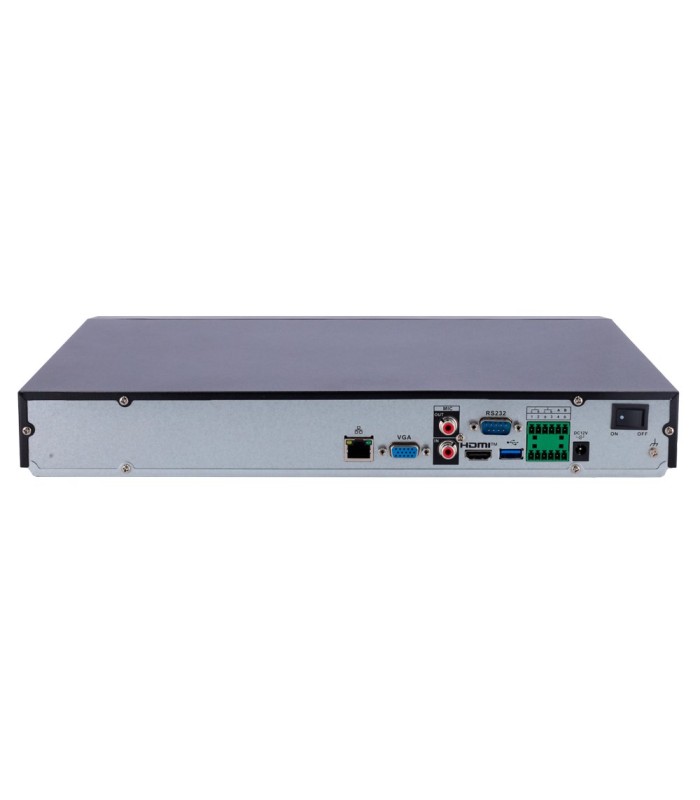

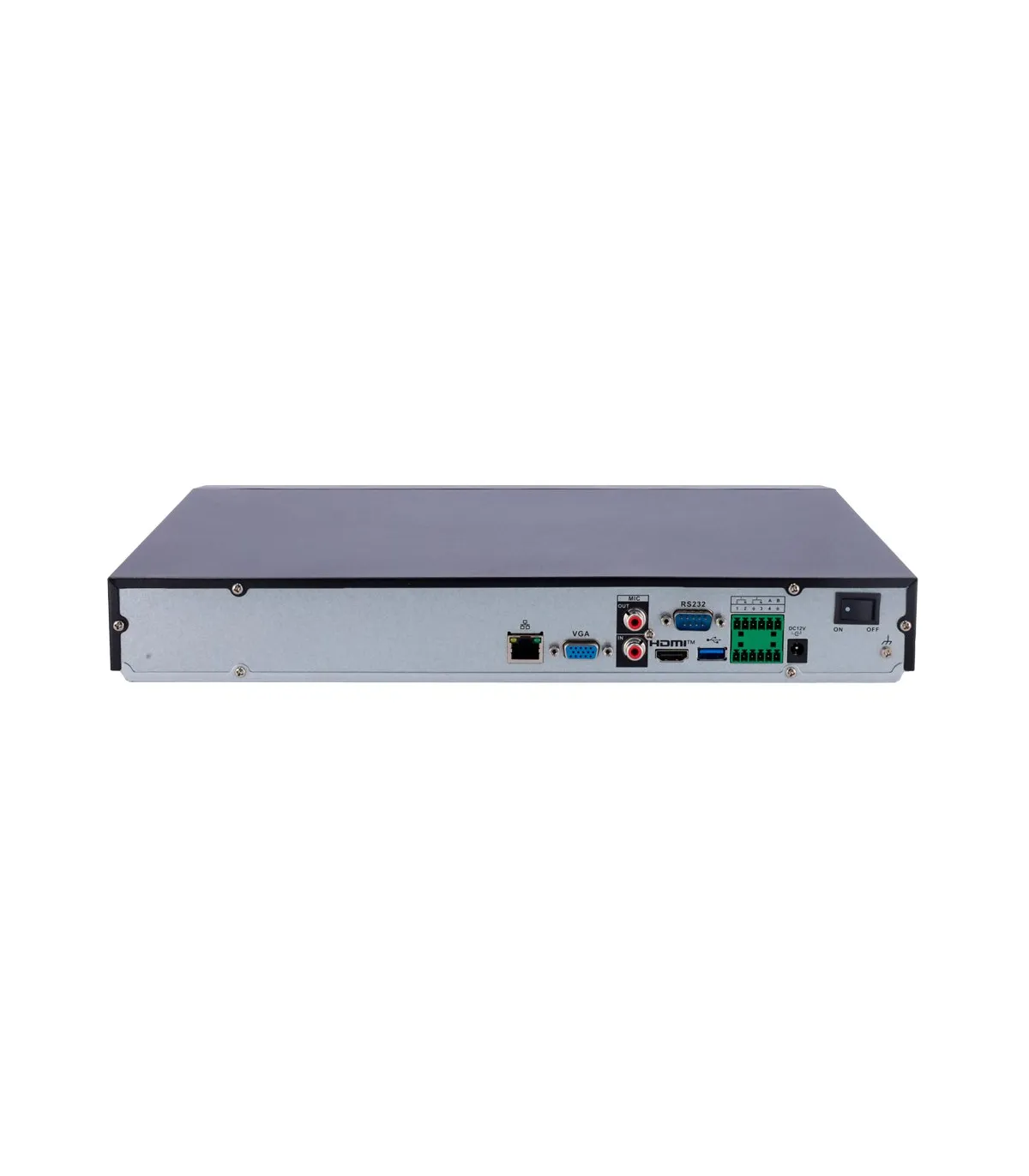

- 1 HDMI 4K output and 1 VGA output
- Supports N+M cluster
- Space for 2 HDD
- WEB, CMS, and Smartphone interface
- ONVIF compatible
Technical Specifications
| Brand | X-SECURITY |
| IP Camera Inputs | LAN port up to 8 channels |
| Bandwidth | AI off: 384 Mbps incoming, 384 Mbps recording, and 384 Mbps outgoing AI on: 200 Mbps incoming, 200 Mbps recording, and 200 Mbps outgoing |
| N+M Cluster | Supported |
| Video Outputs | 1 HDMI 4K and 1 VGA |
| Bidirectional Audio | 1 input, 1 output, RCA |
| Video Compression Format | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Display Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Decoding Capacity | AI off: 2 channels 32 MP@20 fps; 2 channels 24 MP@20 fps; 4 channels 16 MP@30 fps; 5 channels 12 MP@30 fps; 8 channels 8 MP@30 fps; 12 channels 5 MP@30 fps; 16 channels 4 MP@30 fps; 32 channels 1080p@30 fps AI on: 1 channel 32 MP@20 fps; 1 channel 24 MP@20 fps; 2 channels 16 MP@30 fps; 4 channels 12 MP@30 fps; 4 channels 8 MP@30 fps; 8 channels 5 MP@30 fps; 12 channels 4 MP@30 fps; 24p@1080 fps for 30 channels |
| Recorder AI Features | Face detection; facial recognition; perimeter protection; SMD Plus |
| Camera AI Features | Face detection; facial recognition; video metadata (human, motorized, and non-motorized vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; Heat map |
| AcuPick AI by Camera + Recorder | Max. 16 channels, 1 combined event per channel |
| AI Perimeter Performance by Recorder (number of channels) | 4 channels, 10 IVS rules for each channel |
| AI Perimeter Performance by Camera (number of channels) | 8 channels |
| Face Detection | Gender; age group; glasses; Expressions; Mask; beard |
| Network Port | 1 (Ethernet 10/100/1000 Mbps, RJ-45) |
| AI Face Detection Performance by Recorder (number of channels) | 2 channels (up to 12 facial images per channel) |
| AI Face Detection Performance by Camera (number of channels) | 8 channels |
| Face Database Capacity | Up to 20 facial databases with 20,000 images can be added, with a total capacity of 2.5 G. Name, gender, date of birth, address, credential type, credential number, countries and regions, and status can be added to each face image. |
| AI Face Recognition Performance by Recorder (number of channels) | 1. 8-channel FD (per camera) + FR (per recorder), image flow: 16 facial images/s 2. 2-channe FD (per recorder) + FR (per recorder), video flow: 12 facial images/s |
| AI Face Recognition Performance by Camera (number of channels) | 8 channels |
| SMD Plus | SMD Plus by recorder; 8 channels: Secondary filtering for human and motorized vehicles, reducing false alarms caused by leaves, rain, and changing lighting conditions SMD Plus by camera; 16 channels |
| AI Metadata Performance by Camera (number of channels) | 8 channels |
| Human Attributes | Upper color, upper type, lower color, lower type, hat, bag, age, gender, and umbrella |
| Recording Method | Manual, scheduled, motion detection, alarm |
| Intelligent Functions | Line crossing, Intrusion, Abandoned object, Face detection, heat map |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Motorized Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, call, seat belt, vehicle interior, vehicle registration location |
| Non-Motorized Vehicle Attributes | Vehicle model, vehicle color, number of people, helmet |
| ANPR by Camera (number of channels) | 8 channels |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blacklist and whitelist |
| Alarms | 4 Inputs / 2 Relay NO/NC |
| Internal Storage | 2 SATA 3.5" HDDs up to 16 TB (not included) |
| Third-Party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Communication | 2xUSB Ports / 1 RJ45 10/100/1000M (Ethernet) |
| Remote Access | Browser (ActiveX), Mobile phone app, or PSS software |
| Power | DC 12 V / 4 A |
| Dimensions | 375.0 × 284.4 x 56.0 mm |
| Weight | 2.73 kg |
Content
- X-SECURITY NVR Recorder
- Mouse
- Ethernet Cable
- Power Cable
- User Manual
- CD with manual and software
