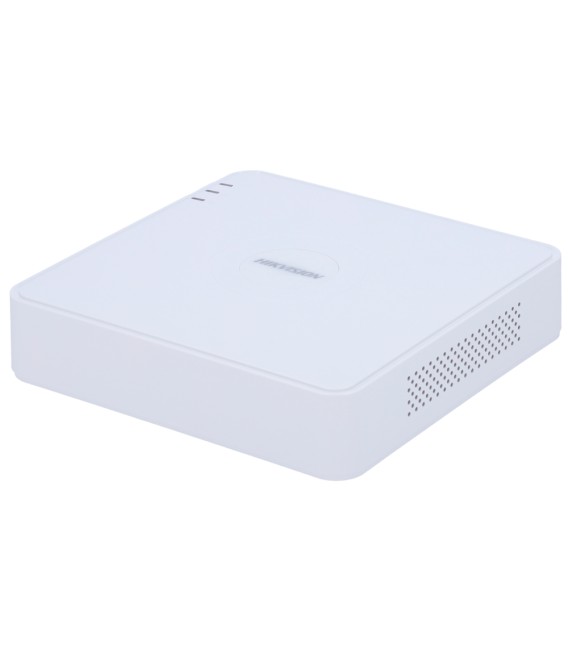

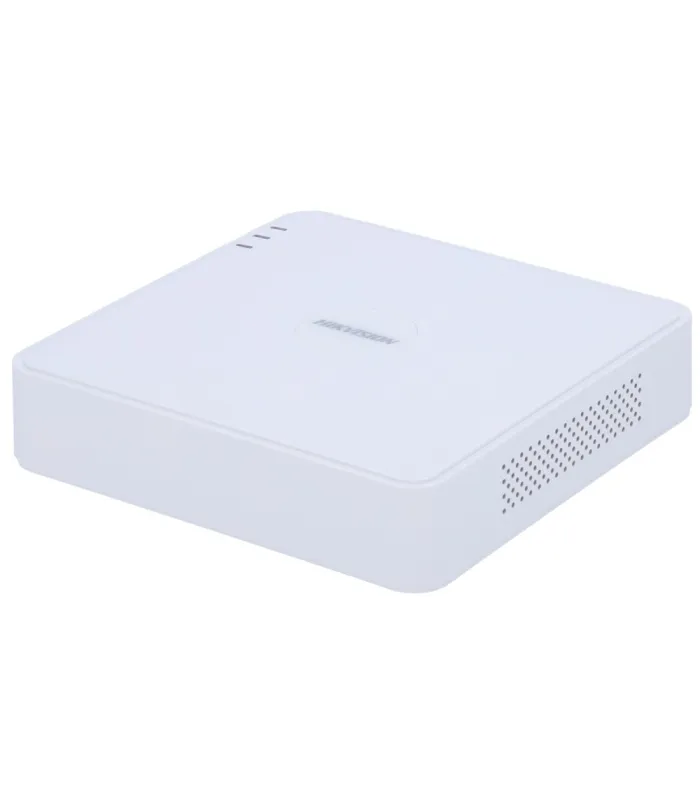

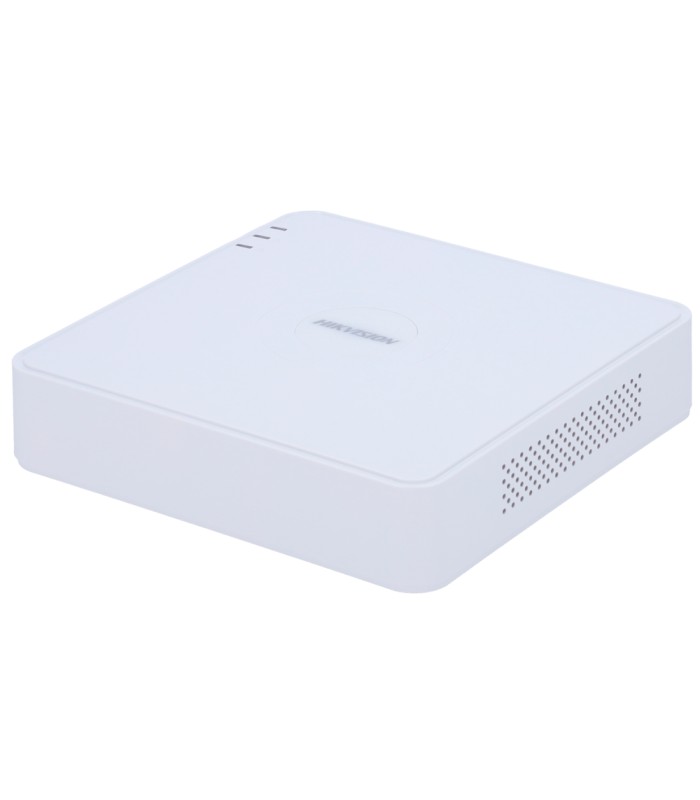

Hikvision DVR 5n1 iDS-7104HUHI-M1/S(E)

Name: Hikvision DVR 5n1 iDS-7104HUHI-M1/S(E)
Price: 136.213 EUR
Availability: InStock

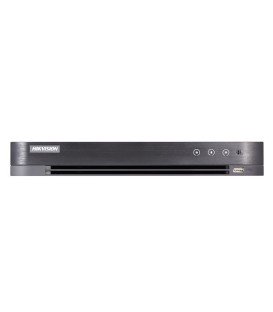

Hikvision iDS-7204HUHI-M1/X - 4 CH 5MP 1U H.265 AcuSense Digital Recorder

Brand: HIKVISION VALUE

SKU: iDS-7104HUHI-M1/S(E)

Condition: New product

Hikvision DVR 5-in-1
4 CH HDTVI / HDCVI / AHD / CVBS
Up to 8 IP channels
Maximum input resolution 8 Mpx
AcuSense | Face Detection
Supports 1 hard drive up to 10TB

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

Hikvision DVR 5n1 iDS-7104HUHI-M1/S(E)

Hikvision
DVR 5n1
4 CH video HDTVI/HDCVI/AHD/CVBS
4 CH IP (up to 8 CH IP in total by channel replacement analog)
H.265 Pro+/H.265+/H.265
Maximum input resolution 8Mpx
Audio over coaxial 4 CH
Motion detection 2.0 on all analog channels
Accusense, false alarm filter for vehicles and people up to 4 channels
Face Detection
HDMI output 2K and VGA
Audio input and output
Space for 1 HDD
Compact size
White color

Technical specifications

Brand	HIKVISION
Range	Value
Video format	HDTVI / HDCVI / AHD / CVBS / IP
Video inputs	4 BNC Channels, (HDTVI / HDCVI / AHD / CVBS)
Hybrid Configuration	2 additional IP CH: Up to 6 IP channels (8Mpx), replacing all BNC channels Enhanced IP mode: 4 additional IP CH: Up to 8 IP Channels (4Mpx), replacing all BNC channels
Available bandwidth	96 Mbps
Video outputs	1 HDMI 2K and 1 VGA, simultaneous;
Display resolution	HDMI: 2560x1440, 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz
Audio inputs	1 Channel RCA
Audio outputs	1 Channel RCA
Two-way audio	Reusing the audio input
Audio Bit Rate	64 Kbps
Audio compression	G.711u
Video compression	Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264
Input resolution	HDTVI: 8Mpx (12~15 fps), 3K (20 fps), 5Mpx (12~20 fps), 4Mpx (25~30 fps), 3Mpx (18 fps), 1080p (25~30 fps), 720p (25~60 fps) (25~30 fps), 720p (25~60 fps) AHD: 5Mpx (12~20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC
Main Stream Encoding	8Mpx (8 fps), 3K (12 fps), 5Mpx (12 fps), 4Mpx (15 fps), 8 MPx Lite (15 fps), 3Mpx (18 fps), 1080p /720p/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) * 8Mpx@8 fps is only available for channel 1 * 8MPx Lite is only available for channels 2 to 4
Extra Stream Encoding	WD1/4CIF/CIF (25 fps (P), 30 fps (N))
Video Bit Rate	32 Kbps at 10 Mbps
Simultaneous multifunction	Pentaplex: Direct, Recording, Playback, Backup and Remote Access
Alarms	Not available
Artificial Intelligence	Motion Detection 2.0: Motion detection based on deep-learning can classify humans and vehicles on motion detection. Enabled by default on all analog channels * Motion detection and AcuSense cannot be enabled at the same time on the same device.
Intelligent functions	AcuSense: Perimeter protection based on VCA rules with false alarm filter for detection of humans and vehicles. Available in up to 4 channels of analog video * Motion detection and AcuSense cannot be enabled at the same time on the same device.
Face Detection	Yes
Recording method	Manual, scheduled, motion detection
Backup	USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal storage	1 SATA 3.5" HDD up to 10 TB (not included)
Communication	2 x USB (Mouse and backup) / RJ45 (Ethernet)
Remote Connections	32
Remote Access	Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central
Power	DC 12 V, 1.5 A, ≤ 15 W (without HDD)
Operating Temperature	-10° ~ +55° C
Dimensions / Weight	45 mm (H) x 200 mm (W) x 200 mm (D) / ≤ 1.16 Kg (without HDD)
Color	White
