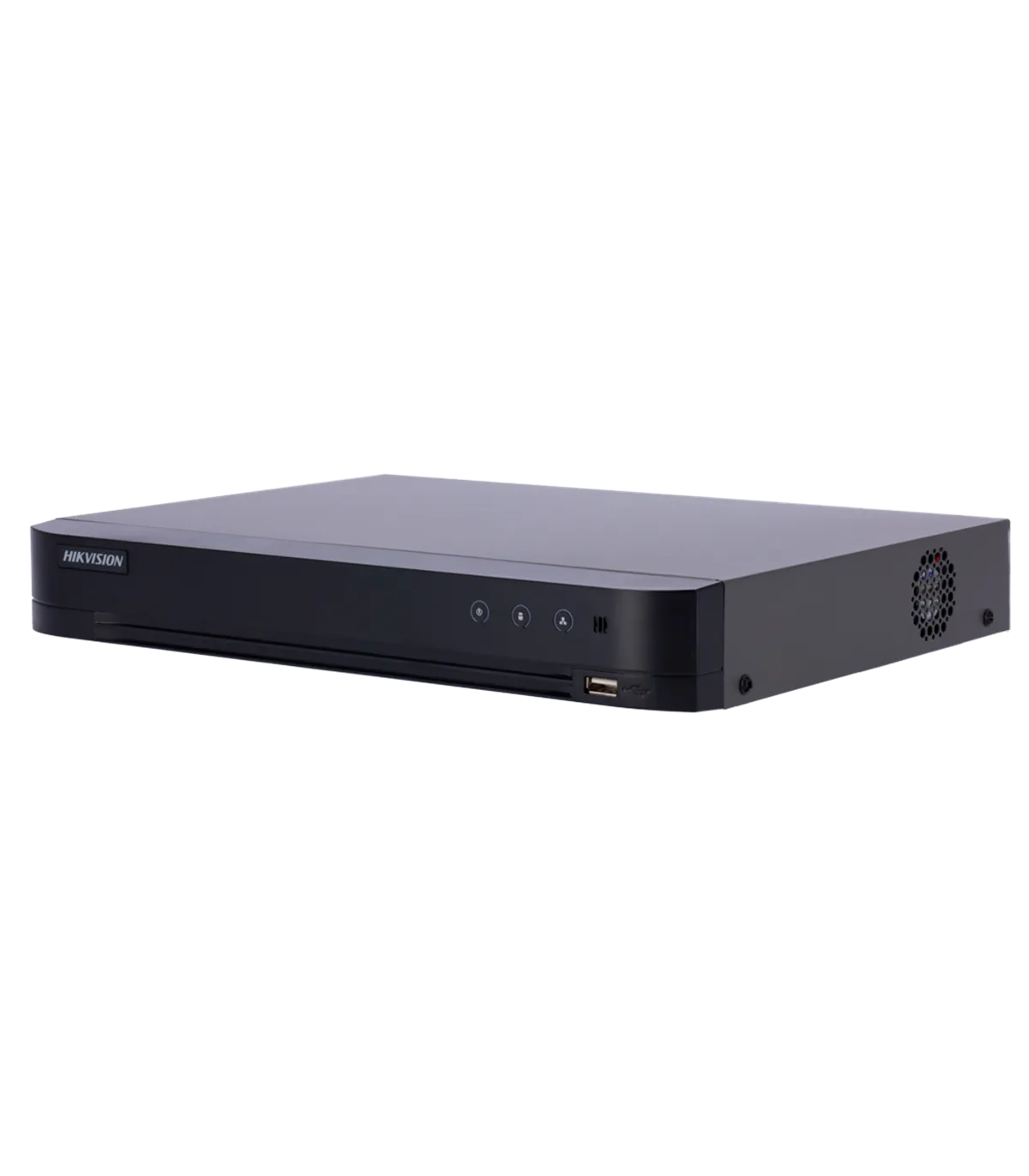

The iDS-7204HQHI-M1/XT is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it ideal for various installation environments. With advanced features such as motion detection and face recognition, this device is perfect for enhancing security in both residential and commercial settings.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 1CH additional IP: Up to 5 IP channels (6 Mpx), replacing all BNC channels Enhanced IP mode: 2CH additional IP: Up to 6 IP channels (6 Mpx), replacing all BNC channels |
| Video Outputs | 1 Full HD HDMI and 1 VGA, simultaneous; 1 BNC CVBS |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 CVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Audio Inputs | 1 RCA Channel 4 audio channels over coaxial |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | With 1080p Lite mode disabled: 3K Lite / 5 Mpx Lite / 4Mpx Lite / 1080p / 720p / WD1 / 4CIF / VGA / CIF With 1080p Lite mode enabled: 3K Lite / 5Mpx Lite / 4Mpx Lite / 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Input Resolution | HDTVI: 3K (2960x1665) (25 fps), 3K (3328x1504) (20 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 3K (2880x1620) (25 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | 1080P Lite disabled 3K Stream: 3K Lite (12 FPS), 4 Mpx Lite/1080p (15 FPS); 720p/WD1/4CIF/VGA/CIF (20 FPS) 5 Mpx Stream: 5 Mpx Lite (12 FPS), 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (20 FPS) 4 Mpx Stream: 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (25 FPS) 1080p Stream: 1080p/720p (15 FPS); VGA/WD1/4CIF/CIF (25 FPS) (P) 720p Stream: 720p/VGA/WD1/4CIF/CIF (25 FPS) (P) 1080P Lite enabled 3K Lite/5 Mpx Lite (12 FPS), 4 Mpx lite /15 FPS), 1080p lite/720p lite/VGA/WD1/4CIF/CIF (25 FPS) (P) |
| Extra Stream Encoding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion detection 2.0: Deep-learning based motion detection, capable of classifying humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Features | AcuSense: Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. Available on up to 2 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Recognition | Face image comparison, searching images with faces on up to 1 channel. Up to 16 face libraries. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 1xUSB 2.0 (front), 1xUSB 2.0 (rear) / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex |
| Bandwidth | 72 Mbps |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power Supply | DC 12 V, 1.5A, ≤ 18 W |
| Operating Temperature | -10° ~ +55° C |
| Dimensions / Weight | 48 (H) mm x 319 (W) mm x 236 (D) mm / ≤ 1.16 Kg |
The iDS-7204HQHI-M1/XT is ideally suited for a variety of surveillance applications, including retail stores, warehouses, and residential properties. Installers can leverage its 5-in-1 DVR capabilities to integrate multiple camera types seamlessly, ensuring comprehensive coverage. The device's motion detection 2.0 feature enhances security by accurately identifying human and vehicle movements, reducing false alarms. With remote monitoring capabilities via the Hik-Connect app, users can access live feeds and recorded footage from anywhere, providing peace of mind. Additionally, the face recognition functionality allows for advanced security measures, enabling users to track known individuals or detect unauthorized access. The iDS-7204HQHI-M1/XT's compatibility with various video formats ensures flexibility in deployment, making it a top choice for both installers and end-users seeking reliable and efficient surveillance solutions.
